适用于约翰迪尔 Flexwing 割草机 CX20、CX15、HX20、HX15、MX15 的动力输出轴

Reliable PTO Shaft for John Deere Flexwing Mower Models

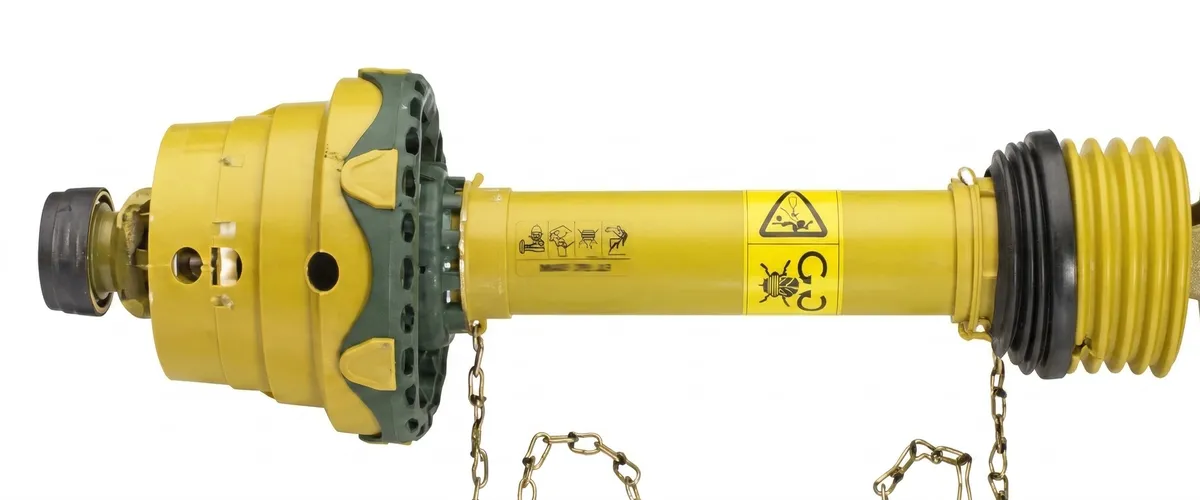

PTO Shaft for John Deere Flexwing Mower Model: CX20, CX15, HX20, HX15, MX15

CMN Transmission delivers a premium-quality PTO shaft for John Deere flexwing mowers built to handle the extreme torque and continuous operation that commercial mowing demands. Designed as a direct-fit replacement of Walterscheid 2580 PTO shaft, this tractor PTO shaft features a CAT 5 constant velocity main shaft assembly with a 1.750-20 spline interface, ensuring seamless power transfer from your tractor to the power divider of your flexwing mower. Whether you are managing large-scale hay fields, maintaining municipal roadsides, or clearing overgrown pastures, this flexwing mower PTO shaft provides the reliability you need to keep cutting without costly downtime.

Every component of this PTO drive shaft is precision-manufactured to meet or exceed OEM specifications for the John Deere CX20, CX15, HX20, HX15, and MX15 series. The system includes matched center shafts, wing shafts, and K90/4T friction clutches with 1.750-20 spline bores, giving operators a complete PTO driveline shaft solution ready for immediate installation. From large cattle ranches in North America to grain farms across Europe and Australia, this agricultural PTO shaft is trusted by operators who demand durability, precision, and consistent performance season after season.

技术规格

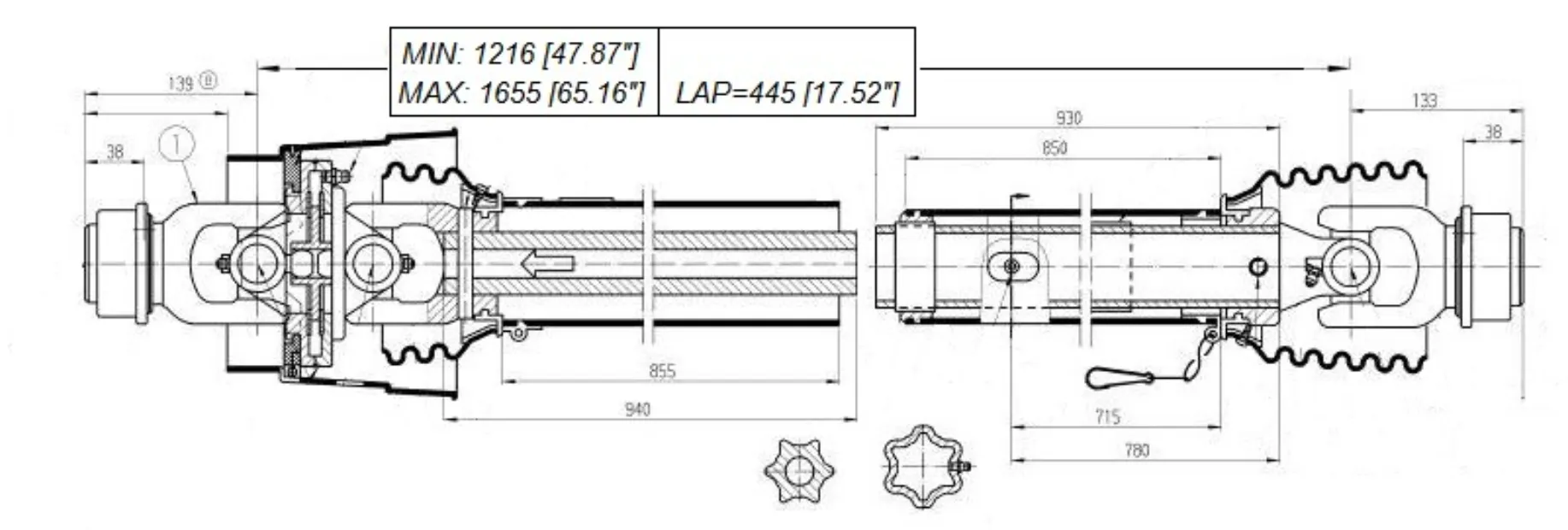

Main Shaft: CAT 5/6 Constant Velocity

Our research indicates most tractors using 1.750-20 spline and input shaft to power divider is 1.750-20 spline. Other combinations are available.

CAT 6 Constant Velocity (Replacement of Walterscheid 2580 Series)

Tractor Output Shaft	Complete CV Assembly Part Number (no implement yoke)	CV 1/2 shaft 零件编号	Implement Half (2500) 零件编号
	2580 * 1.375-6 x open * with webbing w uj 2580 * 1.375-6 HALF SHAFT	2580 * 1.375-6 HALF SHAFT	2500 * S5 * * SC25 * NO END
	2580 * 1.375-21 x open * with webbing* w uj 2580 * 1.375-21 HALF SHAFT	2580 * 1.375-21 HALF SHAFT	2500 * S5 * * SC25 * NO END
	2580 * 1.750-20 x open ** webbing * 58 OAL CLOSED 2580 * 1.750-20 HALF SHAFT PW580 WITH 1.75-20 & REAR UJ no end	2580 * 1.750-20 HALF SHAFT	2500 * S5 * * SC25 * NO END

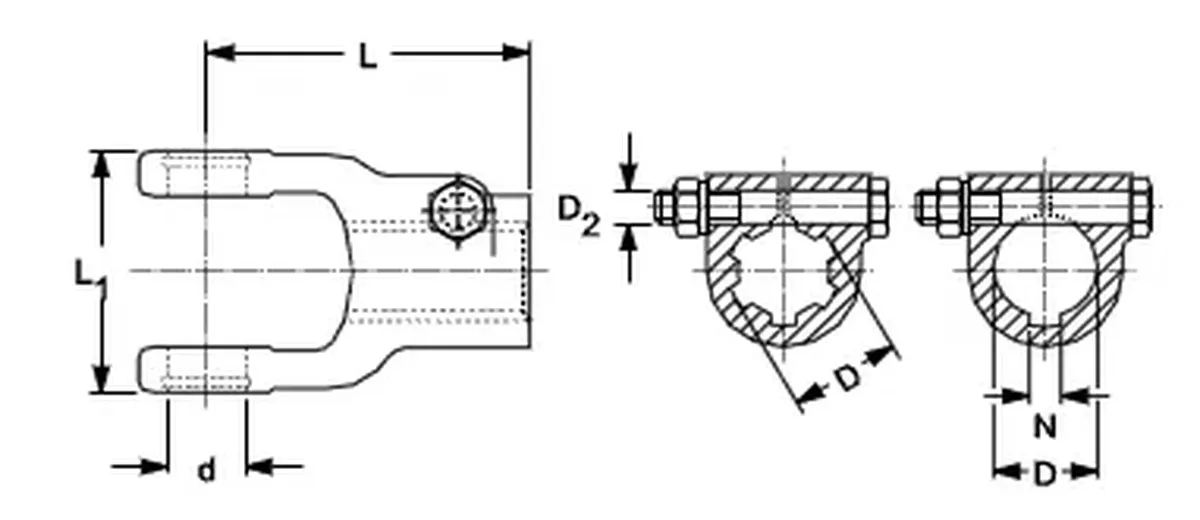

Connecting Yoke

Power Divider Input and Output Shafts Are 1.75-20 Spline.

	系列	钻孔	零件编号
	CAT4 * 2400	1.750-20	2400 1.750-20 CLAMP
	CAT5/6 * 2500	1.750-20	2500*1.75-20 clamp

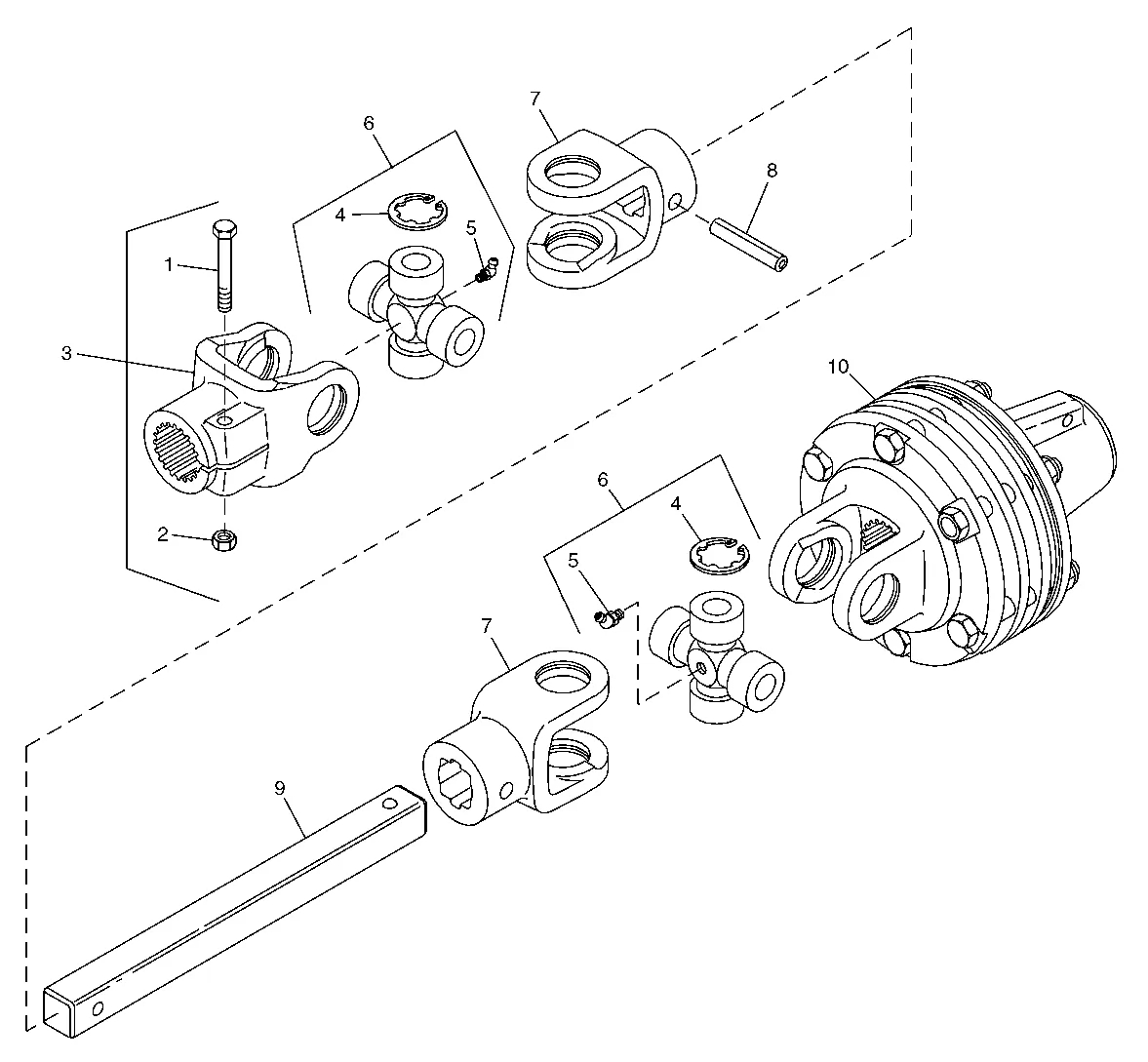

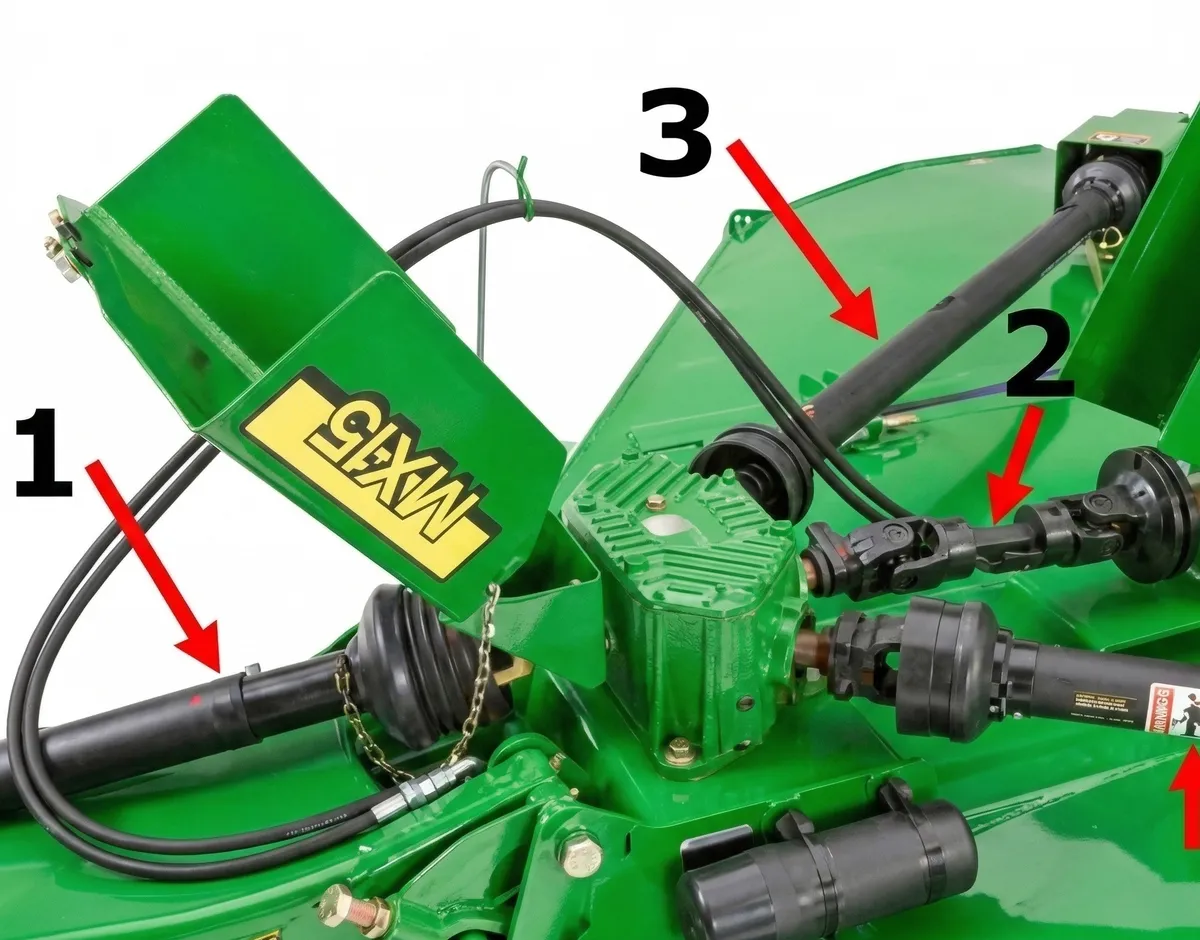

中心轴

This indicates all shafts on the power divider are 1.750-20 spline.

	模型	PTO size
	MX15	CAT4
	HX15	CAT4
	HX20	CAT4
	CX15	CAT5
	CX20	CAT5

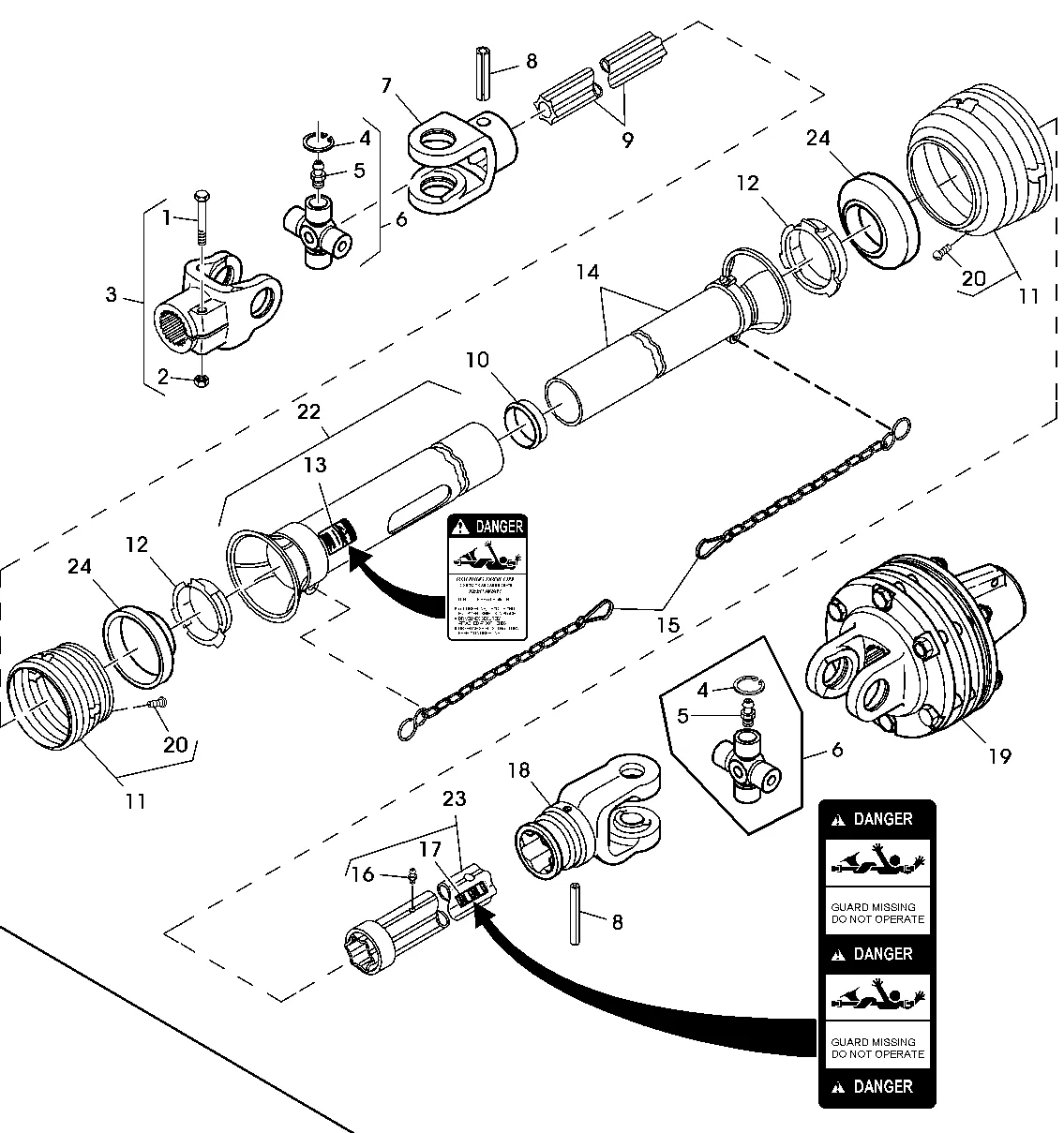

Wing Shafts: Cat 4 /5 Standard

	模型	PTO size
	MX15	CAT4
	HX15	CAT4
	HX20	CAT4
	CX15	CAT5
	CX20	CAT5

Assemblies:

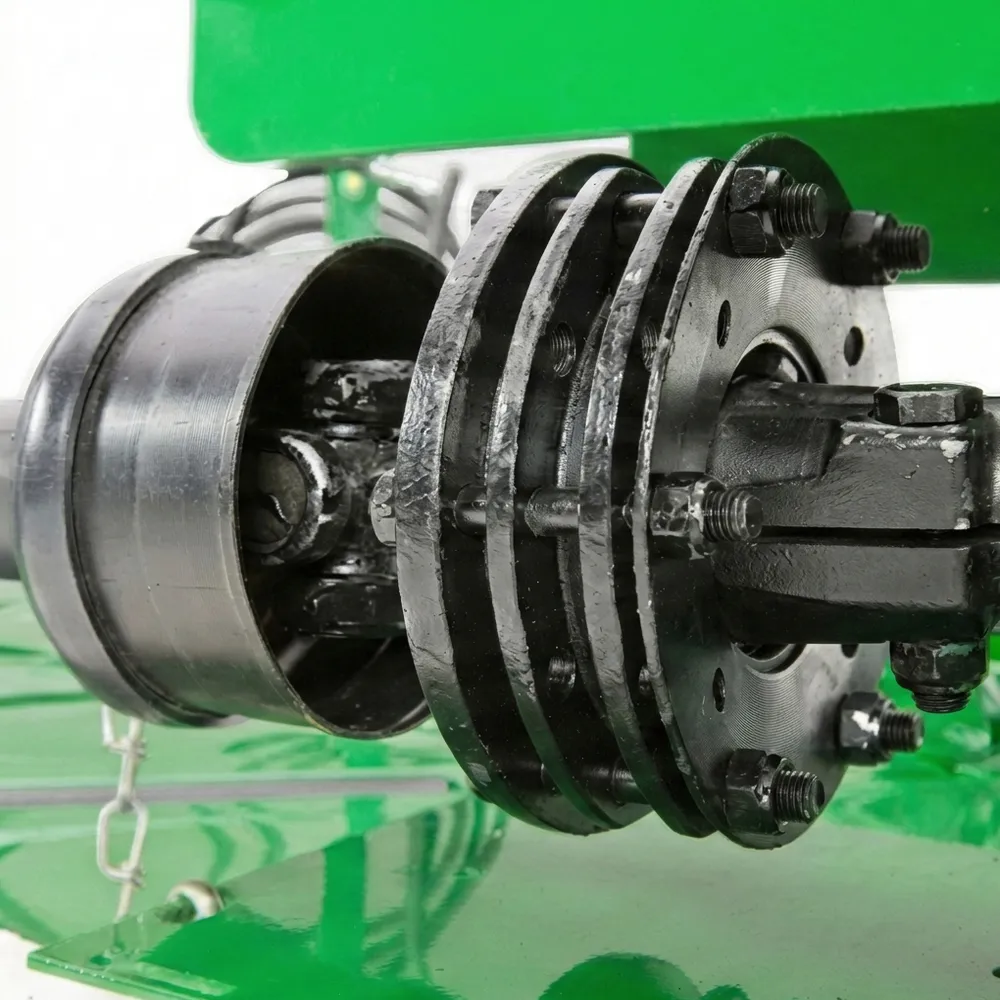

K90/4T Friction Clutch

Gear Case Input Shafts Are 1.750-20 Spline.

	系列	钻孔	离合器零件编号
	CAT4 * 2400	1.750-20	4240305
	CAT5/6 * 2500	1.750-20	4250305

Features of PTO Drive Shaft for John Deere Flexwing Mower

1. CAT 5/6 Constant Velocity Design
Unlike standard homokinetic joints, the constant velocity (CV) design of this PTO drive shaft maintains uniform rotational speed even at operating angles up to 80 degrees. This eliminates the vibration and uneven wear that conventional U-joint shafts produce at steep angles, making it the ideal choice for flexwing mowers that articulate significantly during field operation.

2. Direct-Fit Replacement of Walterscheid 2580
Engineered as a precision replacement of John Deere PTO shaft and Walterscheid 2580 series, this unit drops directly onto the 1.750-20 spline without adapters, shimming, or modification. The matched dimensions and spline profiles ensure zero-play fitment on CX20, CX15, HX20, HX15, and MX15 models, saving installation time and reducing the risk of premature bearing failure from misalignment.

3. K90/4T Friction Clutch Protection
Each slip clutch PTO shaft assembly includes a K90/4T friction clutch that absorbs sudden torque spikes caused by striking rocks, stumps, or hidden debris in heavy brush. This PTO shaft with slip clutch safeguards both the mower gearbox and the tractor driveline from catastrophic damage, extending the service life of your entire power train and reducing costly repair bills.

4. Premium U-Joints and Yokes
The PTO shaft u joint assemblies are heat-treated and precision-ground to ensure long service intervals and smooth rotation under high loads. Each PTO shaft yoke features a clamp-style bore connection at 1.750-20 spline, providing a secure grip that eliminates the loosening problems common with set-screw designs. Greaseable fittings on every PTO shaft universal joint allow field maintenance without disassembly.

5. Full-Length Guard Tube
Safety is built in with a full-length PTO shaft cover and guard tube assembly that rotates freely around the spinning driveline. This PTO shaft tube complies with international safety standards and prevents clothing, hair, or limbs from becoming entangled in the rotating shaft. The durable composite construction resists cracking from UV exposure and chemical contact, maintaining protection over years of outdoor use.

6. Multiple PTO Shaft Sizes Available
CMN Transmission offers this custom 动力输出轴 in multiple spline configurations, including 1.375-6, 1.375-21, and 1.750-20, to match virtually any tractor output shaft. Whether you need a 540 PTO shaft or a 1000 PTO shaft for higher-horsepower applications, the modular design allows exact specification to your equipment. This flexibility in PTO shaft sizes eliminates the need for aftermarket PTO shaft adapter components.

How Does a Flexwing Mower PTO Shaft Work?

A tractor PTO drive shaft serves as the mechanical link between a tractor's power take-off output and the implement it drives. In a flexwing mower application, the PTO driveline shaft must transfer rotational energy from the tractor to the mower's central power divider gearbox, which then distributes that power through center shafts and wing shafts to each of the mower's cutting decks. Understanding this power flow is essential for proper operation and maintenance.

The process begins at the tractor's rear PTO stub shaft, which typically rotates at either 540 RPM or 1000 RPM depending on the tractor configuration. The operator engages the PTO clutch, and the tractor's internal gearing begins spinning the output stub. The PTO shaft tractor connection is made through a splined yoke that slides onto this stub shaft. In most John Deere flexwing mower setups, the tractor output uses a 1.750-20 spline profile, though 1.375-6 and 1.375-21 spline options are also available for different tractor makes.

Once engaged, the main shaft assembly, a CAT 5 or CAT 6 constant velocity unit in the Walterscheid 2580 series configuration, carries the rotational force forward. The constant velocity design is critical for flexwing mowers because the angle between the tractor and the mower changes constantly as the implement follows terrain contours. A standard cardan-joint shaft would create cyclic speed variations at operating angles, causing destructive vibrations. The CV joint eliminates this by maintaining a 1:1 speed ratio between input and output regardless of the articulation angle.

At the mower end, the PTO drive shaft connects to the power divider gearbox through an implement yoke. The power divider splits the incoming torque into three output paths: one center shaft and two wing shafts. The center shaft drives the middle cutting deck, while each wing shaft powers a respective wing deck. Each wing shaft is a standard CAT 4 or CAT 5 assembly with its own PTO shaft universal joint to accommodate the folding and articulation of the wings during transport and operation. A K90/4T friction clutch on each line protects against shock loads, allowing the driveline to slip momentarily if a blade strikes an immovable object, rather than transmitting that destructive force back through the system.

Applications of PTO Shaft for Flexwing Mower

1. 作物残茬管理
After grain harvest, fields are left with thick stalks, stubble, and scattered plant residue that can harbor pests and impede the next planting cycle. A flexwing mower powered by this agricultural PTO shaft shreds corn, sorghum, and soybean residue into fine mulch, accelerating decomposition and returning organic matter to the soil. The wide cutting swath of 15 to 20 feet allows operators to cover large acreage efficiently, reducing the number of passes and fuel consumption per field.

2. 牧场管理
Maintaining healthy grazing pastures requires periodic mowing to control weed encroachment, prevent seed head formation in undesirable species, and encourage fresh, palatable regrowth for livestock. This heavy duty PTO shaft delivers consistent power to the mower decks even when cutting through thick stands of fescue, Bermuda grass, or mixed-species pastures. The slip clutch protection is especially valuable in pasture work, where hidden rocks and old fence posts are common hazards.

3. 草坪维护
Large-scale turf maintenance on airfields, sports complexes, corporate campuses, and municipal parks demands a PTO driveline shaft that can run for extended hours without overheating or failing. The constant velocity design of this tractor PTO shaft minimizes vibration-induced fatigue, allowing smoother cuts and more uniform grass height across the entire mowing width. Operators benefit from fewer maintenance stops and a cleaner finished appearance.

4. Row Crop Stalk Shredding
After the combine has passed through cotton, corn, or sunflower fields, stalk shredding prepares the field for tillage or no-till planting. The 1000 rpm PTO shaft configuration delivers the higher blade tip speed needed to pulverize tough stalks into small fragments that decompose quickly. This PTO shaft for flexwing mower handles the extreme torque loads generated when cutting dense, dry stalks without slipping excessively or damaging the friction clutch plates.

5. Orchard and Vineyard Management
In orchards and vineyards, managing undergrowth between rows is essential for reducing pest habitat, improving air circulation around crops, and facilitating harvest access. A flexwing mower with a reliable PTO drive shaft can navigate the contours of sloped vineyard terrain while maintaining steady blade speed. The CV joint technology ensures smooth operation even when the mower wings are adjusted to follow uneven row spacing or hillside grades.

6. Roadside Vegetation Control
Highway departments and county road crews rely on flexwing mowers to clear roadside ditches, medians, and rights-of-way. The demanding duty cycle, often 8 to 10 hours per day during the growing season, requires a tractor PTO shafts system that can withstand continuous operation without bearing failure or guard damage. The shear bolt PTO shaft and friction clutch design in this assembly protects the driveline when blades encounter discarded debris, guard rails, or culvert edges hidden in tall vegetation.

How to Install PTO Shaft on John Deere Flexwing Mower

Proper installation of your new PTO shaft for John Deere flexwing mowers is critical for safe operation, optimal performance, and long service life. Before beginning, make sure the tractor is parked on level ground, the engine is off, the PTO is disengaged, and the ignition key is removed. Allow all rotating components to come to a complete stop. Wear appropriate personal protective equipment including gloves and safety glasses.

步骤 1：拆卸旧的动力输出轴组件
Disconnect the old PTO driveline shaft from the mower's power divider input by releasing the clamp bolt on the implement yoke. Slide the yoke off the 1.750-20 spline. Then disconnect the tractor end by releasing the locking collar or clamp on the tractor yoke and sliding it off the PTO stub shaft. Support the shaft as you remove it to prevent it from dropping, as a complete CAT 5/6 assembly can weigh 25 to 40 pounds. Inspect the old shaft for worn splines, cracked yokes, or seized U-joints to confirm the cause of failure.

步骤 2：验证样条曲线兼容性
Before installing the new tractor PTO drive shaft, verify that the spline profile on both the tractor PTO stub and the mower power divider input shaft matches the yokes on your new assembly. Most John Deere flexwing mower applications use 1.750-20 spline on both ends. Slide each yoke onto its respective spline by hand to confirm a smooth fit. There should be minimal play but no binding. If the spline does not match, contact CMN Transmission to obtain the correct PTO shaft adapter or alternate yoke configuration.

Step 3: Set the Correct Shaft Length
With the mower hitched to the tractor at its normal working height, measure the distance between the tractor PTO stub face and the power divider input shaft face. The PTO shaft tubing must have enough telescoping overlap to accommodate the full range of motion, including transport position, turns, and terrain undulations. As a rule, maintain at least six inches of overlap at maximum extension and avoid bottoming out at minimum compression. Adjust the telescoping section of the PTO shaft tube accordingly before final installation.

Step 4: Connect and Secure
Slide the tractor-side yoke onto the PTO stub shaft until it seats fully, then engage the locking collar. Slide the implement-side yoke onto the power divider input spline and tighten the clamp bolt to the manufacturer's recommended torque specification. Ensure the PTO shaft cover and guard tube rotate freely and are properly secured with their retaining chains to prevent independent rotation. Grease all PTO shaft u joint fittings with NLGI #2 lithium-complex grease until fresh grease appears at each seal.

Step 5: Test and Verify
Start the tractor and engage the PTO at low RPM. Listen for any unusual vibration, knocking, or grinding sounds. Observe the shaft through one full articulation cycle by raising and lowering the mower and turning the tractor slightly. The CV joint should operate smoothly without binding. Increase to operating RPM gradually and verify the friction clutch does not slip under normal load. Recheck all clamp bolts and grease fittings after the first hour of operation.

Maintenance Tip for Tractor PTO Shafts

Regular maintenance of your tractor PTO shafts is essential to prevent unexpected breakdowns, extend service life, and ensure safe operation. A well-maintained PTO driveline shaft can deliver thousands of hours of reliable service, while a neglected shaft can fail catastrophically, causing expensive damage to both the tractor and the implement. The following maintenance schedule covers the key service points for the CAT 5/6 constant velocity assembly and associated components used on John Deere flexwing mowers.

1. Lubrication (Every 8 Operating Hours)
Greasing the PTO shaft universal joint bearings is the single most important maintenance task. Use a grease gun with NLGI #2 lithium-complex grease and apply to each zerk fitting until fresh grease begins to purge from the bearing seals. Each U-joint cross has four bearing caps, and each should receive grease. Also lubricate the telescoping tube section by sliding it in and out several times after applying grease to the inner and outer tube surfaces. The constant velocity joint on the main shaft has its own grease fitting; do not neglect this point, as CV joint failure is often caused by inadequate lubrication.

2. Inspection (Every 50 Operating Hours)
At 50-hour intervals, perform a thorough visual and tactile inspection of the entire PTO drive shaft assembly. Check each PTO shaft yoke for cracks, especially around the clamp bolt area and at the weld joints. Inspect the PTO shaft u joint for play by gripping the shaft on either side of the joint and attempting to rock it. Any perceptible movement indicates worn needle bearings and requires joint replacement. Examine the PTO shaft tubing for dents, bends, or excessive wear at the telescoping overlap area. Check the PTO shaft cover for cracks, missing sections, or loose retaining chains.

3. Friction Clutch Adjustment (Every 100 Operating Hours)
The K90/4T friction clutch should be checked periodically for proper torque setting. If the clutch slips during normal operation (not just during shock loads), the clutch plates may be worn or the spring tension may need adjustment. Refer to the torque specification provided in the product documentation. Worn clutch discs in the slip clutch PTO shaft should be replaced as a complete set to ensure even engagement. Never operate with a slipping clutch, as this generates excessive heat that can warp the clutch housing and damage adjacent bearings.

4. Seasonal Storage Preparation
Before storing the mower for the off-season, clean the entire PTO shaft assembly with a pressure washer to remove accumulated crop debris, mud, and grease buildup. Allow it to dry completely, then apply a fresh coat of grease to all exposed splines, U-joints, and telescoping surfaces. If possible, disconnect the shaft from the tractor and store it horizontally in a dry, sheltered location. This prevents moisture from pooling in the telescoping tube section and causing internal corrosion. Cover the spline ends with plastic caps or wrap them in oily rags to prevent rust formation during extended storage.

Common Troubleshooting for PTO Drive Shafts

1. Excessive Vibration
Vibration is typically the first sign of a failing PTO shaft u joint. When needle bearings in the U-joint cross become worn, pitted, or lose lubrication, they allow the joint to develop play, which creates a cyclic vibration at PTO speed. Begin diagnosis by shutting down the tractor and manually checking each U-joint for looseness. If play is detected, replace the affected joint immediately. Other causes of vibration include a bent PTO shaft tube, misaligned yokes (the yoke ears on both ends of a given shaft section must be in the same plane), or a damaged CV joint. If the shaft was recently installed, verify that the telescoping tube is not bottoming out at minimum compression during operation.

2. 正常负载下摩擦离合器打滑
If the PTO shaft with slip clutch begins slipping during routine mowing rather than only during shock events, the clutch discs are likely worn below serviceable thickness. Remove the clutch assembly and measure the disc thickness against the specification in the product manual. Worn discs should be replaced as a complete set. If the discs appear to have adequate material but the clutch still slips, check the compression springs for loss of tension. Glazed or oil-contaminated clutch surfaces can also reduce friction; clean the plates with a solvent and roughen the surface with fine emery cloth before reassembly.

3. 轴无法顺畅伸缩
The telescoping section of the PTO shaft tubing should extend and compress freely. If it binds or requires excessive force, the internal splines or tube surfaces may be corroded, contaminated with debris, or damaged by impact. Remove the shaft, separate the telescoping halves, and clean both the inner and outer tubes thoroughly. Inspect the internal splines for burrs or galling. Apply a thin coat of anti-seize compound or moly grease to the spline surfaces before reassembly. If the tube is visibly bent or dented, it must be replaced, as attempting to straighten a driveline tube compromises its structural integrity and balance.

4. Guard Tube Not Rotating Freely
The PTO shaft cover guard must spin freely around the rotating shaft. If the guard binds or rotates with the shaft, it becomes an entanglement hazard. Check that the retaining chains on both ends of the guard are properly secured to non-rotating parts of the tractor and mower. Ensure the guard bearing surfaces are not packed with mud, crop material, or dried grease. Clean and lubricate the guard end bearings. If the guard tube is cracked or deformed, replace it immediately as a compromised guard provides no safety protection.

Flexwing割草机动力输出轴和旋转切割机变速箱

The flexwing mower PTO shaft and the rotary cutter gearbox are two interdependent components that form the core of any mower's power transmission system. While the PTO driveline shaft is responsible for transferring rotational energy from the tractor to the mower, the rotary cutter gearbox converts that rotational input into the blade-spinning output that actually performs the cutting work. Without a properly functioning PTO shaft, the gearbox receives no power; without a properly functioning gearbox, the PTO shaft spins uselessly with no load reaching the blades.

A rotary cutter gearbox is a speed-reducing or speed-increasing gear unit that sits atop each cutting deck. In most flexwing mower configurations, the gearbox receives input from the center shaft or wing shaft at PTO speed (540 or 1000 RPM) and converts it to the correct blade spindle speed through a set of spiral bevel gears. The gearbox also redirects the axis of rotation by 90 degrees, from the horizontal driveline axis to the vertical blade spindle axis. This right-angle power redirection is essential because the blades must spin in a horizontal plane beneath the deck to cut vegetation.

The interface between the PTO shaft yoke and the gearbox input shaft is a critical connection point. On John Deere flexwing mowers, the gearbox input shaft typically uses a 1.750-20 spline profile that matches the implement yoke of the PTO shaft. The K90/4T friction clutch installed between the PTO shaft and the gearbox input serves as a torque limiter that protects the gearbox's internal gears and bearings from shock loads. CMN Transmission manufactures both PTO drive shafts and compatible rotary cutter gearboxes, ensuring that customers can source matched, tested components from a single supplier for maximum reliability and simplified procurement.

为什么选择 CMN Transmission 的农用动力输出轴？

CMN Transmission (Korea) stands as one of the world's leading suppliers of industrial power transmission solutions, with a product range spanning PTO drive shafts, agricultural gearboxes, hydraulic cylinders, planetary gearboxes, worm gearboxes, bevel gears, chain sprockets, chains, gear racks, pulleys, taper bushes, couplings, and more. Headquartered in Ansan-si, Gyeonggi-do, Korea, with a production base and over 10 shareholding cooperative factories, we maintain an inventory of more than 150,000 standard stock products and serve customers in over 53 countries across North America, Europe, South America, the Middle East, Africa, Southeast Asia, and Oceania.

What sets CMN Transmission apart in the agricultural PTO shaft market is our commitment to factory-direct pricing without sacrificing quality. As an integrated manufacturing and trading company, we eliminate the multiple dealer markups that inflate the cost of OEM replacement parts. Every tractor PTO shaft we produce is manufactured using advanced CAD design, precision CNC machining, modern heat treatment processes, and rigorous quality testing. Our products carry both ISO and CE certifications, ensuring compliance with international safety and performance standards.

Beyond product quality, we offer a level of customer support that large OEM brands often cannot match. Our technical team provides pre-sale consultation to confirm spline configurations, shaft lengths, and clutch specifications for your exact tractor and implement combination. We offer customized PTO shaft parts for non-standard applications and provide detailed dimensional drawings upon request. After the sale, our one-stop after-sales service ensures that replacement components, technical guidance, and warranty support are always accessible. When you choose CMN Transmission, you are choosing a partner committed to keeping your equipment running efficiently, reliably, and safely, season after season.

常问问题

Q: What PTO shaft size do I need for a John Deere CX20 flexwing mower?
A: The John Deere CX20 uses a CAT 5 PTO shaft for both the center shaft and wing shafts. The main shaft from tractor to power divider is a CAT 5/6 constant velocity assembly in the Walterscheid 2580 series configuration. All power divider connections use a 1.750-20 spline. Confirm your tractor's output spline (1.375-6, 1.375-21, or 1.750-20) before ordering to ensure proper fitment of the tractor-side yoke.

Q: Is this PTO drive shaft a direct replacement for Walterscheid 2580 series?
A: Yes, this CMN Transmission PTO drive shaft is engineered as a direct-fit replacement of Walterscheid 2580 PTO shaft. It matches the same spline profiles, overall length dimensions, and yoke configurations as the original Walterscheid unit. No adapters or modifications are required. The constant velocity joint design and guard tube are dimensionally compatible with the existing mower frame mounting points.

Q: What is the difference between a 540 PTO shaft and a 1000 PTO shaft?
A: A 540 PTO shaft operates at 540 revolutions per minute and uses a 6-spline, 1.375-inch diameter stub shaft on the tractor. A 1000 PTO shaft (also called a 1000 rpm PTO shaft) operates at 1,000 RPM and typically uses a 21-spline, 1.375-inch diameter stub. The higher speed is used for implements requiring greater blade tip speed or hydraulic pump speed. Most John Deere flexwing mowers in the CX/HX/MX series operate on 540 RPM PTO, but confirm with your tractor manual.

Q: How often should I grease the PTO shaft U-joints on my flexwing mower?
A: Each PTO shaft u joint should be greased every 8 operating hours with NLGI #2 lithium-complex grease. Apply grease through each zerk fitting until fresh grease purges from the bearing seals. The constant velocity joint on the main shaft has its own dedicated grease point that should be serviced on the same schedule. The telescoping tube splines should also receive lubrication at this interval. More frequent greasing may be necessary in dusty, wet, or crop-debris-heavy conditions.

Q: Can I use this PTO shaft on flexwing mower brands other than John Deere?
A: This PTO shaft for flexwing mower is specifically configured for John Deere CX20, CX15, HX20, HX15, and MX15 models. However, CMN Transmission manufactures custom PTO shaft assemblies for other flexwing mower brands including Schulte, Bush Hog, Rhino, and Woods. If your mower uses the same spline profile (1.750-20) and similar overall length requirements, this shaft may be compatible. Contact our engineering team with your mower model and tractor specifications for a compatibility assessment.

Q: What does the K90/4T friction clutch do, and do I need it?
A: The K90/4T friction clutch is a torque-limiting device installed between the PTO driveline shaft and the mower gearbox input. When the mower blade strikes an immovable object like a rock or stump, the clutch slips momentarily to absorb the shock load, protecting the gearbox gears, bearings, and the tractor driveline from damage. This slip clutch PTO shaft feature is highly recommended for any flexwing mower used in unimproved pastures, roadsides, or fields with known obstacles. Operating without clutch protection risks expensive drivetrain repairs.

Q: How do I know when to replace PTO shaft shear bolts or shear pins?
A: If your driveline uses a shear bolt PTO shaft or shear pin PTO shaft design instead of a friction clutch, the shear bolt will break when a preset torque threshold is exceeded. The symptom is an immediate loss of blade rotation while the PTO shaft continues spinning. Inspect the shear bolt location at the connection between the shaft and the gearbox input. Replace broken PTO shaft shear bolt hardware only with the correct grade and size specified by the manufacturer. Never substitute harder bolts, as this defeats the overload protection purpose.

Q: What is the lead time and shipping arrangement for international PTO shaft orders?
A: CMN Transmission ships to over 53 countries worldwide. Standard PTO shaft parts and complete assemblies for John Deere flexwing mowers are typically available from stock with a lead time of 3 to 7 business days for production. Shipping time varies by destination, generally 10 to 20 business days for ocean freight and 5 to 8 days for air freight. We handle all export documentation and can arrange delivery to your nearest port or door-to-door depending on your preference. Request a quote for exact pricing and delivery timelines to your location.

Q: Can CMN Transmission build a custom PTO shaft for my specific tractor and mower combination?
A: Absolutely. CMN Transmission specializes in custom PTO shaft assemblies tailored to non-standard tractor and implement combinations. If your tractor uses an unusual spline profile, or if your mower requires a non-standard overall shaft length, our engineering team can design and manufacture a shaft to your exact specifications. We offer multiple PTO shaft sizes, yoke types, clutch options, and PTO shaft tubing diameters to accommodate virtually any agricultural, municipal, or industrial application. Provide your tractor model, PTO type, and implement details for a customized quotation.

Q: Why does my PTO shaft vibrate at high RPM, and how can I fix it?
A: Vibration at operating RPM is most commonly caused by worn PTO shaft universal joint bearings, misaligned yoke phasing, a bent PTO shaft tube, or insufficient telescoping overlap. Start by checking each U-joint for play. Next, verify that the yoke ears on both ends of each shaft section are aligned in the same rotational plane (correct phasing). Measure the telescoping overlap to ensure it meets the minimum 6-inch requirement. If all mechanical checks pass, the shaft may be dynamically unbalanced due to internal damage, in which case replacement of the affected section is recommended.
