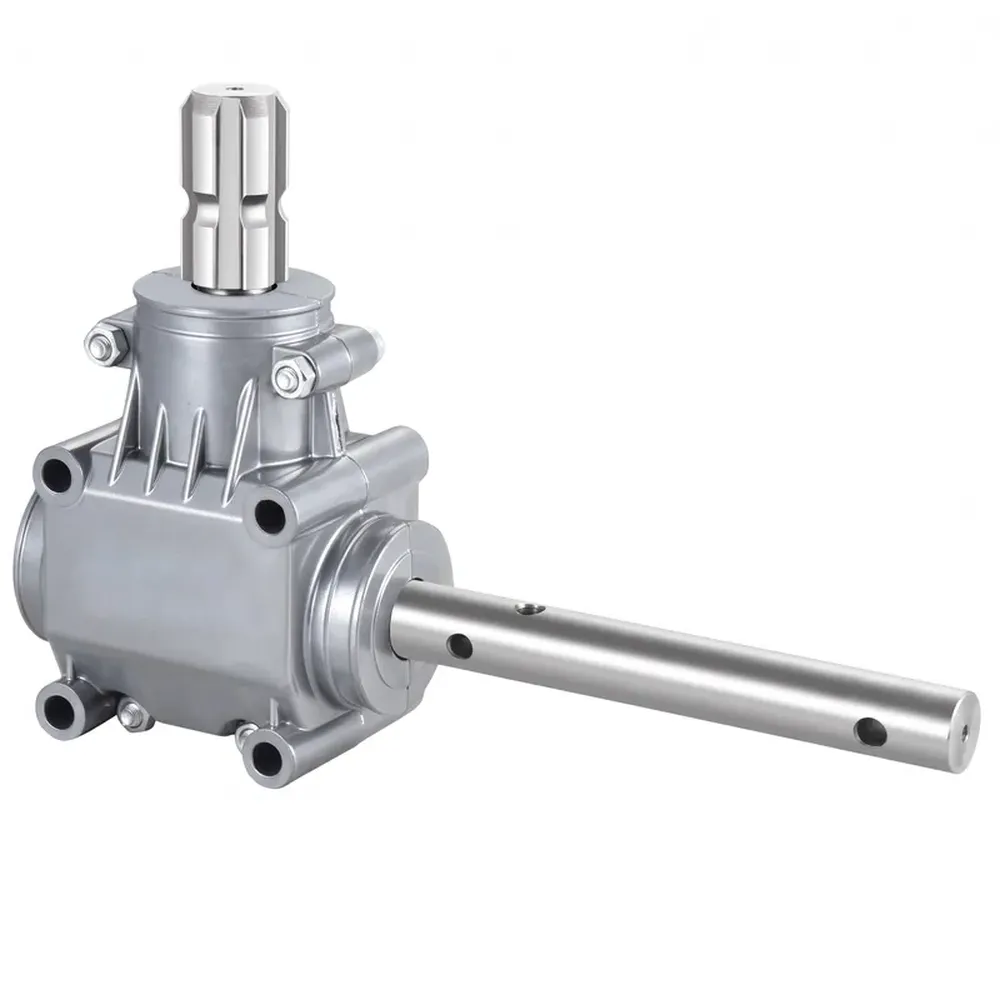

CMN-RV012 Fertilizer Spreader Gearbox Ratio 1:1 Aluminum Right Angle 10HP 540RPM PTO

The CMN-RV012 Fertilizer Spreader Gearbox Ratio 1:1 Aluminum Right Angle 10HP 540RPM PTO, also called a fertilizer distributor gearbox, is an essential component of agricultural machinery, specifically designed for tasks such as soil preparation, crop treatment, and fertilizer spreading. Located at the center of the machine, it transmits power from the tractor's power take-off (PTO) to the spinning discs or augers that evenly distribute fertilizer across the fields. These fertilizer spreader gearboxes are engineered for durability and reliability, ensuring consistent power transmission to meet varying operational demands. They are equipped with a series of bevel gears and shafts that adjust the rotational speed and torque based on the spreading requirements, optimizing machine performance across all scales of farming operation.

Built from lightweight yet robust aluminum alloy, the CMN-RV012 agricultural gearbox reduces machine weight without compromising structural integrity, making it ideal for smaller tractor-mounted spreaders and precision application tasks. Its right-angle drive design efficiently redirects PTO torque to the horizontal output shaft, enabling smooth disc rotation at 540 RPM. Whether deployed in grain crop fertilization, turf management, orchard care, or soil amendment applications, this gearbox delivers the consistent output speed and torque required for uniform distribution. Built to withstand the rigorous conditions of agricultural work, the CMN-RV012 plays a crucial role in enhancing the efficiency and effectiveness of key farming tasks, from large-scale arable operations to specialized horticultural applications.

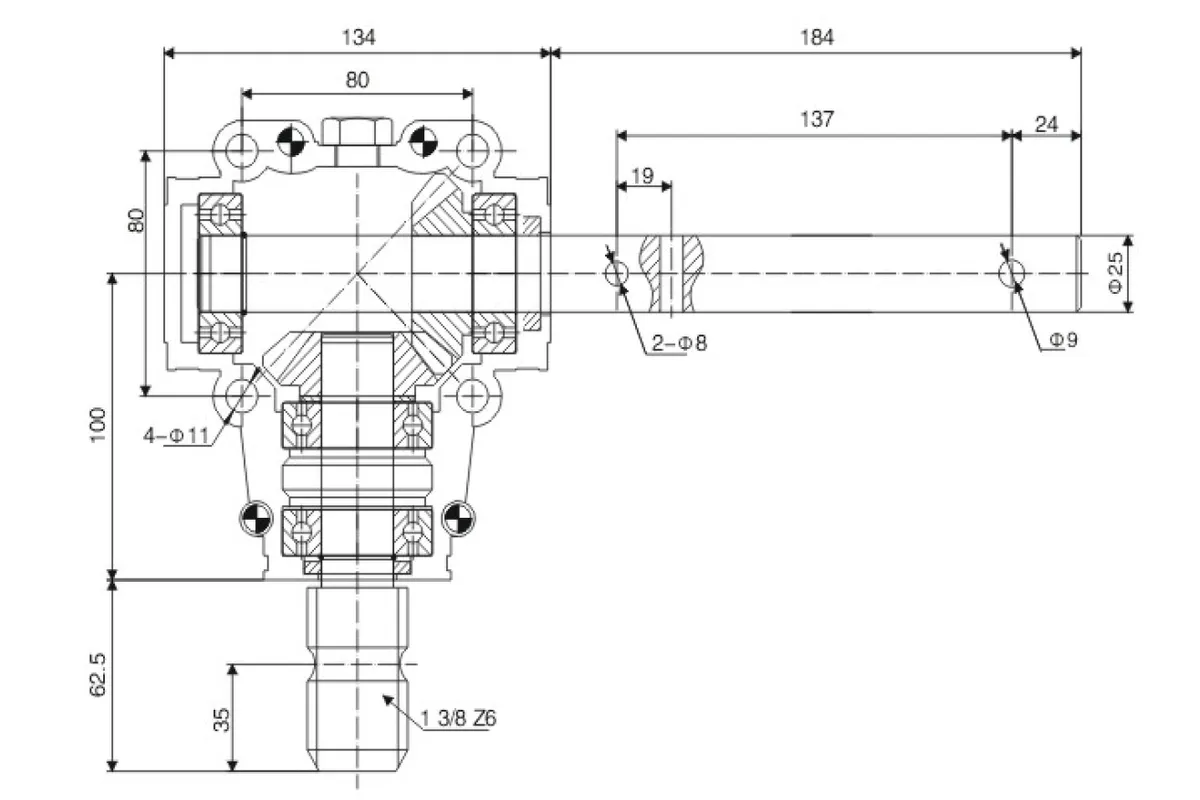

Technical Parameters

We have completed a third-party supplier audit and company verification supported by SGS / TÜV Rheinland. This verification helps buyers review company identity, business operations, supplier profile and general manufacturing capability. Product-specific inspection reports, material documents or compliance records can be provided according to order requirements.

Minimum Order Quantity (MOQ): Flexibly set based on the product type and order amount.

Samples: New customers may request 1–5 samples under appropriate circumstances.

Mixed Orders: Combining different models is supported; the total order amount must reach approximately $1,500.

Small Orders: Orders starting from 1–2 pieces are supported, but the unit price will be relatively higher.

Lead Time: 10–25 working days for standard parts; 20–45 working days for customized components; 45–120 working days for project-based equipment.

Trade Terms: EXW, FOB, CIF, and DAP are generally supported; FCA, CFR, CPT, CIP, and DDP terms can be specifically negotiated.

Key Features of the CMN-RV012 Fertilizer Spreader Gearbox

1. PTO Interface and Spline Compatibility
The CMN-RV012 features a standard 1 3/8 inch Z6 (6-spline) input shaft that directly matches the most widely used tractor PTO output standards, including ASAE/ISO 500 and 1000 series connections. This precise spline fit eliminates adapter requirements, reduces installation time, and prevents vibration, misalignment, and premature bearing wear. Whether paired with a compact utility tractor or a full-sized field tractor running at 540 RPM, the input interface delivers clean, low-runout engagement every time.

2. 1:1 Ratio for Direct Disc Speed Control
The 1:1 bevel gear ratio of the CMN-RV012 transmits PTO speed directly to the output shaft without amplification or reduction, giving operators precise control over disc or auger RPM simply by adjusting tractor PTO throttle. This design suits fertilizer applications that benefit from maintaining a consistent, full 540 RPM output, such as centrifugal disc spreaders. The 15-tooth/15-tooth bevel gear pairing at module 4.5 ensures smooth meshing, minimal backlash, and quiet operation throughout the working speed range, enhancing the overall fertilizer spreader gearbox ratio precision.

3. Corrosion-Resistant Aluminum Construction
Fertilizer environments are chemically aggressive, and the CMN-RV012 is engineered to endure them. The die-cast aluminum alloy housing offers inherent resistance to the moisture, nitrogen compounds, potassium chloride, and phosphate residues commonly encountered during spreading operations. Internally, sealed bearings and precision-fitted lip seals prevent fertilizer dust and moisture ingress, protecting gears from abrasive contamination. The external surfaces are finished to resist surface oxidation during outdoor storage and field use, ensuring long service life without frequent maintenance intervention.

4. Lightweight Design at Only 4 kg
Weighing just 4 kg net, the CMN-RV012 is exceptionally lightweight for a 10HP-rated agricultural gearbox for fertilizer spreaders. This low mass directly reduces the total suspended weight at the tractor's three-point hitch or toolbar mount, improving machine balance, reducing PTO driveline stress, and lowering tractor fuel consumption per hectare. For OEMs designing compact or mid-range spreader platforms targeting utility tractors from 25 to 65HP, this weight profile provides a meaningful engineering advantage without sacrificing the gear strength needed for reliable duty cycles.

5. Easy Serviceability and Oil Maintenance
Field maintenance of the CMN-RV012 is straightforward, with accessible fill and drain plugs positioned for convenient fertilizer spreader gearbox oil level checks without requiring removal from the spreader frame. A breather vent prevents pressure buildup during thermal cycling, extending seal life. The compact 4-bolt mounting pattern (80x80 mm) allows removal and reinstallation with standard hand tools in under 20 minutes, minimizing downtime during the busy spreading season. Replacement bearings, seals, and bevel gear sets are stocked as fertilizer spreader gearbox parts for rapid field repairs.

6. Wide Range of Agricultural Applications
The CMN-RV012 fertilizer gearbox is compatible with a broad spectrum of PTO-driven fertilizer spreader designs used in grain farming, vegetable production, pasture management, lawn and turf care, horticulture, and soil amendment applications. Its standardized interface dimensions and bolt pattern make it a direct-fit replacement in many European and North American spreader brands, reducing sourcing lead times for OEM manufacturers, MRO distributors, and farm equipment dealers worldwide. As one of the leading fertilizer spreader gearbox suppliers and manufacturers, CMN Transmission offers custom-ratio variants and OEM branding on request.

Working Principle

The CMN-RV012 begins its operation the moment the tractor operator engages the PTO. The 1 3/8-inch Z6 spline stub shaft couples to the PTO driveline (typically via a shear-bolt or slip-clutch protected PTO shaft), and rotational energy at 540 RPM enters the aluminum gearbox housing through the input shaft. Inside the housing, a precision-matched pair of spiral bevel gears, each carrying 15 teeth cut to module 4.5, meshed at a 90-degree included angle, redirects the rotation axis from the input (vertical) plane to the output (horizontal) plane. Because the tooth ratio is 1:1, the output shaft speed equals the input speed exactly, delivering the full 540 RPM to the disc assembly without any step-up or step-down. This direct ratio keeps the mechanical efficiency high, typically above 95%, minimizing parasitic power loss and heat generation during extended spreading operations.

Once speed conversion occurs across the bevel gear set, the output shaft (25 mm diameter, supported by dual sealed ball bearings) transmits torque to the fertilizer spreader's spinning disc or auger flighting. The output shaft flange or keyed stub accepts the disc hub, vane-type agitator, or auger coupling. For centrifugal disc spreaders, this means the spreading disc reaches operating speed within one to two seconds of PTO engagement, enabling immediate distribution without coasting delays. The 10HP (approximately 7.5 kW) rated power capacity comfortably handles the drag load of a loaded spreading disc operating at full application rate, even when distributing dense granular fertilizers such as potassium chloride or urea prills.

The aluminum alloy housing provides both strength and thermal conductivity, dissipating gear friction heat efficiently to the surrounding air. Both input and output shafts are supported by deep-groove ball bearings that are pre-lubricated and sealed, protecting rolling elements from the fine fertilizer dust that migrates into every component of a running spreader. A positive-pressure breather vent equalizes internal air pressure as the gearbox warms during operation, preventing oil from being forced past lip seals. The gear oil fill volume is modest but sufficient to maintain full immersion lubrication of the bevel gear mesh and bearing raceways, and the fertilizer spreader gearbox oil level can be checked quickly in the field using the side-mounted level plug. The aluminum housing is inherently resistant to the alkaline and acidic residues left by common granular and liquid fertilizer products.

While the CMN-RV012 gearbox itself is a robust drivetrain component, it is always used in conjunction with a PTO driveline that incorporates either a slip clutch or shear-bolt torque limiter. This overload protection device, positioned between the tractor PTO stub and the gearbox input shaft, interrupts torque transmission if the output disc is suddenly blocked, jammed by foreign material, or if a mechanical failure occurs in the spreading mechanism. This protects the bevel gears, input shaft, and housing from shock loads that could cause tooth fracture or bearing seizure.

Application Fields

CMN-RV012 Fertilizer Spreader Gearbox Parts

Gearbox Housing
The CMN-RV012 housing is die-cast from high-grade aluminum alloy, providing a rigid, dimensionally stable enclosure that aligns the bevel gear mesh to precise tolerances. The compact right-angle geometry integrates all shaft bore, bearing seat, and bolt-hole features in a single casting, eliminating the stack-up tolerance issues common in fabricated steel housings and reducing total assembly weight to just 4 kg.

Input Shaft
Machined from case-hardened alloy steel, the 1 3/8-inch Z6 spline input shaft is precision-ground to ASAE S201 dimensional standards, ensuring direct fitment to the broadest range of agricultural PTO drivelines. The stub length of 35 mm provides adequate engagement depth with the PTO coupling sleeve, while the surface hardening (typically 58-62 HRC at the spline flanks) resists the fretting wear common in oscillating PTO connections under field vibration loads.

Spiral Bevel Gears
The matched pair of spiral bevel gears, each with 15 teeth cut to module 4.5, is the heart of the CMN-RV012 drivetrain. The spiral tooth form provides progressive tooth contact, reducing noise and shock loads compared to straight bevel gears. Gear blanks are forged from 20CrMnTi alloy steel, carburized and hardened to 58-62 HRC at the tooth surface, then lapped in matched pairs to ensure a tight, backlash-minimized mesh that maintains accuracy over a long service life.

Output Shaft
The 25 mm diameter output shaft extends 184 mm from the housing face, providing the connection point for the spreading disc hub, vane agitator, or coupling element. Ground to h6 tolerance, the shaft accepts standard keyed or clamped disc hubs without additional machining. The shaft material is medium-carbon alloy steel, induction-hardened at the bearing journal and hub seat areas for surface fatigue resistance during the repeated load cycles of daily spreading operations.

Ball Bearings
The CMN-RV012 incorporates deep-groove ball bearings on both the input and output shaft positions. These bearings are pre-greased with a wide-temperature-range lithium-complex grease and fitted with dual rubber contact seals (2RS designation) that exclude fertilizer dust and atmospheric moisture without generating significant frictional drag. The selected bearing series provides an L10 service life exceeding the expected seasonal duty cycle when the gearbox oil is maintained at the correct level according to the fertilizer spreader gearbox oil level specification.

Oil Seals and Lip Seals
Radial lip seals (PTFE-lip type on the output shaft, nitrile rubber on the input shaft) prevent gear oil from migrating outward along the rotating shafts while also excluding contaminants from entering the housing. The lip material is selected for compatibility with the mineral gear oils (ISO VG 90 or 140) commonly used in agricultural bevel gearboxes, ensuring the seal lip retains its elastic properties across the temperature range of minus 20°C to plus 80°C encountered in field conditions from northern Europe to tropical Southeast Asia.

Lubrication System
A dedicated fill plug, side-mounted level plug, and bottom drain plug enable complete oil management without disturbing the gearbox mounting. The gear oil volume is sized to maintain full splash lubrication of the bevel gear mesh and bearing drip zones at all operating orientations. A breather vent in the housing top cap prevents differential pressure accumulation during thermal cycling, protecting the lip seals from pressure-induced leakage, a common failure mode in agricultural gearboxes that lack this feature.

How to Correctly Install the CMN-RV012 Gearbox

1. Inspect and Prepare the Mounting Interface
Before installation, thoroughly clean the spreader frame's mounting face of any paint burrs, weld spatter, or corrosion that could prevent flat seating of the gearbox mounting flange. Verify that the four mounting holes align with the 80 x 100 mm bolt pattern of the CMN-RV012 housing. A non-flat seating surface will introduce bending stress into the aluminum housing and is the most common cause of premature housing cracking in field-installed agricultural gearboxes.

2. Check and Fill Gear Oil Before First Use
New CMN-RV012 units are shipped without gear oil to prevent leakage during transport. Before starting the tractor, fill the gearbox with ISO VG 90 gear oil (or equivalent SAE 90 GL-4/GL-5 mineral oil) through the top fill plug until oil appears at the side-mounted level plug hole. Typical fill volume is 150-200 ml. Running the gearbox dry even briefly will cause rapid bevel gear surface wear. Confirm the fertilizer spreader gearbox oil level before each seasonal use thereafter.

3. Mount the Gearbox to the Spreader Frame
Position the gearbox housing against the spreader mounting bracket with the output shaft oriented toward the disc hub. Insert four M10 x 40 mm (minimum) grade 8.8 bolts fitted with spring washers through the mounting holes. Hand-tighten all four bolts to confirm even face contact, then torque to 35-40 Nm in a cross-pattern sequence to prevent flange distortion. Do not over-torque, as the aluminum housing threads can strip if torque is applied beyond 45 Nm without thread inserts.

4. Attach the Spreading Disc or Auger to the Output Shaft
Slide the disc hub or auger coupling onto the 25 mm output shaft, aligning the keyway or clamping bore as specified by the spreader manufacturer. Secure with the appropriate disc retention nut or hub clamping bolt, tightening to the torque specified for the disc hub size. Confirm the disc spins freely by hand with no contact against the spreader hopper or deflectors, and that the disc plane is perpendicular to the gearbox output shaft axis within 1 mm total indicator runout to prevent vibration during high-speed operation.

5. Connect the PTO Driveshaft
Fit the PTO driveshaft (with integrated slip clutch or shear-bolt overload protection) between the tractor PTO stub and the CMN-RV012 input spline shaft. Ensure the driveshaft guards (yellow tube and cone guards) are fully installed and secured to prevent operator contact with the rotating shaft. Check that the PTO shaft length, at both the working and maximum extension positions, remains within the recommended operational range specified by the driveshaft manufacturer, typically between 35% and 85% of total telescoping travel, to prevent joint binding or shaft pull-out.

6. Perform a No-Load Test Run
Before loading the spreader with fertilizer, engage the tractor PTO at low throttle (approximately 300-400 RPM) and allow the gearbox to run for two to three minutes. Listen for any abnormal noise such as knocking, rattling, or high-pitched whining that might indicate misalignment, insufficient oil, or a loose disc hub. Gradually increase PTO speed to the rated 540 RPM and confirm smooth, stable operation. Check all four mounting bolts for tightness after the first warm-up cycle, as thermal expansion may cause initial settling.

7. Calibrate Spread Pattern and Confirm Oil Level After Break-In
After the initial 8-hour break-in period of field operation, drain and replace the gear oil to remove any metallic break-in particles before refilling with fresh ISO VG 90 gear oil. Re-check the fertilizer spreader gearbox oil level with the spreader in its field-level operating position. Confirm the spread pattern width and uniformity using collection trays or a spread pattern test before commencing full-rate fertilizer application. This confirms correct gearbox output speed and disc balance, and establishes the baseline performance against which seasonal calibration comparisons should be made.

Fertilizer Spreader Gearbox and PTO Drive Shaft

The fertilizer spreader gearbox and the PTO drive shaft are two inseparable components in the power delivery chain of any PTO-driven spreader. Fertilizer spreader gearboxes transfer power from the tractor's PTO to the spinner discs or agitators that distribute fertilizer, seed, or granules across the field. The gearbox changes the direction of rotation by 90 degrees through its right-angle bevel gear set, and in the case of 1:1 models like the CMN-RV012, passes the full 540 RPM input speed directly to the output. In ratio variants such as 1:1.46, the gearbox reduces output speed while increasing output torque, which suits heavier spreading discs or twin-disc configurations. The durable, corrosion-resistant design of the aluminum housing withstands the harsh fertilizer environment across seasons of continuous operation.

A PTO shaft, also called a Power Take-Off shaft, is a mechanical drivetrain component that transfers rotational power from a tractor or engine directly to an attached implement. Rather than requiring every piece of farm machinery to carry its own engine, the PTO shaft lets a single tractor power a wide range of tools, from rotary tillers and flail mowers to fertilizer spreaders and manure spreaders. The PTO shaft consists of two universal joint assemblies connected by telescoping inner and outer tubes that allow the shaft to extend, compress, and flex as the tractor turns or the implement follows field contours. Most tractor PTO shafts rotate at a standard 540 RPM (for smaller tractors) or 1000 RPM (for larger tractors), matching the rated input speed of the CMN-RV012 gearbox exactly at the 540 RPM setting.

The PTO shaft connects the tractor's rear PTO output stub (which drives at 540 RPM when the PTO is engaged at the correct throttle setting) to the Z6 spline input shaft of the CMN-RV012 fertilizer spreader gearbox. The PTO shaft's telescoping design accommodates the distance change between the tractor hitch and the spreader as the rear linkage raises or lowers the implement. The universal joints at each end of the PTO shaft allow for angular misalignment of up to 15 to 20 degrees without interrupting torque flow, which is important as the tractor turns on headlands. A slip clutch or shear-bolt torque limiter, integrated into the PTO shaft assembly between the tractor connection and the gearbox input, provides overload protection to both components in the event the spreading disc or auger jams.

When purchasing the CMN-RV012 gearbox, specify a PTO shaft with a 1 3/8-inch Z6 spline at both the tractor and implement ends (or 1 3/8 Z21 at the tractor end for tractors with the 21-spline output), sized in length to match the distance from the tractor PTO to the gearbox input at the working linkage height. The PTO shaft series (typically series 4, 5, or 6 for a 10HP/7.5 kW spreader) should match the maximum torque of the spreader application. CMN Transmission also supplies matched PTO shaft assemblies as fertilizer spreader gearbox parts, ensuring compatibility with the CMN-RV012 input interface and appropriate slip clutch calibration for common granular fertilizer application rates.

Fertilizer Spreader Gearbox vs. Flail Mower Gearbox

What Is a Fertilizer Spreader Gearbox?

A fertilizer spreader gearbox, also called a fertilizer distributor gearbox, is an essential component of agricultural machinery specifically designed for tasks such as soil preparation, crop treatment, and fertilizer spreading. Located at the center of the spreader machine, it transmits power from the tractor's PTO to the spinning discs or augers that evenly distribute fertilizer across the fields. These fertilizer spreader gearboxes are engineered for durability and reliability, ensuring consistent power transmission to meet varying operational demands. They are equipped with bevel gears and shafts that adjust rotational direction while maintaining or altering speed based on spreading requirements.

Advantages of Fertilizer Spreader Gearboxes

• Lightweight construction: Aluminum alloy housings keep total spreader weight low, reducing soil compaction and tractor fuel consumption across large fields.
• Corrosion resistance: Engineered to resist the chemically aggressive environment created by nitrogen, potassium, and phosphate fertilizer residues during and after spreading operations.
• Flexible ratio options: Available in 1:1, 1:1.46, and other ratios to match disc RPM to specific fertilizer types and application rate requirements.
• Simple maintenance: Accessible oil fill, level, and drain points, combined with long-life sealed bearings, minimize annual maintenance time and parts cost.
• Wide compatibility: Standard 1 3/8 Z6 input spline and universal bolt patterns ensure fitment across a broad range of tractor and spreader brands without adaptation.

Applications of Fertilizer Spreader Gearboxes

• Granular fertilizer application on arable crops, cereals, and vegetables
• Pasture and grassland fertility management in livestock and dairy farming
• Lime and soil amendment spreading for pH correction and soil structure improvement
• Turf and sports field fertilization requiring precision low-rate application
• Orchard and vineyard nutrient management in confined row spacings

What Is a Flail Mower Gearbox?

The flail mower gearbox is the essential component in a flail mower, designed to efficiently convert the tractor's PTO power into the necessary torque for effective vegetation cutting. Constructed from high-quality materials such as cast iron or aluminum alloy, these gearboxes are built to withstand the demands of heavy-duty mowing operations. The gearbox houses a set of interlocking gears, such as spur, worm, or bevel gears, encased in a robust housing that protects internal components from dirt and debris. Regular lubrication ensures smooth operation and extends the gearbox's lifespan. Unlike the spreader gearbox, the flail mower gearbox must handle severe shock loads from flail-to-obstacle impacts and dissipate significantly more heat during continuous high-load cutting operations, requiring heavier construction and larger oil capacity.

Advantages of Flail Mower Gearboxes

• High-torque capability: Designed to transmit 30 to 130+ HP continuously to a heavy flail rotor running at 1,500 to 2,500 RPM, requiring robust gear geometry and large oil volumes.
• Shock load tolerance: Heavy cast-iron or alloy steel housings and wide-face gears absorb the repeated impact loads from flails striking rocks, stumps, and rigid obstacles.
• Speed step-up design: Most flail mower gearboxes step tractor PTO speed (540 or 1000 RPM) up to rotor RPMs of 1,500 to 2,800, using step-up spiral bevel or spur gear sets.
• Integrated thermal management: Larger oil volumes and finned housings dissipate the heat generated by continuous high-horsepower mowing operations on dense vegetation.

Applications of Flail Mower Gearboxes

• Roadside and verge vegetation management including shrub mulching and brush clearance
• Orchard floor and inter-row grass management in fruit and wine-growing regions
• Stubble mulching and crop residue management after cereal harvest
• Conservation and wildlife habitat management including reed bed and wetland cutting

Side-by-Side Comparison
