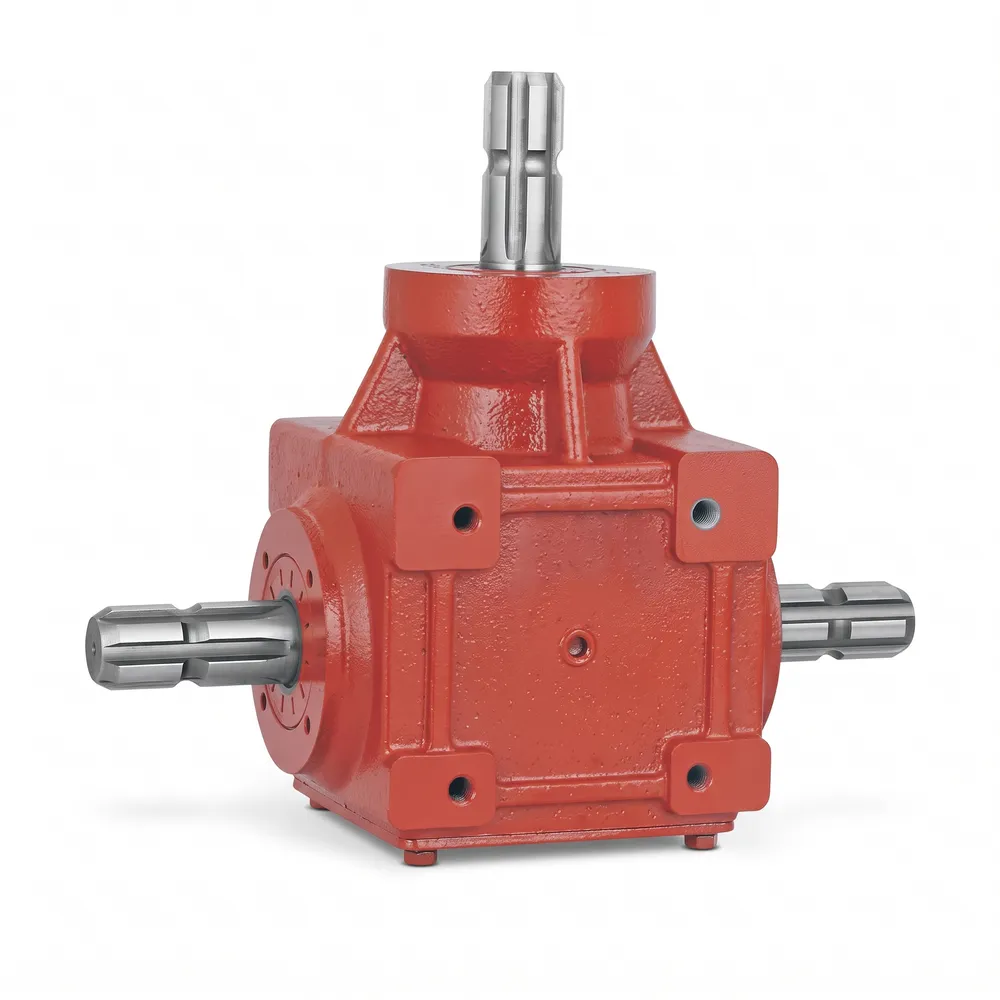

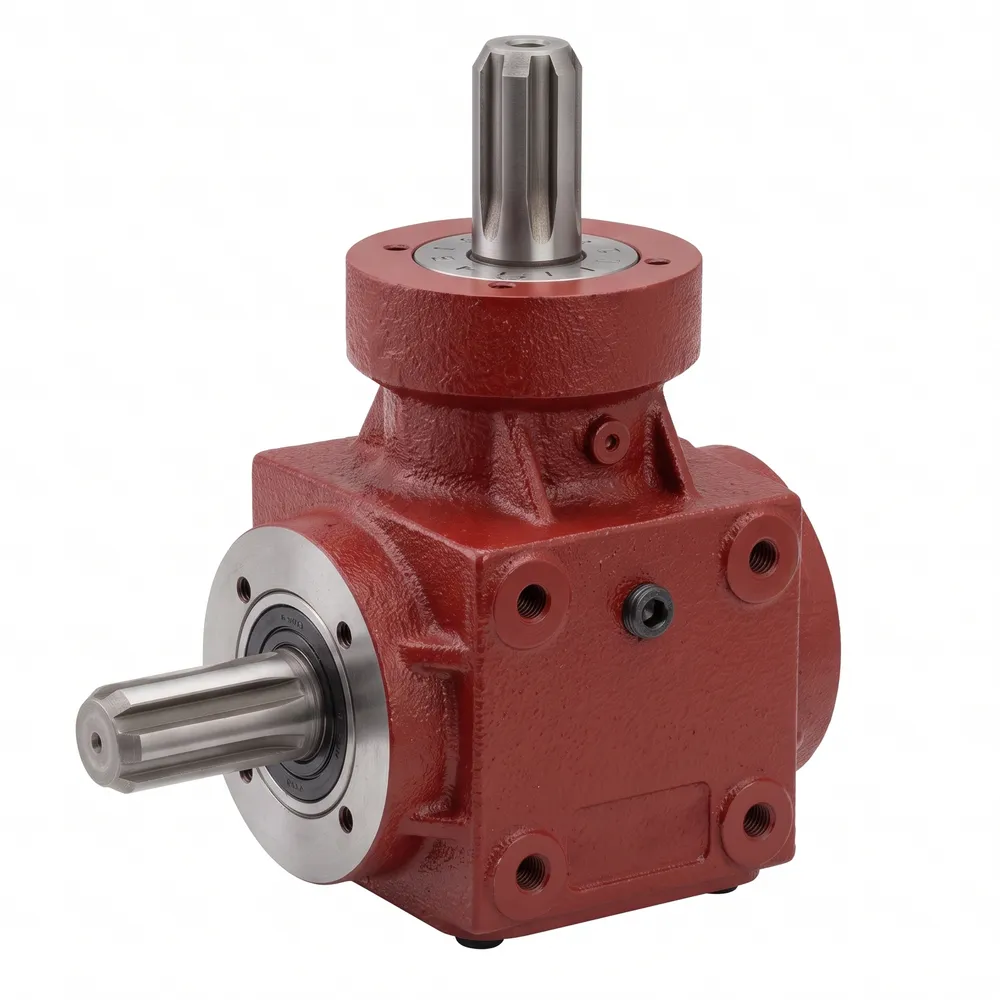

CMN-BGB9-BGB8 Fertilizer Spreader Gearbox Ratio 1:1 Aluminum Right Angle 30HP 540RPM PTO

The CMN-BGB9-BGB8 Fertilizer Spreader Gearbox, widely recognized as a fertilizer distributor gearbox, sits at the mechanical heart of centrifugal and disc-type spreading machines. Rated at 30 HP with a standard 540 RPM PTO input, it accepts and redirects tractor power through a precisely cut right-angle bevel gear set housed in a lightweight yet rigid aluminum body. Two interchangeable ratio configurations, 1:1 (22/15 teeth, Module 5.08) and 1.67:1 (15/25 teeth, Module 4.0), let operators dial in the exact spinner speed their crop and spread-width requirements demand, without changing the entire unit. Both input and output shafts carry the industry-standard 1 3/8-inch Z6 spline profile, guaranteeing direct compatibility with the vast majority of tractor PTO stubs and spreader drivelines on the market today. At 18 kg net weight, the gearbox imposes minimal stress on spreader frames, an important consideration for machines that must be attached and detached repeatedly across a planting season.

This agricultural gearbox for fertilizer spreader applications handles a broad spectrum of materials: dry granular NPK blends, urea prills, lime, potash, pelleted chicken manure, coated slow-release fertilizers, and even grass seed. The housing is sealed against dust and moisture ingress, and the internal lubrication circuit is designed to keep bevel gear surfaces film-coated even during intermittent or lower-speed operation such as headland turns. Whether fitted on a 600-litre single-disc trailed spreader for small mixed farms or as a centre-drive unit on a twin-disc machine covering 24-metre bouts on large arable operations, the BGB9-BGB8 gearbox consistently transfers torque cleanly, spins discs at stable RPM, and resists the slow chemical degradation that fertilizer dust deposits can inflict on lesser components. Its application scope extends from conventional annual cropping and intensive vegetable production to golf-course maintenance, highway verge management, and orchard fertilization programmes.

Technical Parameters

We have completed a third-party supplier audit and company verification supported by SGS / TÜV Rheinland. This verification helps buyers review company identity, business operations, supplier profile and general manufacturing capability. Product-specific inspection reports, material documents or compliance records can be provided according to order requirements.

Minimum Order Quantity (MOQ): Flexibly set based on the product type and order amount.

Samples: New customers may request 1–5 samples under appropriate circumstances.

Mixed Orders: Combining different models is supported; the total order amount must reach approximately $1,500.

Small Orders: Orders starting from 1–2 pieces are supported, but the unit price will be relatively higher.

Lead Time: 10–25 working days for standard parts; 20–45 working days for customized components; 45–120 working days for project-based equipment.

Trade Terms: EXW, FOB, CIF, and DAP are generally supported; FCA, CFR, CPT, CIP, and DDP terms can be specifically negotiated.

Benefits of the CMN-BGB9-BGB8 Fertilizer Spreader Gearbox

1. Dual Ratio Configurations
The BGB9-BGB8 ships in a 1:1 ratio (22/15 teeth, Module 5.08) and a 1.67:1 step-down ratio (15/25 teeth, Module 4.0), enabling operators to select the output RPM best suited to their spreader disc diameter and target application rate. The 1:1 ratio maintains full 540 RPM at the disc for maximum spread width on large arable fields, while the 1.67:1 configuration reduces disc speed to approximately 323 RPM, providing finer control over granule trajectory and reducing wind-drift losses when spreading lighter materials or working in exposed conditions.

2. Corrosion-Resistant Aluminum Construction
Agricultural fertilizers, particularly nitrogen-rich compounds and potash blends, are notoriously aggressive toward unprotected metals. The die-cast aluminum housing provides an inherently oxidation-resistant outer shell, and internal faces are treated to resist chemical attack from fertilizer dust that migrates past primary seals. Double-lipped oil seals at both shaft exits prevent fertilizer fines from reaching the bearing races, dramatically extending service life compared to single-seal designs common on budget-grade fertilizer spreader gearboxes available in the secondary market.

3. PTO Interface & Spline Compatibility
Both the input and output shafts are machined to the 1 3/8-inch Z6 spline standard, which matches the PTO stub found on the overwhelming majority of tractors from 30 HP upward. This standardised interface eliminates the need for adapters, reducing driveline runout and the vibration that accelerates bearing fatigue. Correct spline engagement also prevents the fretting corrosion that occurs when an undersized or mismatched coupling is forced into service under cyclic torque loading typical of disc-spreader operation.

4. Twin Output for Disc and Agitator Drive
The symmetric twin-output shaft layout visible in the engineering drawing supports simultaneous drive of both left and right spreading discs, or, on machines equipped with an internal agitator, the agitator shaft and the disc drive shaft. Driving the agitator from the same gearbox that powers the disc ensures that material feed rate and disc speed are inherently synchronised, preventing bridging in the hopper during prolonged operation with sticky or hygroscopic fertilizers such as ammonium nitrate or compound NPK in humid field conditions.

5. Wide Range of Application Compatibility
The CMN-BGB9-BGB8 is not a single-application component. Its 30 HP rating and standard spline interface allow it to serve on centrifugal spreaders, twin-disc machines, lime spreaders, seed broadcasters, and granular pesticide applicators. It operates across tractors from compact utility models with 30-35 HP outputs right up to higher-powered machines where it can be used in parallel drive arrangements. Fertilizer spreader gearbox manufacturers including CMN offer this unit as a direct replacement for many OEM-supplied gearboxes used across European and North American spreader brands.

6. Field Serviceability
Maintaining the correct fertilizer spreader gearbox oil level is straightforward with clearly positioned fill, check, and drain plugs that can be accessed without removing the unit from the spreader frame. A dedicated breather vent prevents pressure build-up during thermal cycling, which otherwise forces lubricant past the output shaft seals. The M10 flange bolt pattern is a common industrial standard, meaning replacement hardware is available from any agricultural merchant, reducing downtime during the time-critical spring and autumn spreading windows when the machine must return to work quickly.

How Does the CMN-BGB9-BGB8 Fertilizer Gearbox Work

When the tractor operator engages the PTO lever, the main driveshaft rotates at 540 RPM and feeds torque into the BGB9-BGB8 through the 1 3/8 Z6 input spline. Inside the aluminum housing, this rotational energy meets the primary bevel gear set, which turns the power flow through 90 degrees to redirect drive to the horizontal output shafts. In the 1:1 configuration, the 22-tooth input pinion meshes with the 22-tooth output crown, producing an identical output speed at both ends of the cross shaft. In the 1.67:1 configuration, the 15-tooth pinion drives the 25-tooth crown gear, delivering a proportionally lower output RPM with correspondingly higher available torque at the disc flanges. This torque increase is particularly valuable when the spreader carries a full hopper load and the disc must overcome the inertia of a heavy fertilizer column pressing down on its vanes during the initial engagement phase. The right-angle bevel gear architecture is inherently stiffer than worm-type arrangements at this power level, and it generates less heat under sustained load because sliding contact between teeth is minimised compared to worm mesh geometry.

The aluminum alloy housing combines low mass (contributing to the 18 kg net weight figure) with sufficient wall thickness to absorb the bending moments that arise when a heavily loaded spreader crosses undulating ground. Internal gear surfaces are hardened to resist pitting under repeated contact stress cycles, while the gear oil bath ensures full film lubrication even during the brief overloading events common in field use. Double-lip shaft seals at each output and a single-lip seal at the input stub prevent the ingress of fertilizer dust and moisture, both of which are primary causes of premature bearing failure in this product category. A pressurised breather cap allows the small volume of hot air that expands during operation to escape without building internal pressure that would otherwise push oil past seals.

The standard PTO driveshaft connecting the tractor to the gearbox input typically incorporates either a slip clutch or a shear-bolt torque-limiter positioned between the tractor stub and the gearbox input flange. When a foreign object, wet clump of soil, or accidental disc blockage causes disc speed to drop suddenly, the torque spike travels back up the driveline. If this spike exceeds the rated 30 HP threshold, the slip clutch releases or the shear bolt fractures, decoupling the power source from the gearbox within milliseconds. This prevents the bevel gears from stripping teeth, the housing from cracking, or the cross-shaft from bending, and it protects the tractor PTO bearing from shock loads. After clearing the obstruction, the operator simply resets the clutch or replaces the shear bolt and resumes work with no lasting damage to the agricultural gearbox. This overload response cycle can be completed in minutes, keeping field downtime to a minimum during time-sensitive spreading operations.

Application Scenarios

CMN-BGB9-BGB8 Fertilizer Spreader Gearbox Parts

Gearbox Housing
The die-cast aluminum alloy housing forms the structural chassis of the entire unit. It maintains precise bore alignment for the input and output shaft bearings under dynamic load, absorbs vibration before it reaches the spreader frame, and protects internal components from fertilizer fines and field moisture. Wall thickness is specified to resist cracking from the bending stress that arises when a full hopper load is suddenly stopped by a disc blockage event.

Input Shaft
Machined from medium-carbon alloy steel and induction-hardened across its spline length, the input shaft receives rotational energy directly from the PTO driveshaft through the 1 3/8 Z6 spline bore. It is precision-ground to the interference fit tolerance required for the inner race of the input-end tapered roller bearing, which resists both the radial load from bevel gear mesh forces and the axial thrust that reverses direction each time the operator declutches and re-engages the PTO.

Bevel Gear Set
The matched pair of case-hardened steel bevel gears is the power-conversion core of this fertilizer gearbox. Cut to precise tooth geometry to achieve the specified 1:1 or 1.67:1 ratio, the gears are lapped together during assembly to produce a uniform tooth-contact pattern that minimises noise and distributes Hertzian contact stress across the full face width. Module 5.08 and 4.0 sizing gives each tooth adequate cross-section to handle repeated torque surges without plastic deformation of the root fillet.

Output Shafts
Two symmetrically positioned output shafts emerge from each side of the housing at the 335 mm centre distance shown in the engineering drawing. Each stub is machined to the 1 3/8 Z6 spline profile, with an 83 mm insertion depth, a 63.5 mm bore engagement zone, and a 38 mm key section visible in the certified dimension data. M10 flange bolts secure the disc hub or adaptor plate to the output face, while a retention groove and snap ring prevent axial migration of the shaft under operational loading.

Bearings
Tapered roller bearings are selected at each shaft end and at the bevel crown gear position because they carry simultaneous radial and axial (thrust) loads, both of which are inherent in bevel gear operation. The bearings are pre-loaded during assembly to eliminate internal clearance, a step that suppresses micro-movement of the rolling elements under cyclic load reversal and is a significant factor in achieving extended grease-on-grease service life without requiring disassembly or bearing adjustment in normal field use.

Oil Seals
Double-lip rotary shaft seals at the output positions and a single-lip seal at the input shaft keep gear oil inside the housing and fertilizer contamination outside. The outer lip deflects dust and abrasive particles before they reach the sealing surface, while the inner lip maintains positive contact with the shaft journal under the full range of operating temperatures encountered from cold-morning startups in northern European spring conditions to sustained running in the heat of sub-tropical spreading seasons. Seal lips are factory pre-coated with assembly lubricant to prevent dry-start damage.

Lubrication System
The splash-lubrication system uses the rotation of the bevel gears to continuously lift oil from the sump and deposit it onto gear tooth faces, bearing inner races, and shaft journal surfaces. Oil level is set via a side-mounted level plug to ensure adequate depth for the rotating crown gear to reach the bath without churning excess oil into foam. The fill plug doubles as a pressure-relief vent when thermally expanded air needs to escape, while the drain plug at the lowest housing point allows full oil changes without tilting the machine. Recommended lubricant is 80W-90 gear oil, with the first change at 50 hours and subsequent changes annually or every 200 operating hours, whichever occurs first.

How to Properly Maintain the CMN-BGB9-BGB8 Gearbox

1. Monitor Oil Level and Condition
Check the fertilizer spreader gearbox oil level with the machine on level ground before the start of each spreading season and every 50 operating hours thereafter. The correct lubricant is 80W-90 mineral or semi-synthetic gear oil filled to the centre of the level plug port. Drain and refill at the end of the first season of a new unit (the initial fill flushes metal particles from gear bedding-in), then annually or every 200 hours. Discoloured oil, a milky appearance indicating water contamination, or a metallic smell are all signs that immediate inspection is warranted before further operation causes gear or bearing damage that transforms a minor service into a full rebuild.

2. Inspect Output Shaft Seals Frequently
Fertilizer dust is extremely abrasive and hygroscopic. Where it accumulates on rotating shaft seals, it draws moisture from the air and forms a corrosive paste that erodes the seal lip contact zone within weeks in the most aggressive climates. Visually check each output shaft exit for oil weeping after every working day during the spreading season. A light film around the seal exterior is normal during the first few hours of operation with a new seal; persistent dripping indicates the seal has lost contact and must be replaced before the bearing it protects is exposed to the combined abrasive and chemical attack that will destroy it rapidly.

3. Check Disc Bolts and Shaft Keys
At the start of each spreading season, remove each disc hub from the output shaft stub, clean the spline engagement surfaces, apply a light film of anti-seize compound, and check the condition of the output shaft retention snap ring and the disc-mounting M10 flange bolts. Spline fretting wear shows as dark oxide powder in the spline grooves; moderate fretting is normal, but deep grooving indicates the disc hub is moving axially under load and the retention arrangement needs upgrading. Torque the flange bolts to the manufacturer's specification and re-check after the first 10 hours of operation at the start of the season.

4. Verify Overload Protection Components
After any disc blockage or jamming event where the PTO driveshaft overload device activated, inspect the slip clutch friction plates or replace the shear bolt before resuming work. A slip clutch that was held in slip for more than a few seconds will have heat-damaged friction material, which means it may slip at torques lower than its rated setting, causing nuisance trips during normal spreading, or it may not slip at all, transmitting full shock loads directly into the gearbox the next time a blockage occurs. Inspect the gearbox housing for any new cracks, and check that the input shaft rotates freely after the event without binding or bearing rumble.

5. Clean Thoroughly After Each Use
Fertilizer residue left on the gearbox exterior, particularly near shaft exits and housing joints, begins attacking the aluminum surface and degrading seal materials within hours in humid conditions. After each spreading session, remove loose fertilizer deposits with compressed air or a dry brush before they absorb atmospheric moisture and become corrosive paste. Do not use a high-pressure washer directly on shaft seals or housing joints, as pressurised water can force fine fertilizer paste past the outer seal lip into the bearing cavity. An annual wash with mild alkaline cleaner followed by thorough drying and a light oil wipe is appropriate for end-of-season storage preparation.

6. Confirm Compatibility Before Ordering Replacement Parts
When ordering fertilizer spreader gearbox parts, always confirm the model number stamped on the housing, the current ratio configuration (1:1 or 1.67:1), the PTO speed rating (540 RPM), the spline type (1 3/8 Z6), and the mounting bolt size (M10) before placing the order. Many aftermarket seal kits and bearing sets are physically similar across multiple agricultural gearbox models but differ in dimensional tolerances or material specification in ways that shorten service life when fitted to the wrong housing. CMN Transmission's technical team can cross-reference your model number to confirm the correct part numbers before shipment, avoiding the cost and delay of returning incorrect components during the middle of a spreading season.

How to Select the Right Gearbox for Fertilizer Spreader

Fertilizer Spreader Gearbox and PTO Drive Shaft

The fertilizer spreader gearbox and the agricultural PTO shaft are not competing components; they are two consecutive links in the same mechanical chain running from the tractor's internal gearbox output to the spinner discs on the spreader.

The PTO shaft, also called the Power Take-Off shaft, is a telescopic driveshaft fitted with a protective guard and terminated at each end with a yoke and cross-joint assembly. Its role is purely mechanical transmission of rotational speed and torque from the tractor PTO stub to whatever implement is connected. It does not change speed, redirect power flow, or increase torque; it simply bridges the physical gap between the tractor and the machine while tolerating the angular misalignment that varies as the tractor turns, as the three-point linkage rises and falls, and as the machine follows ground contour independently of the tractor. A well-maintained PTO shaft fitted with functioning safety guards and correctly dimensioned cross-joint bearing kits will deliver essentially the same rotational speed that exits the tractor stub, minus minimal friction losses, directly into the input yoke of the gearbox.

The fertilizer spreader gearbox begins its job exactly where the PTO shaft ends. Rotational energy enters the input stub at 540 RPM through the 1 3/8 Z6 spline and is redirected 90 degrees by the bevel gear set to drive the two horizontal output shafts. The gear ratio either maintains that speed (1:1 ratio) or reduces it (1.67:1 ratio) while correspondingly increasing the available torque delivered to the disc flanges. Without the gearbox, there is no practical way to connect a horizontally running PTO shaft to vertically mounted spinner discs on a rear-mounted spreader while maintaining the correct disc plane orientation for uniform granule throw patterns.

Together, the two components define the driveline specification for any given spreader installation. When replacing either component, the other must be re-checked for compatibility: a new gearbox with a different input shaft length changes the PTO shaft telescopic adjustment requirement; a replacement PTO drive shaft with a different cross-joint angle rating changes the maximum articulation the driveline can safely tolerate during headland turns. CMN Transmission supplies both agricultural gearboxes and PTO shaft assemblies, allowing customers to source a correctly matched driveline pair from a single supplier, simplifying both procurement and technical support across the service life of the equipment.

For operators purchasing fertilizer spreader gearboxes for sale as replacement units, CMN recommends measuring the existing PTO shaft compressed and extended lengths before ordering, because the new gearbox input flange position relative to the spreader hitch point must fall within the driveshaft's operational length range. A shaft that is too short will disengage during turns, and one that is too long will bottom out on the input spline, transmitting bending forces into the gearbox housing that will fracture the input shaft bearing seat within one season of use.

Why Choose CMN Transmission's Fertilizer Spreader Gearboxes?

Korea CMN Transmission Co., Ltd. was established in 2000 and operates from its production base in Sandan-o, Danwon-gu, Ansan-si, Gyeonggi-do, Korea. Over more than two decades, the company has grown from a regional agricultural gearbox supplier into a globally recognised manufacturer exporting to more than 60 countries across six continents. The production facility employs more than 100 factory workers and engineering staff, with dedicated teams for R&D, quality control, and after-sales technical support covering the full product lifecycle from initial specification through to field service.

CMN's product catalogue is one of the broadest among dedicated agricultural gearbox manufacturers anywhere in Asia, covering rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, rotary mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, round baler gearboxes, square baler gearboxes, disc mower gearboxes, centre pivot irrigation gearboxes, hydraulic drive gearboxes, silage machine gearboxes, orchard sprayer gearboxes, rotary rake gearboxes, combine harvester gearboxes, grain storage gearboxes, grain transportation gearboxes, corn header gearboxes, cutting bar gearboxes, and poultry feeding gearboxes. Custom agricultural gearboxes covering nearly one thousand specifications can be produced from customer drawings, with engineering reviews completed within five working days for most enquiries.

The company's other product lines include PTO shafts, universal joints, yokes, tubes, torque limiters, protective covers, adapters, couplings, bearings, blades, chains, and sprockets, allowing customers to source complete driveline packages from a single qualified supplier. Annual production exceeds 500,000 units, and all output is manufactured under CE and ISO 9001 certified management systems. Every batch undergoes outgoing quality inspection covering dimensional verification, gear-mesh pattern testing, and housing pressure testing before despatch.

CMN Transmission's export markets include the United States, Canada, Mexico, Brazil, Argentina, France, Germany, Italy, Spain, the United Kingdom, Russia, India, Thailand, Vietnam, Turkey, Australia, and New Zealand, among many others. The company's sales teams include personnel with technical knowledge of each of these regions' tractor and implement standards, making it straightforward to specify products that comply with local PTO speed conventions, spline standards, and safety regulations. For OEM machinery builders, CMN can supply gearboxes with custom labelling, modified shaft dimensions, or specific paint finishes as part of a scheduled production arrangement.

Frequently Asked Questions

Q: What oil should I use in the CMN-BGB9-BGB8 fertilizer spreader gearbox, and how often should I change it?
A: The standard fill for this fertilizer gearbox is 80W-90 GL-4 or GL-5 mineral or semi-synthetic gear oil. Fill to the centre of the level plug port with the machine on level ground. Change the oil after the first 50 hours on a new unit to flush bedding-in metal particles, then every 200 operating hours or annually at season end, whichever comes first. In extremely dusty or humid operating environments, reduce the interval to 100 hours to catch early seal contamination before it damages the bearing races.

Q: Which fertilizer spreader gearbox ratio should I choose: 1:1 or 1.67:1?
A: Choose the 1:1 ratio (22/15 teeth, Module 5.08) when you need maximum spinner disc RPM for wide spread widths, typically 24 to 36 metres, with dense granular fertilizers like urea, DAP, or compound NPK at 10 to 14 km/h field speed. Select the 1.67:1 ratio (15/25 teeth, Module 4.0) when you need lower disc RPM for reduced spread width, lighter materials such as coated slow-release granules or fine seed, or when you are working in high-wind conditions where lower disc speed reduces drift. If unsure, consult the spreader manufacturer's calibration chart for your disc diameter and target spread width.

Q: Is the CMN-BGB9-BGB8 a direct replacement for OEM fertilizer spreader gearboxes from European brands?
A: The BGB9-BGB8 is compatible with many spreaders that originally used a right-angle bevel gearbox with 1 3/8 Z6 input and output shafts, a 335 mm output shaft centre span, and M10 flange bolt mounting. This matches the interface used on several popular twin-disc spreader designs from European agricultural gearbox manufacturers. However, direct OEM replacement cannot be guaranteed for every spreader model without comparing the dimensional drawing. CMN Transmission recommends providing the existing gearbox model reference or a measured sketch before confirming the order, to eliminate any compatibility risk.

Q: Can this agricultural gearbox run on a 1000 RPM PTO tractor?
A: No. The CMN-BGB9-BGB8 is rated and designed for 540 RPM PTO input only. Operating at 1000 RPM on the input shaft without internal modification will over-speed the output shafts to approximately 1000 RPM (1:1 ratio) or 600 RPM (1.67:1 ratio), both of which exceed safe disc tip speeds for standard spreader discs, over-stress the bearings and gear tooth root sections beyond their design load, and will cause premature failure within a short period. If your tractor offers switchable 540/1000 RPM PTO, confirm it is set to 540 RPM before engaging. A 1000 RPM-rated variant requires a different gear specification; contact CMN Transmission for options.

Q: Why is my fertilizer spreader gearbox leaking oil from the output shaft seals?
A: Output shaft seal leaks on fertilizer gearboxes have three common causes. First, the breather vent may be blocked by a fertilizer dust cap, causing pressure to build inside the housing during operation and pushing oil past the seal lips. Clean the breather vent first. Second, the seals may have been damaged by abrasive fertilizer paste accumulating in the seal groove. This requires seal replacement with new double-lip seals from the CMN parts programme. Third, the gearbox may be overfilled; oil above the level plug port creates excess splash and overwhelms the seal. Drain to correct level before investigating further if you recently refilled the unit.

Q: What fertilizer spreader gearbox parts are available for the BGB9-BGB8 as aftermarket spares?
A: CMN Transmission stocks seal kits (input and output shaft oil seal sets), tapered roller bearing sets, matched bevel gear pairs for both ratio configurations, housing gasket sets, breather vents, fill and drain plug sets, and complete shaft assemblies. For catastrophic housing damage from impact, replacement housings are available as a special order with lead times of approximately four weeks. Most routine parts ship from CMN's warehouse within two to three business days for international orders, with tracking provided. Contact the sales team with the gearbox model and serial number to confirm current parts availability and pricing.

Q: How does the fertilizer spreader gearbox ratio affect spreading width and application rate?
A: Disc RPM is the primary variable that determines granule throw distance and therefore effective spread width. Higher disc RPM produces greater centrifugal force, throwing granules further and producing a wider bout width. The 1:1 ratio maintains the full 540 RPM at the disc, maximising spread width for a given disc diameter. The 1.67:1 ratio reduces this to approximately 323 RPM, shortening the throw distance and narrowing the effective bout. Application rate in kg/ha depends on the shutter or slide gate setting controlling material flow from the hopper, not on gearbox ratio, but the disc RPM affects pattern evenness, so calibration must be repeated whenever you switch between ratio configurations or change material density.

Q: Can I use this gearbox for spreading lime and other soil amendments, not just fertilizer?
A: Yes, but with some considerations. Ground limestone and agricultural lime are highly abrasive and react slowly with aluminum oxide surfaces; the sealed housing and double-lip output shaft seals are designed to cope with regular lime exposure, but cleaning immediately after lime spreading sessions is particularly important. Lime left on external surfaces combines with damp air to form calcium hydroxide paste, which aggressively attacks the housing and seal material over an extended period. For heavy lime spreading duties exceeding 200 hours per season, check seals at mid-season as well as at the seasonal service interval, as lime duty accelerates seal wear relative to standard fertilizer service.

Q: Where can I find the best fertilizer spreader gearbox for sale at a competitive price?
A: CMN Transmission supplies the BGB9-BGB8 directly to OEM machinery builders, agricultural dealers, and farm operators worldwide through its export sales programme. Pricing is based on order quantity, with tiered discounts available from five units. Shipping is arranged via sea freight to major global ports or air freight for urgent single-unit replacement orders. Request a formal quote through the website contact form, providing your required quantity, ratio configuration, and destination port, for a response within one business day. CMN Transmission has shipped to over 60 countries and can advise on the most cost-effective logistics route for your region.

Q: Does the gearbox come with a warranty, and what does it cover?
A: CMN Transmission offers a standard 12-month warranty on the BGB9-BGB8 against manufacturing defects in materials and workmanship under normal operating conditions. The warranty covers gear tooth failure not caused by overloading beyond 30 HP, housing cracks not caused by external impact, and bearing failures under correct lubrication. It does not cover seal wear from abrasive material ingress where the machine was not cleaned as specified, or damage from operation at 1000 RPM PTO. Warranty claims are processed through the supplying distributor or directly with the CMN export team; photographic evidence of the failure and the oil condition at time of failure is requested to expedite assessment.
