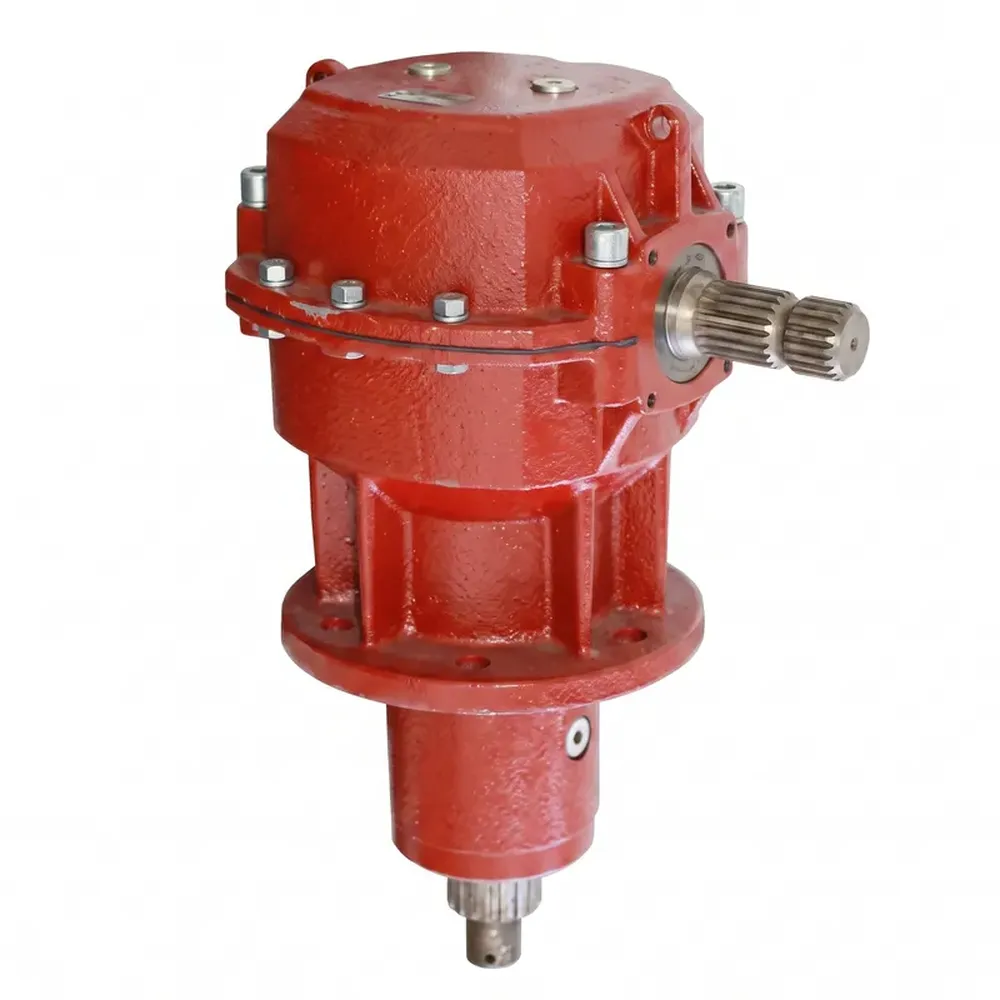

Caja de engranajes de repuesto para cortadora rotativa RC-145 Omni RC-145

The RC-145 Rotary Cutter Gearbox Replacement for Omni RC-145 Gearbox is a heavy-duty agricultural gearbox engineered specifically for high-demand cutting machinery in the farming and land-management industries. Designed as a direct drop-in replacement for the OEM Omni RC-145 unit, this rotary cutter gearbox drives rotary knives and cutting decks for grass cutting, straw crushing, and brush clearing operations across a wide range of field conditions. Its bevel-gear architecture and triple-lip spring-loaded seals allow it to operate reliably in muddy paddocks, roadside ditches, and wetland areas where conventional drive units fail prematurely. With an HP rating spanning 71 to 181 HP and five selectable gear ratios, the RC-145 is equally at home on compact utility tractors and large row-crop machines, making it one of the most versatile gearboxes for rotary cutters available in the replacement market today.

At its core, the RC-145 converts the high-speed PTO input, typically 540 or 1,000 RPM, from a tractor's power take-off shaft into low-speed, high-torque output suitable for rotary blade operation. The gear set delivers up to 19,950 lb.-in. (2,252 Nm) of torque, maintaining consistent power even when blade load fluctuates sharply, such as when cutting through dense straw, thick weeds, or woody brush. Multi-ratio capability (1.21:1, 1:1, 1:1.21, 1:1.46, and 1:1.92) lets operators fine-tune blade speed to match crop density and terrain, from flat open pasture to steep hillsides and saturated wetland margins. With ISO-standard mounting flanges and an oil capacity of 1.8 L, the unit supports quick field installation and straightforward scheduled maintenance, keeping downtime short during peak cutting seasons. It is a trusted solution used in finishing mowers, rotary cutters, and rotary slashers worldwide.

Especificaciones del producto

RC-145 Rotary Cutter Gearbox Dimensions

Key Benefits of RC-145 Rotary Cutter Gearbox

1. Tractor PTO Direct Drive Compatibility
The RC-145 connects directly to the tractor PTO shaft via standard 1-3/8 inch or 1-3/4 inch spline configurations, supporting both 540 RPM and 1,000 RPM inputs. Quick-change couplings simplify hitching and unhitching, so operators can swap implements in the field without tools, reducing setup time across mixed-use operations and improving daily productivity on large properties.

2. Outstanding Durability and Environmental Protection
The housing is produced from high-strength ductile iron with a red oxide primer finish and optional additional coatings for extreme corrosion environments. Triple-lip spring-loaded seals rated to IP67-equivalent protection prevent mud, water, crop sap, and fine abrasive dust from infiltrating the gear chamber. This sealed-environment approach extends bearing and gear service life substantially compared to older single-lip designs common in the replacement gearbox market.

3. Multiple Speed Ratios Flexibility for Variable Crop
With five available caja de engranajes de cortadora rotativa ratios (1.21:1, 1:1, 1:1.21, 1:1.46, and 1:1.92), the RC-145 can be configured to optimize blade speed for the specific task at hand, from high-speed finish-cut grass on level turf to heavy-torque brush clearing on steep slopes or through dense standing crop residue. This ratio flexibility makes a single gearbox model suitable for operations that would otherwise require separate units for each application type.

4. Floating Design for Superior Terrain Adaptability
A floating gearbox design lets the cutting deck follow natural ground contours automatically, raising and lowering as the terrain undulates without operator input. This self-leveling action keeps blade-to-ground clearance consistent, preventing costly blade collisions with embedded stones, tree roots, or irrigation hardware. It is particularly valuable on hill paddocks, uneven orchards, and rough roadside verges where ground conditions change constantly.

5. Field-Accessible Maintenance Design
An externally located oil fill port and drain valve allow lubrication top-ups and full oil changes to be completed without removing the gearbox from the machine. This is critical when checking the rotary cutter gearbox oil level mid-season. Selected configurations also accommodate maintenance-free sealed bearings, further reducing scheduled service intervals and cutting the total labour cost of keeping the unit in peak condition throughout a demanding harvest period.

6. Integrated Overload Safety Protection
An integrated overload clutch or shear bolt mechanism instantly interrupts power transfer the moment blade jamming or sudden overload is detected. This cuts off peak torque spikes before they can propagate back through the driveline to the tractor transmission, protecting both the gearbox and the host vehicle from expensive secondary damage. On models equipped with shock-absorber buffers, impact energy from blade strikes against rocks or stumps is further attenuated at the source.

7. Direct OEM-Compatible Replacement Fit
Manufactured to match all critical mounting dimensions of the original Omni RC-145, this replacement gearbox for rotary cutter installs without modification to the existing deck frame, driveline, or blade carrier. Bolt-hole patterns, flange diameter (260 mm), and hub pilot geometry are all held to OEM specification, so experienced farm mechanics can complete the swap in a single working session without specialist alignment tools or custom adapters.

Principio de funcionamiento

The RC-145 is a precision bevel-gear transmission unit that sits between the tractor PTO shaft and the blade spindle of a rotary cutting deck. Power flow begins at the input shaft, which connects to the tractor PTO via a driveline with a universal joint at each end. The PTO delivers rotational energy at a standard 540 RPM or 1,000 RPM, depending on the tractor model and operator selection. The input shaft passes this rotation directly into the gearbox housing, where it engages the bevel gear set. Bevel gears are conically shaped gears whose axes intersect at a right angle, so they can redirect torque by 90 degrees, converting horizontal shaft rotation into the vertical output axis needed to spin a horizontal cutting blade below the deck.

Inside the housing, the bevel pinion (attached to the input shaft) meshes with the ring gear (attached to the output shaft). The ratio between the number of teeth on the pinion and the ring gear determines whether the unit speeds up, slows down, or maintains the same rotational speed through the gearbox. The RC-145 offers five selectable rotary cutter gearbox ratios, from 1.21:1 step-down for heavy-torque brush cutting to 1:1.92 step-up for high-speed finishing applications. This makes the unit adaptable to a much wider range of crop types and terrain profiles than fixed-ratio competitors.

Torque output scales with the selected ratio, ranging from 803 Nm at low load to 2,252 Nm at peak demand. Tapered roller bearings on both input and output shafts absorb the radial and axial loads generated during gear mesh and blade impact events, maintaining precise shaft alignment under conditions that would cause premature failure in units fitted with standard deep-groove ball bearings. An oil-bath lubrication system submerges the lower portion of the bevel gear mesh in gear oil, with gearcase porting ensuring that oil flows continuously to the lower bearings during operation, preventing dry-running even when the gearbox is tilted on hillside terrain.

Triple-lip spring-loaded seals on both shafts keep contamination out of the oil bath and prevent oil loss through the rotating shaft exits, which are the most common leakage points on field-used gearboxes. A pressure relief plug vents internal pressure caused by thermal expansion of the oil during heavy-duty operation, preventing seal blowout without allowing contamination ingress. For operators in extreme-duty applications, an optional labyrinth seal can be installed over the output shaft to add a second layer of contamination exclusion.

The complete power path, from PTO input through bevel gear mesh to blade spindle output, is engineered to sustain the variable shock loading typical of rotary mower gearbox service. When a blade strikes a hidden rock or a dense clump of woody vegetation, the torque spike travels backward through the output shaft and into the gear mesh. Shear bolt or slip clutch overload protection (depending on configuration) intercepts this spike before it can cause bevel gear tooth fracture or input shaft bearing failure. This protection mechanism is one of the most important design features distinguishing a purpose-built agricultural gearbox from a general industrial unit adapted for field use.

Correct rotary cutter gearbox oil selection and scheduled oil changes at the manufacturer-recommended intervals are the single most important maintenance actions for preserving gear and bearing life. The 1.8 L oil bath is accessible via the external fill port and drain valve, making field-level maintenance practical without removing the unit from the machine. Operators using 40 hp rotary cutter gearbox through 100 hp rotary cutter gearbox applications should verify that the oil grade used matches the operating temperature range expected in their region, as viscosity breakdown accelerates gear wear in hot-climate high-load conditions.

RC-145 Rotary Cutter Gearbox Applications

How to Correctly Replace the RC-145 Gearbox

1. Disconnect the PTO Driveline and Relieve All Stored Energy
Before touching any fasteners, park the tractor on level ground, engage the parking brake, shut off the engine, and wait for all rotating components to come to a complete stop. Disconnect the PTO driveline at the tractor end and support the free shaft with a stand or strap to prevent it from dropping. Remove the key from the ignition and, where possible, lock out the PTO engagement mechanism. Working on a gearbox with residual driveline tension present is a leading cause of serious injury during rotary cutter gearbox replacement operations.

2. Drain the Gear Oil from the Existing Unit
Position a clean drain pan of sufficient volume beneath the gearbox drain valve. Remove the drain plug slowly, allowing the old oil to flow out completely. Inspect the drained oil for metal particles, which indicate internal gear or bearing damage. Dispose of used rotary cutter gearbox oil in accordance with local environmental regulations. Draining before removal prevents spillage during handling and keeps the working area clean for accurate inspection of the housing and mounting surfaces.

3. Remove the Blade Assembly and Output Shaft Connection
Support the cutting blade carrier safely before removing the output shaft retaining bolt or snap ring. Mark the blade carrier orientation relative to the output shaft spline before disassembly so it can be reinstalled in the same position, preserving balance. Blade carrier hubs can seize onto output shafts after extended service, so apply penetrating oil to the hub-to-shaft interface at least 15 minutes before attempting removal, and use a purpose-made hub puller rather than striking the hub directly.

4. Unbolt the Gearbox from the Deck Frame
The RC-145 is secured to the cutter deck via six flange mounting bolts arranged on a 203.2 mm bolt circle. Support the gearbox weight with a floor jack or hoist before removing the final bolts, since the 50 kg housing will drop suddenly once the last fastener is clear. Inspect the mounting face on the deck for corrosion, cracks, or deformed bolt holes before installing the replacement unit, as a distorted mounting surface will induce misalignment stress into the new gearbox from the first operating hour.

5. Install and Torque the Replacement Unit
Lift the new RC-145 into position, aligning the hub pilot (96.0 mm diameter) with the pilot bore in the deck frame and the six bolt holes with the flange pattern. Apply thread-locking compound to the mounting bolts and tighten in a star pattern to the torque specification listed in the manufacturer's installation guide. Do not substitute grade 5 fasteners for the specified grade 8 bolts, as under-strength mounting hardware is a common cause of premature gearbox mounting face failure on high-vibration rotary cutter applications.

6. Fill to Correct Oil Level and Check for Leaks
Fill the gearbox to the specified level (1.8 L / 60 oz.) through the external fill port using the grade of gear oil recommended in the CMN Transmission specification sheet for the expected operating temperature. Replace the fill cap securely. Run the unit at low PTO speed for five minutes, then shut down and inspect all seal points, the fill cap, drain plug, and flange gasket face for any weeping or active leaks. Correct any leaks before returning the machine to full field-speed operation.

7. Perform a Loaded Break-In Run and Retorque Fasteners
Allow the new gearbox to run under graduated load, starting at 50% of normal cutting speed for the first operating hour, then increasing to full speed and load for the next two hours. After the break-in period is complete, shut down and retorque all mounting bolts to specification while the housing is still warm, as thermal cycling causes fastener relaxation during the first operating session. Check the oil level again after the break-in run and top up as required before returning the machine to standard daily operation.

Precauciones de instalación

Verify Compatibility Before Installation
Confirm that the RC-145 dimensions, specifically the hub pilot diameter (96.0 mm), flange diameter (260 mm), and six-hole bolt pattern (203.2 mm BCD), match the existing deck mounting receiver. Even among units described as RC-145 class, dimensional tolerances vary between manufacturers, and a poor-fitting flange will induce bending stress into the housing from the first hour of operation, accelerating bearing and seal failure beyond the unit's rated service life.

Use Correct Fasteners and Thread Treatment
All mounting bolts must be Grade 8 (SAE) or property class 10.9 (metric) minimum. Apply medium-strength thread-locking compound to the bolt threads and torque to specification in a cross-pattern sequence. In high-vibration rotary cutter applications, self-locking fasteners or hardened flat washers should be added beneath the bolt heads if not already specified, as fastener backing-off under vibration is a common cause of housing-to-deck joint failure and consequent gearbox damage.

Align the Driveline to Minimize U-Joint Working Angle
The PTO driveline connecting the tractor output shaft to the gearbox input should be assembled so that the universal joints operate at equal and opposite angles, ideally below 6 degrees each when the implement is in the working position. Excessive or unequal U-joint angles generate cyclical vibration that loads the input shaft bearings asymmetrically, accelerating wear and producing the characteristic noise associated with failing gearbox for rotary cutter input assemblies before the gear teeth themselves are worn.

Fill Oil Before First Start-Up
New replacement gearboxes are shipped without oil or with only a light preservative coating on internal surfaces. Always fill to the specified 1.8 L oil capacity with the recommended gear oil grade before connecting the PTO driveline and starting the tractor. Running the unit even briefly without oil present will damage bearing surfaces and gear tooth contact patterns in ways that cannot be reversed by subsequent correct lubrication, significantly shortening the expected service life of the replacement unit from the first day of use.

Inspect the Shear Bolt or Slip Clutch Overload Device
Before returning the machine to field service, verify that the overload protection device, whether a shear bolt collar on the driveline or a slip clutch in the PTO coupler assembly, is correctly configured and set to the torque value recommended for the RC-145 HP rating. An overload device set too tight will allow excessive shock torque into the gearbox during blade strikes; one set too loose will slip under normal cutting load, causing power loss and premature clutch surface wear without providing any meaningful protection to the gearbox.

Do Not Exceed the Rated HP Range
The RC-145 is rated to 181 HP maximum continuous input. Connecting the unit to a tractor that develops more than this at the PTO, or running the tractor at full rated power in conditions that produce sustained peak torque output, risks overloading the bevel gear flanks and input shaft bearings beyond their design capacity. When purchasing a replacement gearbox for rotary cutter, always verify the tractor's actual PTO power output against the gearbox HP rating before installation, allowing a minimum 15% safety margin below the stated maximum.

Schedule the First Oil Change at 50 Operating Hours
During the break-in period, fine metallic particles from gear tooth and bearing surface conditioning accumulate in the oil bath at a much higher rate than during steady-state operation. Changing the oil at 50 hours removes this initial wear debris before it can act as an abrasive agent on the gear flanks and bearing raceways it is meant to lubricate. After this first early change, follow the standard oil-change interval specified in the CMN Transmission service manual, typically every 250 to 500 operating hours depending on operating conditions and oil grade used.

Store Unused Units Correctly if Delayed Installation
If the replacement RC-145 will not be installed immediately after delivery, store it in a dry, temperature-stable environment with all port plugs installed and oil seals protected from UV exposure and chemical contact. Rotate the input shaft by hand through several full turns every 30 days to redistribute the internal preservative coating and prevent static corrosion on bearing raceways. Do not store the unit on its output shaft or on the flange face, as point-contact storage loads can deform seals and create flat spots on bearing rollers before the unit has entered service.

Caja de engranajes de la cortadora rotativa y eje de transmisión de la toma de fuerza

A rotary cutter gearbox and PTO shaft work as a paired system to transfer mechanical power from the tractor engine to the cutting blades on the mower deck. The Power Take-Off (PTO) shaft is a mechanical output driven directly by the tractor engine, typically through the transmission. It protrudes from the rear of the tractor and rotates at a standardized speed, either 540 RPM for lighter tractors and implements or 1,000 RPM for larger, higher-output machines. Agricultural machinery manufacturers around the world design their implement input requirements around these two standardized PTO speeds, allowing a wide range of implements, including rotary cutters, fertilizer spreaders, and balers, to be interchanged between compatible tractors without mechanical modification.

The physical driveline connecting the tractor PTO stub to the implement input shaft is a telescoping torque tube fitted with universal joints at each end. This assembly is commonly called the PTO shaft or driveline in everyday agricultural usage, though technically the PTO is the tractor's power output point and the driveline is the mechanical transmission component between tractor and implement. For rotary cutter gearbox applications, the driveline must be rated to handle the full peak torque the gearbox will experience during blade-strike events, not just the steady-state cutting torque, because peak events can be three to five times the nominal torque value.

The RC-145 connects directly from the tractor's PTO shaft output straight down to the blade carrier bar on a vertical axis below the cutting deck. It receives rotational energy from the driveline at the input shaft, redirects it by 90 degrees using precision bevel gears, and delivers it through the output shaft to drive the heavy swing-away cutting blades at the torque and speed needed to cut, shred, or mulch the target vegetation. This 90-degree power redirection is the fundamental mechanical task of every right-angle agricultural gearbox in rotary cutter service, and the quality of the bevel gear mesh is the single greatest determinant of how long the unit will last under field conditions.

When a blade strikes a dense clump of vegetation, a buried rock, or a solid piece of woody debris, the resulting torque spike travels back through the output shaft and into the gear mesh before reaching the input shaft and driveline. The RC-145's overload protection, whether a shear bolt at the driveline coupling or an integrated slip clutch, is designed to intercept this spike at the gearbox input rather than allowing it to travel back into the tractor PTO gear train, where it could damage the tractor's own transmission components at significant repair cost. This protective function is one reason why investing in a quality replacement gearbox for rotary cutter applications is always more economical than attempting to run inferior units that transmit full shock loads back through the entire drivetrain.

Correct driveline selection for the RC-145 requires matching three parameters: the input spline specification (1-3/8 inch or 1-3/4 inch six-spline), the driveline torque rating (which must exceed the gearbox peak torque of 19,950 lb.-in. at the maximum HP setting), and the operating length range, calculated from the tractor's PTO stub to the gearbox input shaft with the implement at its minimum and maximum transport heights. A driveline that is too short will bottom out under flex, causing driveline fracture; one that is too long will fully extend under transport, allowing the telescoping sections to separate. Both conditions create a sudden complete loss of drive at worst possible moment during field operation.

The RC-145's five available gear ratios affect the relationship between PTO input speed and blade output speed, but they do not change the required PTO input specification or the driveline interface. Ratio selection is made by choosing the appropriate gear set at the time of order, and different ratio configurations are not field-interchangeable. This means operators who anticipate working across a wide range of crop densities and terrain types, from 60 hp rotary cutter gearbox light-grass applications to 75 hp rotary cutter gearbox heavy-brush conditions, should select a ratio that represents the best compromise for their most demanding typical application rather than defaulting to a 1:1 ratio as a generic middle ground.

¿Por qué elegir las cajas de engranajes para cortadoras rotativas de CMN Transmission?

Korea CMN Transmission Co., Ltd. was established in 2000 and is headquartered in Sandan-o, Danwon-gu, Ansan-si, Gyeonggi-do, Korea. With over 100 factory employees and a modern production facility, CMN Transmission is dedicated entirely to the research and development, manufacturing, sales, and service of agricultural gearboxes. Over more than two decades of continuous operation, the company has grown into a globally recognized, reliable supplier in the agricultural power transmission industry, exporting to more than 60 destinations worldwide and serving customers across six continents.

CMN Transmission's product range is one of the most comprehensive available from a single specialist rotary cutter gearbox manufacturer. Product categories include rotary cutter gearboxes, rotary mower gearboxes, finishing mower gearboxes, rotary tiller gearboxes, feed mixer gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, round baler gearboxes, square baler gearboxes, disc mower gearboxes, center pivot irrigation gearboxes, hydraulic drive gearboxes, silage machine gearboxes, orchard sprayer gearboxes, rotary rake gearboxes, combine harvester gearboxes, grain storage and transportation gearboxes, corn header gearboxes, cutting bar gearboxes, poultry feeding gearboxes, and custom agricultural gearboxes covering nearly one thousand specifications. Annual production capacity exceeds 500,000 units, ensuring consistent availability and short lead times even for large-volume orders.

• Certified Quality Standards
  CE, ISO 9001, Environmental Management, and Occupational Health and Safety certifications are held and maintained across all product lines, providing the documented quality evidence required by institutional buyers, OEM approval programs, and regulatory import requirements in all major markets.
• Global Export Experience in 60+ Countries
  CMN Transmission exports to the United States, Canada, Mexico, Brazil, Argentina, France, Germany, Italy, Spain, the United Kingdom, Russia, India, Thailand, Vietnam, Turkey, Australia, New Zealand, and many additional markets, with extensive experience navigating import documentation, phytosanitary requirements, and local certification needs for each destination.
• 500,000+ Units Annual Production Capacity
  High-volume production capability ensures that rotary cutter gearbox for sale inquiries from large distributors and OEM buyers can be fulfilled on time, with consistent quality across production batches. Short lead times and buffer stock availability for top-selling models minimize customer downtime during peak demand periods at the start of each cutting season.
• Application Engineering and Technical Support
  CMN Transmission's engineering team provides pre-sale technical consultation to verify product compatibility and ratio selection, installation guidance for complex configurations, and after-sale support for field issues. This service layer distinguishes CMN from commodity importers who can only offer generic datasheets without application-specific expertise to support purchasing decisions.
• Competitive OEM and Distributor Pricing
  Volume pricing tiers, flexible minimum order quantities, and customization options allow CMN Transmission to serve both small independent dealers seeking single-unit replacement stock and large OEM manufacturers requiring thousands of units per year across multiple product specifications, with pricing structured to support competitive end-market positioning in all regions served.
• Robust Export Packaging and Logistics Support
  All export units are packed to survive the mechanical stress of international container shipping, with foam-protected double-boxing for individual units and custom pallet configurations for volume shipments. CMN Transmission's logistics team prepares complete commercial invoice, packing list, certificate of origin, and CE declaration documentation to streamline customs clearance in all destination markets, reducing administrative burden on importers and distributors handling large recurring orders.

Preguntas frecuentes

Q: Is this RC-145 a direct bolt-on replacement for the original Omni RC-145 gearbox without modification?
A: Yes. The CMN RC-145 is manufactured to match the critical dimensions of the original Omni unit, including the 260 mm flange diameter, 203.2 mm six-hole mounting bolt circle, 96.0 mm hub pilot, and 204.5 mm flange-to-hub-pilot dimension. No frame drilling, welding, or adapter plates are required for a standard installation on an existing Omni RC-145 equipped cutting deck. Always verify the specific dimensions of your machine against the published specification before installation if your cutter has been modified from OEM configuration.

Q: What type of oil should I use and what is the correct rotary cutter gearbox oil level?
A: The RC-145 requires 1.8 L (60 oz.) of gear oil. SAE 90 GL-5 gear oil is the standard recommendation for temperate climates; SAE 85W-140 GL-5 is preferred for hot-climate heavy-duty applications where sustained high-load temperatures are expected. The correct oil level is at the bottom of the fill port threads when the unit is installed in its normal operating orientation. Check the level at every 50-hour service interval by removing the fill cap and confirming oil is visible at the port mouth. Do not overfill, as excess oil pressurizes the housing and accelerates seal wear.

Q: How do I select the correct rotary cutter gearbox ratio for my application?
A: Select the gear ratio based on your primary cutting task. A 1:1 ratio provides equal input and output speed and is the standard all-purpose choice for most grass and light vegetation cutting. Step-down ratios (1.21:1 input-to-output) increase torque at the blade for heavy brush clearing and large-diameter woody vegetation. Step-up ratios (1:1.21, 1:1.46, 1:1.92) increase blade speed relative to PTO input, which can improve cut quality on fine finishing applications or in conditions where blade inertia needs to be maintained across rapid ground-speed changes. Contact CMN Transmission's technical team if you are uncertain which ratio best suits your specific tractor HP and intended cutting conditions.

Q: What is the maximum HP I can run through this gearbox for a 100 hp rotary cutter gearbox application?
A: The RC-145 is rated to a maximum continuous input of 181 HP (135 kW) at the PTO. For a 100 HP rotary cutter gearbox application, the unit operates comfortably within its rated range with a healthy safety margin. Operators should verify their tractor's actual PTO output, which is typically 15 to 20% lower than the engine HP figure stated in the tractor's specification, and confirm it does not exceed 181 HP at the PTO under full-throttle field conditions. Sustained operation above the rated HP shortens gear tooth and bearing service life and can cause housing distortion under prolonged high-heat overload conditions.

Q: How often should I change the gear oil to prevent rotary cutter gearbox repair costs?
A: Perform the first oil change at 50 operating hours on a new or rebuilt unit to remove initial break-in wear debris. After that, change the oil every 250 operating hours under normal conditions, or every 150 hours in high-temperature, heavy-duty applications such as sustained brush clearing in summer. Inspect the drained oil at each change for metal particles, a discoloured appearance indicating water contamination, or a burnt smell indicating overheating. Any of these indicators calls for a full internal inspection before the unit is returned to service to avoid expensive secondary damage to the gear and bearing assemblies.

Q: Can this gearbox be rebuilt in the field, and where can I source rotary cutter gearbox parts?
A: A rotary cutter gearbox rebuild is feasible for a competent agricultural mechanic with access to a press and basic bearing installation tools. The most commonly replaced parts are the input and output shaft oil seals (which can often be changed without full disassembly), the tapered roller bearings, and the shear bolt collar on the driveline coupling. CMN Transmission stocks a full range of RC-145 rotary cutter gearbox parts including seal kits, bearing sets, and bevel gear pairs. Contact our parts team with your unit's serial number to confirm correct part numbers before ordering, as minor production batch differences can affect seal and bearing specifications.

Q: My gearbox is making a whining or grinding noise during operation. What does this indicate?
A: A sustained whining sound that increases with PTO speed typically indicates bearing wear, particularly on the input shaft tapered roller bearing that carries the combined radial and thrust load from the bevel gear mesh. A grinding noise accompanied by vibration usually indicates gear tooth damage, which can result from operating with insufficient oil, a contaminated oil bath, or sustained overload beyond the rated HP. Stop operation immediately and check the oil level and condition first. If the oil is correct, the unit will require disassembly for internal inspection. Continuing to operate a noisy gearbox typically results in rapid escalation to catastrophic failure and replacement rather than repair.

Q: Is the RC-145 suitable for use as a 75 hp rotary cutter gearbox and a 40 hp rotary cutter gearbox application on the same farm with different tractors?
A: Yes. The RC-145's rated range of 71 to 181 HP covers both a 40 HP and a 75 HP tractor PTO input without any modification to the unit. The internal gear and bearing components are sized for the upper end of the rating, so operating at 40 to 75 HP represents a conservative duty cycle that will extend the service life of the unit compared to sustained high-HP operation. Ensure the driveline connecting the lower-HP tractor to the gearbox is rated appropriately for that tractor's peak PTO torque output at the selected PTO speed.

Q: Does CMN Transmission offer volume discounts for dealers and OEM purchasers buying rotary cutter gearboxes in bulk?
A: Yes. CMN Transmission offers tiered pricing for OEM partners, agricultural machinery distributors, and fleet maintenance organizations purchasing the RC-145 and other products from our range in volume. Minimum order quantities for discounted pricing, lead time commitments, and customization options including specific shaft configurations, alternate coatings, and custom mounting flanges are all available for discussion. Contact our export sales team directly with your annual volume requirements and delivery region to receive a tailored quotation. We currently serve rotary cutter gearbox suppliers and distributors in more than 60 countries worldwide.

Q: What certifications does the RC-145 Rotary Cutter Gearbox hold, and does it comply with international import requirements?
A: CMN Transmission holds CE, ISO 9001 quality management, Environmental Management, and Occupational Health and Safety certifications covering the manufacturing processes used to produce the RC-145 and all other products in our range. CE certification satisfies European Union machinery directive requirements. ISO 9001 certification provides documented quality management evidence required by many institutional procurement programs and OEM supplier approval processes. For markets with specific national import certification requirements, contact our export compliance team with details of the destination country's applicable standards and we will provide the relevant documentation.
