PTO Shaft for Meyer Manure Spreader 7500, 8500, 8720, 8865

Reliable PTO Shaft for Meyer Manure Spreader Models

PTO Shaft for Meyer Manure Spreader Models: 7500, 8500, 8720, 8865

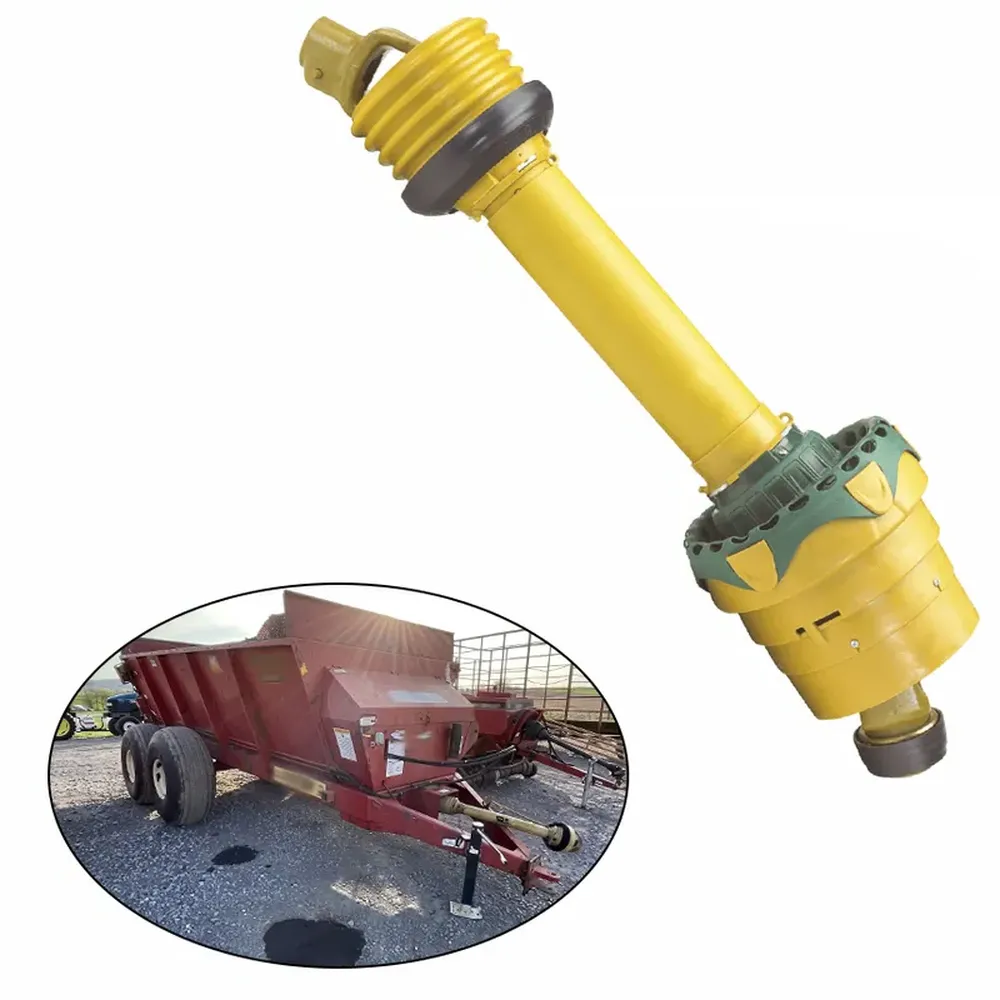

The CMN Transmission PTO shaft for Meyer Manure Spreader models 7500, 8500, 8720, and 8865 is a precision-engineered heavy duty PTO shaft purpose-built for the high-cycle demands of commercial and farm-scale manure spreading operations. Constructed around a CAT 4 Constant Velocity main shaft in the 2480 Series profile available in both Star and Lemon tube cross-sections, this PTO driveline shaft ensures smooth rotational power delivery even when the tractor and spreader are not perfectly aligned. The telescoping PTO shaft tube adjusts from 39.76 inches (minimum) to 52.95 inches (maximum), making it compatible with a wide range of drawbar settings used across Meyer spreader trailer-type and truck-mount configurations. Spline options of 1.375-6, 1.375-21, and 1.750-20 cover the full range of tractor PTO output shaft configurations found on most major tractor brands running at 1000 RPM, the standard speed for Meyer 8720 and 8865 industrial spreaders.

What sets this manure spreader PTO shaft apart from generic aftermarket alternatives is its integrated 2400 Series cutout clutch with an inline overrunning device, a safety-critical assembly that protects both the tractor drivetrain and the spreader gearbox from sudden shock loads, overloads, and coast-back damage during engagement and disengagement cycles. Torque ratings range from 1500 Nm to 2000 Nm depending on the clutch model selected, matched precisely to the spline diameter and count of your specific tractor PTO output. As a proven replacement for Walterscheid PTO shaft assemblies on these Meyer models, the CMN unit ships as a complete tractor PTO shaft assembly including PTO shaft yoke, constant velocity joint, full-length PTO shaft guard, and cutout clutch ready for direct installation with standard hand tools. Whether you are fertilizing crop fields, cycling dairy barn waste, or distributing compost across specialty plots, this agricultural PTO shaft keeps your spreader operating reliably from the first pass to the last.

Technical Specifications

Main Shaft: CAT 4 Constant Velocity

This indicates most tractors use 1.750-20 or 1.375-21 spline, and the input shaft is 1.375-6 spline (later model are 1.75-20)

Different Tubing profiles have been used on the same models. Star profile assemblies may be retrofitted with 2580 series.

Some models are equipped with Weasler 35N CV PTO and combination clutch. Note that combination clutches and cutout clutches rely on different principles.

Meyer Manure Spreader Specifications

2480 Series CV PTO Shaft

2400 Series Cutout Clutch with Overrunning Device

	Part Number	Model	Diameter	Splines	Torque
	694088	K64/22	1.375	6	2000nm
	193334	K64/2*Triolete	1.750	6	1800nm
	135454	K64/22	1.375	21	1500nm
	135455	K64/22	1.75	6	1800nm

Overrunning protection is inline on the profile tube. Many models may be upgraded to the 2580 series.

Vertical Driveline/ Truck Mount Mechanical Drive

2400 series - 1.375-6 clamp to 1.375 round -.312 key double set screw

Features of PTO Shaft for Meyer Manure Spreader

1. CAT 4 Constant Velocity Main Shaft
The CAT 4 CV joint at the tractor end of this PTO drive shaft eliminates the velocity fluctuations inherent in conventional Cardan joint designs. By maintaining a constant output speed regardless of operating angle up to the rated working angle, the CV assembly reduces vibration stress on both the tractor gearbox and the spreader's internal drive components, extending the service life of the entire driveline in demanding field conditions.

2. 2400 Series Cutout Clutch with Overrunning Device
The dual-function 2400 Series clutch assembly provides both cutout protection and overrunning capability in a single inline package. The cutout clutch disengages automatically under shock overloads, preventing drivetrain damage when the beater or auger contacts hard debris or frozen material. The inline overrunning device allows the spreader's rotating mass to coast freely after the tractor PTO is disengaged, eliminating dangerous back-drive forces that could damage U-joints or upset tractor handling on slopes.

3. Telescoping PTO Shaft Tube with Star / Lemon Profile
The 2480 Series PTO shaft tubing is available in both Star and Lemon cross-section profiles, providing robust torque transmission through the telescoping section while minimizing the risk of tube seizure under heavy loads or field contamination. The telescoping range of 39.76 to 52.95 inches accommodates a wide variety of hitch distances, making this PTO shaft a true fit-and-forget solution for the listed Meyer spreader models without requiring custom modifications or PTO shaft adapter components.

4. Full-Length PTO Shaft Guard Included
Every CMN Transmission PTO shaft for manure spreader applications ships with a complete full-length PTO shaft guard and PTO shaft cover assembly. The guard is manufactured from high-impact UV-stabilized plastic with the correct cone-end shape for compliance with international safety standards. Unlike budget aftermarket units that use flimsy, thin-walled guard sections, our guard is dimensioned to match the shaft's full telescoping travel, ensuring continuous operator protection across the entire operating length range of the driveline.

5. Precision PTO Shaft Yoke and U-Joint Assembly
The PTO shaft yoke and PTO shaft u joint components are machined to tight tolerances using precision CNC equipment, then heat-treated for case hardening to resist spline wear during the repeated engagement cycles typical of manure spreading work. Needle roller bearings in each PTO shaft universal joint are pre-packed with high-temperature lithium grease and sealed to minimize contamination ingress during muddy or wet field conditions, extending bearing life significantly compared to open-style cross kits used on lower-grade shafts.

6. Shear Bolt PTO Shaft Protection on Auger Side
In addition to the overrunning cutout clutch, the spreader-side input hub on Meyer 8720 and 8865 models incorporates a PTO shaft shear bolt design on the auger drive sprocket hubs. This shear bolt PTO shaft configuration provides a precise, predictable failure point that protects high-value drivetrain components when the auger encounters extreme blockages. Replacement shear bolts are inexpensive and widely available, keeping downtime short and repair costs low even in worst-case jam scenarios during heavy manure spreading passes.

Working Principle of Manure Spreader PTO Shaft

1. Power Origination at the Tractor PTO Output
The driveline begins at the tractor's PTO stub shaft, which rotates at a standardized speed of 1000 RPM when the engine is at rated power for Meyer 8720 and 8865 configurations. The tractor PTO stub shaft engages the tractor PTO shaft yoke via a precision-splined coupling, either a 1.375-inch diameter 6-spline, 21-spline, or the larger 1.750-inch diameter 20-spline format depending on the tractor model. This splined engagement transfers rotational torque from the tractor's transmission PTO clutch pack directly into the tractor PTO drive shaft assembly without slip, ensuring that rated power reaches the spreader driveline without loss.

2. Constant Velocity Joint-Angle Compensation
As torque enters the PTO drive shaft, it passes immediately through the CAT 4 Constant Velocity joint assembly. Unlike a basic single Cardan U-joint that introduces a sinusoidal velocity variation of up to +/-15% at working angles, the CV joint uses a ball-and-groove double-joint geometry to output a perfectly constant rotational speed regardless of the operating angle between tractor and spreader. This is critical in manure spreading applications because the tractor frequently traverses uneven terrain, changes direction at headlands, and operates on side slopes, all conditions that introduce dynamic angular variation into the driveline. Without CV correction, these angle variations cause torsional vibration that accelerates wear in the spreader gearbox, apron chain bearings, and expeller shaft bearings, increasing maintenance costs and shortening component service life significantly.

3. Telescoping PTO Shaft Tube-Length Compensation
As the tractor turns, backs up, or as the drawbar height is adjusted for different field conditions, the physical distance between the tractor PTO output and the spreader input changes continuously. The telescoping PTO shaft tube accommodates this length variation by sliding the inner and outer profile tubes relative to each other within the range of 39.76 to 52.95 inches. The Star or Lemon profile cross-section of the PTO shaft tubing ensures that full torque is transmitted through the tube at any point in its travel range, eliminating the risk of disengagement or binding that would occur with a round tube and key arrangement under high-torque, high-angle conditions typical of manure spreading in rough terrain.

4. Overrunning Cutout Clutch-Load Protection and Coast-Down Safety
The 2400 Series clutch assembly serves two critical protection functions in a single compact inline unit. The cutout function uses a spring-loaded ball detent mechanism that is calibrated to disengage the drive path when transmitted torque exceeds the rated clutch setting (1500 to 2000 Nm depending on model). This protects the tractor PTO shaft, gearbox, and spreader internals from sudden shock loads when the beater or auger strikes frozen manure clumps, embedded rocks, or dense organic material. The overrunning function uses a one-way roller ramp mechanism that allows the spreader's rotating mass, the heavy beater drums, apron chain, and auger systems to continue spinning freely after the tractor PTO has been disengaged.

5. Power Delivery to the Spreader Gearbox
After passing through the clutch assembly, torque enters the spreader-side input yoke via the 1.375-6 spline stub on the implement end of the PTO driveline shaft. This connects to the Meyer spreader's internal gearbox or directly to the roller chain drive sprocket, where the 1000 RPM input is reduced through the spreader's internal ratio to deliver 716 RPM to the expeller beaters on both 8720 and 8865 models. The 80-120-140 roller chain drive distributes this power across the apron chain, lower augers, and third auger system, delivering the high-volume, consistent spread pattern that makes the Meyer series a preferred choice for large-scale agricultural operations.

Application Scenarios

1. Crop Field Fertilization
The primary use case for this PTO shaft for manure spreader. The Meyer Manure Spreader efficiently distributes manure across cultivated crop fields to enrich soil with essential nutrients like nitrogen, phosphorus, and potassium, providing uniform coverage and reliable nutrient delivery during planting preparation while handling large volumes with its heavy-duty beater and apron chain design. The 1000 RPM constant-velocity driveline ensures the expeller maintains a steady 716 RPM regardless of tractor speed fluctuations, delivering a consistent spread width and application rate across the entire field pass.

2. Pasture and Grazing Land Management
Applying manure to pastures and grazing lands to promote healthy forage growth, improve soil fertility, and sustain productive grasslands for livestock, ensuring even spread patterns that prevent over-concentration and support consistent grass regeneration across the entire grazing area. The CAT 4 CV joint on this tractor PTO drive shaft is especially valuable on the uneven contours of pasture ground, keeping the driveline vibration-free as the tractor traverses hillsides and drainage channels, reducing operator fatigue and protecting spreader bearing assemblies over long seasonal applications.

3. Hay Field and Forage Crop Enhancement
Spreading manure on hay fields, alfalfa stands, and forage crop areas to boost yields and improve nutritional quality of harvested feed, leveraging adjustable spread rates and durable construction for consistent application across multiple cuttings throughout the growing season. The 865-bushel capacity of the 8865 model paired with this heavy duty PTO shaft means fewer loads per field pass, reducing soil compaction on sensitive hay ground and shortening the total time from barn to field, a key efficiency factor during the narrow weather windows typical of spring and early summer forage management seasons.

4. Dairy and Livestock Farm Waste Management
Handling daily manure output from dairy barns, cattle operations, and confined livestock facilities to convert waste into a valuable agricultural resource, supporting efficient farm waste cycles, reducing storage burdens, and keeping barnyards clean while returning nutrients to productive land. The overrunning clutch on this manure spreader PTO shaft is critical in this daily-use scenario, as the spreader may be engaged and disengaged dozens of times per day. The coast-down protection prevents drivetrain shock at each disengagement, dramatically extending the service life of the PTO shaft u joint assemblies compared to shafts equipped only with friction torque limiters.

5. Large-Scale Row Crop Operations
Rapidly applying manure across expansive corn, soybean, and small grain acreage as part of integrated nutrient management programs, minimizing field passes and enabling growers to cover significant ground quickly while maintaining uniform application rates and reducing reliance on synthetic fertilizers. At 1000 RPM PTO speed, this 1000 PTO shaft and the 8720/8865 spreader combination can process multiple loads per hour across large row crop fields, with the telescoping PTO shaft dimensions and heavy-duty CV joint maintaining smooth, vibration-free operation even at sustained high-speed spreading passes across long field runs of 1,000 feet or more.

6. Compost and Organic Amendment Distribution
Distributing aged compost, bedding pack material, and organic soil amendments across orchards, vegetable plots, and specialty crop fields to build long-term soil health, improve organic matter content, and support sustainable farming practices with precise, controlled material flow. Composted material often includes dense, partially decomposed bedding that can create sudden load spikes as it passes through the spreader beater and auger assembly. The shear bolt protection at the auger hubs and the cutout clutch in this agricultural PTO shaft assembly work in tandem to handle these irregular load peaks without interrupting the spreading operation or damaging expensive gearbox components.

Installation Steps

1. Safety Preparation and Equipment Shutdown
Before beginning installation, engage the tractor parking brake, shut off the engine completely, and remove the ignition key. Allow all rotating components to come to a full stop. Verify the spreader box is empty to prevent unexpected movement during shaft installation. Wear appropriate PPE including gloves and safety glasses. Disconnect the old PTO shaft from both the tractor stub and the spreader input stub, noting the orientation and length for reference during fitting of the new unit.

2. Verify Spline Specification and PTO Shaft Length
Confirm the tractor output spline specification, either 1.375-6, 1.375-21, or 1.750-20, using a spline gauge or by counting the visible spline teeth on the tractor stub shaft. Cross-reference with the CMN Transmission part number table to ensure the correct CV assembly (392106, 392121, or 392120) has been ordered. Also verify that the PTO shaft length range of 39.76 to 52.95 inches will accommodate the actual distance between the tractor PTO output and the spreader input stub at both minimum and maximum hitch extension. If the distance falls outside this range, contact CMN Transmission for a custom PTO shaft solution.

3. Install the Tractor-Side CV Yoke
Apply a light coat of anti-seize grease to the tractor PTO stub shaft splines. Slide the CV yoke of the tractor PTO shaft onto the stub shaft, aligning the yoke keyway or quick-release locking pin with the stub shaft groove. Push firmly until the yoke is fully seated against the stub shaft snap ring or locking collar. Engage the quick-release lock pin or collar and confirm it is fully locked by attempting to pull the yoke back off the stub; it should not move. Avoid forcing the yoke with a hammer; if it does not slide freely, recheck the spline count and diameter against the spreader specifications.

4. Connect the Implement-Side Yoke to the Spreader Input
Slide the implement-side yoke, the 1.375-6 spline end of this PTO drive shaft for manure spreader, onto the Meyer spreader's input stub shaft, ensuring the overrunning clutch body is oriented with its arrow pointing in the direction of tractor PTO rotation (typically clockwise when viewed from the tractor). Engage the locking collar and verify full seating. On 8720 and 8865 models with shear bolt auger hubs, confirm the shear bolts in the auger hub sprockets are correctly sized per Meyer's specification (typically 3/8-inch grade 5) and installed before the spreader is loaded.

5. Attach and Secure the PTO Shaft Guard
Slide the outer PTO shaft guard and PTO shaft cover over the fully connected shaft, then secure the guard's chain or strap anchor to a fixed non-rotating point on both the tractor and the spreader frame. The guard chains must be short enough to prevent the guard from rotating with the shaft, but long enough to allow full PTO shaft angle articulation without placing tension on the anchor points during turns. Inspect the guard for cracks or damaged sections before operating; a damaged guard is a serious safety hazard and must be replaced before using the equipment.

6. Initial Test Run and Inspection
With the spreader box empty, start the tractor and engage the PTO at low throttle (approximately 500-600 RPM). Observe the PTO shaft tractor driveline for any vibration, unusual noise, or binding through a full 90-degree turn in each direction. If vibration is detected, stop immediately and recheck yoke seating and shaft length against the actual hitch distance. Gradually increase to rated 1000 RPM PTO speed and verify smooth operation before loading the spreader for field work. Grease all zerks on the CV joint, U-joints, and telescoping tube before the first load.

Maintenance Tips

1. Regular Greasing of CV Joint, U-Joints, and Telescoping Tube
Grease all zerks on the CAT 4 CV joint ball socket, both PTO shaft u joint cross assemblies, and the telescoping tube profile using a high-quality NLGI #2 lithium complex grease rated for temperatures down to -25 degrees C. Greasing intervals depend on operating intensity: for daily dairy spreading operations, grease every 8-10 hours of use; for seasonal crop field applications, grease at the start of each spreading campaign and every 50 hours thereafter. Wipe off any grease that reaches the brake pads or guard to prevent contamination.

2. Inspect the PTO Shaft Guard and Cover Regularly
Inspect the PTO shaft guard before each use for cracks, UV degradation, missing sections, and loose or broken anchor chains or straps. The guard must fully enclose the rotating shaft at all operating lengths, and the anchor chains must prevent the guard from spinning with the driveline. A guard that rotates with the shaft provides zero protection. Replace cracked or broken guard sections immediately; the cost of a replacement PTO shaft cover is negligible compared to the injury risk posed by an unguarded driveline spinning at 1000 RPM.

3. Check and Replace Shear Bolts After Any Clutch Event
After any event where the cutout clutch has disengaged or a PTO shaft shear bolt has failed, inspect and replace the shear fasteners with the correct grade and diameter as specified by Meyer for your model. Using substitute bolts of incorrect grade or diameter defeats the shear protection function: too strong and the auger gearbox is at risk; too weak and nuisance failures interrupt normal spreading operations. Keep a supply of correct shear bolts in the tractor cab as part of the standard field kit for this spreader, allowing rapid roadside replacement without returning to the shop.

4. Annual Disassembly and Internal Inspection
At the end of each spreading season, disassemble the PTO driveline shaft from both the tractor and spreader and perform a full inspection. Separate the inner and outer profile tubes, clean all accumulated material and corrosion from the telescoping surfaces, and inspect the profile for any deformation, cracks, or worn contact areas. Check the overrunning clutch roller ramps and springs for fatigue and replace any worn components before storage. Apply a generous coat of profile grease to the telescoping tube surfaces, then reassemble and store the shaft suspended horizontally in a dry location, away from UV exposure and freezing temperatures.

5. Monitor Yoke Spline Wear and Torque Limiter Calibration
Inspect the PTO shaft yoke splines on both the tractor and implement ends at least once per season. Spline wear manifests as a perceptible rotational play or backlash when the shaft is stationary and the yoke is manually rocked back and forth. Excessive spline wear indicates that the yoke should be replaced before continued operation, as a loose spline fit concentrates impact loads on fewer spline teeth and accelerates catastrophic failure. Also verify annually that the cutout clutch disengages at the correct torque setting using a torque testing tool, and adjust the spring preload if the clutch has drifted out of specification due to spring set or wear.

Common Troubleshooting of PTO Drive Shaft

1. Problem: Excessive Vibration During Operation
Causes and solutions: Vibration most commonly results from the PTO shaft being set at too steep an operating angle. Adjust the tractor drawbar height so the shaft operates at the shallowest possible angle in working position, ideally less than 15 degrees. Also check for a bent inner or outer tube profile caused by impact damage; a bent tube cannot be straightened and must be replaced. Inspect the PTO shaft u joint cross kits for worn needle bearings (indicated by looseness or grinding feel when the cross is manually rocked); replace the cross kit if any play is detected. Ensure the shaft is within its correct operating length range, a shaft extended to its maximum or compressed to its minimum limit has reduced torsional rigidity and will vibrate more than a shaft operating in mid-range.

2. Problem: Cutout Clutch Slipping Under Normal Load
Causes and solutions: If the 2400 Series cutout clutch disengages during normal spreading passes at loads well below the rated torque, the most common cause is spring fatigue from extended service life or contamination of the ball detent pockets with dirt and rust. Remove the clutch from the shaft, disassemble the spring and detent ball assembly, clean all components with solvent, and inspect the springs for set or fatigue. Replace springs that have lost more than 10% of their free length. If the clutch friction pads on Triolete models are worn or glazed, replace the friction disc set. Also verify that the correct clutch torque rating has been selected for the application, a 1500 Nm clutch installed on a heavy 865-bushel load application may slip where a 2000 Nm clutch would not.

3. Problem: Telescoping Tube Seizing or Binding
Causes and solutions: Binding of the inner profile tube within the outer tube is almost always caused by insufficient lubrication, contamination of the tube interior with grit or dried manure, or mechanical deformation of the tube profile from impact or overloading. Disconnect the PTO shaft from both ends and separate the inner and outer tubes completely. Wash the interior of the outer tube and the exterior of the inner tube thoroughly with a pressure washer or solvent, removing all dried material and rust scale. Inspect for visible profile deformation; if the tube is bent or the profile faces are flattened, the affected section must be replaced. After cleaning and inspection, apply a generous quantity of NLGI #2 lithium grease to the full length of the inner tube profile before reassembly. Re-grease the tube zerk fitting after each use if the spreader operates in wet or muddy conditions.

4. Problem: Frequent Shear Bolt Failures
Causes and solutions: Nuisance shear bolt failures that occur repeatedly during normal spreading operation (not when jamming on rocks or frozen material) indicate that either incorrect bolt grade has been installed, the auger system has an underlying jam or wear issue causing elevated torque demand, or the spreading rate has been set too high for the material density being handled. First, confirm that the correct PTO shaft shear bolt grade (typically grade 5, not grade 8) and diameter as specified by Meyer are being used. Then inspect the lower auger bearings, auger flighting, and chain drive sprockets for wear or damage that could increase resistance. If the spreading rate is set at maximum for dense, wet manure or heavy compost, reduce the apron chain speed until the bolts stop shearing under normal conditions.

5. Problem: Overrunning Clutch Not Releasing (Back-Drive)
Causes and solutions: If the spreader's rotating mass continues to drive back through the PTO driveline shaft into the tractor after the PTO is disengaged, indicated by the tractor creeping forward when the spreader brake is released on a slope, the overrunning mechanism has seized, or the roller ramp assembly has jammed due to contamination or corrosion. Disassemble the overrunning device from the clutch body, clean all roller elements, springs, and ramp surfaces with solvent, inspect for corrosion or deformed rollers, and replace any damaged components. Note that this condition is a serious safety hazard and the spreader must not be used on slopes until the overrunning function is confirmed to be operating correctly.

Manure Spreader PTO Shaft and Manure Spreader Gearbox

A manure spreader gearbox is the primary mechanical power distribution unit installed on the spreader frame, responsible for receiving the rotational input from the PTO drive shaft and redistributing it to the various working elements of the spreader, including the apron chain drive sprockets, lower auger assemblies, third auger, and expeller beater shafts. On Meyer 8720 and 8865 models, the gearbox receives 1000 RPM from the tractor PTO shafts through the driveline and outputs a reduced speed of 716 RPM to the expeller beaters via internal gear reduction stages and roller chain drives. The gearbox is the heart of the spreader's mechanical system, converting tractor PTO power into the precise speed and torque ratios needed for consistent, controlled manure distribution.

The manure spreader PTO shaft and the spreader gearbox form a matched power transmission system. The PTO driveline shaft is the upstream connection, it bridges the gap between the tractor and the spreader, accommodating angular and length variations while protecting both machines from overload. The gearbox is the downstream recipient, converting the driveline's input torque into the multiple drive paths required by the spreader's internal mechanisms. A mismatched or worn PTO shaft will cause vibration and shock loads that accelerate gearbox bearing wear, shaft seal failure, and gear tooth damage inside the manure spreader gearbox. Conversely, a worn or undersized gearbox that requires excessive input torque will cause premature cutout clutch activation and PTO shaft shear bolt failures on the driveline side. For this reason, CMN Transmission recommends inspecting both the PTO shaft and the manure spreader gearbox simultaneously when performing drivetrain maintenance or replacement on Meyer spreader models.

In addition to the complete range of agricultural PTO shaft assemblies for Meyer spreader models, CMN Transmission manufactures and supplies replacement manure spreader gearboxes designed to match the torque capacity, ratio, and mounting dimensions of OEM units on a wide range of spreader brands and models. Our gearboxes are manufactured using precision-hobbed helical gears, heat-treated to case hardness, and assembled with premium roller bearings and oil seals rated for the contaminated, high-humidity environment of agricultural spreading operations. All CMN spreader gearboxes undergo no-load run-in testing and dimensional inspection before dispatch. Whether you need a complete PTO shaft parts kit or a replacement spreader gearbox, CMN Transmission provides a one-stop sourcing solution that eliminates the complexity and cost of dealing with multiple suppliers for related drivetrain components. Contact our technical team with your existing gearbox part number or dimensional drawing for an exact replacement cross-reference.

Why Choose CMN Transmission's Agricultural PTO Shafts?

CMN Transmission (Korea) stands as one of the world's leading suppliers of industrial and agricultural power transmission solutions, with a product range spanning PTO drive shafts, agricultural gearboxes, hydraulic cylinders, planetary gearboxes, worm gearboxes, bevel gears, chain sprockets, chains, gear racks, pulleys, taper bushes, couplings, and more. Headquartered in Ansan-si, Gyeonggi-do, Korea, with a production base and over 10 shareholding cooperative factories, we maintain an inventory of more than 150,000 standard stock products and serve customers in over 53 countries across North America, Europe, South America, the Middle East, Africa, Southeast Asia, and Oceania.

What sets CMN Transmission apart in the agricultural PTO shaft market is our commitment to factory-direct pricing without sacrificing quality. As an integrated manufacturing and trading company, we eliminate the multiple dealer markups that inflate the cost of OEM replacement parts. Every tractor PTO drive shaft we produce is manufactured using advanced CAD design, precision CNC machining, modern heat treatment processes, and rigorous quality testing. Our products carry both ISO and CE certifications, ensuring compliance with international safety and performance standards. Our production facilities are also TS16949 certified, meeting the same quality management standards applied in the automotive supply chain.

Beyond product quality, we offer a level of customer support that large OEM brands often cannot match. Our technical team provides pre-sale consultation to confirm spline configurations, shaft lengths, and clutch specifications for your exact tractor and implement combination. We offer custom PTO shaft solutions for non-standard applications and provide detailed dimensional drawings upon request. After the sale, our one-stop after-sales service ensures that replacement components, technical guidance, and warranty support are always accessible. When you choose CMN Transmission, you are choosing a partner committed to keeping your equipment running efficiently, reliably, and safely, season after season.

FAQ

Q: Is this PTO shaft compatible with both Meyer 8720 and 8865 spreader models?
A: Yes. The CMN Transmission 2480 Series CV PTO shaft is confirmed compatible with Meyer models 7500, 8500, 8720, and 8865 across trailer-type and truck-mount configurations. The 8720 trailer version uses a 1-3/8 x 21 spline input, while the 8865 trailer version uses a 1-3/4 x 20 spline input. The correct CV assembly part number (392121 for 21-spline, 392120 for 20-spline) must be specified at ordering. The implement-side input is 1.375-6 spline on both models. If you are unsure of your tractor PTO output spline, count the teeth on the stub shaft or consult your tractor operator manual before ordering.

Q: What is the difference between 540 PTO shaft and 1000 PTO shaft configurations for Meyer spreaders?
A: Meyer 8720 and 8865 industrial spreaders are designed for 1000 RPM PTO operation, which means this 1000 PTO shaft is the correct specification. A 540 PTO shaft runs at 540 RPM and uses a smaller 1-3/8 x 6 spline stub shaft on the tractor side on older designs. Running a Meyer 8720 or 8865 at 540 RPM would produce insufficient expeller speed (approximately 388 RPM instead of the designed 716 RPM), resulting in poor spread pattern quality and potential material bridging in the spreader box. Always verify your tractor's PTO output speed before selecting a shaft, and match it to the spreader's rated input speed specification.

Q: How do I determine the correct PTO shaft length for my spreader hitch distance?
A: Measure the distance from the face of the tractor PTO stub shaft to the face of the spreader input stub shaft with the tractor hitched in the working position at standard drawbar height. This PTO shaft length measurement should fall within the range of 39.76 to 52.95 inches for this shaft to be applicable. As a safety check, also measure the distance at maximum drawbar extension (tractor turned 90 degrees) to ensure the shaft does not extend beyond its maximum collapsed length; if it does, you risk the shaft disengaging the spreader input yoke during tight turns. For distances outside the standard range, CMN Transmission can provide a custom PTO shaft to your exact specification.

Q: What is the function of the overrunning device on the manure spreader PTO shaft?
A: The overrunning device (also called a freewheel or backstop clutch) is a one-way roller ramp mechanism built into the implement-side hub of the 2400 Series clutch assembly. When the tractor PTO is disengaged, the spreader's heavy rotating components, beater drums, auger assemblies, apron chain continue to spin due to their rotational inertia. Without the overrunning device, this coast-down energy would be transmitted back through the PTO driveline shaft for manure spreader into the tractor's PTO gearbox as a reverse braking torque, potentially causing shock loads to the tractor drivetrain and, on hilly terrain, destabilizing tractor handling. The overrunning device allows the spreader to spin freely without transmitting back-drive torque to the tractor side of the PTO shaft.

Q: Is this PTO shaft a direct replacement for Walterscheid PTO shaft assemblies on Meyer spreaders?
A: Yes. CMN Transmission's 2480 Series CV assembly is engineered as a direct-replacement alternative to original Walterscheid PTO shaft units specified for Meyer spreader models 7500, 8500, 8720, and 8865. The spline specifications, clutch configuration, profile tube type (Star and Lemon), and overall PTO shaft dimensions are matched to the original Walterscheid design. No adapters or modifications are required for a straight swap. Customers who have replaced their original Walterscheid assemblies with CMN Transmission units report that the fit is direct and the performance is equivalent or superior, particularly in terms of overrunning clutch smoothness and profile tube slide quality after greasing.

Q: What PTO shaft sizes are available and how do I select the right one for my tractor and spreader?
A: PTO shaft sizes for the Meyer spreader application are defined by three key parameters: the tractor output spline (1.375-6, 1.375-21, or 1.750-20), the implements input spline (1.375-6 for all listed Meyer models), and the overall assembled length range (39.76 to 52.95 inches for this shaft). Select the tractor-side assembly part number that matches your tractor's PTO stub shaft: 392106 for 1.375-6, 392121 for 1.375-21, and 392120 for 1.375-20 or 1.750-20 output. Then verify that your measured hitch distance falls within the shaft's telescoping range. If you need assistance with selection, the CMN Transmission technical team will confirm the correct specification if you provide your tractor model and spreader serial number.

Q: Does CMN Transmission offer a PTO shaft with slip clutch option for this Meyer spreader application?
A: The standard Meyer manure spreader driveline specification calls for a cutout (dog clutch) type overrunning assembly rather than a friction slip clutch PTO shaft configuration. The cutout clutch design is preferred for manure spreader applications because it provides a definitive, consistent engagement threshold and resists the thermal fade that friction PTO shaft with slip clutch designs can experience during repeated overload events in heavy spreading operations. However, CMN Transmission can supply a friction slip clutch variant for specialty applications where a slip clutch is preferred by the operator or required by a specific regulatory or operational context. Contact our sales team to discuss your specific application requirements and we will recommend the optimal protection configuration for your use case.

Q: Can I order custom PTO shaft configurations with non-standard length, different yoke pattern, or OEM-branded units?
A: Yes. CMN Transmission offers a full custom PTO shaft program for both standard and non-standard applications. We can engineer and manufacture tractor PTO shafts to any specified length outside the standard 39.76 to 52.95-inch range, with custom PTO shaft yoke patterns, alternative profile tube cross-sections, modified clutch torque ratings, or OEM-branded assemblies for equipment manufacturers who require private-label components. Minimum order quantities apply for fully custom configurations. Our engineering team will prepare dimensional drawings for customer approval before production, ensuring that the finished agricultural PTO shaft matches your application requirements exactly. Dimensional tolerances, surface finish, and certification requirements can all be specified to match your product standards.

Q: What is the warranty on the PTO shaft and what after-sales support does CMN Transmission provide?
A: CMN Transmission provides a 12-month manufacturing defect warranty on all PTO shaft parts supplied for the Meyer Manure Spreader application, covering material defects, dimensional non-conformance, and premature failure under normal operating conditions. Warranty claims require photographic evidence of the defect and a completed warranty claim form. Our after-sales team provides ongoing technical support for installation questions, maintenance guidance, and troubleshooting by email and phone. We maintain replacement components, cross kits, yoke assemblies, guard sections, and clutch parts in stock for rapid dispatch as individual spare parts so that customers can repair rather than fully replace their shaft assembly if only a single component has worn or failed. Contact our after-sales team at any time with your original order reference for priority support.
