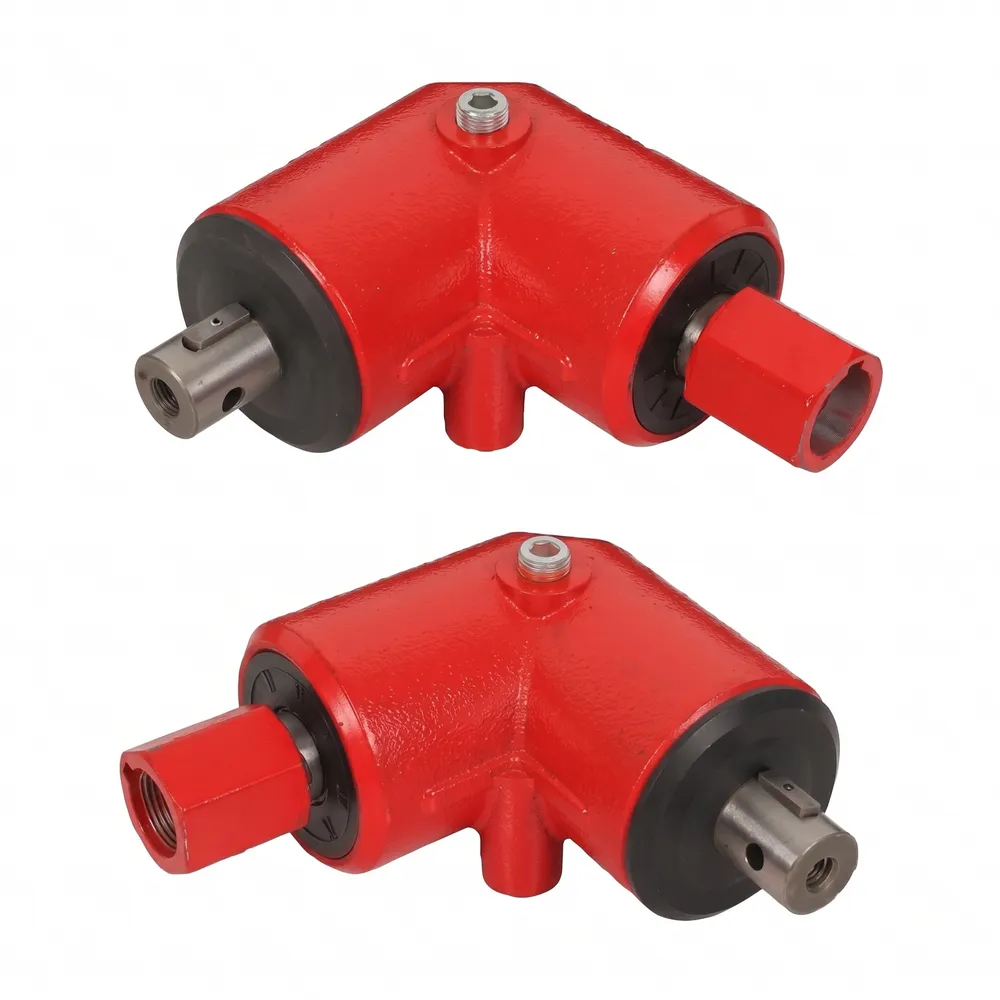

CMN-SF10 Fertilizer Spreader Gearbox Ratio 1:1.33 Cast Iron Right Angle 24HP 1000RPM PTO

The CMN-SF10 Fertilizer Spreader Gearbox Ratio 1:1.33 Cast Iron Right Angle 24HP 1000RPM PTO is a purpose-built transmission component developed to push fertilizer distribution equipment to its operational ceiling. Whether you are running large-scale grain operations, managing turf on sports facilities, or maintaining soil health across mixed-use farmland, this agricultural gearbox delivers the mechanical precision that consistent field coverage demands. At 1000 RPM input, the unit transfers a clean 24HP (18kW) through a compact right-angle layout, producing an output speed of 1330 RPM and a torque of 129 N.m at the disc shaft. The result is noticeably wider, more uniform spread patterns without the power losses that plague lower-grade units under sustained field loads.

The housing is machined from high-strength cast iron, and every load-bearing gear is produced from premium alloy steel. A professional-grade anti-corrosion coating is applied to all exterior surfaces, forming a reliable barrier against the chemical aggression of concentrated fertilizer formulations and the constant moisture exposure inherent to field operations. Precision-engineered mounting dimensions and a universal PTO interface mean the CMN-SF10 slots directly into the AMAZONE fertilizer spreader series as a drop-in replacement, dramatically cutting changeover time when replacement is needed during busy planting windows. For operators sourcing quality fertilizer spreader gearboxes from verified manufacturers, this unit represents a proven combination of build quality, compatibility, and field-ready durability.

Technical Parameters

We have completed a third-party supplier audit and company verification supported by SGS / TÜV Rheinland. This verification helps buyers review company identity, business operations, supplier profile and general manufacturing capability. Product-specific inspection reports, material documents or compliance records can be provided according to order requirements.

Minimum Order Quantity (MOQ): Flexibly set based on the product type and order amount.

Samples: New customers may request 1–5 samples under appropriate circumstances.

Mixed Orders: Combining different models is supported; the total order amount must reach approximately $1,500.

Small Orders: Orders starting from 1–2 pieces are supported, but the unit price will be relatively higher.

Lead Time: 10–25 working days for standard parts; 20–45 working days for customized components; 45–120 working days for project-based equipment.

Trade Terms: EXW, FOB, CIF, and DAP are generally supported; FCA, CFR, CPT, CIP, and DDP terms can be specifically negotiated.

Benefits of the CMN-SF10 Fertilizer Spreader Gearbox

1. Premium Material and Anti-Corrosion Build
The housing is machined from high-density cast iron, providing a rigid structural foundation that resists deformation even under peak tractor output. Internal gears are produced from premium alloy steel, selected for its hardness-to-toughness balance across fluctuating load cycles. The exterior receives a professionally applied multi-layer anti-corrosion coating rated for sustained contact with ammonium nitrate-based and sulphur-containing fertilizer compounds, keeping surface integrity intact through seasons of continuous field use.

2. Optimized Speed-Increase Performance
The 1:1.33 fertilizer spreader gearbox ratio is not arbitrary. It is calibrated specifically for the operating window of twin-disc spreader mechanisms, stepping a standard 1000 RPM PTO input up to 1330 RPM at the disc shaft. This increased rotational velocity widens the spread pattern and increases lateral throw distance, translating to fewer passes and greater uniformity in nutrient distribution across large paddocks, hillside fields, and irregular boundary zones.

3. Seamless Equipment Compatibility
Precision-machined to the exact mounting geometry of the AMAZONE fertilizer spreader series, the CMN-SF10 is a verified drop-in replacement for original factory units. All bolt circle diameters, shaft projections, and PTO bore tolerances match OEM specifications without modification. This direct compatibility eliminates the fitting risks associated with generic agricultural gearboxes for fertilizer spreaders, minimising downtime and avoiding costly machine adjustments during time-critical application periods.

4. Advanced CNC Machining and Heat Treatment
Every gear set is processed through multi-axis CNC machining centres to achieve sub-0.01 mm tooth-form accuracy, then subjected to carburizing and quenching heat treatment protocols that raise surface hardness to HRC 58-62 while preserving a tough, impact-resistant core. This combination extends fatigue life significantly compared to untreated or induction-hardened alternatives, keeping the unit running quietly and efficiently through seasons of heavy continuous-duty agricultural loading.

5. Multi-Lip Industrial Sealing System
Operating in dust-laden, moisture-heavy field conditions puts intense pressure on shaft sealing. The CMN-SF10 uses an industrial multi-lip radial oil seal design at both shaft entry and exit points. The layered sealing geometry physically blocks abrasive fertilizer dust, fine soil particles, and water from migrating into the lubricant film, preventing premature bearing failure. Monitoring the fertilizer spreader gearbox oil level periodically remains good practice, but the sealing architecture drastically reduces contamination-driven top-up frequency versus conventional single-lip designs.

6. ISO-Certified Quality Testing
Reliability in the field starts on the factory floor. The CMN-SF10 is manufactured under ISO 9001 and CE-certified quality management protocols. Each unit leaving the facility has passed a full battery of pre-shipment tests: high-cycle torque load simulation at rated capacity, noise emission measurement under variable speed conditions, dynamic balance verification, and dimensional inspection against nominal CAD tolerances. Only units meeting all acceptance criteria are released, ensuring that what arrives at your workshop performs exactly as specified from the first field season onwards.

Working Principle

The CMN-SF10 sits between the tractor's power take-off shaft and the fertilizer spreader's disc or auger mechanism. When the operator engages the PTO, the tractor's gearbox generates a standardized 1000 RPM rotational output at the rear PTO stub shaft. A driveline consisting of a telescopic PTO shaft and protective tube connects this stub shaft to the CMN-SF10 input shaft. The right-angle bevel gear set inside the housing receives this rotation, redirects it 90 degrees from horizontal input to vertical output (or vice versa, depending on spreader geometry), and increases the output speed to 1330 RPM at the disc shaft flange. The input torque of 172 N.m is reduced to 129 N.m at the output as a direct consequence of the speed increase, keeping disc loading within design parameters for smooth, vibration-free operation.

Within the housing, the load path moves from the input shaft through a matched pair of spiral bevel gears. Spiral bevel gearing provides progressively engaged tooth contact rather than the abrupt impact of straight bevel gears, which significantly reduces both peak stress amplitude and operational noise. The engaged gear set is supported on preloaded taper roller or angular-contact bearings, which carry both the radial disc-weight loads and the axial thrust forces generated during fertilizer delivery. This bearing arrangement eliminates play in the gear mesh and maintains the tight tooth clearance needed for repeatable, accurate speed multiplication over the life of the unit.

Lubrication is handled by an oil bath splash system. As the gear set rotates, gear teeth carry oil from the sump up through the mesh zone and onto the bearing races, maintaining an adequate oil film at all contact surfaces without requiring a pressurized oil pump. The operator should verify the fertilizer gearbox oil level through the inspection port before each season and top up with the manufacturer-specified gear oil grade if required. The multi-lip shaft seals prevent this lubricant from escaping and prevent field contaminants from entering, keeping the internal environment stable between service intervals.

At the output end, the machined disc mounting flange accepts the spreading disc directly via the standardized bolt pattern (N*3-M10 configuration as shown in the dimensional drawing). The 1330 RPM output speed at the disc generates the centrifugal force required to throw granular fertilizer materials to the effective working width specified by the AMAZONE spreader's calibration settings. The compact overall package (140 mm tall, 153 mm long) allows this unit to fit within tight under-hopper clearance envelopes found on most commercial twin-disc spreader designs, making it equally applicable as a gearbox for fertilizer spreader retrofit situations and OEM new-build installations.

During operation, the tractor PTO speed should be maintained consistently at or near the rated 1000 RPM input. Operating significantly below rated speed reduces disc throw velocity and can cause uneven distribution patterns. Operating above rated speed places excess stress on the bevel gear teeth and bearings. When in doubt about whether a tractor and spreader combination is suitable, CMN Transmission's technical team can assist with compatibility assessment based on PTO shaft type, tractor horsepower rating, spreader model, and target application width.

Application Areas

How to Install CMN-SF10 Gearbox on a Double-Disc Fertilizer Spreader

1. Disengage the PTO and Isolate Power
Before touching any drive components, disengage the tractor PTO lever fully, set the handbrake, and allow all rotating parts to come to a complete stop. Lower the spreader to the ground if it is mounted on a three-point linkage, and confirm the tractor engine is off. Attempting to work on the gearbox while driveline components are still decelerating accounts for a significant share of agricultural machinery injuries. Verify no residual fertilizer remains in the hopper, as any material that falls during work creates a slip hazard.

2. Remove the PTO Driveshaft and Guard
Compress the quick-release collar on the PTO shaft yoke at the gearbox input end and slide the yoke off the input shaft stub. Store the driveshaft safely in a horizontal position to avoid bending the telescopic tubes. Unbolt the driveshaft guard mounting brackets from the gearbox housing if they attach directly to it, noting the fastener sizes and positions for reassembly. Inspect the existing driveshaft yoke bore and cross-joint for wear before reinstalling on the new CMN-SF10 unit.

3. Remove the Spreading Discs
Unbolt each spreading disc from the gearbox output flange using the appropriate socket size for the M10 flange bolts. Note the orientation of each disc (left-hand or right-hand throw) and mark them if there is any possibility of confusion on reassembly. Place discs on a clean work surface and inspect vanes for wear or cracks. Worn disc vanes reduce throw distance and spread uniformity, so replacement at the same time as the gearbox is advisable if significant wear is evident.

4. Remove the Old Gearbox from the Spreader Frame
Support the old gearbox with a work stand or a second pair of hands before removing the final housing mounting bolts, as agricultural gearboxes are heavier than they look. Unbolt the housing from the spreader's underframe mounting brackets, noting the position of any spacers or shims between the housing and frame. These shims may be required for correct alignment on the new unit. Clean the mounting faces on the spreader frame to remove old sealant, rust scale, or fertilizer residue before fitting the replacement.

5. Verify Oil Level Before Mounting the CMN-SF10
Before installing the new CMN-SF10, remove the oil level inspection plug and verify that the gear oil is at the correct level. New units are sometimes shipped with a partial oil fill to prevent spillage during transport. If the level is low, top up with the gear oil grade specified in the product data sheet, typically an ISO VG 220 or equivalent EP80W-90 gear oil, to the centre of the level inspection port opening. Reinstall the plug before mounting. This step is easy to overlook but critical: running the gearbox dry even briefly during first operation will damage the gear surface finish.

6. Bolt the CMN-SF10 to the Spreader Frame
Position the CMN-SF10 against the spreader frame mounting points with any original shims in place. Start all mounting bolts by hand before torquing any of them down, to allow the housing to self-locate. Apply thread-locking compound to the mounting fasteners if the original installation used it, then torque to the frame manufacturer's specification in a cross pattern to ensure even clamping. Verify that the input shaft is parallel to the PTO shaft line of the tractor before final tightening, using a straight-edge check across the yoke faces if access permits.

7. Reattach Spreading Discs and PTO Driveshaft
Bolt each spreading disc onto its output flange in the correct rotation orientation, torquing the M10 flange bolts to the spreader manufacturer's specification. Spin each disc by hand after bolting to confirm free rotation without binding. Reconnect the PTO driveshaft yoke to the CMN-SF10 input shaft, confirming the quick-release locking collar clicks positively into the shaft groove. Reinstall and secure the driveshaft safety guard, ensuring all guard clips and brackets are in place before any test run.

8. Run-In Test and First Field Check
With all bystanders clear of the spreader, start the tractor and engage the PTO slowly at low engine speed first. Listen for any unusual noise from the gearbox housing: grinding or knocking indicates a misalignment or assembly issue that should be investigated before full-speed operation. Gradually increase to rated PTO speed (1000 RPM) and observe both discs for smooth, balanced rotation. After a 5-minute no-load run, stop the tractor, re-check all fasteners for tightness, and inspect the housing for any oil seepage at the shaft seals or cover joint. Then run a calibration spread test before returning to production field work.

How to Order an Agricultural Gearbox for Fertilizer Spreader

1. Gear Ratio and Speed Requirements
Confirm whether you need a speed-increase or speed-reduction ratio, and specify the numeric fertilizer spreader gearbox ratio if known. If you know only the required output RPM and your tractor's PTO output speed, provide both and our engineers will calculate the correct ratio. If the unit will drive spreading discs directly from a 1000 RPM PTO, the CMN-SF10's 1:1.33 ratio is likely your match, but stating your target output speed allows us to confirm or suggest an alternative from the spreader gearbox range.

2. Input and Output Shaft Details
Provide the input shaft connection type (PTO yoke bore diameter, spline count, or keyway dimensions) and output shaft interface (flange bolt pattern, boss diameter, bore tolerance, or splined shaft specification). For the CMN-SF10 specifically, the input shaft is 30.0 mm diameter and the output flange uses an N*3-M10 bolt pattern, but if you are sourcing a different model or need custom shaft sizing, share your measured drawings or confirm dimensions against an existing unit on the machine.

3. Mounting Dimensions and Housing Orientation
Share the mounting bolt pattern dimensions, the housing footprint, and the required input-to-output orientation (right-angle, inline, or specific angle). For retrofit applications, a photo of the original gearbox in-situ on the spreader frame helps identify whether a direct replacement is achievable or whether a custom adaptation bracket is needed. Providing the make and model of your spreader allows us to cross-reference against known compatibility records from previous orders to the same spreader brand.

4. Operating Speed, Power, and Torque
State the input speed in RPM, power in horsepower or kilowatts, and the estimated operating torque at both input and output if available. For spreader applications, the tractor's PTO power rating and the spreader manufacturer's recommended gearbox power rating provide the key sizing figures. If you are unsure of the torque requirements, providing the spreader's hopper capacity in liters, working width in meters, and the fertilizer material density allows our team to estimate load and verify that the selected gearbox is correctly rated.

5. Quantity and Delivery Schedule
Indicate the quantity you are ordering and when delivery is needed. Quantities influence pricing tier, packaging format, and whether production scheduling or stock availability applies. For time-sensitive orders ahead of planting seasons, specify your required delivery date and destination port or address upfront, so that we can assess whether airfreight, express sea freight, or standard container shipping is needed to meet your timeline. CMN Transmission maintains production capacity for both small-batch replacement orders and large-volume OEM supply runs.

6. Application Details, Drawings, and Country of Destination
Describe the end application: what material is being spread, in what type of spreader, and on what kind of terrain. If you have an original equipment drawing, OEM part number, sample gearbox, or photographs of the existing unit, share these with your inquiry. The country of destination is also important for export documentation, certification compliance (CE marking for European customers, for example), and Incoterm selection. Providing all of this upfront allows CMN Transmission's team to issue a complete, accurate quotation on the first response rather than going back and forth with follow-up questions.

Fertilizer Spreader Gearbox and PTO Drive Shaft

A fertilizer spreader gearbox and an agricultural PTO shaft are designed to function as a matched power delivery system. Neither component delivers value without the other: the PTO shaft carries rotational energy from the tractor to the gearbox, and the gearbox transforms that energy into the speed and directional configuration the spreader mechanism needs to operate.

A PTO drive shaft, also called a Power Take-Off shaft, is a rotating mechanical component that transfers engine-derived torque from the tractor's rear PTO stub shaft to the input interface of an implement, in this case the CMN-SF10. Rather than requiring each piece of farm machinery to carry its own dedicated engine, the PTO shaft system allows a single tractor to power a wide range of tools, from rotary tillers and flail mowers to round balers, wood chippers, and, critically, fertilizer spreaders. This design principle reduces capital investment, simplifies maintenance scheduling, and allows smaller farming operations to achieve high output using a single well-maintained power source.

The standard agricultural PTO output in the context of fertilizer spreading operates at 1000 RPM, which matches the CMN-SF10's rated input specification directly. The PTO shaft transmits this rotation through a series of universal joints and telescopic tubes that allow the shaft to articulate as the tractor turns and as the implement rises and falls over uneven ground. The universal joints in the driveshaft introduce a small velocity fluctuation at each joint angle called Cardan error. Where two joints are used in phase at equal angles, these fluctuations cancel, producing a smooth, constant-velocity output at the gearbox input. This smooth input is important for the CMN-SF10 because it prevents cyclical torque peaks that would accelerate gear and bearing wear.

The CMN-SF10 receives the 1000 RPM input through its 30.0 mm diameter input shaft and delivers 1330 RPM to the spreading discs via the output flange. The gearbox also changes the rotation axis by 90 degrees through its right-angle bevel gear layout, converting the PTO shaft's horizontal rotation into the vertical rotation required for disc spreading. This directional conversion is the gearbox's unique contribution to the system: without it, the horizontal PTO output could not drive a vertically spinning disc directly.

CMN Transmission also supplies compatible agricultural PTO shafts alongside its fertilizer spreader gearboxes, allowing buyers to source a matched driveline assembly from a single supplier. When specifying a PTO shaft for use with the CMN-SF10, key parameters to confirm are: total compressed and extended shaft length relative to the spreader's three-point hitch mounting position, the tractor's PTO stub shaft diameter and spline count (standard 6-spline 1 3/8" or 8-spline 1 3/4" types), the maximum operating angle at each joint, and the torque rating of the overrun clutch or shear bolt protection device built into the shaft assembly. Matching these parameters to the specific tractor-spreader combination avoids the most common driveline failures in fertilizer spreading operations.

Rotary Tiller Gearbox vs Fertilizer Spreader Gearbox

What is a Rotary Tiller Gearbox?

Rotary tillers are among the most mechanically demanding implements connected to a tractor's PTO. Also referred to as rotary cultivators, they are used across both agricultural and garden settings for seedbed preparation, weed incorporation, fertilizer mixing into the soil surface, and breaking up compacted ground ahead of road construction or drainage work. A rotary tiller gearbox is the critical transmission link between the tractor's PTO shaft and the spinning tine rotor, which must receive high torque at a relatively low output speed to power through compacted, heavy soil. CMN Transmission supplies quality rotary tiller gearboxes engineered for this high-load, impact-heavy operating cycle, available in multiple models with the option to customise to customer drawings or sample units.

Advantages of Rotary Tiller Gearboxes

• High torque multiplication: Speed-reduction ratios convert the tractor's moderate torque into the massive soil-penetrating force required to drive tines through compacted ground at working depth.
• Impact-rated housing: Cast iron and steel housings are sized to absorb the repeated shock loads generated when tines strike rocks, tree roots, and hard pan layers without cracking.
• Multiple output configurations: Available with central output, side-shift output, or dual-output arrangements to suit different tiller frame layouts and working width requirements.
• Wide compatibility range: CMN Transmission's rotary tiller gearboxes cover a broad PTO horsepower range, from compact garden tractors through to large commercial agricultural machines.

Applications of Rotary Tiller Gearboxes

• Primary and secondary tillage of crop paddocks ahead of planting.
• Market garden bed preparation and weed incorporation between crop cycles.
• Orchard and vineyard floor management where mechanical cultivation replaces herbicide use.
• Ground preparation for turf laying, road verge rehabilitation, and construction site leveling.

What is a Fertilizer Spreader Gearbox?

A fertilizer spreader gearbox, sometimes called a fertilizer distributor gearbox, is the transmission component at the centre of twin-disc, pendulum, or auger-type spreading machines. Positioned centrally under the hopper, it takes PTO input, changes the rotation direction through a right-angle gear set, and delivers the output speed and torque required to spin the discs or drive the auger at the rate needed for accurate fertilizer distribution. Unlike rotary tiller gearboxes, which require torque multiplication and speed reduction, fertilizer spreader gearboxes often function as speed increasers, stepping up PTO speed to the higher disc speeds needed for wide effective working widths.

Advantages of Fertilizer Spreader Gearboxes

• Speed increase capability: Ratios above 1:1 step up PTO speed to the higher disc RPM values needed for wide throw distances and uniform spread patterns.
• Right-angle power redirection: Bevel gear design changes the horizontal PTO shaft rotation to the vertical disc axis without the power loss of chain or belt drive alternatives.
• Corrosion resistance: Anti-corrosion coatings and sealed lubrication systems maintain performance in the chemically aggressive environment created by fertilizer compounds.
• Low maintenance requirement: Sealed oil-bath lubrication and multi-lip sealing systems extend service intervals compared to grease-packed alternatives.

Applications of Fertilizer Spreader Gearboxes

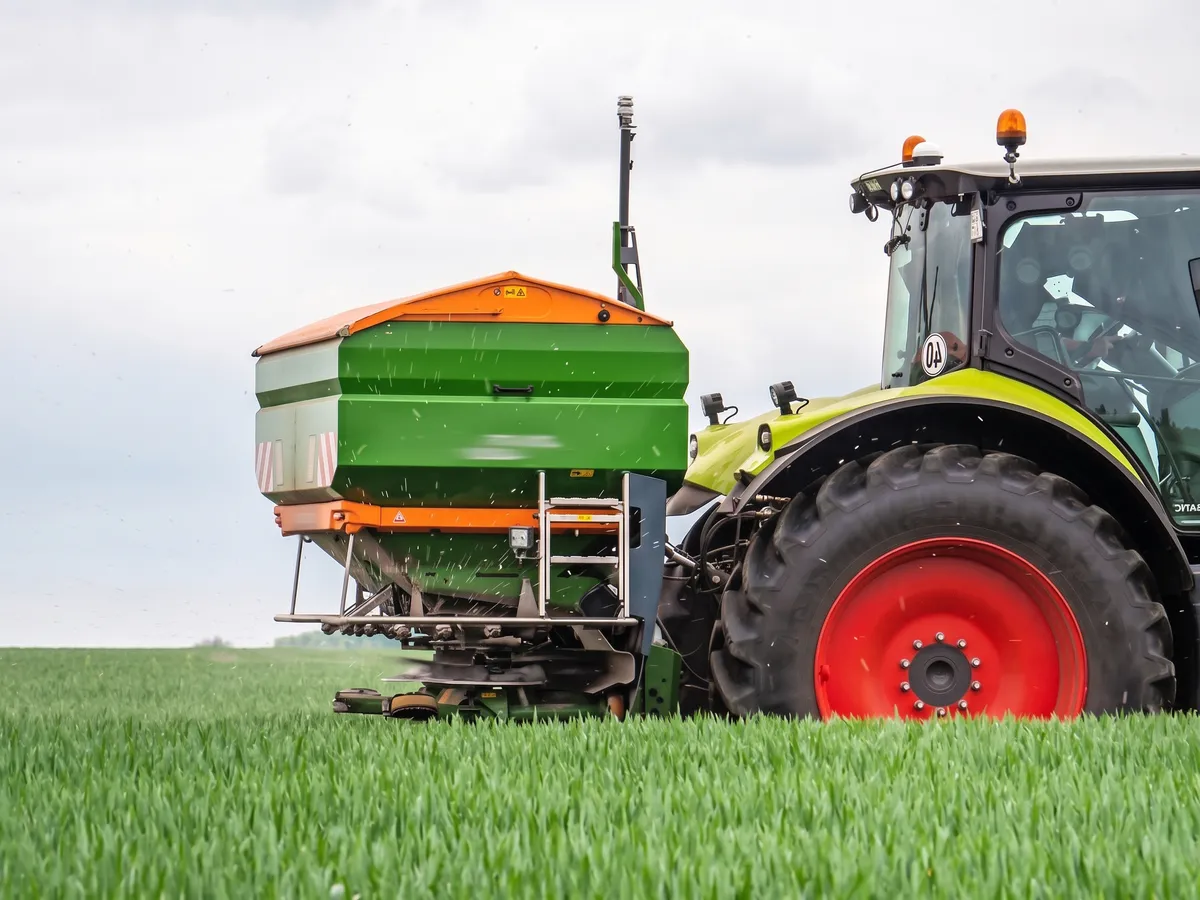

• Twin-disc PTO spreaders for granular fertilizer, lime, and seed distribution on arable and pasture land.
• Pendulum spreader mechanisms requiring controlled oscillation speed from the gearbox output.
• Orchard floor fertilizer application with specialized disc configurations for row-specific spreading.
• Sports ground and turf management spreaders used for granular fertilizer and top-dressing applications.

Why Choose CMN Transmission's Fertilizer Spreader Gearboxes?

Korea CMN Transmission Co., Ltd. was founded in 2000 and operates from Sandan-o, Danwon-gu, Ansan-si, Gyeonggi-do, Korea. With over 100 factory employees and a dedicated engineering and R&D function, CMN Transmission has spent more than two decades building a reputation as a reliable source of agricultural gearboxes for global OEMs, equipment distributors, and farm machinery workshops. The company exports to more than 60 countries and territories, including the United States, Canada, Brazil, Argentina, Germany, France, Italy, Spain, the United Kingdom, Russia, India, Thailand, Vietnam, Turkey, Australia, and New Zealand.

Annual production exceeds 500,000 units across a product range that covers rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, rotary mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, round baler gearboxes, square baler gearboxes, disc mower gearboxes, centre pivot irrigation gearboxes, hydraulic drive gearboxes, silage machine gearboxes, orchard sprayer gearboxes, rotary rake gearboxes, combine harvester gearboxes, grain transportation gearboxes, corn header gearboxes, cutting bar gearboxes, poultry feeding gearboxes, and nearly one thousand custom agricultural gearbox specifications. Complementary products include PTO shafts, universal joints, yokes, torque limiters, shaft tubes, adaptors, couplings, bearings, blades, chains, and sprockets, allowing buyers to source complete driveline assemblies from one supplier.

All products are manufactured under CE and ISO 9001 certified quality management systems. Pre-shipment testing is standard across the product range, not a premium option. CMN Transmission supports custom production to customer drawings and specifications for any product in its range, with engineering support available in English for international buyers. Whether you need a single replacement unit or recurring supply for distributor stock, the same quality standards apply to every order. For buyers sourcing fertilizer spreader gearboxes for sale at the intersection of proven quality, global supply capability, and honest pricing, CMN Transmission is a supplier worth working with over the long term.

Frequently Asked Questions

Q: What is the correct fertilizer spreader gearbox oil to use in the CMN-SF10?
A: The CMN-SF10 uses a gear oil bath splash lubrication system. The recommended lubricant is an ISO VG 220 mineral gear oil or an equivalent EP 80W-90 GL-4 or GL-5 automotive gear oil. Do not use grease or lightweight oils. Fill to the centre of the level inspection port opening, which typically corresponds to approximately 200-250 ml depending on the unit orientation. Check the oil level at the start of each season and after the first 50 hours of operation on a new unit. Replace the oil completely after the first 100 hours of use, then every 500 hours or annually, whichever comes first.

Q: Is the CMN-SF10 a direct replacement for the original AMAZONE fertilizer spreader gearbox?
A: Yes. The CMN-SF10 is precision-engineered to match the mounting geometry, shaft dimensions, and output flange bolt pattern of the AMAZONE fertilizer spreader series. The input shaft diameter of 30.0 mm, the N*3-M10 disc flange pattern, and the overall housing dimensions are machined to OEM tolerance specifications. In most cases the CMN-SF10 installs without modification. However, if your specific spreader model uses a different sub-variant of the AMAZONE housing with different shim requirements or bracket attachment points, contact us with your spreader's model number and year for confirmation before ordering.

Q: How do I check and adjust the fertilizer spreader gearbox oil level on the CMN-SF10?
A: With the gearbox installed in its operating orientation on the spreader frame, locate the oil level inspection plug on the side of the housing. Remove it using the appropriate hex key or socket. The oil should be visible at or near the bottom of the threaded hole opening. If no oil is visible, the level is low and should be topped up with the specified gear oil grade before operation. Allow a few minutes after adding oil for it to settle before checking again. Reinstall the plug securely and wipe away any spillage, as spilled gear oil on the housing exterior can attract and hold fertilizer dust around the shaft seal areas.

Q: Can the CMN-SF10 be used at input speeds other than 1000 RPM?
A: The CMN-SF10 is rated and tested at 1000 RPM input, which is the standard agricultural PTO speed for this application. Running at significantly higher input speeds, for example from a tractor with a 1000e PTO (540/1000 selectable), must be done at the 1000 RPM setting. Operating at 540 RPM input will produce approximately 718 RPM output, which may be insufficient for optimal spread pattern width on large-disc spreaders. Sustained operation above 1000 RPM exceeds the bearing speed ratings and gear contact stress limits and will reduce service life. If your application requires a different PTO speed, contact us to discuss the correct gearbox specification.

Q: What is the maximum horsepower the CMN-SF10 fertilizer gearbox can handle?
A: The CMN-SF10 is rated for a maximum continuous input power of 24 HP (18 kW) at 1000 RPM, corresponding to a 172 N.m input torque. Short-duration peaks above this figure, such as the brief torque spike when PTO is engaged with material already in the disc, are accommodated by the carburized gear heat treatment and robust bearing sizing. However, the gearbox should not be used on tractors whose PTO output routinely exceeds this rating, as sustained overloading accelerates gear wear and bearing fatigue. If your spreader application regularly requires more than 24 HP, contact us to discuss an uprated model from our agricultural gearbox range.

Q: Do fertilizer spreader gearboxes need to be winterized or drained for off-season storage?
A: The oil-bath lubrication system in the CMN-SF10 does not require draining for winter storage in most climates. The main recommendation is to clean the exterior thoroughly before storage to remove all fertilizer residue, which is hygroscopic and will draw moisture that accelerates corrosion if left on the coating surface. Check the oil level at the start of each new season before first use. If the unit has been in a very cold environment (below minus 20 degrees Celsius) for an extended period, allow it to warm briefly at idle PTO speed before applying full load, to ensure the oil has reached adequate viscosity for proper lubrication of the gear mesh.

Q: What fertilizer materials can the CMN-SF10 gearbox handle without accelerating corrosion?
A: The professional-grade anti-corrosion exterior coating on the CMN-SF10 is formulated to resist contact with standard granular fertilizer compounds including ammonium nitrate (AN), calcium ammonium nitrate (CAN), urea, diammonium phosphate (DAP), monoammonium phosphate (MAP), potassium chloride (MOP), potassium sulphate (SOP), and compound NPK blends. It also withstands contact with agricultural lime and ground limestone used for pH correction. For highly aggressive liquid formulations or experimental compounds outside standard agricultural use, contact our technical team to confirm coating compatibility before ordering.

Q: Are custom fertilizer spreader gearbox ratios available from CMN Transmission?
A: Yes. CMN Transmission accepts custom orders for non-standard fertilizer spreader gearbox ratios, shaft configurations, mounting patterns, and power ratings. If your spreader design requires an output speed other than 1330 RPM, a different housing orientation, or shaft dimensions outside the standard CMN-SF10 specification, provide your technical drawing or measured sample along with the application's power and torque requirements. Our engineering team will review the specification and advise on minimum order quantities and lead times for custom production. Custom gear cutting is available across a wide ratio range within the physical constraints of the housing size.

Q: Why is my fertilizer spreader gearbox making a grinding noise?
A: Grinding noise from a spreader gearbox almost always points to one of four causes: low or contaminated gear oil, worn or damaged bearing races, excessive gear backlash from tooth wear, or misalignment between the PTO driveshaft and the gearbox input shaft. Stop operation immediately if you hear grinding, as continued running accelerates internal damage. Check the oil level and condition first. If the oil appears milky (water contamination) or metallic and gritty, the unit has ingested contaminants through a failed seal. If oil is clean and at the correct level, the issue is likely internal wear or misalignment and the gearbox should be inspected by a qualified workshop before further use.

Q: How long should a quality fertilizer spreader gearbox last under normal farm use?
A: A well-maintained fertilizer spreader gearbox from a quality manufacturer should deliver five to ten or more seasons of service life under typical farm use, which for most commercial operations translates to somewhere between 500 and 2000 hours of actual PTO operating time. The main life-limiting factors are oil contamination from failed seals, intermittent operation at incorrect speeds, running overloaded beyond the rated power, and inadequate cleaning allowing fertilizer residue to corrode the shaft seal areas. CMN Transmission's CMN-SF10 is designed and tested for long service life when operated within its rated parameters and maintained to the recommended schedule.
