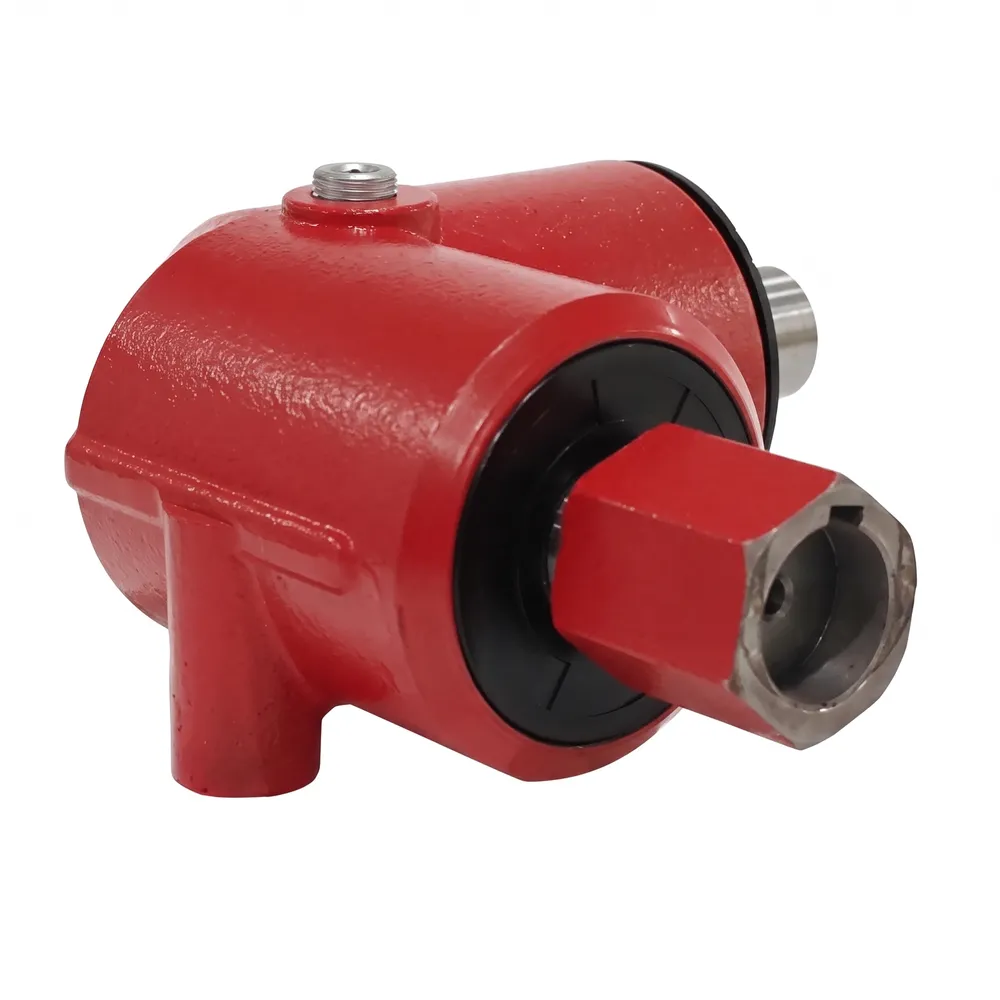

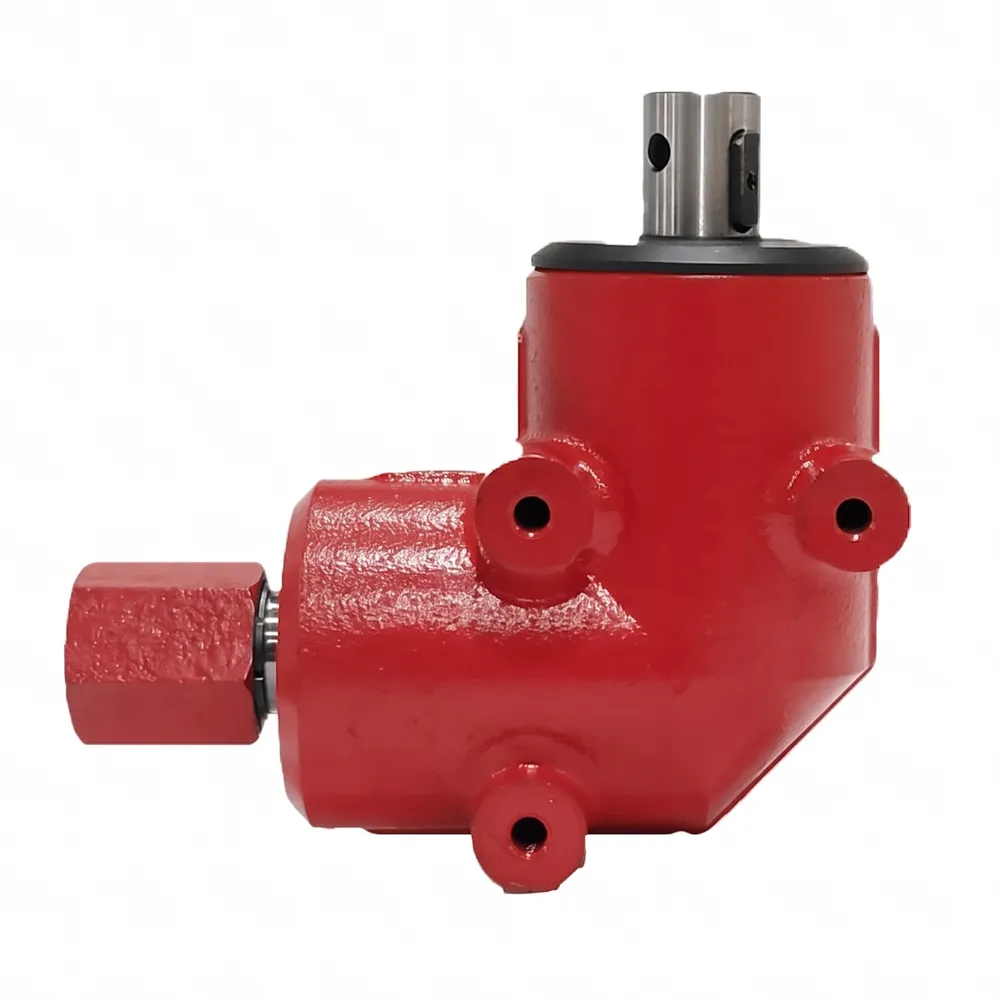

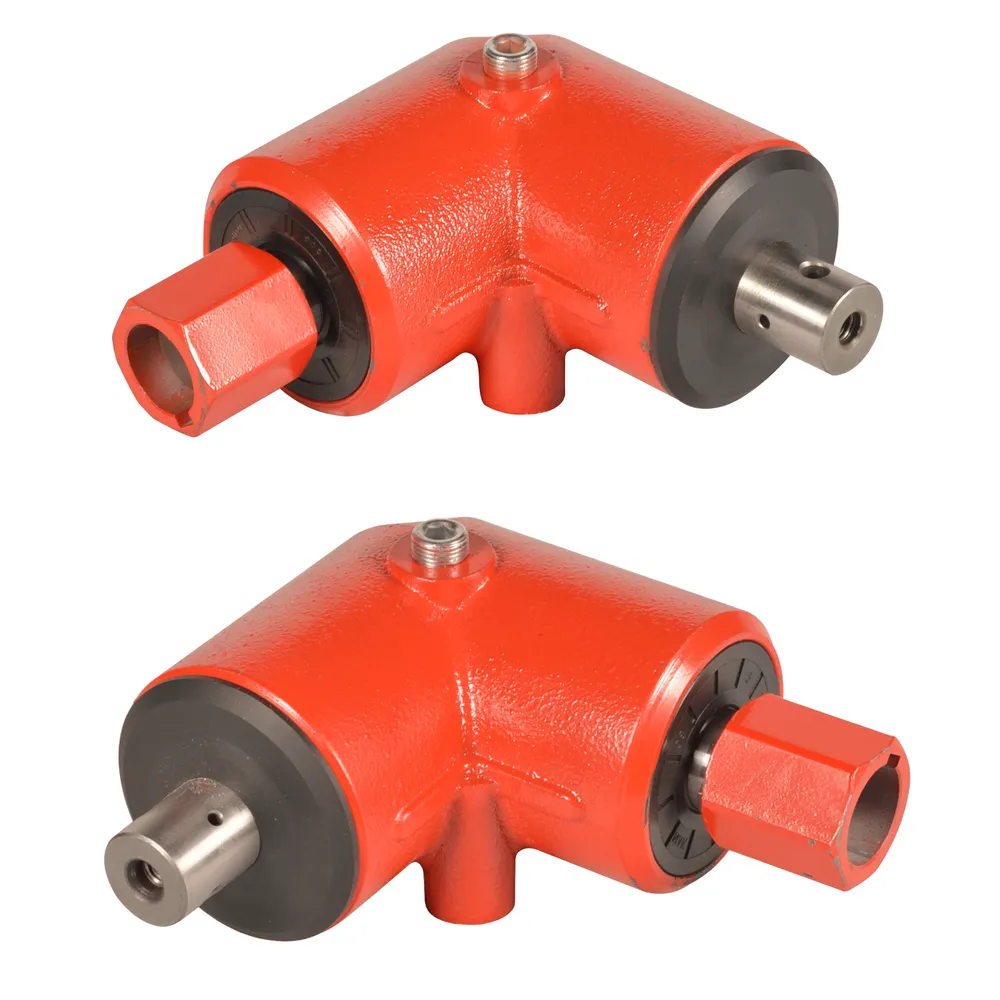

CMN-SF10 Fertilizer Spreader Gearbox Ratio 1:1.33 Cast Iron Right Angle 16HP 540RPM PTO

The CMN-SF10 Fertilizer Spreader Gearbox is a purpose-built transmission component engineered to deliver reliable, high-efficiency power transfer across a full range of agricultural spreading equipment. Rated for a 16HP / 12 kW input at 540 RPM PTO speed with a 1:1.33 speed-increase ratio, this right angle gearbox steps up disc rotational speed to 718 RPM output, producing uniform, wide-coverage fertilizer distribution that reduces lap zones and nutrient waste. The cast iron housing provides structural rigidity under the shock loads typical of field terrain, while precision-ground bevel gears transmit rotational force with minimal energy loss. Whether your operation covers grain fields, pastures, vineyards, or sports turf, the SF10 keeps your fertilizer spreader gearbox running without interruption across consecutive working days.

Built to thrive in chemically aggressive environments, the exterior carries a professional-grade anti-corrosion coating that resists breakdown from high-concentration fertilizers, liquid amendments, and seasonal moisture. Internal components are sealed with an industrial multi-lip oil seal system, blocking fertilizer dust, mud, and abrasive particles from reaching the bearing races or gear flanks. This agricultural gearbox ships with standardized mounting faces and a universally compatible PTO interface, allowing it to replace OEM parts on AMAZONE spreader platforms without custom machining. Every unit leaves the facility after passing torque load simulation, noise emission testing, and dynamic balance fatigue evaluation under ISO 9001 certified manufacturing protocols, so the performance you see on paper is the performance you get in the field.

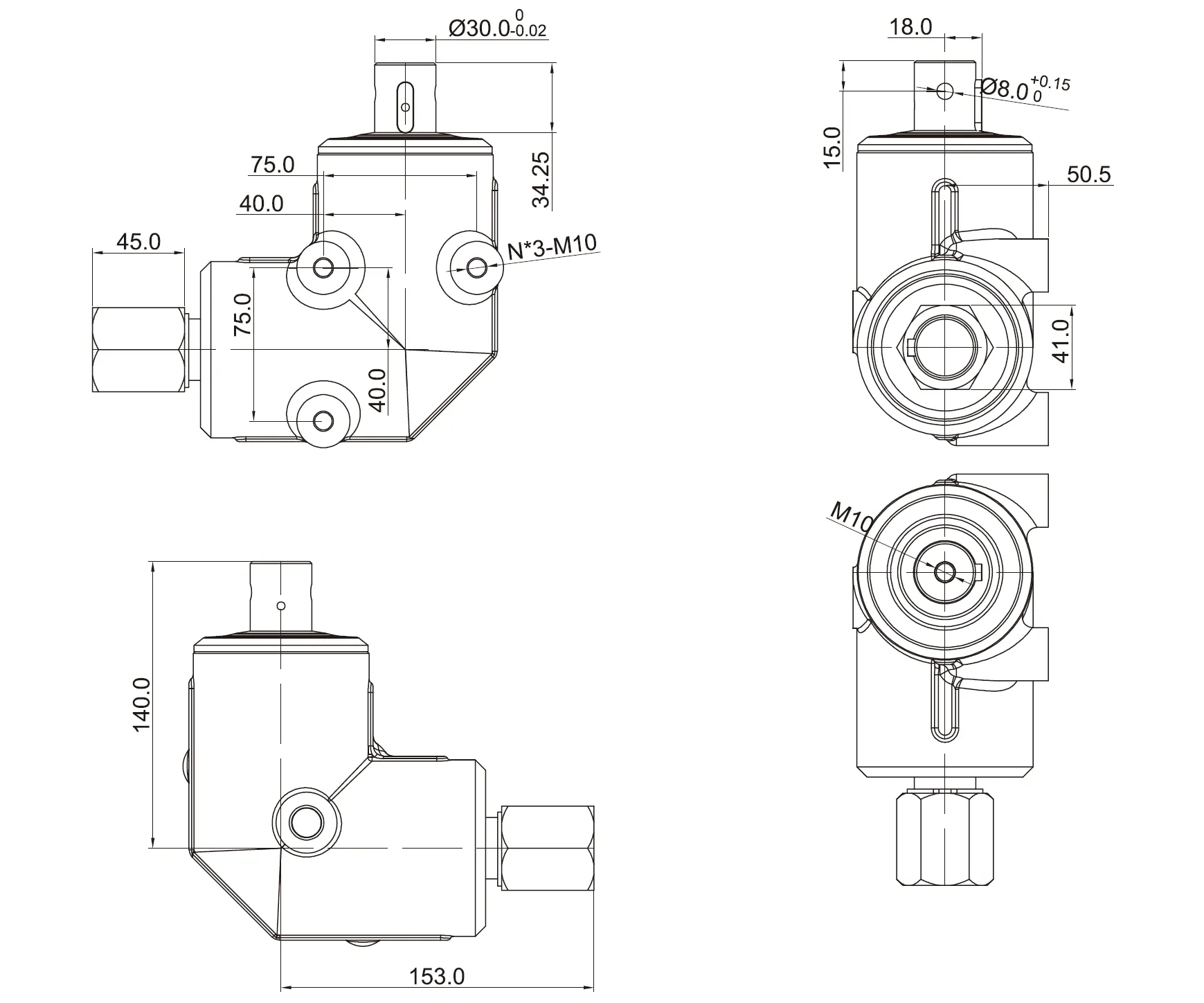

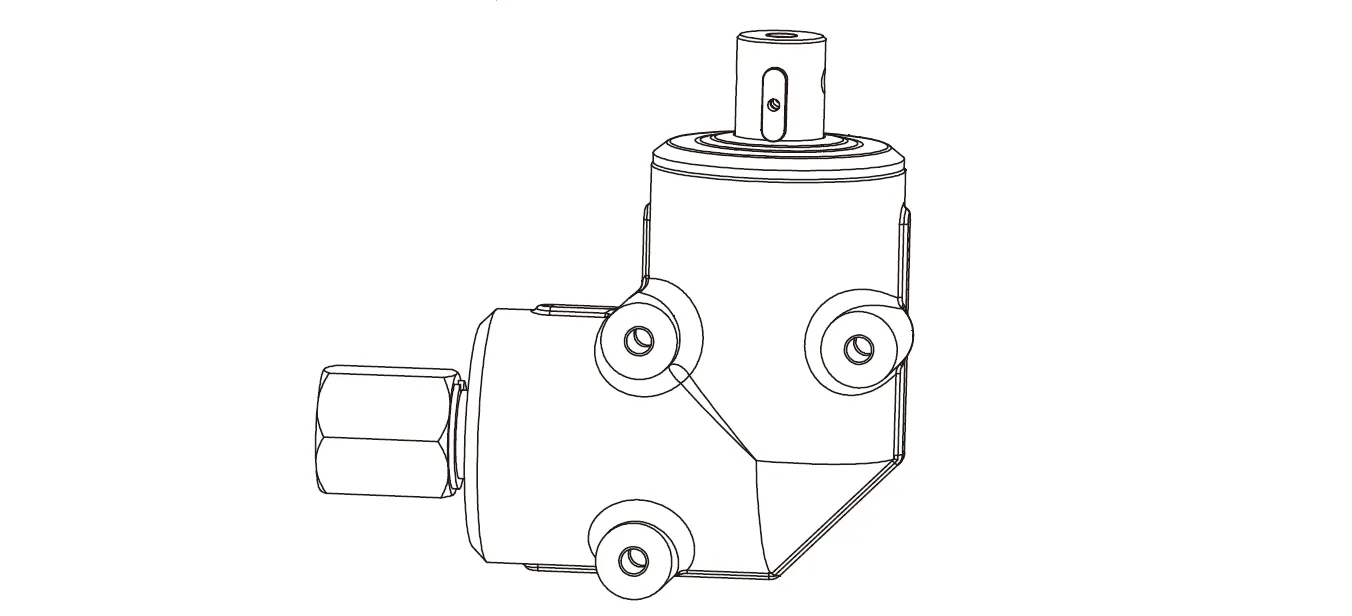

Technical Parameters

We have completed a third-party supplier audit and company verification supported by SGS / TÜV Rheinland. This verification helps buyers review company identity, business operations, supplier profile and general manufacturing capability. Product-specific inspection reports, material documents or compliance records can be provided according to order requirements.

Minimum Order Quantity (MOQ): Flexibly set based on the product type and order amount.

Samples: New customers may request 1–5 samples under appropriate circumstances.

Mixed Orders: Combining different models is supported; the total order amount must reach approximately $1,500.

Small Orders: Orders starting from 1–2 pieces are supported, but the unit price will be relatively higher.

Lead Time: 10–25 working days for standard parts; 20–45 working days for customized components; 45–120 working days for project-based equipment.

Trade Terms: EXW, FOB, CIF, and DAP are generally supported; FCA, CFR, CPT, CIP, and DDP terms can be specifically negotiated.

Key Features of the CMN-SF10 Fertilizer Spreader Gearbox

1. Premium Material and Anti-Corrosion Build
The housing is gravity-cast from high-grade cast iron, delivering the wall thickness and rigidity needed to absorb tractor-shaft vibration without deforming under sustained PTO loads. Internal gear blanks are produced from premium alloy steel forgings. The exterior surface receives a professional-grade anti-corrosion primer and topcoat system formulated specifically for resistance to ammonium nitrate, urea solution, potassium chloride, and the wide pH range encountered in commercial fertilizer spreading. This protection layer keeps oxidation at bay throughout wet seasons and extended storage periods.

2. Optimized Speed Increase Performance
The 1:1.33 fertilizer spreader gearbox ratio is not a general-purpose selection but an application-specific calibration derived from real-world disc spreader performance data. At 540 RPM input, the output shaft reaches 718 RPM, a speed range proven to maximize centrifugal disc throw distance while keeping granule breakage to a minimum. The bevel gear mesh geometry is optimized for smooth, low-noise engagement at this operating point, reducing powertrain fatigue on both the gearbox and the tractor driveline during long spreading runs across large paddocks or field blocks.

3. Seamless Equipment Compatibility
Mounting geometry, bolt-circle pitch, and shaft interface dimensions on the CMN-SF10 match original factory specifications for the AMAZONE fertilizer spreader series, enabling a direct drop-in replacement without bracket modifications, adapter plates, or shaft regrinding. This standardized approach also makes the unit compatible with a broad range of independent and OEM spreader frames that share similar PTO drive configurations. Operators can complete gearbox swaps in the field with basic hand tools, cutting downtime during peak nutrient application windows to the absolute minimum.

4. Advanced CNC Machining and Heat Treatment
All core transmission components including bevel gear pairs, input shaft journals, and output shaft bearing seats are finished on multi-axis CNC machining centers to tight dimensional tolerances. Gear tooth profiles then undergo carburizing and quenching heat treatment, building a hard, wear-resistant case over a tough, impact-absorbing core. This combination delivers gear tooth hardness in the HRC 58-62 range, supporting a high-torque carrying capacity at rated load while maintaining quiet, low-vibration meshing throughout the operating life of the unit under demanding agricultural working cycles.

5. Multi-Layer Sealing System
Agricultural spreader environments expose gearboxes to fine fertilizer dust, muddy splatter, and pressurized washdown water. The CMN-SF10 addresses this with an industrial-grade multi-lip radial oil seal at each shaft exit point. The layered lip design creates separate exclusion zones for fine particulates and liquid ingress, maintaining internal lubrication integrity across the full service interval. Paired with precisely torqued housing joints and a controlled lubricant fill level, this sealing architecture eliminates the chronic oil weep issues common with single-lip seals in high-dust fertilizer spreader gearbox applications, reducing the time operators spend on daily checks and top-ups.

6. Rigorous Quality Certification and Testing
CMN Transmission holds ISO 9001 certification and CE marking, and the CMN-SF10 is manufactured within that quality management framework. Before dispatch, every production unit completes three stages of end-of-line verification: a torque load simulation that cycles the gearbox through rated input torque, a calibrated noise emission test comparing dB(A) output against acceptance limits, and a dynamic balance fatigue check that flags any early gear-mesh irregularity. Units passing all three stages receive a production traveler card traceable back to raw material batch records, giving buyers and OEMs full quality chain documentation for their own compliance files.

Operating Principle

The CMN-SF10 Fertilizer Spreader Gearbox serves as the mechanical bridge between the tractor's power take-off and the spreading mechanism mounted on the implement frame. When the tractor PTO engages at 540 RPM, rotational energy travels through the driveshaft and enters the gearbox via the input shaft. Inside the cast iron housing, a matched pair of precision-ground bevel gears converts the input shaft's rotational axis by 90 degrees while simultaneously increasing speed by the 1:1.33 ratio. The output shaft, now turning at 718 RPM, connects directly to the spreader disc or auger drive, delivering the elevated rotational energy needed for effective centrifugal distribution of granular fertilizer, seed, or lime.

The physics behind effective spreading hinge on achieving the correct disc rim speed for the target spread width and particle size. A gearbox that delivers too low an output speed produces a narrow, uneven distribution band. One that spins too fast fragments prilled fertilizer granules on impact, creating dust fractions that settle unevenly and are subject to wind drift. The 1:1.33 ratio in the SF10 has been calibrated for 540 RPM PTO tractors commonly used on medium-to-large farms, producing a 718 RPM disc speed that falls within the optimal operating band for standard NPK compound and straight granular fertilizers used across major agricultural markets.

In PTO-driven fertilizer spreaders, the gearbox must also absorb the dynamic load variations that occur when the spreader passes over field obstacles, when material flow to the disc suddenly increases from an agitator surge, or when the tractor engine briefly dips in RPM on a hillside climb. The SF10's alloy steel gear set and rigid cast iron casing handle these load spikes without tooth deflection or case distortion, maintaining a consistent power flow that shows up as a uniform spread pattern in the field rather than the irregular bands that signal inconsistent disc speed.

Lubrication in the CMN-SF10 is splash-fed, where the rotation of the gear set continuously circulates gear oil from the sump up across the mesh contact zone, the bearing races, and the shaft seal lips. Maintaining the correct fertilizer spreader gearbox oil level is straightforward: the housing features a clearly marked fill plug and a sight window or check port that allows the operator to verify oil level in under two minutes without removing any components. The recommended lubricant is a GL-4 or GL-5 rated gear oil with viscosity matched to the expected ambient temperature range of the operating region.

From an installation standpoint, the right-angle configuration positions the input shaft inline with the PTO driveshaft coming from the tractor, while the output shaft projects perpendicular to the machine frame toward the disc or auger below. This compact right-angle geometry keeps the overall spreader profile low, reducing center-of-gravity height and improving stability on sloped terrain. The standardized bolt pattern and shaft dimensions mean agricultural gearbox for fertilizer spreader replacement can be carried out with basic agricultural workshop tools in a normal field-day turnaround, keeping spreading operations on schedule during the narrow seasonal windows when soil nutrient application delivers the greatest agronomic return.

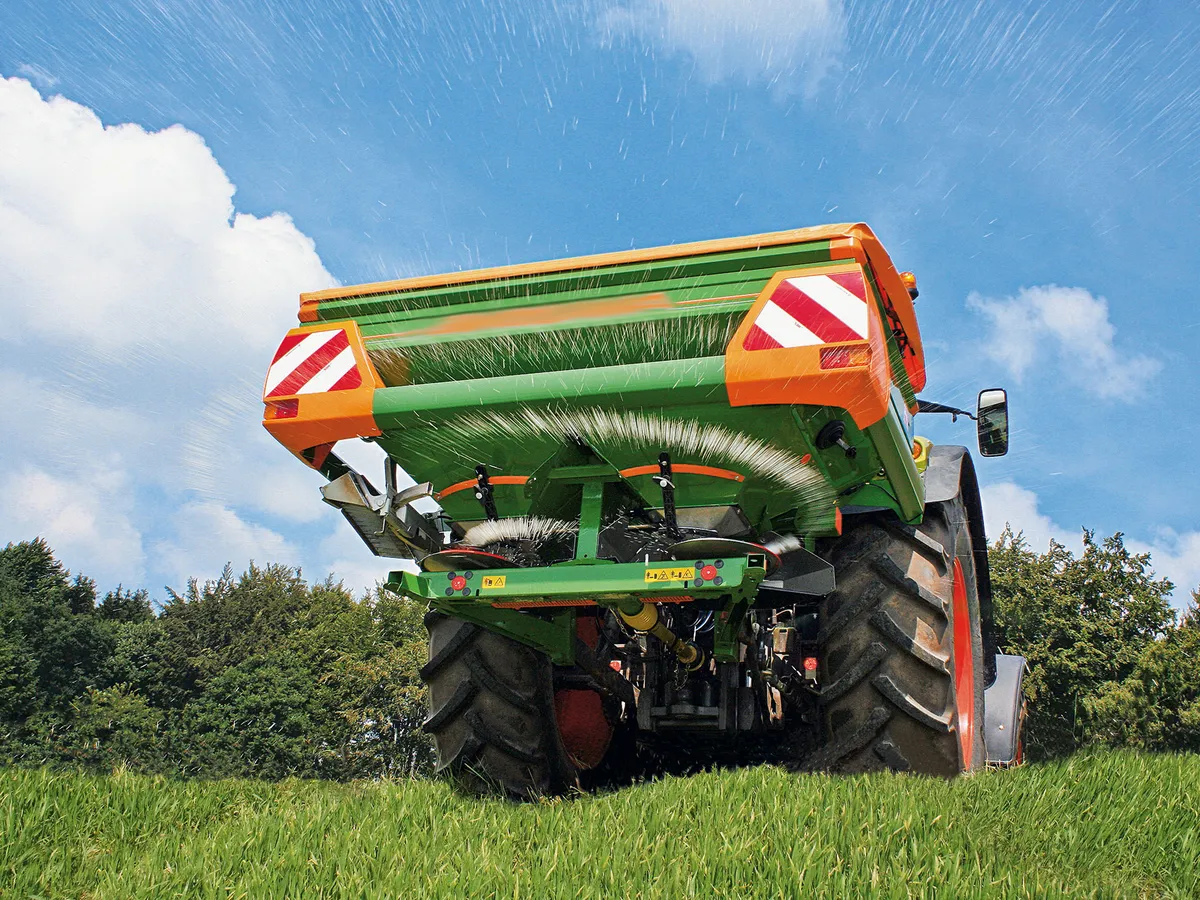

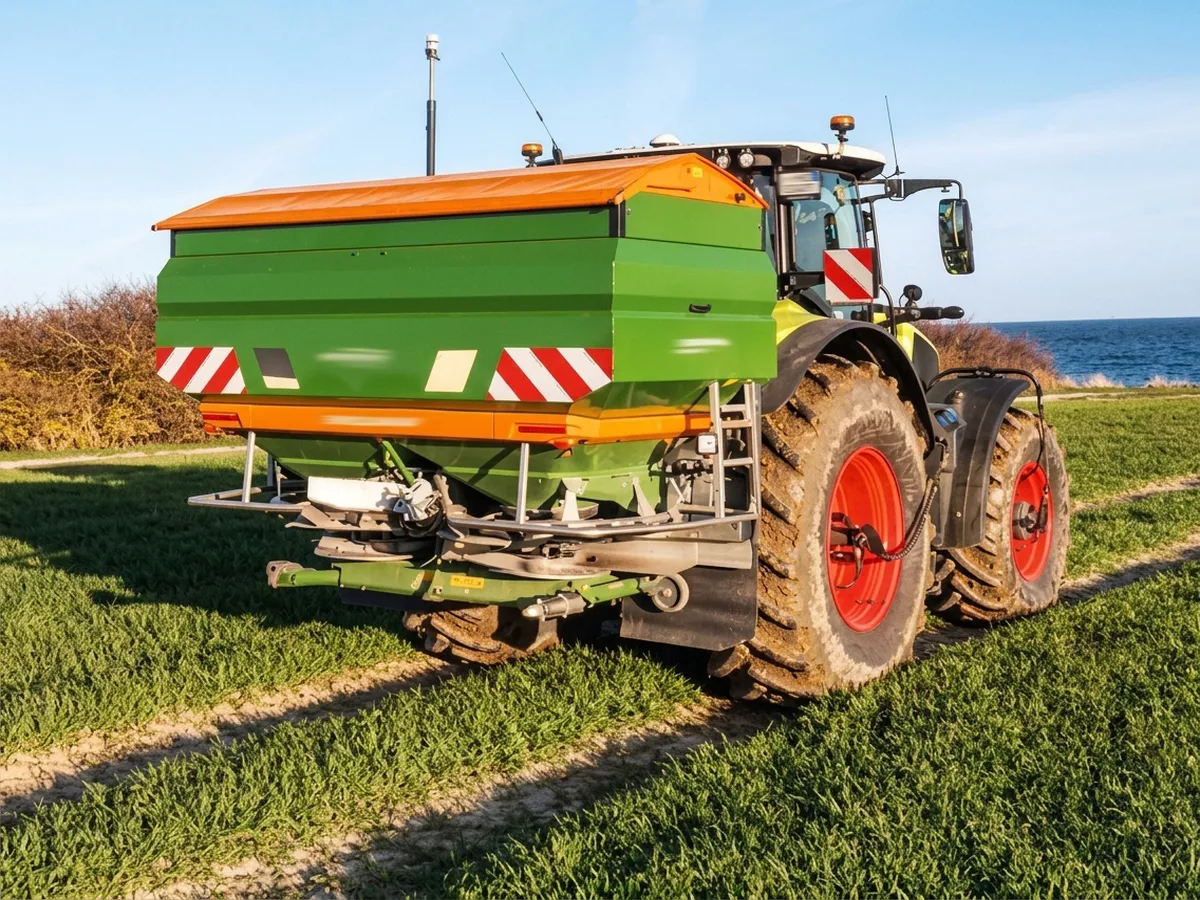

Applications of the CMN-SF10 Fertiliser Spreader Gearbox

CMN-SF10 Fertilizer Spreader Gearbox Parts

Gearbox Housing
The cast iron housing forms the structural skeleton of the entire unit. Its wall geometry is designed to provide maximum stiffness at the gear bearing seats and shaft exit ports, preventing the deflection under load that accelerates bearing wear and produces the gear whine associated with misaligned mesh contact. The housing includes an integral oil sump, fill and drain ports, and machined mounting pads with tapped holes for direct frame attachment.

Input Shaft
Machined from medium-carbon alloy steel and induction hardened at journal surfaces, the input shaft accepts the PTO driveshaft connection at one end and carries the driving bevel gear at the other. The 30 mm diameter and key slot are dimensioned to the standard PTO coupling specification for 540 RPM tractor drivelines used across major agricultural markets, ensuring a direct connection without adapter sleeves or shaft reducers in most installation scenarios.

Bevel Gear Set
The matched driving and driven bevel gears are the heart of this right angle transmission. Both are forged from alloy steel, precision hobbed to AGMA quality standards, and subjected to carburizing, quenching, and tempering heat treatment to achieve the case hardness required for the rated 195 N.m input torque capacity. The gear pair is lapped together as a matched set, producing a quiet, low-vibration mesh that remains consistent throughout service life when oil level and quality are maintained correctly.

Output Shaft
The output shaft carries the driven bevel gear on its inner end and presents the spreading disc drive connection at its outer end. Both shaft journals run in preloaded tapered roller bearing assemblies that take up combined radial and axial loads from disc imbalance, material impact, and directional change forces during headland turns. The shaft is through-hardened and ground to bearing journal tolerances that ensure bearing inner race fit remains within specification throughout rated service.

Bearing Assemblies
Both the input and output shafts are supported by tapered roller bearings selected for their capacity to carry combined radial and thrust loads generated by bevel gear mesh separation forces. Bearings are pre-adjusted during assembly to the correct preload setting, which controls gear mesh backlash and ensures the bevel pair runs at the designed contact pattern across the full tooth face. Correct preload also extends bearing fatigue life by preventing ball or roller skidding under the variable load cycles typical of spreader field work.

Multi-Lip Oil Seals
Industrial-grade multi-lip radial shaft seals are fitted at both shaft exits. The primary sealing lip retains gear oil against positive pressure created by thermal expansion during operation. The secondary exclusion lip deflects fertilizer granule fines, clay particles, and wash water away from the primary lip running surface. Together, the two lips provide a contamination barrier that allows the fertilizer spreader gearbox to operate in direct contact with bulk fertilizer streams without progressive seal degradation across a normal seasonal workload.

Lubrication System
Lubrication in the SF10 is a gear-driven splash system. As the bevel pinion rotates, it churns the oil sump and throws lubricant onto the gear mesh contact zone, the bearing rolling elements, and the seal lips in a continuous circuit driven solely by shaft rotation. No external pump or maintenance intervention is needed during normal operation. A fill plug on the upper housing face and a level check port on the side allow fast oil level verification and top-up. The correct fertilizer spreader gearbox oil level should reach the lower edge of the check port aperture with the spreader sitting level on flat ground.

How to Select the Right Gearbox for Fertilizer Spreader

1. Power Source Specification
Confirm your tractor's PTO speed rating before selecting a gearbox. The CMN-SF10 is designed for 540 RPM PTO applications at up to 16 HP continuous input. Tractors with 1000 RPM PTO outputs require a different transmission ratio and shaft interface. Matching the gearbox to the wrong PTO speed will produce either an undersized output speed or an overloaded transmission operating outside its designed torque window, shortening service life regardless of build quality.

2. Fertilizer Gearbox Ratio Requirement
The fertilizer spreader gearbox ratio controls the relationship between PTO speed and disc speed. For the 1:1.33 ratio in the SF10, a 540 RPM PTO input produces 718 RPM at the disc drive. If your spreader's original equipment specification calls for a different ratio (for example, 1:2 for a high-speed twin disc unit), match the replacement to the OEM ratio rather than the nearest available option. Running a mismatched ratio changes spread width, pattern uniformity, and granule trajectory in ways that cannot be corrected by adjusting vane settings alone.

3. Torque and Power Rating Verification
Determine the actual torque load your spreader places on the gearbox, accounting for disc and vane weight, material mass on the disc at full hopper flow, and peak shock loads when crossing field ridges. The CMN-SF10 carries 195 N.m input torque at rated conditions. If your application requires spreading heavy lime or wet compost at high disc RPM, verify that the rated torque capacity has adequate margin above the calculated peak demand. Under-specifying gearbox torque capacity is the leading cause of premature gear tooth failure in agricultural gearbox for fertilizer spreader applications.

4. Spreader Frame and Mounting Interface
Measure the bolt circle diameter, number of mounting bolts, bolt thread size, and the distance between the mounting face and the disc drive shaft end on your existing unit before ordering a replacement. The SF10 uses a 75 x 75 mm mounting face pattern with N*3-M10 bolts and a 40 mm bolt pitch. Confirm these match your spreader frame spec. For spreader models not on the AMAZONE compatibility list, a dimensional check against the drawing available on the product page will confirm direct fit or identify any minor adaptation required.

5. Operating Environment and Duty Cycle
A gearbox used for two short seasonal applications per year in a dry climate faces a different duty cycle than one running daily on a large commercial property applying liquid fertilizer blends in a coastal environment. Heavy-duty or high-frequency applications benefit from additional corrosion protection, heavier gear section ratings, and more frequent oil change intervals than the standard recommendation. Communicate your seasonal usage hours and fertilizer types to our technical team if your application falls outside typical light-duty seasonal use.

6. Supplier Support and Parts Availability
When sourcing fertilizer spreader gearbox for sale, consider whether the fertilizer spreader suppliers you are evaluating can provide replacement bevel gear pairs, oil seals, and bearing kits as individual fertilizer spreader gearbox parts rather than requiring full unit replacement for routine wear components. CMN Transmission maintains component-level spare parts availability for the SF10 and provides dimensional documentation sufficient for local bearing and seal sourcing in markets where direct import of small components is impractical or slow. This parts support structure is a direct factor in total cost of ownership over a 5-10 year operational horizon.

Fertilizer Spreader Gearbox and Agricultural PTO Shaft

A fertilizer spreader gearbox does not operate in isolation. It sits at one end of a complete power transmission chain that begins at the tractor engine and travels through the clutch, transmission, and PTO shaft before reaching the gearbox input shaft. The agricultural PTO shaft, sometimes called a power take-off shaft or driveshaft, is the rotating mechanical link between the tractor's external PTO stub shaft and the gearbox input end. PTO shafts consist of a telescoping tube assembly that accommodates implement distance variation during turns and undulation, with universal joints (U-joints) at each end that transmit rotational force through the angular offset between the tractor PTO axis and the implement gearbox input axis. Standard 540 RPM PTO shafts use a 6-spline 1-3/8 inch stub shaft interface on both the tractor and implement ends.

When the tractor PTO is engaged, the PTO shaft begins rotating at 540 RPM. This speed and the torque from the engine travel through the driveshaft to the CMN-SF10's input shaft. Inside the gearbox, the 1:1.33 bevel gear set steps this up to 718 RPM, which is then delivered to the spreading disc. The U-joints in the PTO shaft allow the spreader to follow field contours without binding the driveshaft or imposing bending loads on the gearbox input shaft bearing.

Matching the PTO shaft to the gearbox requires attention to three parameters: shaft length at minimum and maximum extension, the operating angle of the U-joints at maximum implement articulation, and the torque rating of the driveshaft. PTO shafts running at high angles exceed the rated operating range of the U-joints, generating speed fluctuation (velocity error) that causes vibration at the gearbox input shaft. This vibration accelerates bearing wear and can produce gear noise even on a correctly built and assembled gearbox. Keeping U-joint operating angles below 15 degrees and ideally under 10 degrees is a practical guideline for spreader installations where the gearbox mounts at a fixed angle relative to the tractor hitch.

Torque limiters incorporated into premium PTO drive shaft assemblies provide an additional layer of drivetrain protection. If the spreader disc momentarily jams on a foreign object or material surge stalls the disc rotation, a torque limiter disconnects the driveline before the torque spike can fracture a gear tooth or bend a shaft. CMN Transmission also supplies compatible agricultural PTO shafts, yokes, torque limiters, and U-joint crosses as standalone components, allowing customers to assemble a fully matched spreader drivetrain from a single supplier and simplify procurement for global agricultural machinery distributors and OEM partners.

Routine maintenance of the combined gearbox and PTO shaft system involves checking and greasing U-joint needle bearings at the intervals specified by the shaft manufacturer, verifying that the telescoping tube overlap is within the minimum engagement specification at maximum extension, confirming the PTO guard and shaft guard are intact and freely rotating before each season, and checking the fertilizer spreader gearbox oil level and quality annually or at the start of each application season, whichever comes first. This coordinated maintenance approach treats the gearbox and PTO shaft as a system rather than independent components, which reflects how they actually function and fail in practice.

Common Troubleshooting

Why Choose CMN Transmission's Fertilizer Spreader Gearboxes?

Korea CMN Transmission Co., Ltd. was established in 2000 and is located in Sandan-o, Danwon-gu, Ansan-si, Gyeonggi-do, Korea. The company was founded on a straightforward premise: agricultural machinery operators need transmission components that perform reliably under real field conditions, not just on a test bench. Over the past two and a half decades, CMN Transmission has grown from a regional Korean gearbox producer into a recognized supplier to the global agricultural machinery industry, exporting to more than 60 countries across six continents. With a factory workforce of over 100 production and technical staff, the business maintains the combination of production scale and engineering attention that consistent quality requires.

The product range is broad by design. CMN Transmission covers rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, rotary mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, round baler gearboxes, square baler gearboxes, disc mower gearboxes, center pivot irrigation gearboxes, silage machine gearboxes, orchard sprayer gearboxes, rotary rake gearboxes, combine harvester gearboxes, grain storage and transportation gearboxes, corn header gearboxes, cutting bar gearboxes, poultry feeding gearboxes, and a wide range of custom agricultural gearboxes covering close to one thousand individual specifications. Alongside gearboxes, CMN supplies PTO shafts, universal joints, yokes, tubes, torque limiters, protective covers, adapters, couplings, bearings, blades, chains, and sprockets. With annual production exceeding 500,000 units across all lines, scale gives the company both material purchasing leverage and the production consistency that stable quality depends on.

From a quality assurance standpoint, CMN Transmission's manufacturing operations are certified to ISO 9001 and products carry CE marking in compliance with applicable EU directives. This is not a documentation exercise. The quality management framework governs incoming material inspection for steel billets and castings, in-process dimensional checks at each machining stage, heat treatment process controls with hardness verification, and end-of-line performance testing covering torque, noise, and dynamic balance. Buyers who need quality records for their own compliance files, import documentation, or OEM qualification processes can obtain ISO and CE certificates directly from the sales team.

CMN Transmission exports to the United States, Canada, Mexico, Brazil, Argentina, France, Germany, Italy, Spain, the United Kingdom, Russia, India, Thailand, Vietnam, Turkey, Australia, New Zealand, and dozens of additional markets. This distribution reach means the company has accumulated genuine technical experience across the agricultural practices, tractor PTO standards, soil types, fertilizer products, and seasonal working patterns of the world's major farming regions. That operational knowledge informs product design decisions in ways that pure laboratory engineering cannot replicate, and it shows up in details like the anti-corrosion coating chemistry, the oil seal specification, and the ratio calibration choices made for products like the CMN-SF10.

Frequently Asked Questions

Q: What is the correct fertilizer spreader gearbox ratio for a 540 RPM PTO tractor?
A: For most twin-disc granular fertilizer spreaders used with standard 540 RPM agricultural tractors, a speed-increase ratio between 1:1.2 and 1:1.5 is the typical design range. The CMN-SF10 uses a 1:1.33 ratio, producing 718 RPM output from 540 RPM input. This output speed falls within the optimal centrifugal velocity band for standard NPK prills and granules on spreaders with disc diameters in the 450 to 600 mm range. If your spreader manufacturer specifies a different ratio, match that specification rather than using the nearest available unit.

Q: What oil should I use and what is the correct fertilizer spreader gearbox oil level?
A: Use a GL-4 or GL-5 rated gear oil. For temperate climates operating between 0 and 35 degrees Celsius, SAE 90 or 80W-90 is the standard grade. In colder climates where temperatures regularly fall below minus 10 degrees Celsius, an SAE 75W-90 fully synthetic gear oil provides better cold-start protection. The correct oil level is at the lower edge of the fill/check port with the gearbox sitting level on flat ground. Overfilling above this level pressurizes the seal area and accelerates seal lip wear. Check and top up at the start of each application season.

Q: Does the CMN-SF10 fit AMAZONE fertilizer spreaders directly?
A: Yes. The CMN-SF10 is precision-engineered as an OEM-compatible replacement for the AMAZONE fertilizer spreader series. Mounting face dimensions, bolt pitch, bolt thread size, and shaft interface dimensions match factory specifications. Replacement can be completed with standard agricultural workshop tools without custom brackets or shaft adapters. For confirmation on specific AMAZONE model numbers or for spreader models from other manufacturers, contact CMN with your spreader model and year and the technical team will verify compatibility before you order.

Q: Can the CMN-SF10 be used for lime and soil amendment spreading, not just fertilizer?
A: Yes. The CMN-SF10's 195 N.m input torque rating and alloy steel gear set handle the higher mass loads associated with agricultural lime, dolomite, and granulated compost spreading. The anti-corrosion coating is formulated for a wide pH range covering both acidic and alkaline materials. The main practical consideration when spreading lime is particle size: granular lime flows consistently through disc spreaders, while very fine unconditioned aglime can bridge in the hopper. The gearbox itself has no restriction on material type provided the spreader disc speed is appropriate for the target product.

Q: How often should the gearbox oil be changed?
A: For typical seasonal use (under 100 hours per year), an oil change every one to two seasons or every 200 operating hours, whichever comes first, is the standard recommendation. For heavy commercial spreading operations running the gearbox more than 300 hours annually, an annual oil change before the peak application season is advisable. When oil is drained and shows a dark brown or black discolouration with a gritty texture, that indicates gear or bearing wear particles are in circulation and the oil should be changed immediately rather than waiting for the scheduled interval. Always dispose of used gear oil responsibly.

Q: Where can I find fertilizer spreader gearbox parts for the CMN-SF10?
A: CMN Transmission supplies fertilizer spreader gearbox parts for the SF10 including matched bevel gear pairs, multi-lip shaft seal kits, tapered roller bearing replacements, and housing gasket sets. These are available directly through CMN. For buyers in markets where importing individual small components is impractical due to freight costs or lead times, the product page includes bearing and seal dimensional specifications sufficient to source equivalent components from local industrial bearing distributors using standard NSK, SKF, or FAG cross-reference catalogs.

Q: Does CMN Transmission accept custom gearbox specifications?
A: Yes. CMN Transmission accepts custom orders for agricultural gearboxes across its full product range. Custom parameters available for the fertilizer spreader gearbox line include gear ratio adjustment, input and output shaft diameter and spline modifications, alternative mounting face bolt patterns, housing extension lengths, and special coating specifications for highly corrosive fertilizer types. Custom orders require a minimum quantity, technical drawings or dimensional reference, and a development lead time of six to ten weeks depending on specification complexity. Contact the technical sales team with your application requirements for a custom feasibility assessment and quotation.

Q: What PTO shaft type is compatible with the CMN-SF10 input shaft?
A: The CMN-SF10 input shaft is 30 mm diameter with a key slot, designed to accept the standard agricultural spreader driveshaft coupling used on 540 RPM PTO systems. This interface is compatible with the wide body of aftermarket and OEM PTO shaft assemblies fitted with square or profile yoke couplings appropriate for that shaft diameter and key dimension. If your existing PTO shaft has a different coupling style, confirm the inner bore and key specification of the yoke against the SF10's input shaft dimension before ordering. CMN Transmission also supplies PTO shafts and yoke components if a complete matched drivetrain assembly is preferred.

Q: Is the CMN-SF10 certified to ISO or CE standards?
A: CMN Transmission's manufacturing facility operates under ISO 9001 certified quality management system protocols, and the CMN-SF10 carries CE marking, confirming compliance with applicable EU mechanical safety directives. Every production unit passes end-of-line quality checks including torque simulation, noise evaluation, and dynamic balance testing before shipment. Certificate copies and CE declaration of conformity documentation are available on request for buyers who require these records for their own import compliance files, distributor agreements, or OEM qualification processes.

Q: How do I know if my current fertilizer spreader gearbox needs replacement rather than repair?
A: Replacement is typically more cost-effective than repair when two or more of the following are present: gear tooth contact surfaces show visible pitting, spalling, or wear steps beyond 0.5 mm; bearing races show discoloration from heat, flaking, or measurable radial play beyond 0.15 mm; housing joint faces show cracks or distortion that prevent proper sealing; or the gearbox has operated at incorrect oil level for a documented period allowing contamination to reach the bearing and gear surfaces. Single-component issues such as a worn oil seal or a single failed bearing are worth repairing if the gear mesh is still in good condition. CMN Transmission can supply a parts-level inspection checklist on request to help workshops make the repair versus replace assessment accurately.
