PTO Shaft for John Deere Multi Spindle Rotary Cutters HX10, HX14

Reliable PTO Shaft for John Deere Multi Spindle Rotary Cutter Models

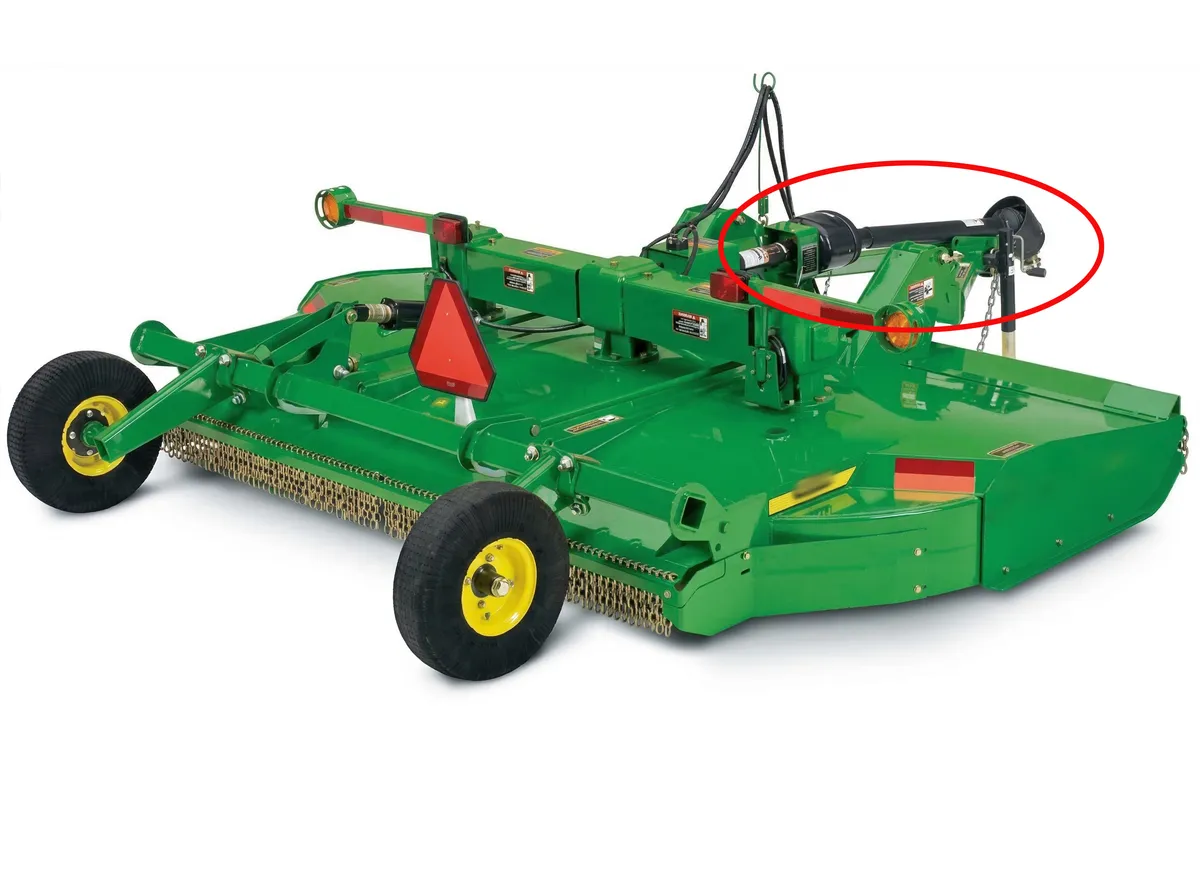

PTO Shaft for John Deere Multi Spindle Rotary Cutter Model: HX10, HX14

The PTO shaft for John Deere rotary cutter models HX10 and HX14 from CMN Transmission is a precision-engineered tractor PTO shaft designed to deliver reliable power transfer between your tractor and multi spindle rotary cutter. Built for both pull-type and lift-type configurations, this PTO drive shaft supports horsepower ratings from 60 HP to 90 HP, making it a versatile replacement of John Deere PTO shaft for demanding mowing, brush clearing, and pasture maintenance operations. Available in CAT4 x 2400 and CAT5/6 x 2500 series, this agricultural PTO shaft accommodates multiple spline bore sizes including 1.375-6, 1.375-21, and 1.750-20, ensuring a precise fit with your existing tractor PTO output and implement input shafts.

Whether you are maintaining large cattle pastures, clearing overgrown fence lines, managing roadside vegetation, or cutting heavy brush across hundreds of acres of farmland, this heavy duty PTO shaft is engineered to withstand the sustained torque loads that multi spindle rotary cutters demand. The optional K90 friction clutch provides torque protection up to 1500Nm, safeguarding your tractor drivetrain and gearbox from sudden shock loads caused by stumps, rocks, and hidden debris. CMN Transmission manufactures every PTO driveline shaft with ISO and CE certified quality standards, advanced CNC machining, and rigorous testing protocols, giving operators the confidence to run season after season without unexpected downtime.

Main Shaft

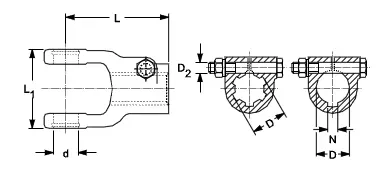

Connecting Yokes

	Series	Bore
	CAT4 * 2400	1.375-6
	CAT4 * 2400	1.375-21
	CAT4 * 2400	1.750-20
	CAT5/6 * 2500	1.375-21
	CAT5/6 * 2500	1.75-20

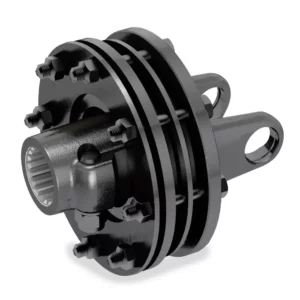

K90 & K90/4T Friction Clutch

	Series	Bore	Discs	Torque
	CAT4 * 2400	1.375-6	2	1000nm
	CAT4 * 2400	1.375-6	4	1500nm
	CAT4 * 2400	1.375-21	4	1400nm
	CAT4 * 2400	1.750-20	4	1500nm
	CAT5/6 * 2500	1.750-20	4	1500nm

Features of PTO Shaft for John Deere Rotary Cutter

1. High Torque Friction Clutch Protection
The integrated K90 friction clutch system is a standout feature of this slip clutch PTO shaft. With 2-disc and 4-disc configurations delivering torque capacities from 1000Nm up to 1500Nm, the clutch acts as a mechanical fuse between the tractor and implement. When the rotary cutter blades strike a hidden stump, rock, or other obstruction, the friction clutch slips momentarily instead of transmitting the full shock load through the drivetrain. This protects the tractor gearbox, the PTO shaft u joint assemblies, and the cutter gearbox from costly damage. The multi-disc design ensures consistent torque release behavior even after extended service hours.

2. Versatile Series and Bore Compatibility
This custom PTO shaft is available in both CAT4 x 2400 and CAT5/6 x 2500 series, covering the full range of John Deere HX10 and HX14 configurations. Multiple PTO shaft yoke bore options (1.375-6 round bore, 1.375-21 spline, and 1.750-20 spline) mean you do not need aftermarket adapters or modifications. Whether your tractor has a standard 540 PTO shaft output or a 1000 PTO shaft output, CMN Transmission provides the exact connecting yoke to match your equipment, eliminating guesswork during installation and ensuring a secure, vibration-free power connection.

3. Equal Angle and CV Joint Options
For pull-type HX10 and HX14 rotary cutters, this tractor PTO drive shaft is available with equal angle or constant velocity (CV) joint configurations. Equal angle joints maintain consistent rotational speed across operating angles, reducing vibration and wear on the PTO shaft universal joint bearings. CV joints go even further by eliminating the cyclic speed variation inherent in standard cross-and-bearing universal joints, which is particularly beneficial when the rotary cutter is offset from the tractor centerline. Both options extend the service life of the driveline components and improve operator comfort during long mowing sessions.

4. Industrial-Grade Build Quality
Every component of this PTO drive shaft is manufactured using precision CNC machining, heat-treated alloy steel, and automated welding processes. The PTO shaft tube is cold-drawn seamless steel with tight dimensional tolerances to ensure smooth telescoping action under load. Surface finishes are treated to resist corrosion from moisture, fertilizer residue, and agricultural chemicals. ISO and CE certification backs every unit that leaves the CMN Transmission facility, confirming that material composition, dimensional accuracy, heat treatment, and assembly torque specifications all meet international industrial standards.

5. Comprehensive Safety Guard System
The PTO shaft cover and guard assembly on this unit meets international safety standards for rotating agricultural drivelines. The plastic shield tubes and cone-shaped end guards enclose the full rotating length of the shaft, preventing contact with spinning components. Bearing-mounted end cones allow the guard to remain stationary while the shaft rotates at full speed inside. This is critical for operator safety, especially in multi spindle cutter applications where the tractor PTO may run at 1000 rpm PTO shaft speeds and the consequences of accidental contact are severe.

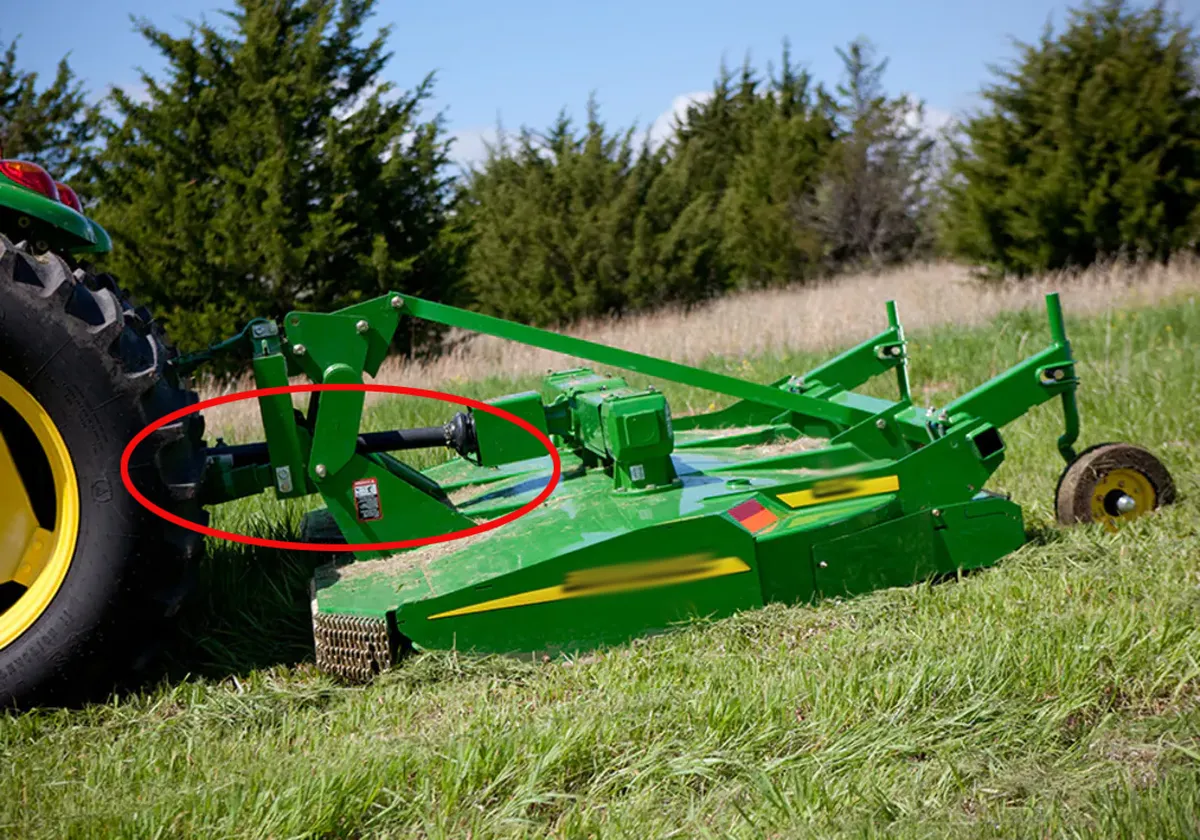

How Does a Rotary Cutter PTO Shaft Work

A PTO shaft (Power Take-Off shaft) functions as the mechanical link that transfers rotational energy from a tractor's engine to a connected implement, in this case a John Deere HX10 or HX14 multi spindle rotary cutter. The working principle begins at the tractor's PTO output stub, a splined shaft that extends from the rear of the tractor transmission. When the operator engages the PTO clutch, engine power is routed through the transmission gearing to this output stub, which rotates at a standardized speed of either 540 RPM or 1000 RPM depending on the tractor configuration.

The tractor-side PTO shaft yoke slides onto the PTO output stub and is secured by a locking mechanism. This yoke connects to the first PTO shaft universal joint, which consists of a cross-shaped bearing assembly (also called a cross journal) held in place by four bearing caps. The universal joint allows the PTO driveline shaft to transmit torque even when the tractor and implement are not perfectly aligned, accommodating vertical angle changes as the rotary cutter follows ground contours and horizontal offsets during turning maneuvers.

From the first universal joint, torque passes through the telescoping PTO shaft tube assembly. This assembly consists of an inner profile tube that slides inside an outer profile tube, allowing the overall shaft length to change as the distance between the tractor and the cutter varies during operation. The profile tubes are typically lemon-shaped, star-shaped, or triangular in cross-section to transmit torque while permitting axial sliding movement. This telescoping action is essential because the rotary cutter moves closer to and farther from the tractor as the three-point hitch raises and lowers, or as a pull-type unit tracks across uneven terrain.

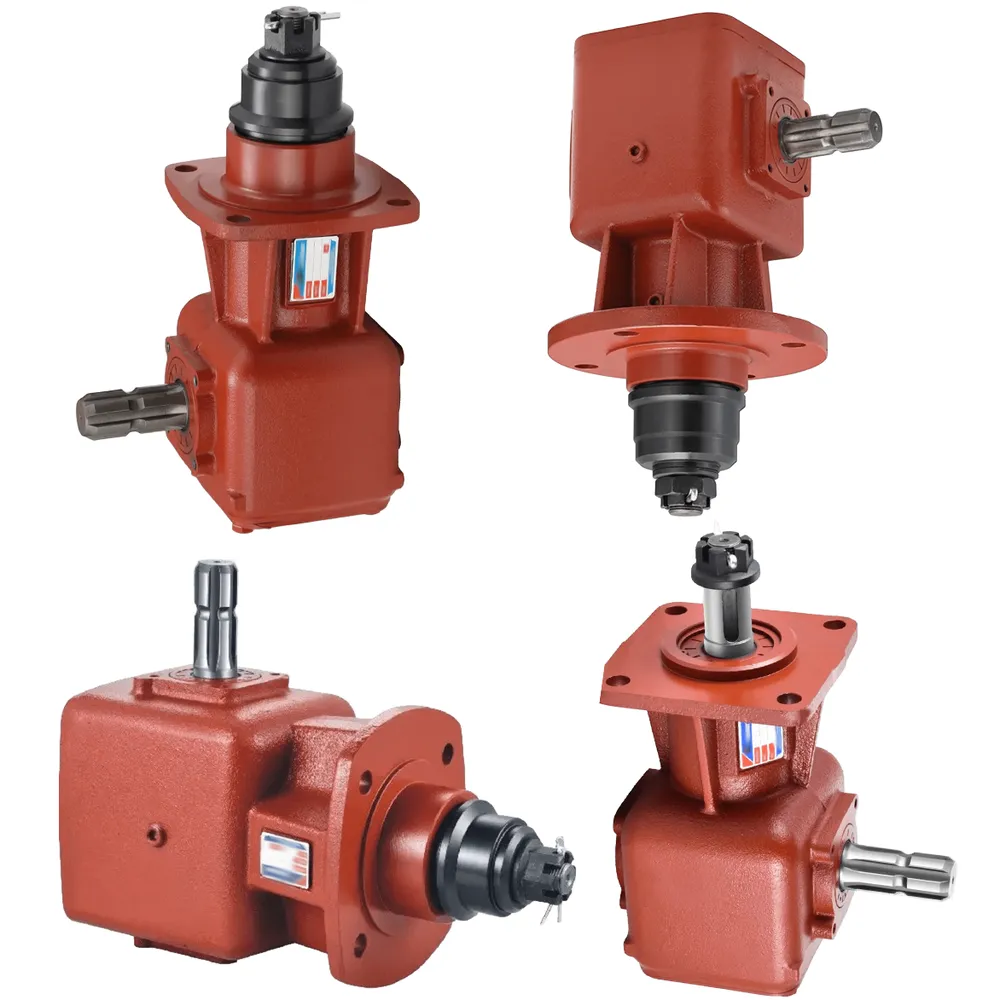

At the implement end, a second universal joint connects the telescoping tube assembly to the implement-side connecting yoke, which engages the input shaft of the rotary cutter gearbox. The gearbox then converts the incoming rotation into the appropriate speed and direction for the cutter blades. In a multi spindle configuration like the HX10 and HX14, the main gearbox distributes power to two separate spindle gearboxes, each driving its own set of cutting blades.

Applications of Tractor PTO Drive Shaft

• Pasture and Rangeland Maintenance
  Cattle ranchers and livestock operators rely on this tractor PTO shaft to power their John Deere HX10 and HX14 rotary cutters for regular pasture mowing. Keeping pastures trimmed promotes healthy grass regrowth, controls weed competition, and improves grazing conditions. The 60 to 90 HP capacity handles thick fescue, bermudagrass, and native prairie stands with ease, and the multi spindle design covers wide swaths in fewer passes.
• Heavy Brush and Undergrowth Clearing
  This heavy duty PTO shaft provides the torque needed to drive rotary cutter blades through saplings, dense brush, and tall weeds. Land clearing operations for new fencing, firebreak establishment, and reclaiming overgrown fields demand sustained high-torque output, which the CAT5/6 series driveline configuration delivers reliably. The friction clutch option is especially valuable in this application where hidden obstacles are common.
• Roadside and Ditch Bank Vegetation Control
  Municipalities, county road departments, and highway maintenance contractors use multi spindle rotary cutters powered by this PTO drive shaft to maintain visibility along rural roads, clear ditch banks, and manage vegetation in rights-of-way. The equal angle or CV joint option is particularly advantageous in these applications because the cutter often operates at significant offset angles from the tractor while working along road shoulders and embankments.
• Hay Field and Crop Residue Management
  After hay harvesting or crop production, this agricultural PTO shaft powers the cutter to chop and distribute remaining stalks and stubble evenly across the field. This accelerates decomposition, returns nutrients to the soil, and prepares the seedbed for the next planting cycle. The wide cutting width of the HX10 and HX14 multi spindle design reduces the number of field passes required, saving fuel and time during critical post-harvest windows.
• Orchard and Vineyard Floor Management
  Orchardists and vineyard managers use rotary cutters with this tractor PTO shafts to keep the ground between tree rows and vine rows mowed and clean. Controlling ground cover reduces pest habitat, minimizes fire risk during dry seasons, and improves equipment access for spraying and harvesting operations. The telescoping PTO shaft tubing easily accommodates the frequent three-point hitch adjustments needed when navigating tight row spacing.

PTO Shaft Parts and Components

Understanding the individual PTO shaft parts that make up this driveline assembly helps with ordering replacements, diagnosing problems, and performing maintenance correctly. Each component plays a specific role in the power transmission chain from tractor to rotary cutter.

Tractor-Side Yoke
This is the PTO shaft yoke that connects directly to your tractor's PTO output stub. It features an internal spline profile (available in 1.375-6, 1.375-21, or 1.750-20 bore sizes) and a locking collar mechanism that prevents the yoke from sliding off during operation. The yoke is forged from alloy steel and precisely machined to match the PTO output spline dimensions.

Universal Joints (Cross and Bearing Assemblies)
Each PTO shaft universal joint consists of a cross-shaped journal with four trunnion arms, four needle roller bearing cups pressed into the yoke ears, internal seals to retain grease and exclude contaminants, and external snap rings or bearing strap plates that hold the cups in position. The cross journal is heat-treated to a high surface hardness for wear resistance, while the core remains tough to absorb shock loads. These joints allow the shaft to operate at angles up to approximately 25 degrees.

Telescoping Tube Assembly
The PTO shaft tube assembly consists of a female outer profile tube and a male inner profile tube. Common profile shapes include lemon, star, and triangular cross-sections. The profile shape transmits torque between the two tubes while the axial sliding motion accommodates length changes. The tubes are manufactured from cold-drawn seamless steel for precise dimensional tolerances and high strength. A grease fitting on the outer tube allows lubrication of the sliding surfaces.

Implement-Side Connecting Yoke
This yoke connects to the rotary cutter gearbox input shaft. Depending on the cutter model configuration, it may be secured with a PTO shaft shear bolt, a quick-release pin, or a keyed connection. The shear bolt PTO shaft design is intentional: the shear bolt acts as a sacrificial mechanical fuse that breaks under extreme torque to protect more expensive drivetrain components.

K90 Friction Clutch Assembly
The optional slip clutch PTO shaft assembly includes a clutch hub, friction discs (2 or 4 depending on torque rating), separator plates, a spring pack, and an adjusting nut or ring. The friction discs are made from sintered metallic or organic friction materials bonded to steel plates. The spring pack provides the clamping force that holds the discs together, and the adjusting mechanism sets the torque threshold at which the clutch will slip.

Safety Guard Assembly
The complete PTO shaft cover system includes plastic shield tubes that enclose the rotating shaft, cone-shaped end guards at each end, bearing inserts that allow the guard to remain stationary, and anchor chains or brackets that attach the guard cones to the tractor and implement frames. Every guard component is designed for easy removal to access the shaft for maintenance, and equally easy reinstallation to maintain safety compliance.

Agricultural PTO Shaft Installation Guide

Proper installation of your PTO shaft for John Deere rotary cutter is essential for safe operation, optimal performance, and long service life. Before you begin, make sure the tractor engine is off, the PTO is disengaged, and the three-point hitch or pull hitch is in a lowered, stable position. Gather the necessary tools including a tape measure, grease gun loaded with NLGI Grade 2 EP grease, clean rags, and any shear pin or lock pin hardware supplied with the shaft.

Step 1
Verify Compatibility. Before physically connecting anything, confirm that the PTO shaft yoke bore matches your tractor's PTO output stub. For this John Deere HX10/HX14 application, the common bore sizes are 1.375-6, 1.375-21, and 1.750-20. Slide the tractor-side yoke onto the PTO stub without forcing it. The splines should engage smoothly with minimal free play. Also verify that the implement-side connecting yoke matches the gearbox input shaft spline pattern on your rotary cutter.

Step 2
Set the Correct Working Length. With the tractor and rotary cutter hitched together in their normal operating position, extend the telescoping PTO shaft tube assembly and measure the distance between the tractor PTO output face and the cutter gearbox input face. The shaft must have adequate overlap of the inner and outer profile tubes at full extension (minimum 1/3 overlap is standard practice), and it must not compress to the point of bottoming out at full contraction when the hitch is raised. If the shaft is too long, it may need to be shortened according to the manufacturer's cutting guidelines.

Step 3
Grease All Fittings. Apply fresh EP grease to every grease fitting on the PTO shaft universal joint assemblies, the telescoping tube slip joint, and the friction clutch bearing (if applicable). Pump grease until a small amount of fresh grease appears at each bearing seal. This initial lubrication is critical because new components may have lost their factory grease during shipping and storage.

Step 4
Connect the Implement Side First. Slide the implement-side yoke onto the rotary cutter gearbox input shaft, align the lock pin or shear bolt holes, and insert the PTO shaft shear bolt or locking pin. Secure it with the supplied cotter pin or retaining clip. Then connect the tractor side by sliding the tractor yoke onto the PTO output stub and engaging the locking collar.

Step 5
Install and Secure the Safety Guard. Position the PTO shaft cover guard assembly over the rotating shaft. Attach the tractor-side guard cone to the tractor using the supplied chain or bracket, and attach the implement-side guard cone to the cutter frame. These anchor points prevent the guard from rotating with the shaft. Verify that no part of the guard interferes with the shaft's telescoping range of motion. After all connections are secure, cycle the three-point hitch through its full range while checking for any binding, interference, or guard contact. Run the PTO at low speed briefly to confirm smooth, vibration-free rotation before engaging the rotary cutter blades at full operating speed.
