Planetary Slewing Drive Gearbox for Aerial Work Platforms

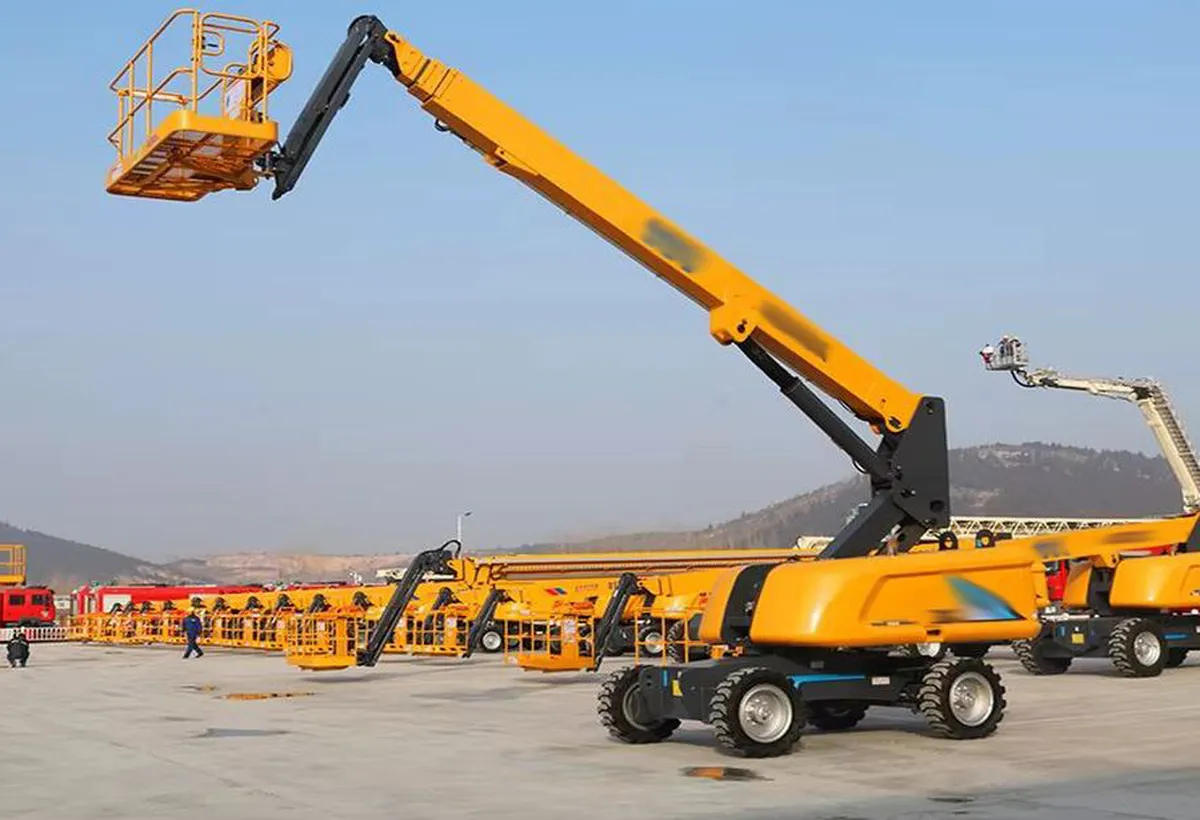

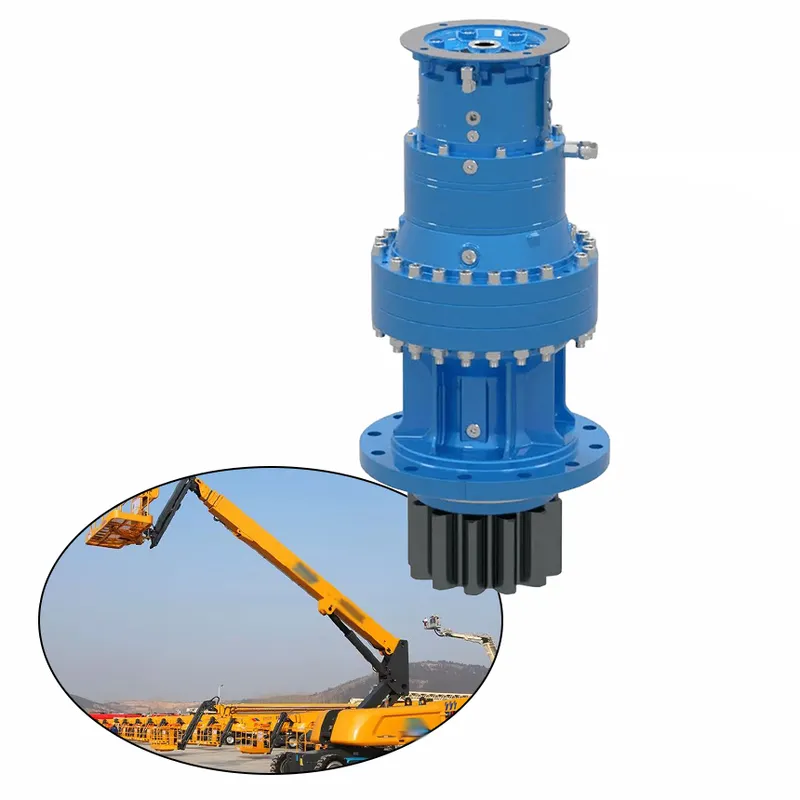

A planetary slewing drive gearbox is a compact, high-torque mechanical system designed for precise rotational control in aerial work platforms, such as scissor lifts, boom lifts, and cherry pickers. It integrates a planetary gear mechanism with a slewing bearing and drive components, enabling smooth 360-degree rotation while withstanding significant axial, radial, and tilting loads. This slewing gearbox typically features multiple planetary stages for enhanced torque multiplication and efficiency, housed in a sealed enclosure to protect against environmental factors like dust, moisture, and extreme temperatures. In aerial work platforms, it facilitates the safe and stable maneuvering of elevated baskets or booms, supporting heavy payloads during maintenance, construction, or inspection tasks.

Planetary Slewing Drive Dimensions

RE 240

Support: DBS

Support: Tecc

Splined Shaft:

Pinions:

RE 310/510

Support: DBS

Support: Tecc

Support: T6

Support: T8

Support: T18

Support: NR

Support: NR3

Shaft:

Pinions:

RE 610

Support: DBS

Support: DBS2

Support: T18

Shaft:

Pinions:

RE 810

Support: Tecc

Support: TRecc

Shaft:

Pinions:

Benefits of Planetary Slewing Drive for Aerial Work Platforms

1. High Torque Capacity for Heavy Loads
Planetary slewing drives are designed to deliver exceptional torque, making them ideal for handling the heavy loads associated with aerial work platforms. Their multi-stage planetary gear system provides efficient torque multiplication, ensuring stable and safe operation even when lifting or rotating heavy equipment like scissor lifts or boom arms.

2. Compact and Space-Saving Design
The compact design of planetary slewing gearboxes allows them to fit seamlessly into aerial work platforms without taking up excessive space. This feature is especially valuable in applications where space constraints are critical, enabling manufacturers to create smaller, more efficient machines without compromising on performance or stability.

3. Smooth 360-Degree Rotation
These slewing drive planetary gearboxes enable precise and smooth 360-degree rotation, which is essential for aerial work platforms to maneuver efficiently in tight or elevated spaces. The high precision of the slewing bearing and planetary gear system ensures minimal backlash, allowing operators to position equipment with accuracy and ease during complex tasks.

4. Enhanced Durability and Longevity
Built with robust materials and housed in sealed enclosures, planetary slewing gearboxes are resistant to harsh environmental conditions such as dust, moisture, and extreme temperatures. This durability ensures long-term reliability, reducing maintenance requirements and downtime, which is critical for operators working in challenging construction or maintenance environments.

5. Improved Safety and Stability
By providing consistent and reliable rotational control, planetary slewing drive gearboxes enhance the overall safety of aerial work platforms. Their ability to handle high axial, radial, and tilting loads ensures that the platform remains stable during operation, reducing the risk of accidents and ensuring the safety of personnel at elevated heights.

6. Energy Efficiency and Cost Savings
Slewing drive planetary gearboxes are highly energy-efficient due to their effective torque distribution and minimal power loss. This efficiency not only reduces energy consumption but also lowers operational costs over time. Their long service life and minimal maintenance needs further contribute to significant cost savings for operators and businesses.

Planetary Slewing Drive Gearbox Applications

1. Aerial Work Platforms (AWPs)
Planetary slewing drive gearboxes are widely used in aerial work platforms such as scissor lifts, boom lifts, and cherry pickers. They provide precise 360-degree rotation and stable control, ensuring safe positioning of elevated baskets or booms during construction, maintenance, and inspection tasks, even under heavy payloads.

2. Cranes and Lifting Equipment
In cranes and lifting machinery, planetary slewing drives offer high torque and load-handling capabilities. They enable smooth and controlled rotation of crane arms or lifting platforms, ensuring stable operation while maneuvering heavy materials in construction sites, shipyards, and industrial environments, even in challenging weather conditions.

3. Solar Tracking Systems
Planetary slewing gearboxes are essential in solar tracking systems, where they adjust the position of solar panels to follow the sun’s movement. Their precise rotational control enhances energy efficiency by maximizing solar energy absorption, while their durable design ensures reliable performance in outdoor environments with exposure to dust, wind, and moisture.

4. Excavators and Heavy Machinery
In excavators and other heavy construction equipment, these planetary gearboxes enable the efficient rotation of booms, buckets, and other attachments. Their ability to handle high axial, radial, and tilting loads ensures smooth operation, even during demanding tasks such as digging, lifting, or material handling in rugged terrains.

5. Wind Turbines
Slewing drive planetary gearboxes play a critical role in wind turbines, where they control the yaw system to adjust the turbine’s orientation. This precise positioning allows the turbine blades to face the wind for optimal energy generation. Their robust construction ensures long-term durability, even under continuous operation in extreme weather conditions.

Planetary Slewing Drive for Crawler Cranes	Planetary Slewing Drive for Excavators
Planetary Slewing Drive for Solar Tracking Systems	Planetary Slewing Drive for Wind Turbines

Planetary Slewing Drives Vs. Planetary Wheel Drives

Planetary slewing drives and planetary wheel drives are both mechanical systems designed for torque transmission and precise motion control, but they differ significantly in structure, functionality, and applications.

Planetary Slewing Drives

Planetary slewing drives are compact systems that integrate a planetary gear mechanism with a slewing bearing. They are specifically designed for rotational motion and 360-degree positioning. These drives handle high axial, radial, and tilting loads, making them ideal for heavy-duty applications like aerial work platforms, cranes, and solar tracking systems. The slewing drive's ability to provide smooth rotational control ensures stability and precision in applications requiring accurate positioning. Additionally, their sealed housing protects against dust, moisture, and extreme temperatures, making them suitable for harsh outdoor environments. Their primary focus is on rotational movement rather than linear or forward motion.

Planetary Wheel Drives

On the other hand, planetary wheel drives are designed to transmit power to wheels or tracks, enabling forward or backward motion. They are commonly used in mobile machinery such as excavators, loaders, and agricultural vehicles. These drives feature a planetary gear system that provides high torque multiplication, enabling vehicles to move smoothly under heavy loads or on rugged terrains. Unlike slewing drives, wheel drives are optimized for traction, mobility, and speed control rather than rotational positioning.

Key Differences

• Motion Type: Slewing drives focus on rotational motion, while wheel drives are designed for forward/backward movement.
• Load Handling: Slewing drives handle axial and radial loads, whereas wheel drives manage ground traction.
• Applications: Slewing drives are used in cranes, AWPs, and wind turbines, while wheel drives are found in construction and agricultural vehicles.

Planetary Slewing Drives	Planetary Wheel Drives
