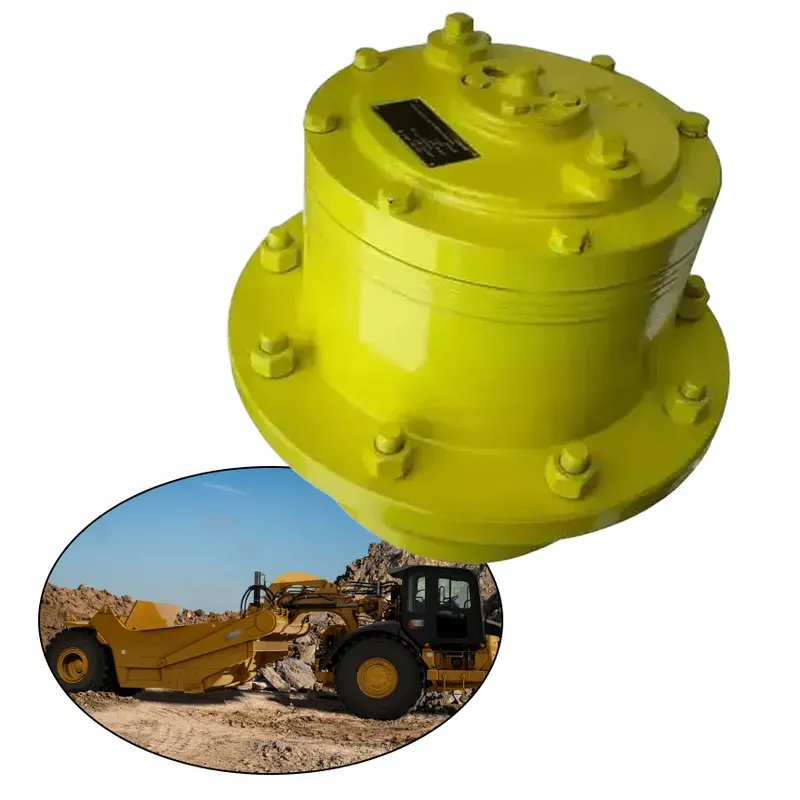

Planetary Wheel Drive for Wheel Tractor-Scrapers

The planetary wheel drive for wheel tractor-scrapers represents a sophisticated gear mechanism integral to heavy earthmoving machinery, such as Caterpillar models including the 621, 623, and 637 series. This system, often referred to as a planetary wheel drive gearbox or final drive, utilizes a planetary gear arrangement comprising a central sun gear, orbiting planet gears, and an outer ring gear to achieve compact torque multiplication and speed reduction. In wheel tractor-scrapers equipment designed for efficient loading, hauling, and dumping of large material volumes in construction, mining, and infrastructure projects, the planetary wheel drive transmits power from the engine to the drive wheels, enhancing traction and preventing slippage in adverse conditions like soft soil or steep gradients.

Its planetary design allows for multiple gear ratios within a space-efficient housing, supporting both converter drive for low-speed torque and direct drive for higher efficiency in upper gears. This contributes to all-wheel drive capabilities, enabling the scraper to handle demanding tasks with reduced maintenance needs due to outboard-mounted, planetary final drives that can be serviced independently.

Planetary Wheel Drive Gearbox Dimensions

Tekniset määritelmät

GR 80

GR 200

EH 210

EH 240

EH 350

EH 610

EH 910

S-versio

PD-versio

Wheel Tractor-Scraper Planetary Wheel Drive Gearbox Benefits

• High Torque Multiplication
  The planetary wheel drive gearbox ensures exceptional torque multiplication by evenly distributing power through its sun, planet, and ring gears. This design allows the wheel tractor-scraper to efficiently handle heavy loads, providing the necessary power to maneuver through demanding terrains like loose soil, gravel, or steep inclines.
• Kompakti ja tilaa säästävä muotoilu
  The planetary gear system is highly compact compared to traditional gearboxes, making it ideal for large earthmoving equipment. Its smaller footprint does not compromise power or efficiency, allowing manufacturers to design robust wheel tractor-scrapers without adding unnecessary weight or bulk to the machine.
• Enhanced Load Handling Capacity
  Thanks to its unique design, the planetary gearbox can withstand high shock loads and continuous stress during heavy-duty operations. This durability ensures the wheel tractor-scraper can transport substantial material volumes without excessive wear and tear, boosting overall productivity in industrial and construction settings.
• Improved Fuel Efficiency
  By optimizing power transmission and reducing energy losses, the wheel drive planetary gearbox significantly enhances fuel efficiency. This results in lower operational costs for wheel tractor-scrapers, as less fuel is required to achieve the same workload, making it an environmentally friendly and cost-effective solution.
• Smoother and Reliable Operation
  The planetary wheel drive ensures seamless power delivery, reducing vibrations and jerky movements during operation. This smoother performance not only enhances operator comfort but also minimizes mechanical stress on the scraper’s drivetrain components, prolonging the lifespan of the equipment.
• Reduced Maintenance Requirements
  The robust design and efficiency of the planetary gearbox lead to lower maintenance needs. With fewer parts exposed to high stress and wear, the system requires less frequent servicing. This reduction in maintenance time and costs ensures uninterrupted operation and increased profitability over the equipment’s lifespan.

Wheel Drive Planetary Gearbox Applications

• Construction and Earthmoving
  The planetary wheel drive gearbox is integral to construction machinery like wheel tractor-scrapers, bulldozers, and loaders. Its ability to handle massive loads and deliver high torque makes it ideal for moving soil, sand, and gravel, ensuring efficient operations on construction sites with challenging terrains.
• Kaivosteollisuus
  In mining operations, planetary gearboxes are critical for heavy equipment used in hauling and excavation. These gearboxes enable machinery to handle the rigorous demands of transporting large quantities of minerals, ores, and debris while operating reliably in harsh conditions like extreme temperatures and abrasive environments.
• Agriculture
  Agricultural machinery, such as tractors, harvesters, and plows, utilizes planetary wheel drives to enhance power distribution and efficiency. They ensure smooth operation when working with heavy equipment attachments and allow farmers to operate effectively on uneven or muddy fields, increasing farm productivity.
• Forestry and Logging
  In forestry applications, planetary gearboxes are used in equipment like skidders and forwarders to tow and transport heavy logs. Their compact design and ability to handle high loads ensure smooth and reliable operation in uneven, muddy, or steep forest terrains, critical for timber harvesting.
• Oil and Gas
  Planetary wheel drive gearboxes are employed in oilfield equipment such as drilling rigs and pipeline machinery. They provide precise torque control and high power, essential for tasks like drilling deep wells or moving heavy pipeline sections, ensuring efficient operations in energy production.
• Material Handling and Transportation
  Industrial applications, such as forklifts, cranes, and conveyor systems, rely on planetary gear reducers for their compact design and ability to handle heavy loads. These gearboxes ensure smooth power transmission and precise control, optimizing the movement of goods in warehouses, ports, and manufacturing facilities.

Planeettapyöräveto kaivoskuorma-autoille	Planeettapyöräveto kaivospyörien puskutraktoreille
Planeettapyöräveto maanalaisiin porausjumboihin	Planetary Wheel Drive for Road Reclaimers

Wheel Drive Planetary Gearbox Oil Lubrication

• Check Oil Specifications
  Before lubricating, ensure the oil meets the manufacturer’s specifications for viscosity and compatibility. Using the correct oil type is critical as it affects the gearbox’s performance, reduces wear, and ensures proper operation under the high torque and load conditions of the planetary gearbox.
• Inspect Oil Levels Regularly
  Check the oil level in the gearbox using the dipstick or sight glass, ensuring it is within the recommended range. Insufficient oil can lead to overheating and increased friction, while overfilling may cause leaks and pressure buildup, both of which harm the gearbox.
• Drain Old or Contaminated Oil
  Drain the gearbox oil completely at the recommended intervals or if contamination (like water, debris, or sludge) is detected. Clean the drain plug and surrounding area to prevent contaminants from re-entering the gearbox during the refilling process, ensuring optimal lubrication.
• Clean and Inspect the Gearbox
  Before refilling, inspect the gearbox housing, seals, and gears for signs of damage, wear, or leaks. Clean the gear housing to remove debris or sludge that could mix with the new oil. This step ensures a clean environment for optimal lubrication.
• Refill with Fresh Oil
  Slowly refill the gearbox with the recommended oil grade and quantity. Use a funnel to avoid spills and ensure the oil flows evenly. Allow the oil to settle and recheck the levels after a few minutes, ensuring the gearbox is properly lubricated without overfilling.
• Monitor and Replace Oil Filters
  If the gearbox is equipped with an oil filter, clean or replace it as per the manufacturer’s guidelines. A clogged filter restricts oil flow, reducing lubrication efficiency and potentially causing damage. Regular filter maintenance ensures clean oil circulates through the planetary gearbox.
