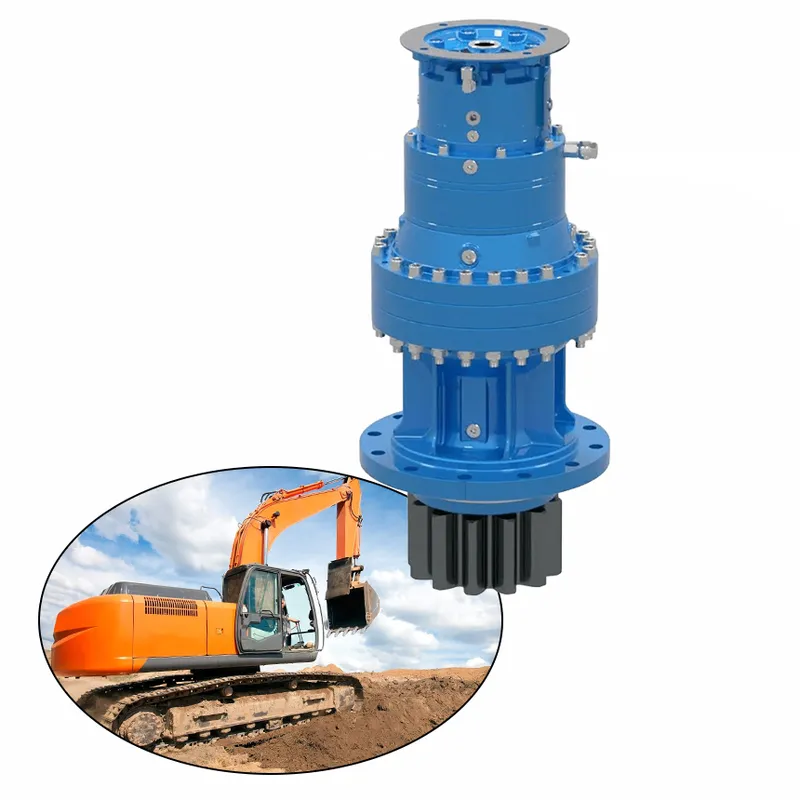

Planetary Slewing Drive Gearbox for Excavators

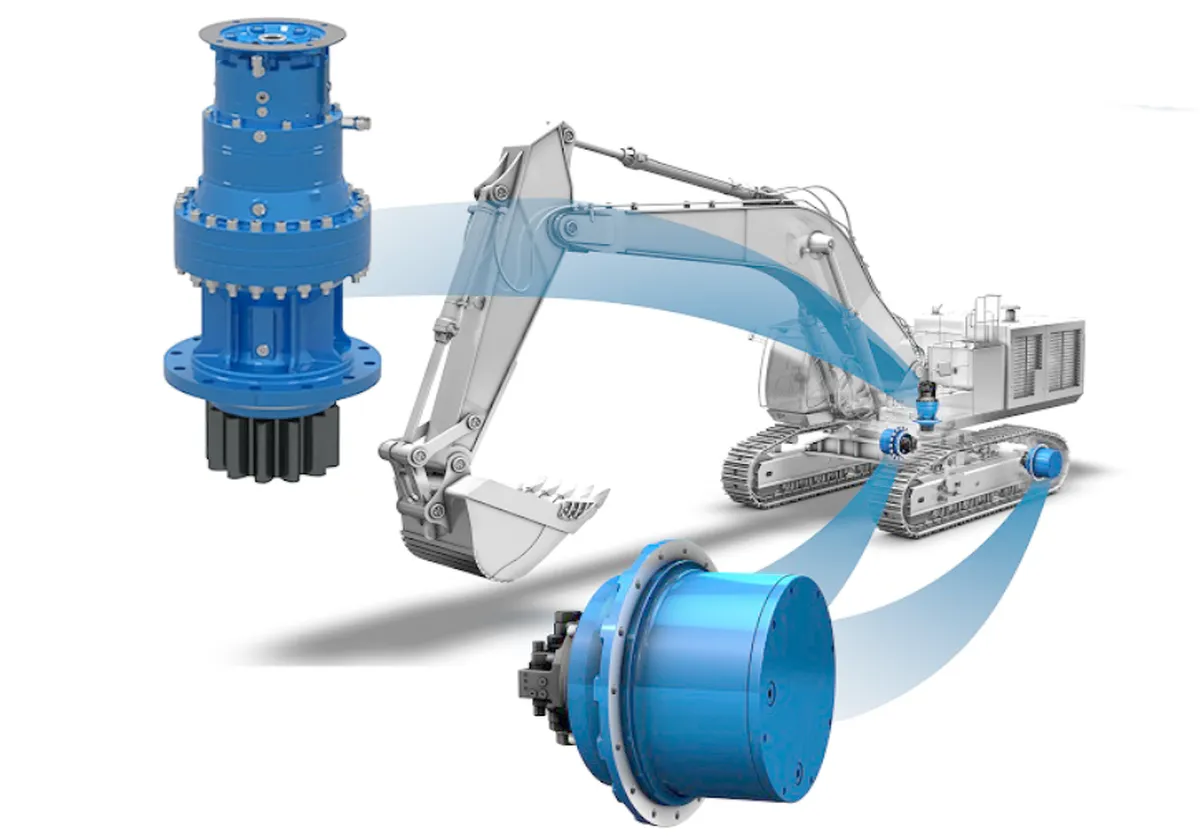

A planetary slewing drive gearbox for excavators is a specialized, compact transmission system designed to enable the rotational movement of the machine's upper structure, or superstructure, relative to its undercarriage. This slewing gearbox incorporates a planetary gear arrangement, typically consisting of a central sun gear, multiple planet gears, and an outer ring gear, which allows for high torque output and efficient speed reduction in a space-efficient package. It is engineered to withstand heavy loads and harsh operating environments, providing precise control for slewing operations during digging, lifting, and positioning tasks. Commonly driven by hydraulic or electric motors, these planetary slewing drives feature multi-stage planetary configurations that deliver torque ranging from several kNm to over 400 kNm, ensuring reliability in applications such as tower cranes, shipboard equipment, and forestry machinery in addition to excavators.

Planet Dişli Döndürme Tahrik Sisteminin Boyutları

RE 240

Destek: DBS

Destek: Tecc

Yivli Mil:

Kanatçıklar:

RE 310/510

Destek: DBS

Destek: Tecc

Destek: T6

Destek: T8

Destek: T18

Destek: NR

Destek: NR3

Şaft:

Kanatçıklar:

RE 610

Destek: DBS

Destek: DBS2

Destek: T18

Şaft:

Kanatçıklar:

RE 810

Destek: Tecc

Destek: TRecc

Şaft:

Kanatçıklar:

Advantages of Slewing Drive Gearbox for Excavators

1. High Torque Output and Efficiency
The planetary slewing drive gearbox delivers exceptional torque output due to its multi-gear engagement design. The planetary gear system evenly distributes the load across multiple gears, ensuring maximum power transmission. This leads to efficient performance, even under heavy loads, making it ideal for demanding excavation tasks.

2. Kompakt ve Yerden Tasarruf Sağlayan Tasarım
Thanks to its innovative planetary gear arrangement, this slewing gearbox offers a compact design that saves space while maintaining high performance. Its small footprint is especially beneficial for excavators, where space is limited, allowing for seamless integration without compromising on torque or functionality.

3. Superior Load-Bearing Capacity
Engineered to handle heavy-duty operations, the planetary slewing drive gearbox can withstand the immense axial and radial loads typically encountered during excavation. Its robust construction ensures reliability and durability, even in harsh environments, making it a trusted choice for continuous, high-intensity usage.

4. Precise Rotational Movement Control
The planetary slewing drives provide accurate and smooth control of the excavator’s superstructure rotation. This precision enhances operational efficiency during tasks such as digging, lifting, and positioning, ensuring improved safety and productivity in demanding work scenarios.

5. Durable and Long-Lasting Performance
Built from high-grade materials and engineered for durability, the slewing planetary gearbox is designed to resist wear, corrosion, and extreme temperatures. This ensures a long operational lifespan, reducing maintenance costs and minimizing downtime, which is crucial for maintaining project timelines and budgets.

6. Versatility Across Applications
The planetary slewing gearbox is highly versatile and adaptable to various excavation tasks, including construction, mining, and material handling. Its ability to deliver consistent performance across multiple operational requirements makes it a valuable component for enhancing the overall functionality of excavators.

Planetary Slewing Drive Gearbox Application Areas

1. Construction and Civil Engineering
Planetary slewing drive gearboxes are widely used in construction equipment, such as excavators, cranes, and concrete pumps. They enable precise control of rotational movements, ensuring efficient handling of heavy materials during tasks like digging, lifting, and positioning, which are essential for large-scale construction and infrastructure projects.

2. Mining and Quarrying Operations
In mining and quarrying, these slewing gearboxes play a critical role in machinery like mining excavators and drilling rigs. Their ability to handle extreme loads and operate efficiently in harsh environments ensures reliable performance during material extraction, rock breaking, and mineral transportation, even under continuous heavy-duty conditions.

3. Material Handling and Logistics
Planetary slewing drives are integral to material handling equipment, including loaders, stackers, and port cranes. Their high torque output and smooth rotational control allow for precise movement of goods, containers, or raw materials, ensuring efficiency in logistics operations across warehouses, ports, and industrial facilities.

4. Renewable Energy Systems
These planetary slewing gearboxes are crucial in renewable energy applications, particularly in wind turbines and solar trackers. They allow smooth and controlled movement of components like turbine blades or solar panels, enabling optimal positioning to maximize energy generation. Their durability ensures long-term reliability in outdoor environments.

5. Marine and Offshore Applications
In marine environments, slewing planetary gearboxes are used in ship cranes, offshore drilling rigs, and winches. Their robust construction and resistance to corrosion make them ideal for handling heavy loads, performing precise movements, and operating efficiently in challenging conditions like saltwater exposure.

Planetary Slewing Drive for Rough Terrain Cranes	Kule Vinçler için Planet Dişli Döner Tahrik Sistemi
Teleskopik Yükleyiciler için Planet Dişli Döner Tahrik Sistemi	Balıkçı Vinçleri için Gezegenel Döndürme Tahrik Sistemi

Planetary Slewing Drives Vs. Planetary Wheel Drives

Both planetary slewing drives and planetary wheel drives are advanced transmission systems widely used in heavy machinery and industrial applications. While they share a common planetary gear design, their functions, structural designs, and application areas differ significantly. Understanding these differences can help businesses choose the right solution based on their specific operational needs.

1. Function and Purpose

• Gezegen Döndürme Tahrik Sistemleri: These drives are designed to enable precise rotational movement of heavy machinery components, such as the upper structure of excavators, cranes, or wind turbines, relative to a stationary base. Their primary role is to control and facilitate slewing or rotational operations in a smooth and efficient manner.
• Planetary Wheel Drives: These drives are engineered to transmit torque directly to the wheels of a vehicle or mobile machinery. Their primary purpose is to provide power for forward or backward motion, making them critical for applications such as wheel loaders, agricultural tractors, and mobile cranes.

2. Design and Load Handling

• Gezegen Döndürme Tahrik Sistemleri: Built for handling axial and radial loads, slewing drives are compact and robust. They are optimized for high-torque output, ensuring precise control over rotational movements under heavy loads.
• Planetary Wheel Drives: These drives are designed to endure high torque and shock loads while transmitting power to wheels. They also offer speed reduction and efficient power transmission, ensuring reliable performance in mobile machinery.

3. Applications

• Slewing Drives: Common in stationary or semi-stationary equipment like cranes, wind turbines, and excavators.
• Wheel Drives: Essential in mobile applications, including off-road vehicles, construction equipment, and agricultural machinery.

Gezegen Döndürme Tahrik Sistemleri	Planetary Wheel Drives
