WPS Worm Gear Reducers/Worm Gearbox

WPS worm gear reducers, also known as worm gearboxes, are mechanical devices designed to reduce speed and increase torque in power transmission systems. They feature a worm (a screw-like gear) meshing with a worm wheel, creating a compact, efficient system for high-ratio speed reduction. The WPS model worm reducer gearbox, distinct from the similar WPA model, has its input shaft positioned above the output shaft, while the WPA has the input shaft below. Both models share identical foot installation and shaft dimensions for the same frame size, ensuring interchangeability.

Typically, WPS worm gear speed reducers have a single input and single output shaft, though options for double input or double output shafts are available. Their versatility allows connection to motors via couplings, pulleys, or sprockets, making them compatible with various industrial applications. Worm gearboxes are known for their smooth operation, high torque output, and ability to handle heavy loads, often used in conveyors, mixers, and material handling equipment. Their self-locking feature in certain ratios enhances safety by preventing back-driving.

WPS Worm Gear Reducer Specifications

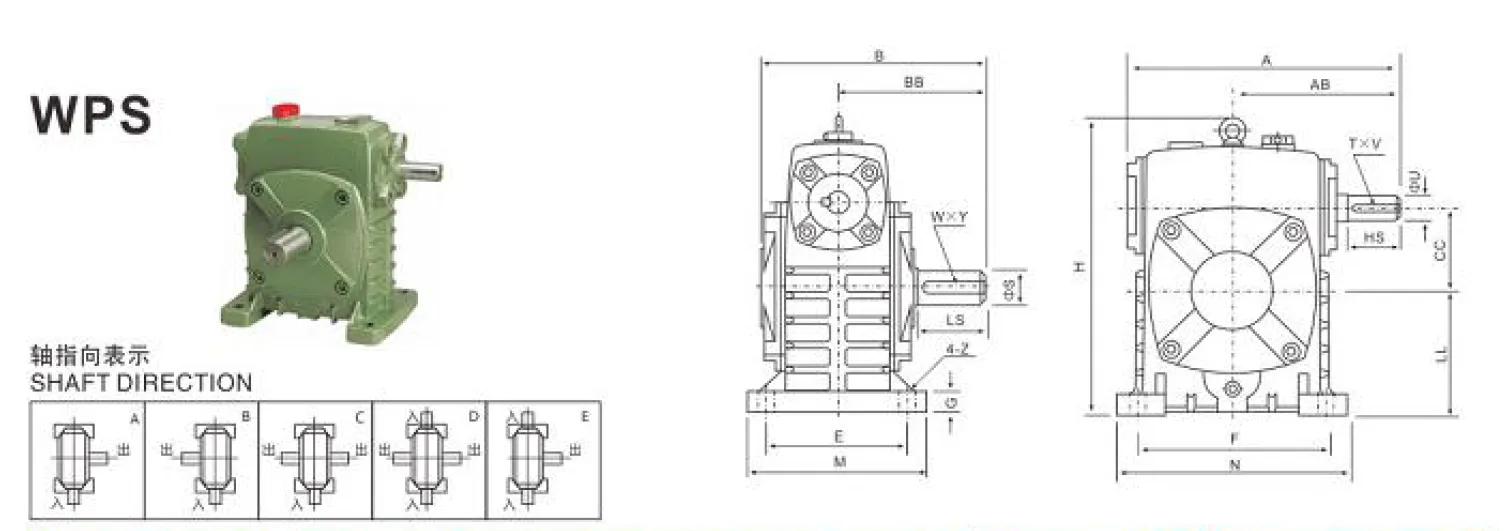

WPS Worm Gearbox Dimensions

WPS Worm Reducer Gearbox Part Structure

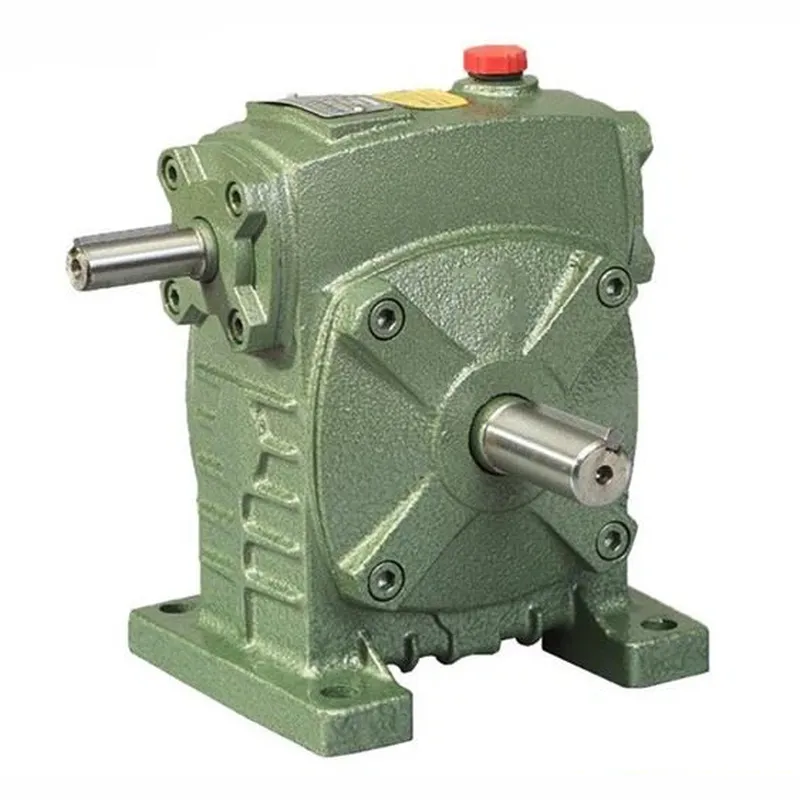

WPS Worm Drive Gearbox Characteristic

1. High Torque Output and Efficiency
The WPS worm drive gearbox delivers exceptional torque multiplication due to its worm and worm wheel design. This configuration ensures efficient power transmission, making it ideal for heavy-duty applications like conveyors, mixers, and industrial machinery requiring significant torque at low speeds.

2. Compact and Versatile Design
The worm gear reducers feature a compact structure, allowing easy integration into space-constrained systems. Its versatile foot installation and standardized shaft dimensions ensure compatibility with various equipment. The input shaft positioned above the output shaft distinguishes it from the WPA model.

3. Self-Locking Capability
In certain gear ratios, the WPS worm reducer gearbox offers a self-locking feature, preventing back-driving under load. This enhances safety and stability in applications where holding a load is critical, such as hoists or elevators, ensuring reliable operation without additional braking mechanisms.

4. Flexible Motor Connectivity
The worm gear gearbox supports multiple connection methods, including couplings, pulleys, or sprockets, for seamless integration with various motor types. This adaptability allows it to be used in diverse industrial setups, accommodating different power sources and operational requirements effectively.

5. Durable Construction and Longevity
Built with high-quality materials, the WPS worm gear speed reducer ensures durability and resistance to wear under demanding conditions. Its robust housing and precision-engineered gears contribute to a long service life, reducing maintenance needs and ensuring consistent performance in industrial environments.

6. Smooth and Quiet Operation
The worm gear design in the worm reduction gearbox provides smooth, low-noise operation due to the sliding contact between the worm and worm wheel. This characteristic makes it suitable for applications requiring minimal vibration and noise, such as in food processing or packaging machinery.

WPS Worm Reducer Gearbox Uses

1. Conveyor Systems
WPS worm reducer gearboxes are widely used in conveyor systems for material handling in industries like mining, manufacturing, and logistics. Their high torque output and compact design ensure efficient movement of heavy loads, providing reliable speed reduction and smooth operation across various conveyor types.

2. Packaging Machinery
In packaging equipment, worm drive gearboxes drive components like rollers and belts with precision. Their smooth operation and self-locking capability ensure consistent performance and safety, making them ideal for applications requiring controlled motion, such as filling, sealing, and labeling machines in automated production lines.

3. Mixing and Agitation Equipment
WPS worm gearboxes are employed in mixers and agitators for industries like chemical processing and food production. Their ability to deliver high torque at low speeds ensures thorough mixing of viscous materials, while their durable construction supports continuous operation in demanding environments.

4. Hoisting and Lifting Systems
The self-locking feature of worm gear speed reducers makes them suitable for hoisting and lifting applications, such as cranes and elevators. They provide reliable torque to lift heavy loads safely, ensuring precise control and preventing unintended movement, enhancing operational safety and efficiency.

5. Textile Machinery
WPS worm reducer gearboxes are used in textile manufacturing equipment, such as spinning and weaving machines. Their compact design and ability to handle variable loads allow precise speed control, ensuring consistent fabric production while minimizing noise and vibration in high-speed textile processes.

6. Agricultural Equipment
In agricultural machinery like seeders, harvesters, and irrigation systems, worm gear drive gearboxes provide robust torque for heavy-duty tasks. Their versatility in motor connectivity and durability under harsh outdoor conditions make them ideal for driving components in farming equipment, enhancing productivity and reliability.
