WPEKA Worm Gear Reducers/Worm Gearbox

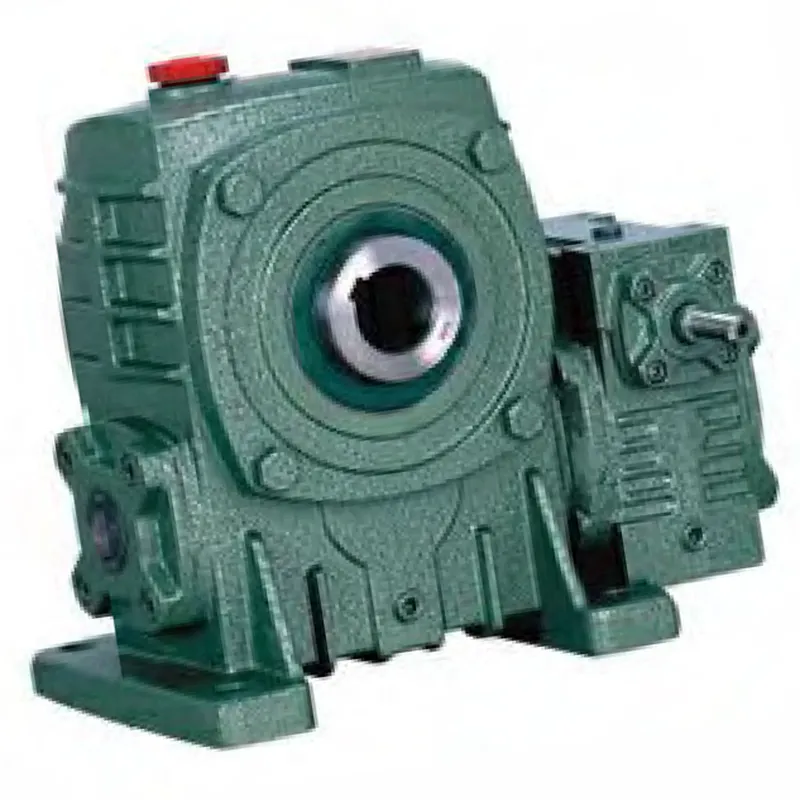

WPEKA worm gear reducers, also known as double reduction worm gearboxes, are advanced mechanical systems designed to deliver high torque and low-speed output for demanding industrial applications. These worm reducer gearboxes combine a single-stage worm gearbox with a universal gearbox, creating a double-stage reduction system that enhances efficiency, performance, and flexibility. The "W" in the nomenclature represents the worm gear mechanism, known for its smooth, quiet operation; "P" refers to the robust and durable box structure; "E" signifies the double-stage reduction system for higher ratios; and "A" highlights the lower input shaft configuration.

A single-stage speed ratio ranges from 1:10 to 1:60, while the double-stage system achieves ratios between 1:200 and 1:900 by multiplying two single-stage units. This makes WPEKA worm gear speed reducers ideal for high-torque, low-speed applications like conveyors, mixers, and heavy machinery. Their compact design, durability, and efficient power transmission ensure reliable performance with minimal maintenance, making them a preferred choice for industrial environments.

WPEKA Worm Gear Reducer Specifications

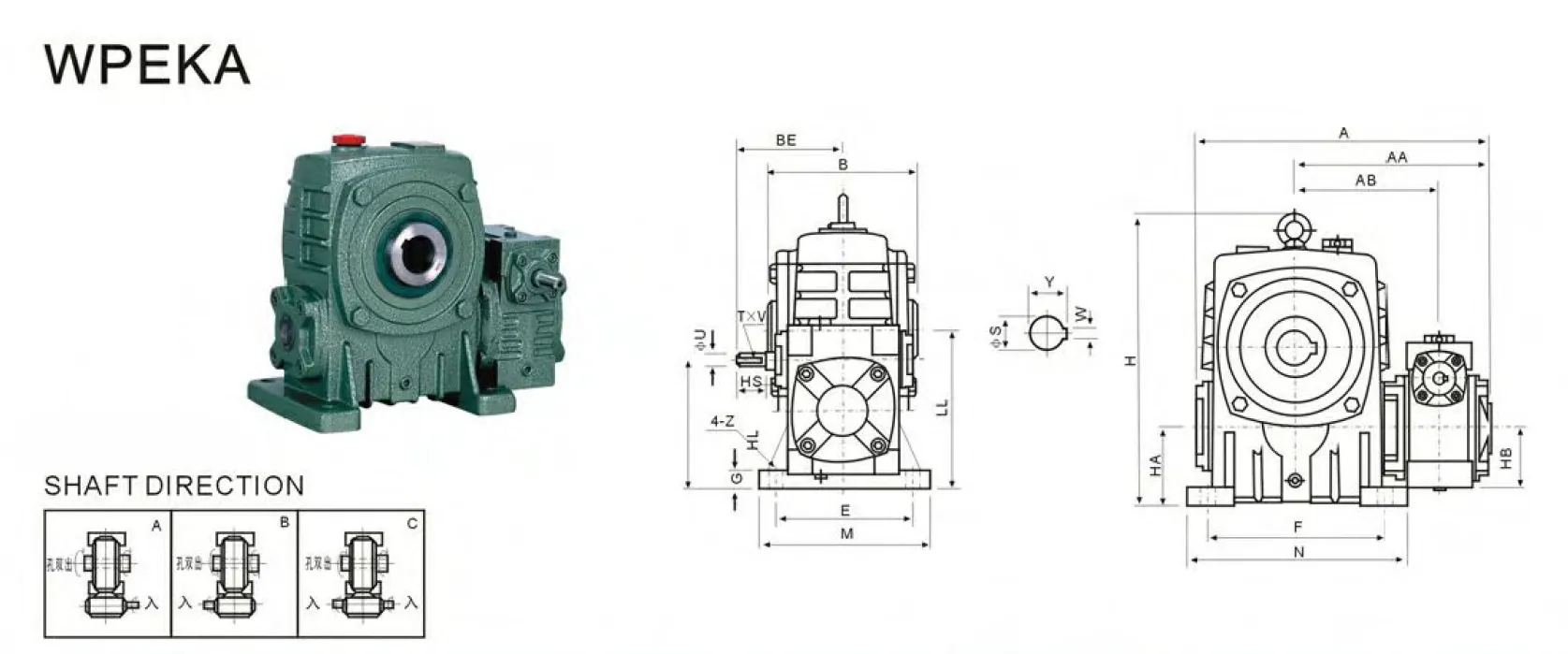

WPEKA Worm Gearbox Dimensions

WPEKA Worm Reducer Gearbox Part Structure

WPEKA Double Reduction Worm Gearbox Features

• High Reduction Ratios for Enhanced Torque
  The WPEKA double reduction worm gearbox achieves exceptional reduction ratios ranging from 1:200 to 1:900 through its double-stage reduction system. This design multiplies the ratios of two single-stage gearboxes, providing significant torque multiplication. It’s ideal for applications requiring high torque at low speeds, such as conveyors or heavy machinery, ensuring precise control and reliable power delivery.
• Compact and Space-Saving Design
  Engineered for space-constrained environments, the worm gear reducers feature a compact footprint. Its double reduction mechanism delivers high torque without requiring a large housing, making it perfect for applications like robotic arms or packaging machinery where space is limited, while maintaining high performance and durability.
• Self-Locking Capability for Safety
  The WPEKA worm gearboxes incorporate a self-locking feature, particularly effective at high reduction ratios. This prevents back-driving, ensuring the load remains stationary without additional braking mechanisms. This is crucial for lifting or hoisting applications, enhancing safety and reducing system complexity in industrial settings.
• Durable Construction with High-Quality Materials
  Constructed with hardened steel worms and phosphor bronze worm wheels, the WPEKA worm gear speed reducer ensures long-lasting durability and wear resistance. The robust cast iron or aluminum housing withstands high loads and harsh conditions, making it suitable for demanding industries like mining, steel, and manufacturing.
• Low Noise and Vibration for Quiet Operation
  The worm drive gearbox’s worm gear design minimizes noise and vibration due to its sliding contact mechanism and precise tooth engagement. This feature is ideal for applications requiring quiet operation, such as elevators or medical equipment, improving workplace conditions and equipment longevity.
• Versatile Mounting and Configuration Options
  The WPEKA worm reducer gearboxes offer flexible mounting options, including horizontal, vertical, or shaft-mounted configurations with torque arms. It supports various input and output shaft setups, such as solid or hollow shafts, and is compatible with standard IEC motor flanges, ensuring easy integration into diverse industrial systems.

WPEKA Double Reduction Worm Gear Reducer Uses

• Material Handling Industry
  WPEKA worm drive gearboxes are extensively used in conveyor systems, cranes, and hoists for material handling. Their high reduction ratios deliver substantial torque at low speeds, ensuring smooth and precise movement of heavy loads. The self-locking feature enhances safety by preventing unintended load movement in warehouses and logistics.
• Mining and Quarrying Industry
  In mining operations, worm and wheel gearboxes drive equipment like crushers, conveyors, and vibrating screens. Their durable construction withstands harsh environments, including dust, moisture, and heavy loads. The compact design allows integration into space-constrained machinery, while high torque supports efficient processing of raw materials.
• Food and Beverage Processing Industry
  WPEKA worm reducer gearboxes are employed in mixers, bottling lines, and packaging machines in food processing plants. Their low noise and vibration ensure a hygienic and quiet operation. The robust housing resists corrosion, and the compact design fits seamlessly into automated systems for consistent performance.
• Construction Equipment Industry
  In construction, worm gear speed reducers power machinery such as concrete mixers, winches, and scaffolding lifts. Their ability to handle high torque at low speeds ensures reliable operation under heavy loads. The self-locking mechanism provides safety, while versatile mounting options suit diverse construction site requirements.
• Chemical and Pharmaceutical Industry
  WPEKA double reduction worm gear reducers drive agitators, pumps, and mixers in chemical and pharmaceutical production. Their precise speed control and high torque are ideal for blending viscous materials. The durable, corrosion-resistant housing ensures longevity in aggressive chemical environments, supporting consistent and safe manufacturing processes.
• Renewable Energy Industry
  In wind and solar energy systems, worm gear reduction gearboxes are used in tracking systems and turbine adjustments. Their compact size and high reduction ratios enable precise positioning of solar panels or wind turbine blades. The robust design ensures reliability in outdoor, weather-exposed conditions for efficient energy generation.

Worm Gearbox for Mining and Quarrying Industry	Worm Gearbox for Food and Beverage Industry
Worm Gearbox for Construction Industry	Worm Gearbox for Chemical Industry

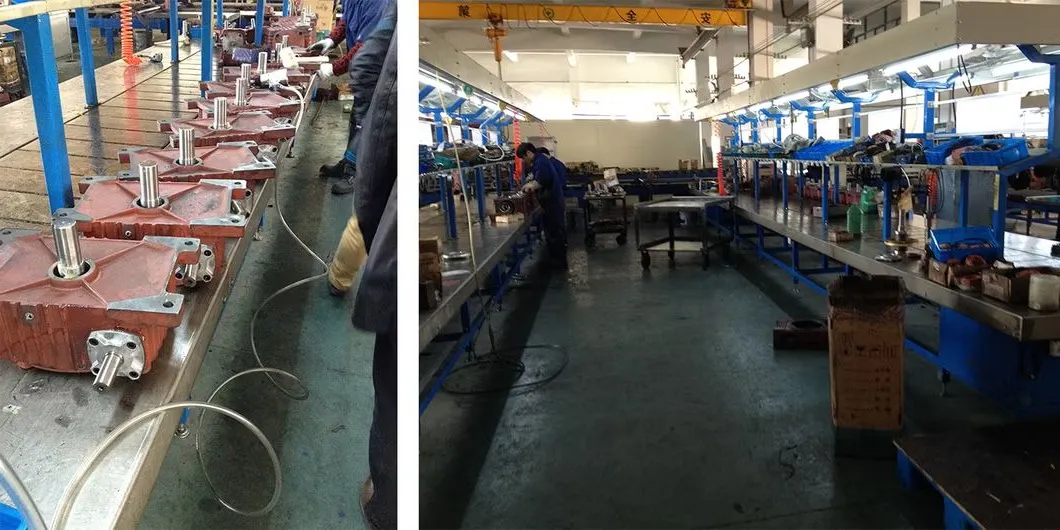

WPEKA Worm Gearbox Parts Production Process

The basic structure of a worm gearbox consists of a housing, worm wheel, worm, covers, shaft, bearing, fasteners, and seals. The precise processing and quality control of each component is the basis for producing a quality worm gearbox.

Housing Processing

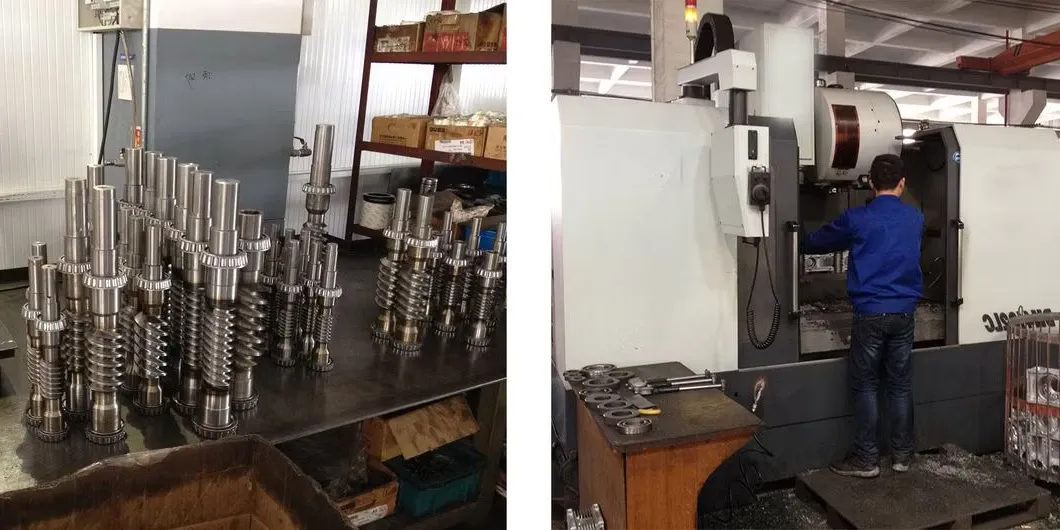

The housing casting purchased from the casting factory will be finely finished in our housing machining center, including the big hole, small hole, and bottom foot of the housing. Then they will be moved to the CNC drilling machine for large hole, small hole, bottom foot, oil plug hole, and oil marker hole processing. After testing, they are moved into the parts warehouse.

Worm Wheel Processing

The worm wheel consists of a cast iron wheel core and a bronze wheel rim. The wheel core casting will firstly be finished on the inner hole, outer diameter, and thickness of the wheel core at our CNC lathe area. Then the copper cladding process will be carried out by the copper casting factory. Then they will be processed at our CNC machining area, processed on our hobbing machine, and finally moved into storage after inspection.

Worm Processing

Worm is a component made of steel through rough machining, thread milling machining, heat treatment machining, external cylindrical grinding machining, thread grinding, keyway milling machining, etc.

The raw steel material will be cut according to different specifications at the sawing machine processing area, then be rough machined by a CNC lathe. And our workers will conduct thread milling according to different speed ratios. After testing, they will be put into storage.

The heat treatment of the worm will be processed by a heat treatment factory, which can improve the hardness of the worm, improve the wear resistance, and extend the service life.

After that, our workers will carry out external cylindrical grinding processing on the tooth, bearing carriers, and input shaft carrier of the worm. Next will be the grinding process. The thread grinding is to make the worm wheel & worm mesh better with low noise.

Finally, they will be processed at a keyway milling machine, enabling the gearbox to connect with other parts through the shaft and key pin.

After testing, the worms will be moved into the warehouse.

Cover Processing

The covers of worm gearboxes include a big cover, an output cover, an oil marker cover, and an input cover. The cover castings will be fine machined at our CNC lathe, for the seal carrier, housing big holes connecting the carrier and bearing carriers of the big cover and output cover, and for housing small holes connecting the carrier and oil seal carriers of the oil marker cover and input cover. The precise dimensions can prevent the worm gearbox from oil leakage and overheating problems.

Finally drilling process of the covers will be done at the drilling machine processing area, enabling the covers and the housing to connect by fasteners.

After inspection, qualified covers will be put into storage.

Shaft Processing

Shaft is a component completed by steel through the process of rough machining, external cylindrical grinding machining and milling machining. Similar to worm processing, the steel is firstly cut by a sawing machine, then rough machined at the CNC lathe area, including bearing carrier, worm wheel carrier, and output shaft carrier. Then moved to the external grinding processing area for fine processing. Finally, the shafts will be milled. After testing, the shafts will be moved into the warehouse.

Bearings and Seals

Our bearings, fasteners, seals, and other accessories are supplied by well-known manufacturers, such as bearings from C&U, HRB, oil seals from NAK, SKF, and other brands. Fasteners are grade 8.8; we can upgrade the bearings, oil seals, and fasteners according to customer needs.
