TD75 Universal Belt Conveyor for Mining/ Power/ Port/ Coal/ Building Materials Industry

TD75 universal belt conveyor is widely used in metallurgy, mining, coal, port, transportation, water and electricity, chemical industry and other departments, for loading, unloading, transferring or piling up all kinds of loose materials or finished goods with a density of 500~2500kg/m3 at room temperature. , due to the equipment has simple structure, easy maintenance, low cost, the advantages of strong commonality, belt conveyor by single or multiple synthetic transportation system for conveying material, according to the technological requirements can be decorated in the form of horizontal or inclined, belt conveyor besides can meet the requirements of horizontal or inclined conveyor, also can be used with convex segmental arc, concave segmental arc and straight line combination form of transport;

The material lumpiness allowed by belt conveyor mainly depends on bandwidth, belt speed, groove Angle and dip Angle, and also depends on the frequency of bulk material. At present, the applicable working environment temperature of the belt conveyor is generally -15°C to 40°C. In addition, CMN Transmission produces TD75 light belt conveyors, which can be customized for different occasions.

TD75 Universal Belt Conveyor Features

• The capacity for conveying materials is below 2.5t/m3
• Can be divided into 500, 650, 800, 1000, 1200, 1400
• Can be divided into: 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 4.0

TD75 Universal Belt Conveyor Parts

1	Head Funnel	9	Conveyor Tape
2	Head Drum	10	Buffer Roller
3	Spring Cleaner	11	Empty Section Cleaner
4	Head Frame	12	Guide Groove
5	Carrying Roller	13	Tail Frame
6	Return Roller	14	Tail Drum
7	Support Leg	15	Tensioning Device
8	Middle Frame

TD75 Universal Belt Conveyor Specification Sheet

Roller type	Speed (m/s)	Belt width(mm)						Roller type	Speed (m/s)	Belt width(mm)
		500	650	800	1000	1200	1400			500	650	800	1000	1200	1400
		Capacity Q(t/h)								Capacity Q(t/h)
Trough roller	0.8	78	131	-	-	-	-	Parallel roller	0.8	41	67	118	一	一	一
	1.0	97	164	278	435	655	891		1.0	52	88	147	230	345	469
	1.25	122	206	348	544	819	1115		1.25	66	110	184	288	432	588
	1.6	156	264	445	696	1048	1427		1.6	84	142	236	368	553	753
	2.0	191	323	546	853	1284	1748		2.0	103	174	289	451	677	922
	2.5	232	391	661	1033	1556	2118		2.5	125	211	350	546	821	1117
	3.15	-	-	824	1233	1858	2528		3.15	-	-	-	-	-	-
	4.0	-	-	-	-	2202	2996		4.0	-	-	-	-	-	-

Note: The conveying capacity in the table is calculated under the conditions of material bulk density r=1.0t/m3, conveyor inclination angle of 0°~7°, and material dynamic stacking angle of 30°.

Application of Belt Conveyor

• Mining Industry
  In underground coal mines, the TD75 belt conveyor is used to transport coal from the working face to underground coal bunkers or directly to the surface. Its strong conveying capacity significantly improves coal transportation efficiency. For example, in medium-sized coal mines, a proper layout of TD75 conveyors can achieve the continuous transport of several thousand tons of coal per day.
  In metal mines (e.g., iron ore, copper ore) and non-metallic mines (e.g., limestone, gypsum), the conveyor transports ore from the mining site to beneficiation plants or stockpiles. It can handle a wide range of material sizes from fine ore powders to large ore lumps.
• Ports and Terminals
  The TD75 type belt conveyor is used for loading and unloading bulk materials such as coal, ores, grain, and fertilizers. When unloading large bulk carriers, it can work in tandem with grab cranes to quickly transfer cargo to stockyards or warehouses.
  During loading operations, it transfers goods from storage areas into ship holds, improving efficiency. Although container handling dominates modern ports, TD75 belt conveyors are also used in auxiliary areas, such as warehouses storing container fillers (e.g., wood chips, foam), to transport these materials.
• Power Industry
  In thermal power plants, the TD75 belt conveyor is a key system for transporting coal from the coal yard to the raw coal bunker of the boiler room, ensuring continuous power generation.
  It is also used to transport ash generated from coal combustion to ash yards or treatment facilities for reuse, helping to solve ash disposal problems and reduce environmental pollution.
• Building Materials Industry
  During cement production, the TD75 universal fixed belt conveyor transports raw materials such as limestone, clay, and iron ore to the raw mill and delivers finished cement to storage silos or packaging lines.
  It enables efficient material flow across different production stages. It is also suitable for transporting ceramic raw materials like kaolin and quartz sand from material reception and batching to the forming workshop, ensuring accurate and timely supply.
• Grain Processing and Storage
  At grain collection stations and large grain depots, the TD75 belt conveyor transports raw grains like rice, wheat, and corn from unloading points to silos, reducing handling loss and contamination.
  In grain processing plants, it conveys materials between each production stage from cleaning and de-stoning to grinding and packaging, ensuring smooth and continuous processing.

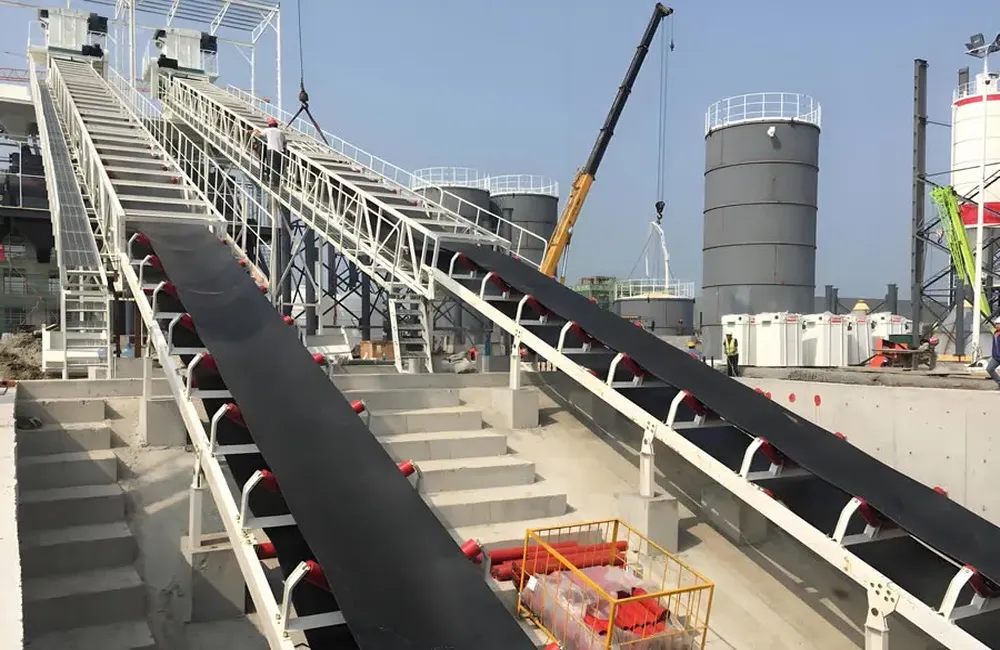

Belt Conveyor for Mining Industry	Belt Conveyor for Power Industry

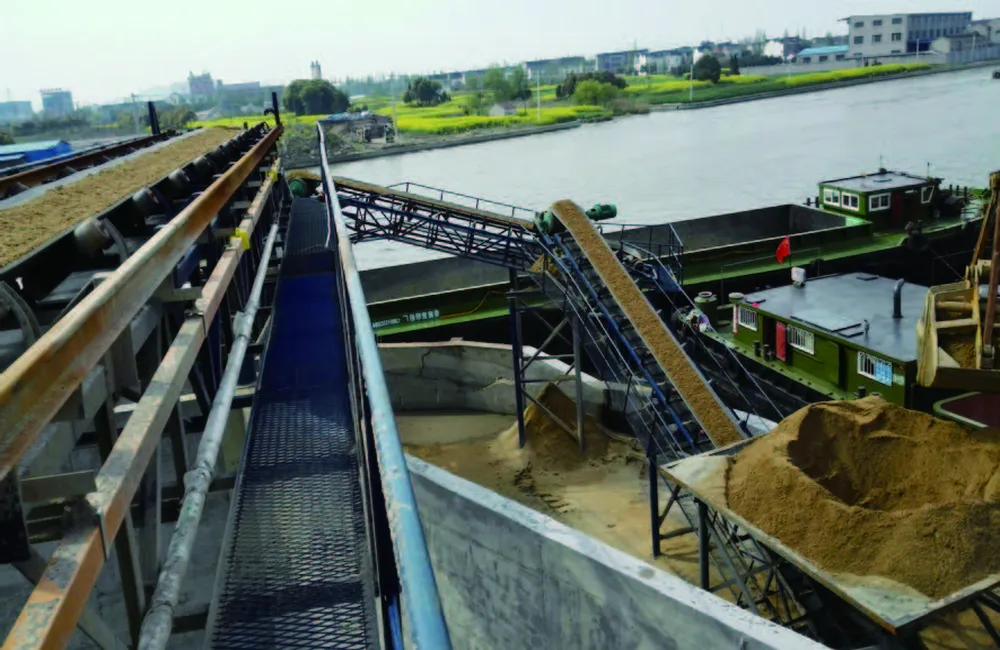

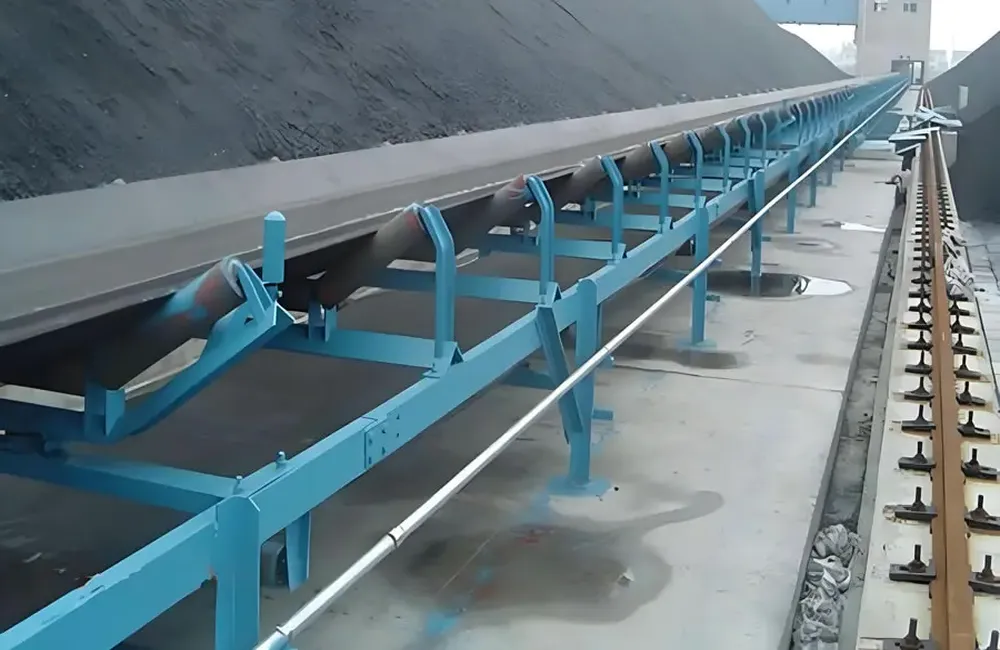

Belt Conveyor for Coal Industry	Belt Conveyor for Port Industry

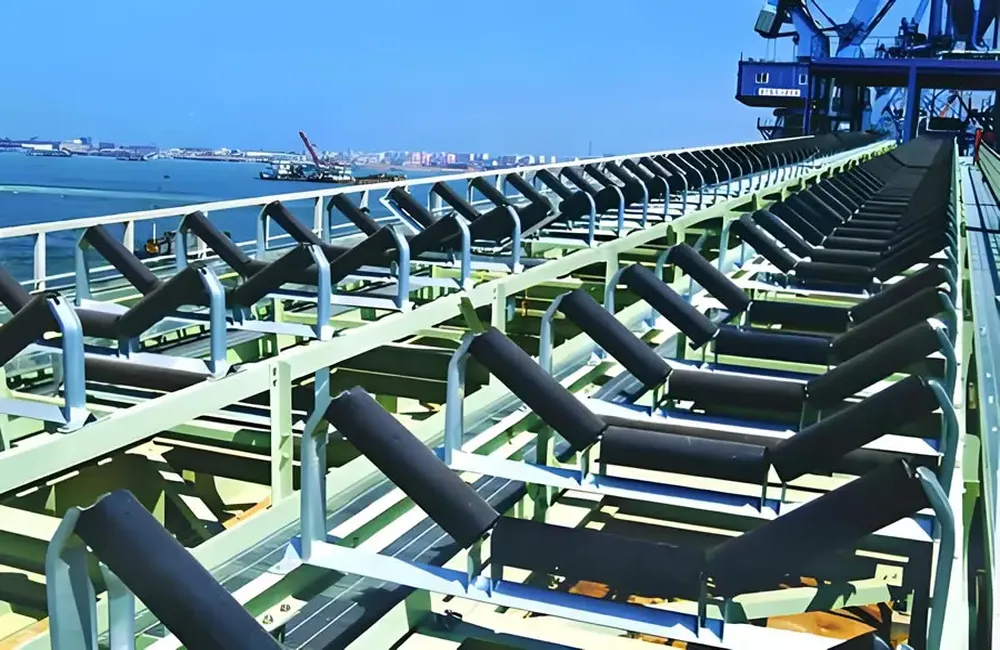

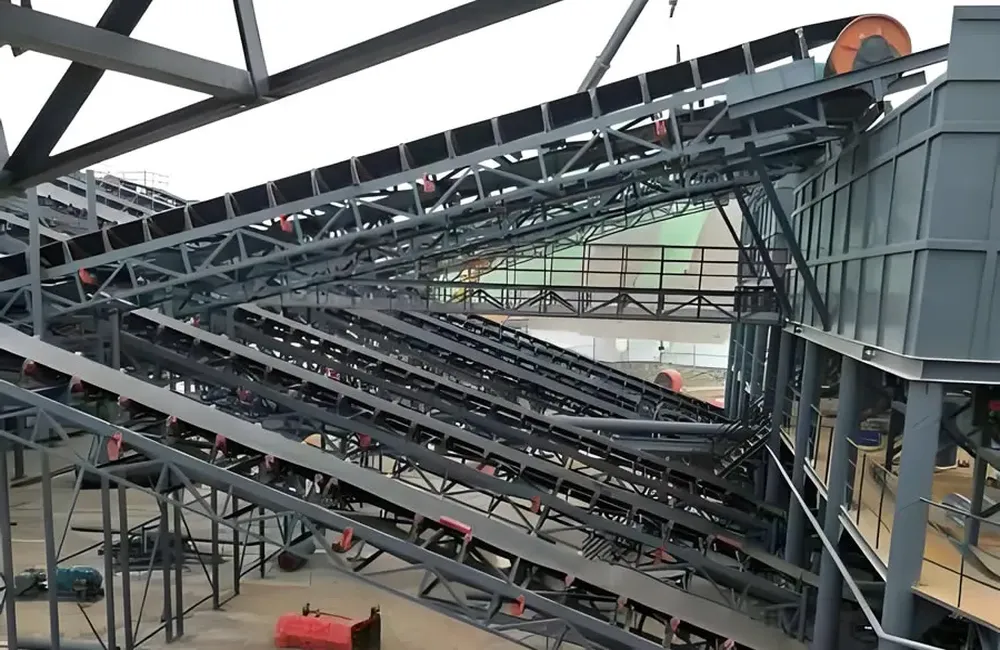

TD75 Universal Belt Conveyor Advantages

Conveying Capacity and Efficiency

• High Throughput: Capable of handling large-scale material transport. Various combinations of belt width and speed meet different capacity needs from small-scale to over 1,000 tons per hour.
• Long-Distance Transport: Enables long-distance conveying, reducing intermediate transfer points and minimizing material loss and costs, ideal for mines, ports, and other large-scale sites.
• Continuous Operation: Designed for stable, uninterrupted performance, making it suitable for industries requiring high production continuity, such as the chemical and power sectors.

Structure and Maintenance

• Simple Structure: Consists of a conveyor belt, drive pulley, return pulley, rollers, frame, and drive unit, compact and easy to install, allowing for quick setup and commissioning.
• Easy Maintenance: Equipped with standardized, interchangeable parts for convenient replacement. Routine maintenance includes belt inspection, roller replacement, pulley cleaning, and lubrication easy and cost-effective.
• Low Energy Consumption: Due to low friction and high transmission efficiency, energy consumption is minimal, lowering operating costs and saving energy over time.

Transport Quality and Adaptability

• Smooth Conveying: Little relative motion between materials and the belt prevents damage, ideal for fragile or easily worn materials such as grains and glass products.
• Low Noise: Operates quietly, minimizing disturbance in noise-sensitive environments.
• Strong Adaptability: Can be customized for resistance to heat, cold, water, corrosion, explosion, and fire. Operates reliably in harsh environments, including high temperatures, cold, humidity, and corrosive conditions.

Operation and Control

• Automation & Centralized Control: Easily integrates with other systems for automated operation and centralized management, improving productivity and reducing human error, ideal for large-scale, automated production lines.
• Multi-Point Loading and Discharging: Supports multiple loading and unloading points along the conveyor, enhancing flexibility in material distribution and meeting complex production needs.

TD75 Universal Belt Conveyor Parts

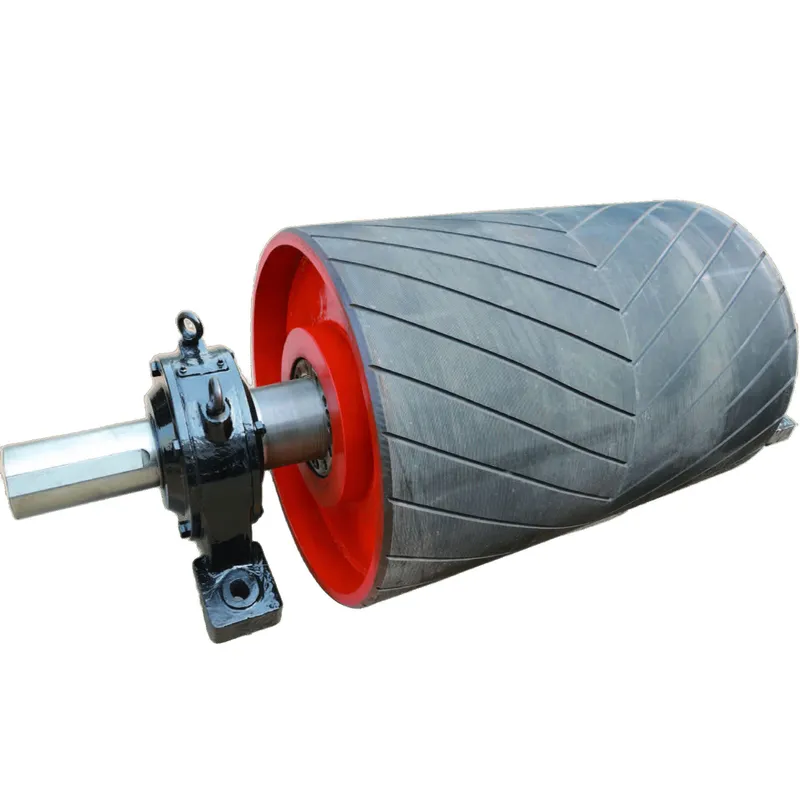

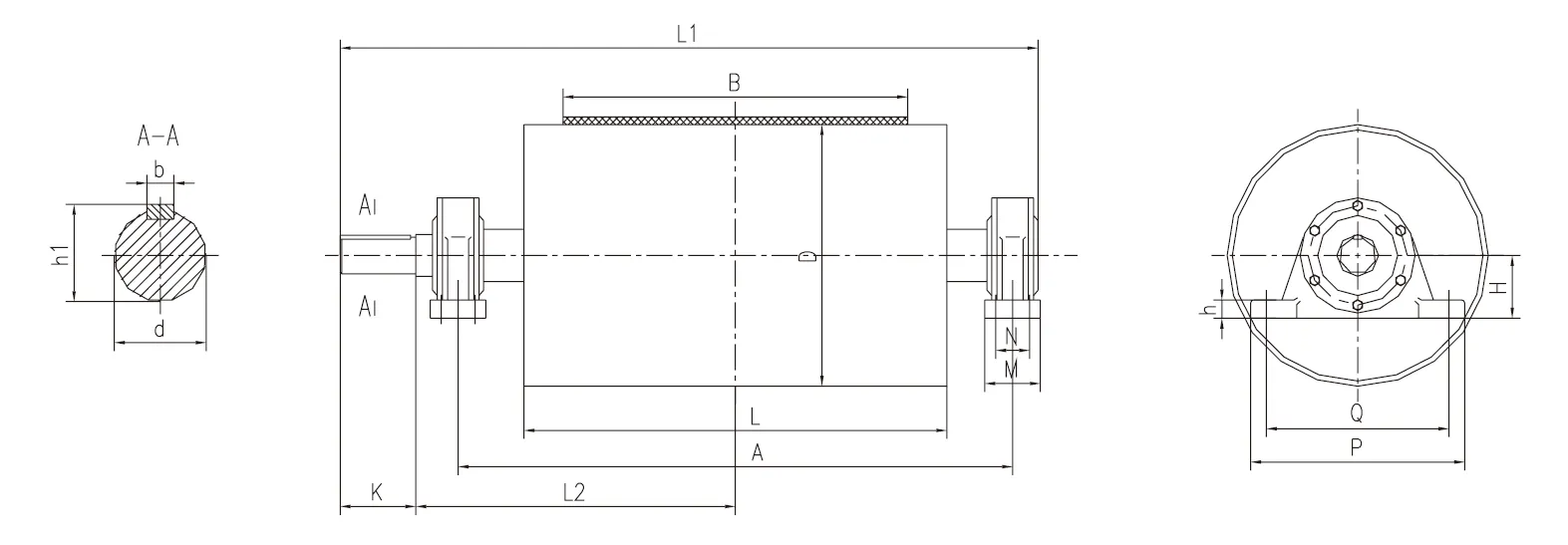

(1) TD75 Belt Conveyor Drum Pulley

B	D	A	L	L1	L2	K	M	N	Q	P	H	h	h1	d	b	ds	Bearing model	Allowable torque (kg/mm)		Drawing No
																		Smooth surface	Adhesive surface	Smooth surface	Casting glue	Coated with adhesive
500	500	850	600	1097	505.5	115	70	—	280	340	100	33	60	55	16	27	1312	16300	25000	TD1A13	TD1A23	TD1A33
650	500	1000	750	1280	588.5	135	90	—	350	410	120	33	76	70	20		1316	21200	32600	TD2A13	TD2A23	TD2A33
	630																	29600	45400	TD2A14	TD2A24	TD2A34
800	500	1300	950	1580	738.5	135	90	—	350	410	120	33	76	70	20		1316	26200	40100	TD3A13	TD3A23	TD3A33
	630			1661	771	175	130	80	380	460	140	33	97	90	24		3520	36700	56100	TD3A14	TD3A24	TD3A34
	800																	55900	85500	TD3A15	TD3A25	TD3A35
1000	630	1500	1150	1861	871	175	130	80	380	460	140	33	97	90	24		3520	45700	70100	TD4A14	TD4A24	TD4A34
	800			1945	900	215	160	90	440	530	160	53	119	110	32	34	3524	69600	106800	TD4A15	TD4A25	TD4A35
	1000			2020	930	255	170	100	480	570	180	53	140	130	36		3528		177500	—	TD4A26	TD4A36
1200	630	1750	1400	2195	1025	215	160	90	440	530	160	53	119	110	32		3524	54900	84000	TD5A14	TD5A24	TD5A34
	800																	83700	128100	TD5A15	TD5A25	TD5A35
	1000			2270	1055	255	170	100	480	570	180	53	140	130	36		3528		213000	—	TD5A26	TD5A36
	1250			2305	1065	275	180	110	540	630	200	63	161	150	40		3532		300000	—	TD5A27	TD5A37
1400	800	2000	1600	2445	1150	215	160	90	440	530	160	53	119	110	32		3524	97600	149200	TD6A15	TD6A25	TD6A35
	1000			2555	1190	275	180	110	540	630	200	63	161	150	40		3532		249250	—	TD6A26	TD6A36
	1250																		350000	—	TD6A27	TD6A37
	1400			2635	1200	335	200	120	590	680	220	63	181	170		40	3536		470000	—	TD6A28	TD6A38

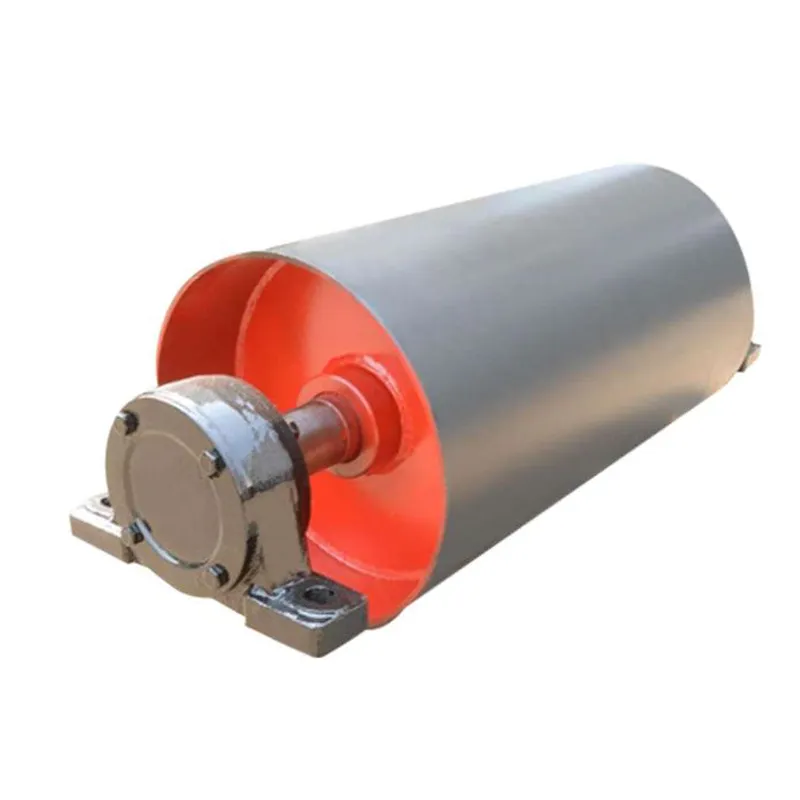

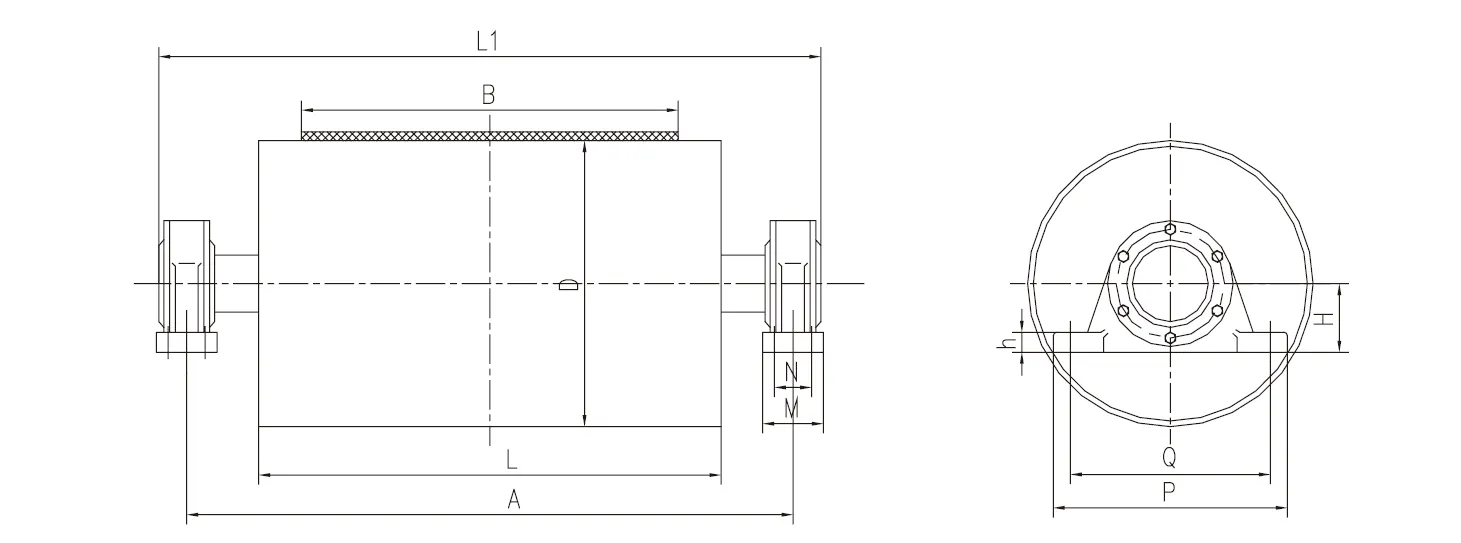

(2) TD75 Belt Conveyor Bend Pulley

B	D	A	L	L1	Q	P	H	h	M	N	ds	Bearing model	Drawing No
500	320	800	600	902	260	320	90	33	70	—	22	1310	TD1B1
	400												TD1B2
650	320	960	750	1062	260	320	90	33	70	—	22	1310	TD2B1
	400				280	340	100				27	1312	TD2B2
	500												TD2B3
800	320	1180	950	1282	280	340	100	33	70	—	27	1312	TD3B1
	400			1292	350	410	120		90			1316	TD3B2
	500												TD3B3
	630												TD3B4
1000	400	1410	1150	1512	280	340	100	33	70	—	27	1312	TD4B2
	500			1522	350	410	120		90			1316	TD4B3
	630												TD4B4
	800												TD4B5
1200	400	1660	1400	1762	280	340	100	33	70	—	27	1312	TD5B2
	500			1790	380	460	140		130	80		3520	TD5B3
	630												TD5B4
	800												TD5B5
	1000												TD5B6
1400	400	1860	1600	1962	280	340	100	33	70	—	27	1312	TD6B2
	500			1990	380	460	140		130	80		3520	TD6B3
	630												TD6B4
	800												TD6B5
	1000												TD6B6
	1250												TD6B7

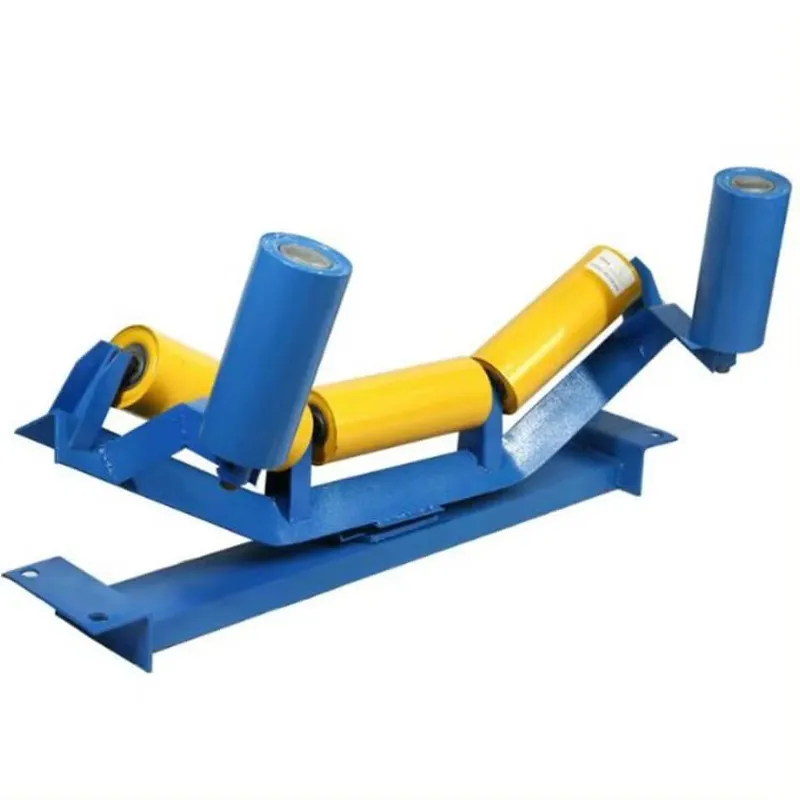

(3) TD75 Belt Conveyor Idlers

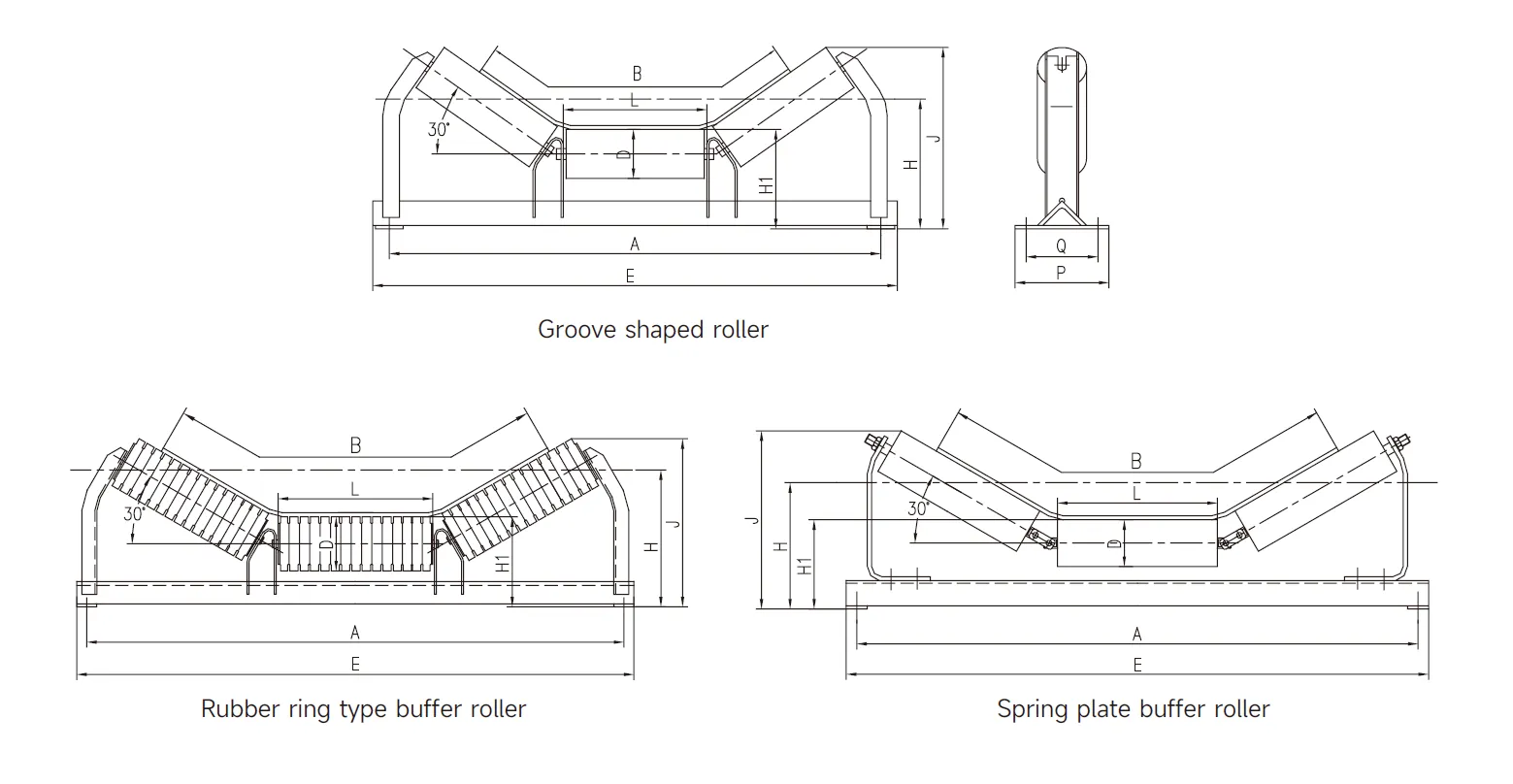

B	A	L	E	H	H1	D	P	Q	d	J	Rolling bearing model	Drawing No. of groove shaped roller	Drawing No. of spring plate buffer roller	Drawing No. of rubber ring type buffer roller
500	720	190	760	210	170	89	170	130	M12	270	204	TD1C1	TD1C7	TD1C9
650	870	240	910	230						295		TD2C1	TD2C7	TD2C9
800	1070	305	1110	240						330		TD3C1	TD3C7	TD3C9
1000	1300	375	1350	300	210	108	220	170	M16	400	305	TD4C1	TD4C7	TD4C9
1200	1550	455	1610	330	230		260	200		460		TD5C1	TD5C7	TD5C9
1400	1750	525	1810	350						495		TD6C1	TD6C7	TD6C9

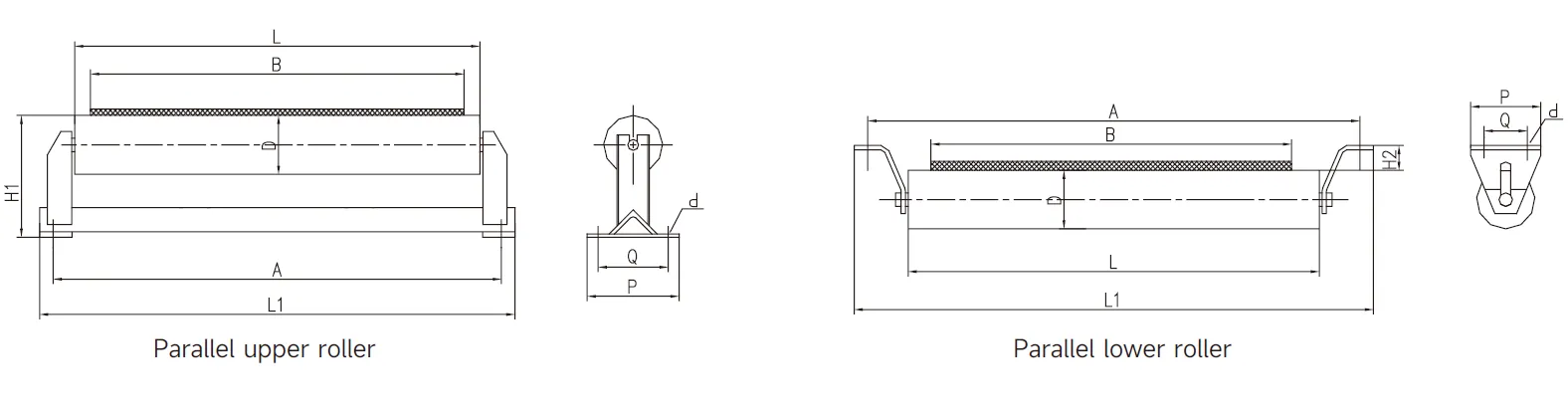

B	A	L	L1	H1	H2	D	P	Q	d	Rolling bearing model	Drawing No. of parallel upper roller	Drawing No. of parallel lower roller
500	720	600	760	210	55.5	89	170/100	130/60	M12	204	TD1C2	TD1C3
650	870	750	910	230							TD2C2	TD2C3
800	1070	950	1110	240							TD3C2	TD3C3
1000	1300	1150	1350	300	46	108	220/130	170/80	M16	305	TD4C2	TD4C3
1200	1550	1400	1610/1600	330			260/130	200/80			TD5C2	TD5C3
1400	1750	1600	1810/1800	350							TD6C2	TD6C3

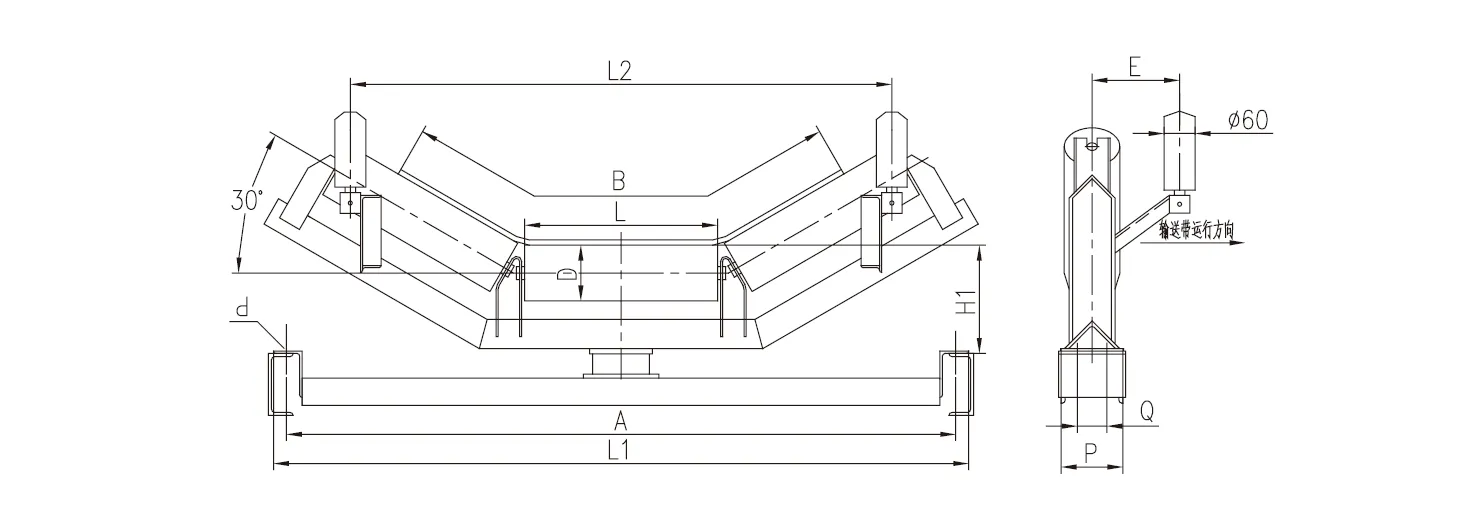

B	A	L	L1	L2	D	H1	≈E	P	Q	d	Rolling bearing model	Drawing No
500	720	190	770	588	89	170	170	170	130	M12	204	TD1C4
650	870	240	920	728								TD2C4
800	1070	305	1120	864								TD3C4
1000	1300	375	1350	1088	108	210	230	220	170	M16	305	TD4C4
1200	1550	455	1600	1272		230		260	200			TD5C4
1400	1750	525	1800	1472								TD6C4

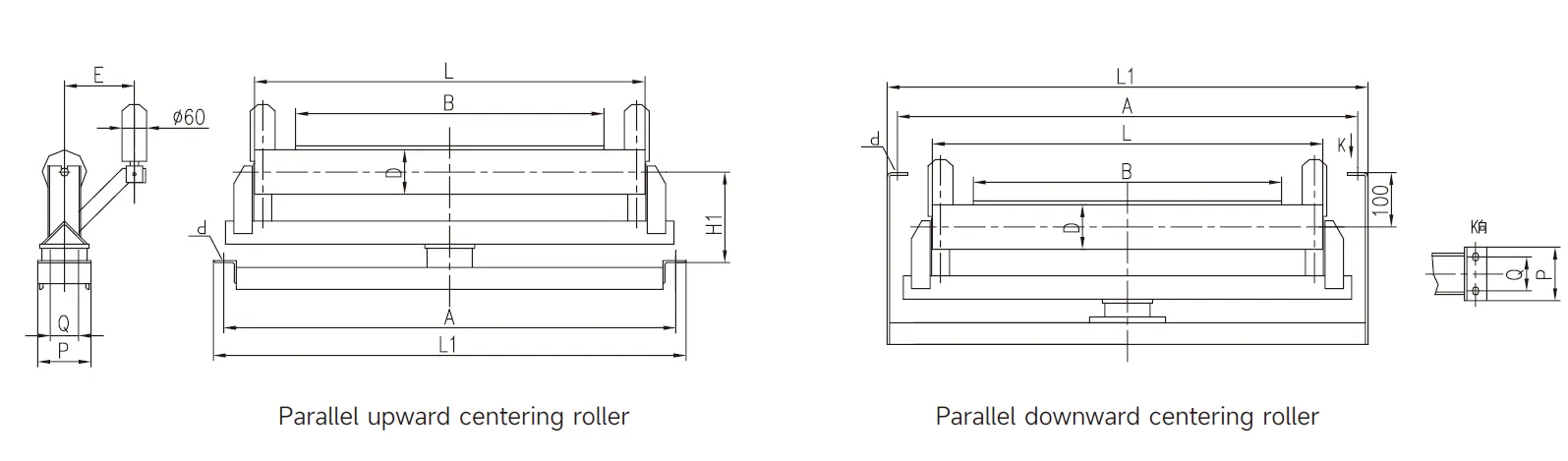

B	H1	A	L	L1	L2	D	≈E	P	Q	d	Rolling bearing model	Drawing No. of parallel upward centering roller	Drawing No. of parallel downward centering roller
500	166	720	600	770	628/628	89	170	170/130	130/60	M12	204	TD1C5	TD1C6
650	186	870	750	920	778/778							TD2C5	TD2C6
800	196	1070	950	1120	928/928							TD3C5	TD3C6
1000	246	1300	1150	1360	1160/1168	108	230	220/130	170/80	M16	305	TD4C5	TD4C6
1200	276	1550	1400	1610	1360/1568			260/130	200/80			TD5C5	TD5C6
1400	296	1750	1600	1810	1560/1568							TD6C5	TD6C6

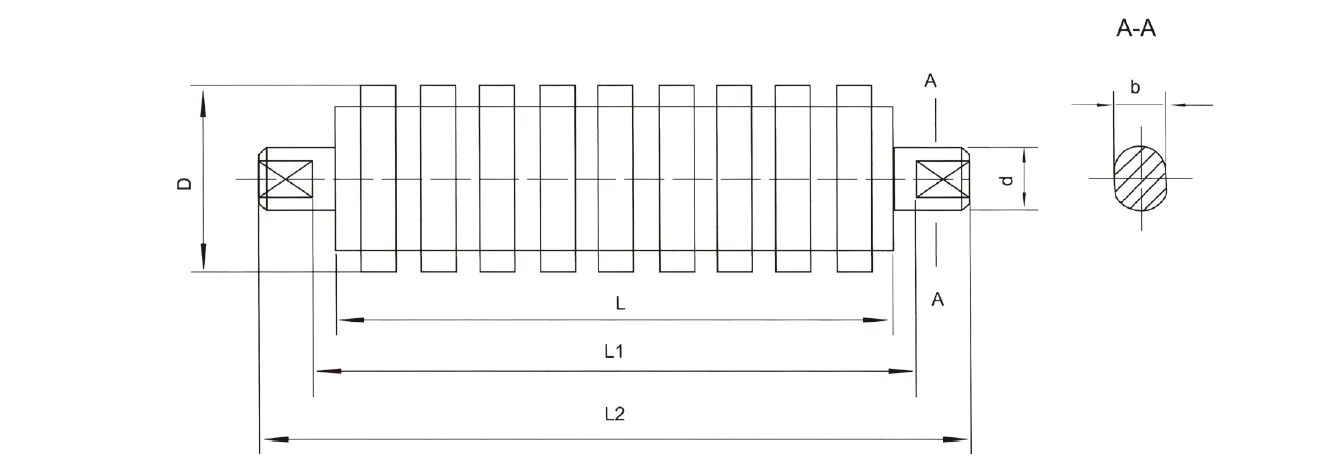

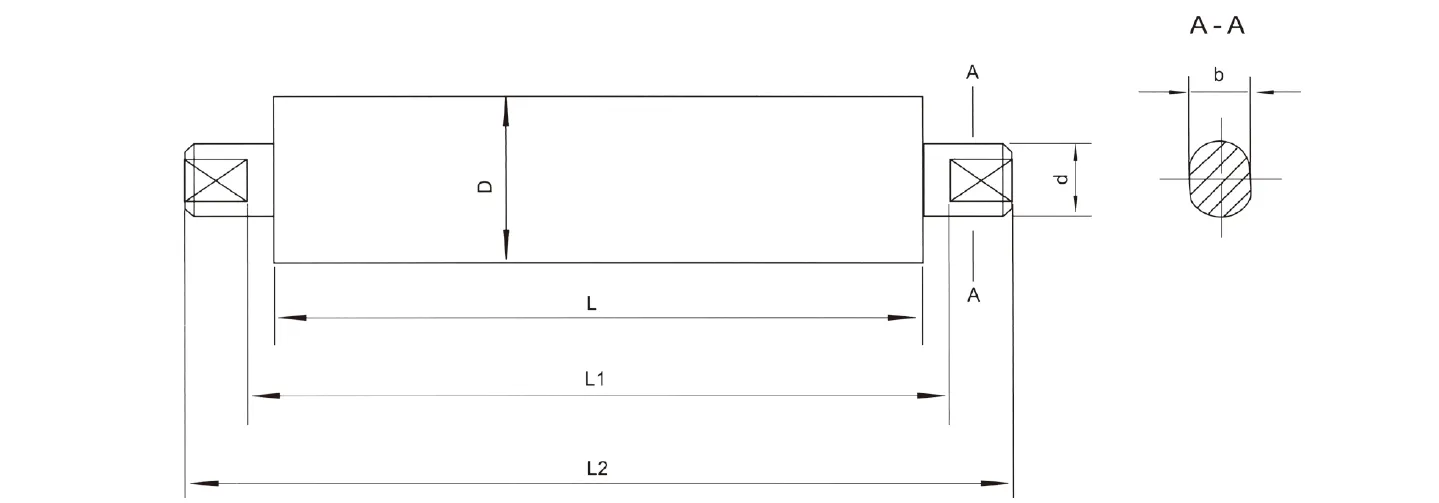

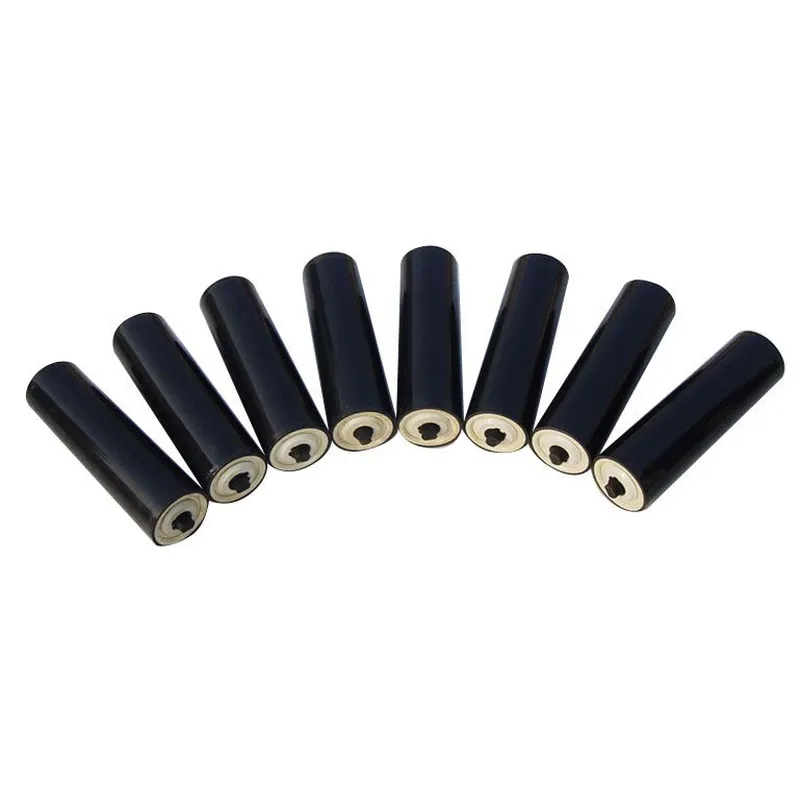

(4) TD75 Belt Conveyor Rollers

Belt width B	L	L1	L2	D	d	b	Bearing model
500	190	200	220	Ø89	Ø20	14	4G204
	600	610	640
650	240	250	270
	750	760	790
800	305	315	335
	950	960	990
1000	375	385	408	Ø108	Ø25	18	4G305
	1150	1160	1200
1200	455	465	488
	1400	1410	1450
1400	525	535	558
	1600	1610	1650

Belt width B	L	L1	L2	D	d	b	Bearing model
500	190	200	218	Φ89	Φ20	14	4G204
650	240	250	268
800	305	315	333
1000	375	385	409	Φ108	Φ25	18	4G305
1200	455	465	489
1400	525	535	559

TD75 Belt Conveyor Drum Pulleys	TD75 Belt Conveyor Bend Pulleys
TD75 Belt Conveyor Idlers	TD75 Belt Conveyor Rollers
