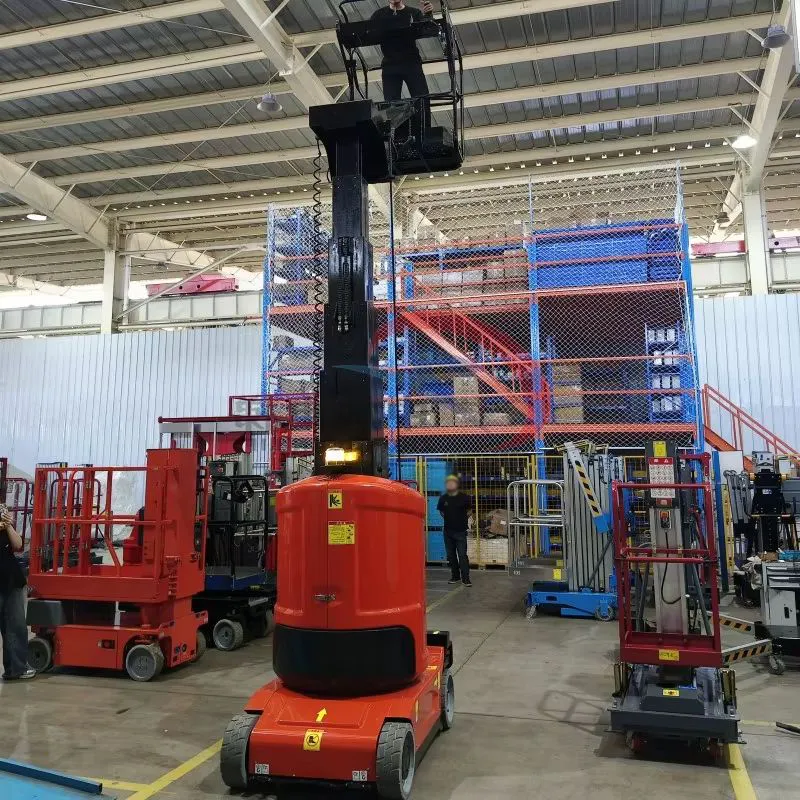

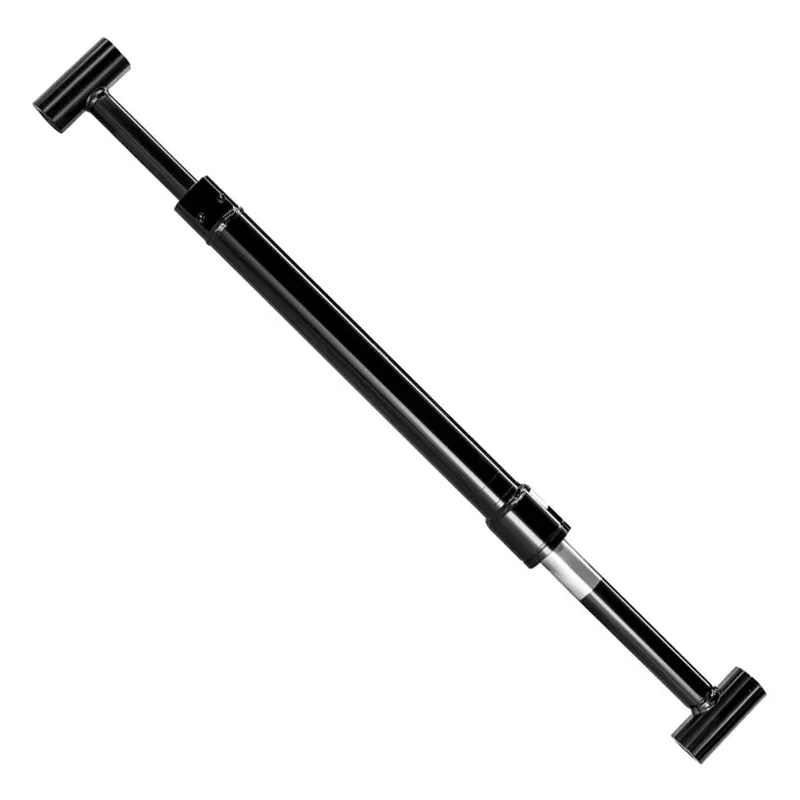

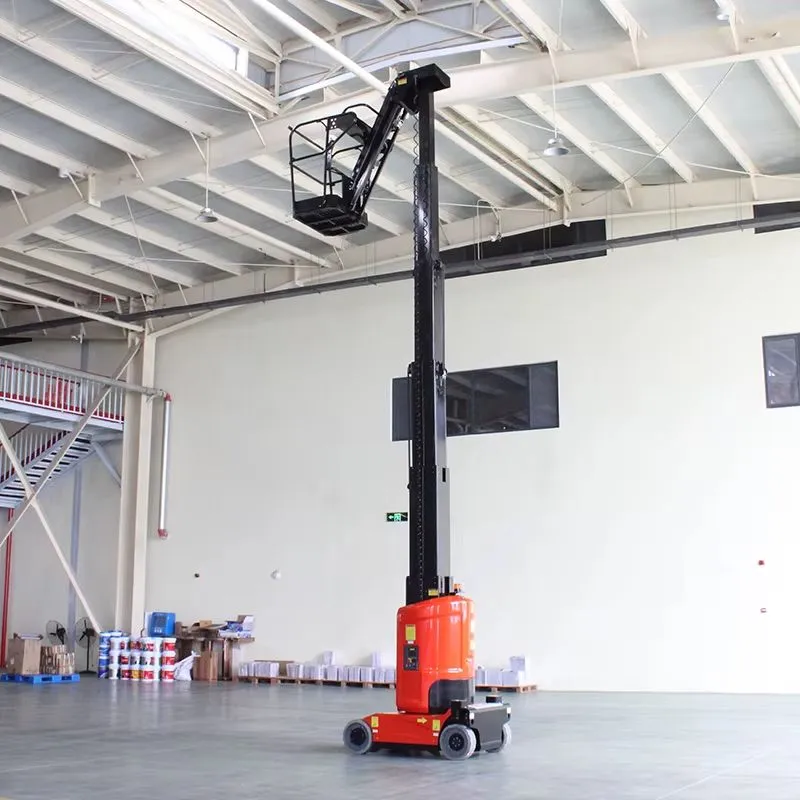

Swing Rod Hydraulic Cylinder for Mast Type Aerial Work Platform

A swing rod hydraulic cylinder for a mast type aerial work platform is a specialized hydraulic component designed to facilitate controlled rotational or pivoting movements of the mast or platform. It is typically a double-acting cylinder, using hydraulic fluid to extend and retract the piston rod, enabling precise swinging or tilting motions. Constructed from high-strength materials like steel or aluminum, it features a robust piston rod and advanced sealing systems to ensure durability and reliability under high-pressure conditions.

The hydraulic swing rod cylinder’s design allows for smooth, stable operation, critical for maintaining safety and balance during high-altitude tasks. Customizable in terms of stroke length, bore size, and mounting options, it integrates seamlessly with mast-type platforms, supporting functions like mast tilting or rotation for enhanced maneuverability in applications such as construction, maintenance, or industrial operations.

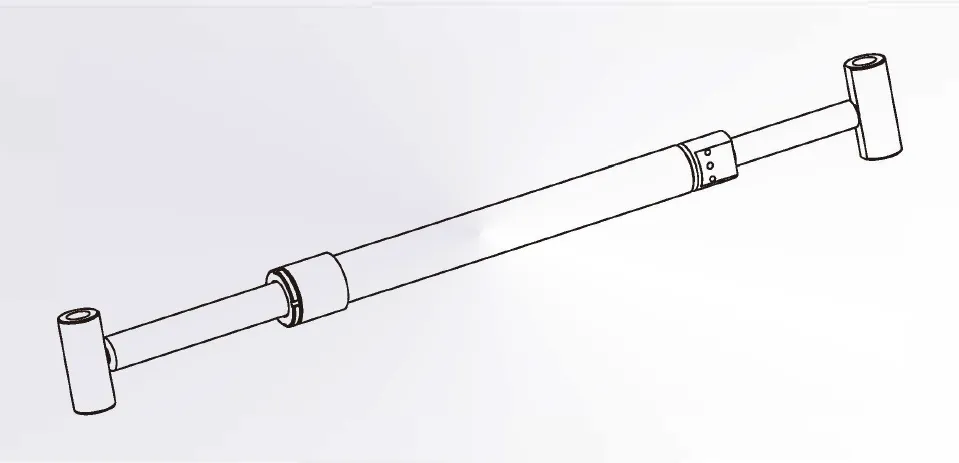

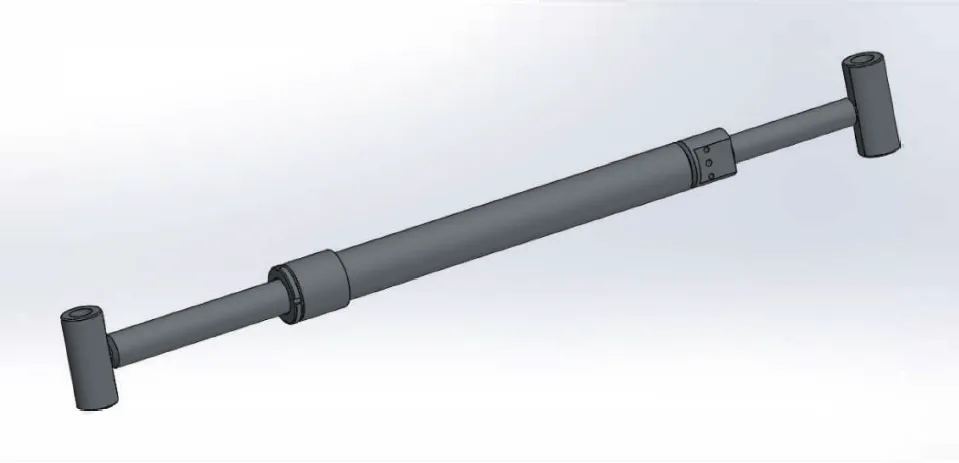

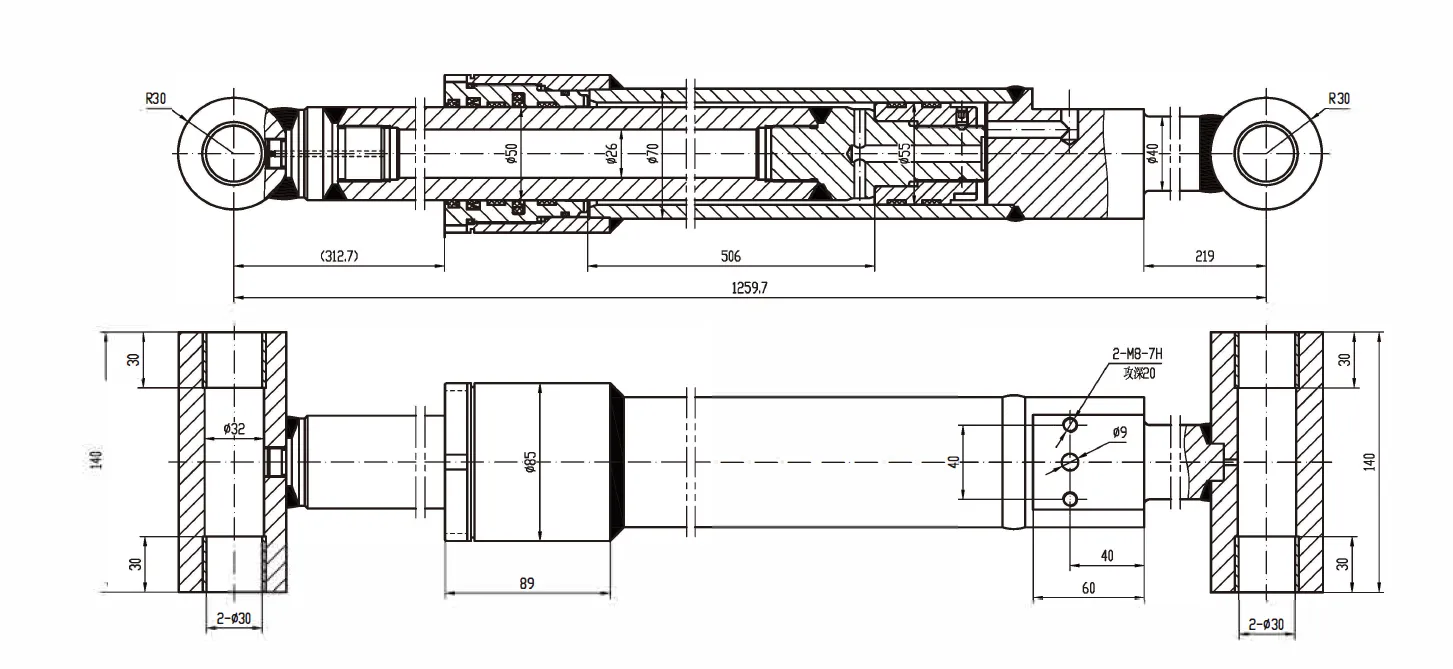

Swing Rod Hydraulic Cylinder Dimensions

Mast Type Aerial Work Platform Hydraulic Cylinder Types

Hydraulic Lifting Cylinders

• These hydraulic lifting cylinders provide vertical movement for mast-type aerial work platforms by extending and retracting to raise or lower the platform with precision and stability for safe operation at height.
• Constructed from high-strength materials like steel, they ensure durability under heavy loads, incorporating advanced seals to prevent leaks and maintain consistent pressure during lifting tasks in demanding environments.
• Customizable in bore size and stroke length, they integrate with the platform’s hydraulic system to deliver smooth, controlled elevation, supporting applications like maintenance, construction, or warehouse operations with high reliability.

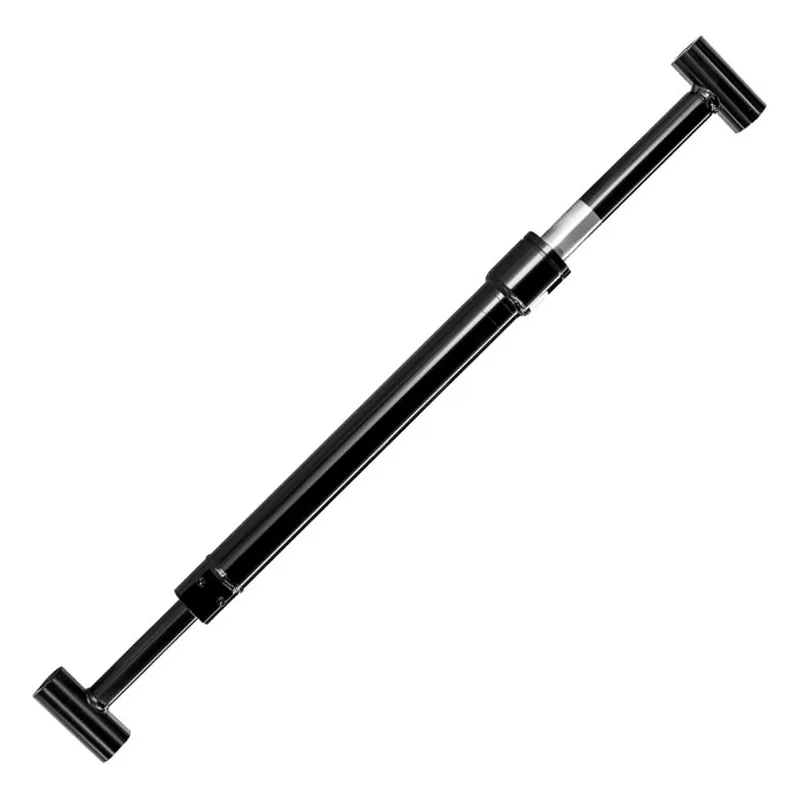

Hydraulic Swing Rod Cylinders

• Hydraulic swing rod cylinders enable rotational or pivoting motion of the mast or platform, allowing precise angular adjustments for positioning during tasks requiring flexible orientation at elevated heights.
• Built with robust piston rods and high-pressure seals, they ensure smooth operation and resistance to wear, maintaining stability and safety under dynamic loads in challenging work conditions.
• Designed for integration with mast-type platforms, they offer customizable stroke and mounting options, enhancing maneuverability for applications like industrial maintenance or construction requiring controlled swinging motions.

Hydraulic Steering Cylinders

• These hydraulic steering cylinders control the directional movement of the aerial work platform’s base or wheels, enabling precise steering for navigation in tight spaces or complex work environments.
• Featuring durable construction with corrosion-resistant materials, they provide reliable performance under high-pressure hydraulic systems, ensuring responsive control and safety during platform repositioning or movement.
• Tailored for mast-type platforms, they support smooth, accurate steering with customizable configurations, enhancing operational efficiency in tasks like building maintenance or equipment installation in confined areas.

Mast Type Aerial Work Platform Hydraulic Swing Rod Cylinder Benefits

• Precise Swing Control
  The hydraulic swing rod cylinder ensures accurate and stable mast rotation, enabling operators to position the aerial work platform at precise angles. This precise control enhances operational efficiency and reduces the risks associated with misalignment during high-altitude tasks.
• Smooth and Consistent Motion
  These hydraulic cylinders provide smooth, vibration-free movement, ensuring a stable working environment for operators. The consistent motion minimizes disruptions, allowing workers to focus on their tasks without sudden jerks or imbalances that could compromise safety.
• High Load-Bearing Capacity
  Designed with durable materials and advanced engineering, the hydraulic swing rod cylinder can handle significant loads. This makes it ideal for supporting both the mast and any additional weight from equipment or personnel during operations.
• Enhanced Durability and Longevity
  Manufactured with high-quality materials resistant to wear, corrosion, and pressure fluctuations, these aerial work vehicle hydraulic cylinders offer long-lasting performance. Their durability reduces maintenance requirements and downtime, ensuring consistent reliability throughout the operational life of the work platform.
• Compact and Efficient Design
  The swing rod hydraulic cylinder is engineered to fit seamlessly into the mast structure without adding unnecessary bulk. Its compact design maximizes the platform's overall efficiency while maintaining optimal performance in confined or complex spaces.
• Improved Worker Safety
  By delivering stable and controlled mast movements, the aerial work platform hydraulic cylinder significantly enhances the overall safety of aerial work operations. Its reliability minimizes unexpected motions, providing a secure and steady platform for workers at elevated heights.

Choose the Right Swing Rod Hydraulic Cylinder for Mast Type Aerial Work Platform

• Bore Diameter
  The bore diameter, the internal diameter of the cylinder barrel, determines the force output. For mast-type platforms, select a bore size (e.g., 2–6 inches) based on the required pivoting force, ensuring it matches the platform’s load and hydraulic system pressure. Measure the barrel’s inner diameter directly or calculate it by subtracting wall thickness from the outer diameter.

• Rod Diameter
  Rod diameter impacts the cylinder’s strength and resistance to bending. Choose a rod (e.g., 1–3 inches) suited for the platform’s swing load to prevent buckling. Use a caliper for precise measurement, ensuring compatibility with the bore and application demands.

• Working Pressure
  Working pressure, typically 1500–3000 PSI for aerial platforms, defines the cylinder’s force capacity. Verify the system’s maximum pressure via pump specifications or port measurements. Select a cylinder rated for the application’s pressure to ensure safe, efficient operation.

• Installation Distance
  Installation distance is the pin-to-pin length when the cylinder is retracted, critical for fitting within the platform’s design. Measure the distance between mounting points (e.g., clevis or pivot pins) to ensure proper integration and avoid misalignment issues.

• Stroke Length
  Stroke length, the distance the rod travels, affects the swing range of the mast. Calculate it by subtracting retracted length from extended length (e.g., 6–24 inches). Ensure the stroke meets the platform’s pivoting requirements without compromising stability.

• Hydraulic Cylinder Ports
  Hydraulic cylinder ports connect the cylinder to the hydraulic system, affecting fluid flow and performance. Match the port size and thread type (e.g., SAE O-ring or NPT) to the system’s hoses. Ensure compatibility to prevent leaks and maintain efficient operation during swinging motions.

• Hydraulic Cylinder Seals
  Seals prevent fluid leaks and ensure reliable operation. Choose hydraulic cylinder seals (e.g., nitrile for -20°C to 80°C or Viton for higher temperatures) based on environmental conditions, such as temperature and dust exposure, to enhance durability and performance in aerial work platforms.
