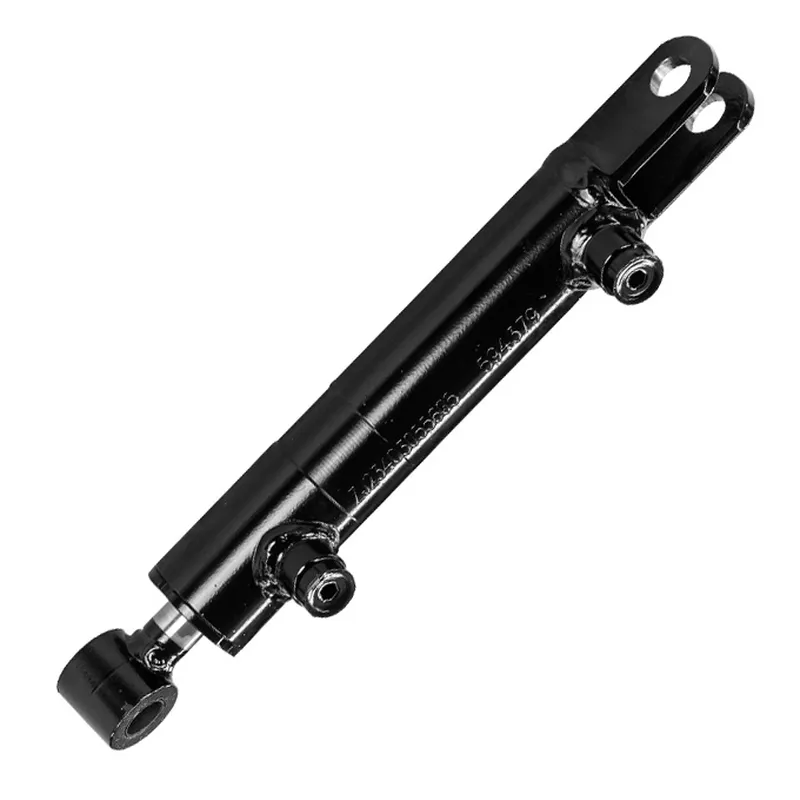

Steering Hydraulic Cylinder for Scissor Type Aerial Work Platform

The steering hydraulic cylinder for a scissor-type aerial work platform (AWP) is a critical component that enables precise and controlled steering, enhancing the platform's maneuverability in construction, maintenance, and industrial settings. This double-acting hydraulic cylinder converts hydraulic pressure into mechanical force to adjust the direction of the platform’s wheels or axles. Typically mounted on the vehicle’s frame and connected to the steering linkage, it operates by pressurized hydraulic fluid moving a piston, which shifts the steering mechanism for smooth navigation, even in confined spaces.

Designed for durability, these cylinders withstand heavy loads, high pressures (up to 20 MPa), and harsh environments. With bore sizes ranging from 40mm to 70mm and stroke lengths of 104mm to 497mm, they ensure reliable performance, safety, and efficiency.

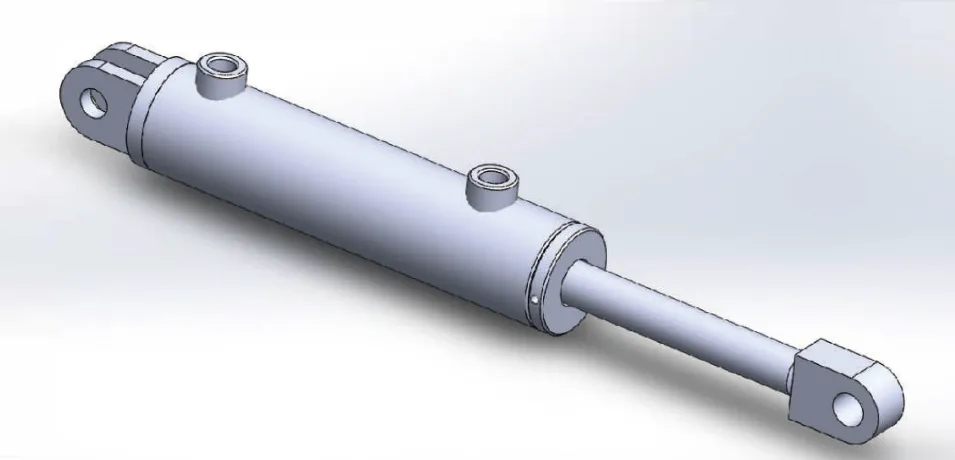

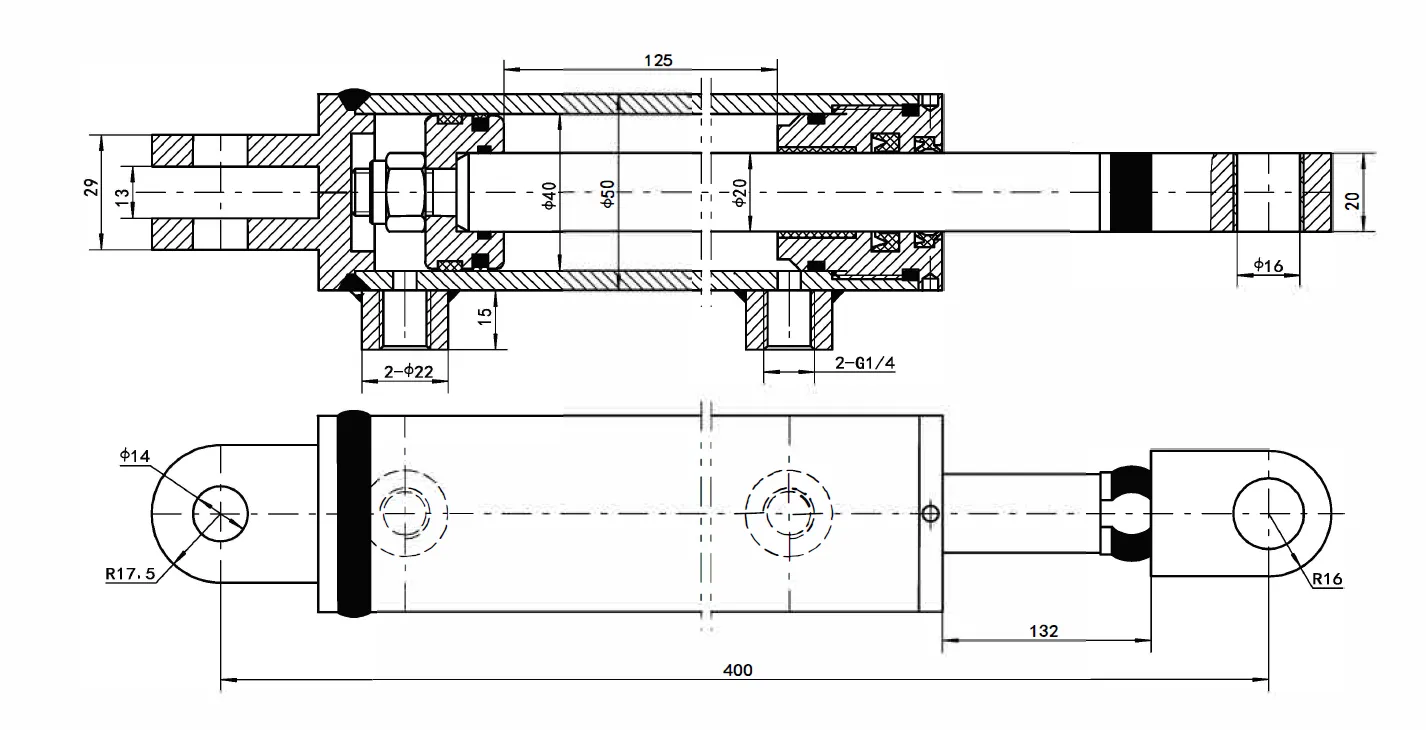

Steering Hydraulic Cylinder Dimensions

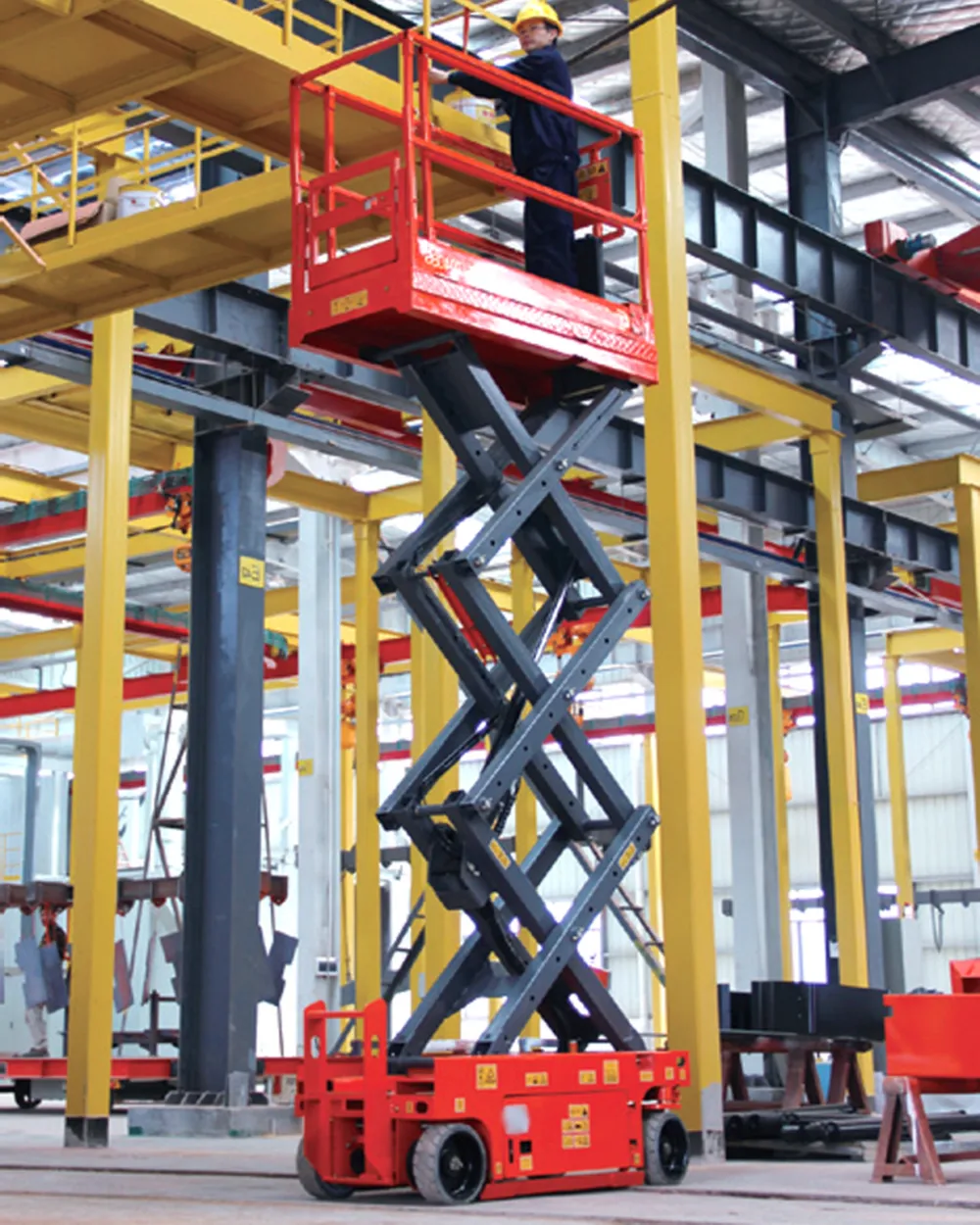

Scissor Type Aerial Work Platform Hydraulic Cylinder Types

1. Floating Hydraulic Cylinders
   Floating hydraulic cylinders in scissor-type aerial work platforms provide flexibility in movement by allowing slight misalignment during operation. They absorb shocks and vibrations, ensuring smooth platform motion. These cylinders are typically double-acting, using hydraulic fluid to extend and retract the piston, accommodating dynamic loads. Their design enhances stability and reduces wear on components, making them ideal for uneven surfaces or rugged environments.
2. Steering Hydraulic Cylinders
   Steering hydraulic cylinders enable precise directional control of scissor-type aerial work platforms. Mounted to the chassis, they convert hydraulic pressure into mechanical force to adjust wheel or axle alignment. These double-acting cylinders ensure responsive steering, even under heavy loads. Their robust construction withstands high pressures, providing reliable navigation in tight spaces.
3. Lifting Hydraulic Cylinders
   Lifting hydraulic cylinders are the primary force behind the vertical extension of scissor-type aerial work platforms. These high-capacity, double-acting cylinders push the scissor mechanism to raise or lower the platform. Designed for heavy loads, they ensure smooth and stable elevation. Regular maintenance is crucial to prevent leaks and maintain lifting efficiency.
4. Support Hydraulic Cylinders
   Support hydraulic cylinders stabilize scissor-type aerial work platforms during operation. Deployed as outriggers or stabilizers, they enhance safety by preventing tipping on uneven terrain. These cylinders provide firm grounding, distributing weight evenly. Their durable design ensures reliable performance under varying environmental conditions, supporting safe platform operation.

Scissor Type Aerial Work Platform Hydraulic Steering Cylinder Features

• High-Pressure Capacity
  The hydraulic steering cylinder in scissor-type aerial work platforms is engineered to handle high pressures, often up to 20 MPa. This ensures robust performance under heavy loads, enabling precise steering control even in demanding industrial or construction environments.
• Double-Acting Design
  These hydraulic cylinders feature a double-acting mechanism, allowing hydraulic fluid to drive the piston in both directions. This provides smooth extension and retraction for responsive steering, ensuring the platform can navigate tight spaces with accuracy and ease.
• Durable Construction
  Constructed from high-strength materials like hardened steel, hydraulic steering cylinders resist wear and corrosion. This durability ensures long-term reliability in harsh environments, reducing maintenance needs and enhancing the platform’s operational lifespan in rugged conditions.
• Compact and Lightweight
  The steering cylinder’s compact design optimizes space on the platform’s chassis, maintaining a low profile without sacrificing power. Lightweight materials reduce overall vehicle weight, improving fuel efficiency and ease of transport for scissor-type aerial work platforms.
• Precision Control
  Equipped with advanced sealing and piston technology, these scissor type aerial work platform hydraulic cylinders deliver precise steering control. This allows operators to maneuver the platform with accuracy, critical for confined spaces or complex job sites, enhancing safety and operational efficiency.
• Integrated Safety Features
  Steering hydraulic cylinders often include pressure relief valves and robust seals to prevent leaks and ensure safe operation. These features protect against over-pressurization, maintaining system integrity and operator safety during dynamic steering tasks on uneven terrain.

Steering Hydraulic Cylinder for Scissor Type Aerial Work Platform

• Determine Load Capacity Requirements:
  When selecting a steering hydraulic cylinder, it is essential to evaluate the platform's maximum load capacity. The cylinder must be capable of handling the weight and pressure exerted during operation without compromising performance or safety.
• Consider Cylinder Stroke Length:
  The stroke length of the hydraulic cylinder should match the specific steering requirements of the scissor-type aerial work platform. An incorrect stroke length can result in reduced steering efficiency or limited maneuverability in tight spaces.
• Evaluate Operating Pressure Compatibility:
  The hydraulic cylinder must be compatible with the platform’s hydraulic system’s pressure specifications. Choosing a cylinder with inadequate pressure tolerance may lead to system failures, reduced performance, or potential safety hazards during operation.
• Check Material and Durability:
  Opt for a scissor type aerial work platform hydraulic cylinder constructed from high-strength, corrosion-resistant materials like alloy steel or chrome-plated components. Durable materials improve the cylinder’s longevity, ensuring reliable performance in harsh environments and under demanding working conditions.
• Assess Installation and Space Requirements:
  The steering cylinder should fit seamlessly within the platform's chassis without requiring significant modifications. A properly sized cylinder ensures efficient installation and prevents interference with other components during operation or maintenance activities.
