PTO Shaft for Woods Medium Duty Rotary Cutters MD160, MD172, MD184

Reliable PTO Shaft for Woods Medium Duty Rotary Cutter Models

PTO Shaft for Woods Medium Duty Rotary Cutter Model: MD160, MD172, MD184

When a Woods MD-series rotary cutter loses its original driveline, finding a replacement that holds up season after season is not a task to leave to chance. The MD160, MD172, and MD184 are 3-point-hitch mowers rated at 55 HP per spindle, and they place real stress on the tractor PTO drive shaft every time the blades hit thick brush or unexpected debris. This CMN Transmission replacement PTO shaft is engineered specifically for those three models, matching the dimensional profile, spline count, and protection class of the original equipment, so once it is bolted on, it runs exactly as the cutter was designed to run.

The original equipment specifier for these mowers called for a Walterscheid 2400, Weasler 35N, or Size 6 Bondioli & Pavesi PTO shaft, all established references in the Cat 4 driveline world. CMN Transmission manufactures high-quality equivalents for all three references. Whether you operate a single mower on a hobby farm or run a fleet of Woods cutters across a landscaping operation, this agricultural PTO shaft delivers the same geometry, the same torque capacity, and the same clutch behavior as the day the machine left the factory. The tractor-side yoke accepts a 1.375-6 spline connection (the standard for most utility tractors in the 40–80 HP bracket), while the implement end handles either a 1.375" or 1.50" round shaft with a 2-disc slip clutch.

The original equipment is the Walterscheid 2400 PTO shaft, Weasler 35N PTO shaft, or Size 6 Bondioli & Pavesi PTO shaft. We can make high-quality replacements for the Walterscheid 2400 PTO shaft, Weasler 35N PTO shaft, or Size 6 Bondioli & Pavesi PTO shaft.

Main Shaft: Cat 4 Standard

Most tractors using 1.375-6 spline and input shaft is 1.375" or 1.50" round with 2 disc clutch.

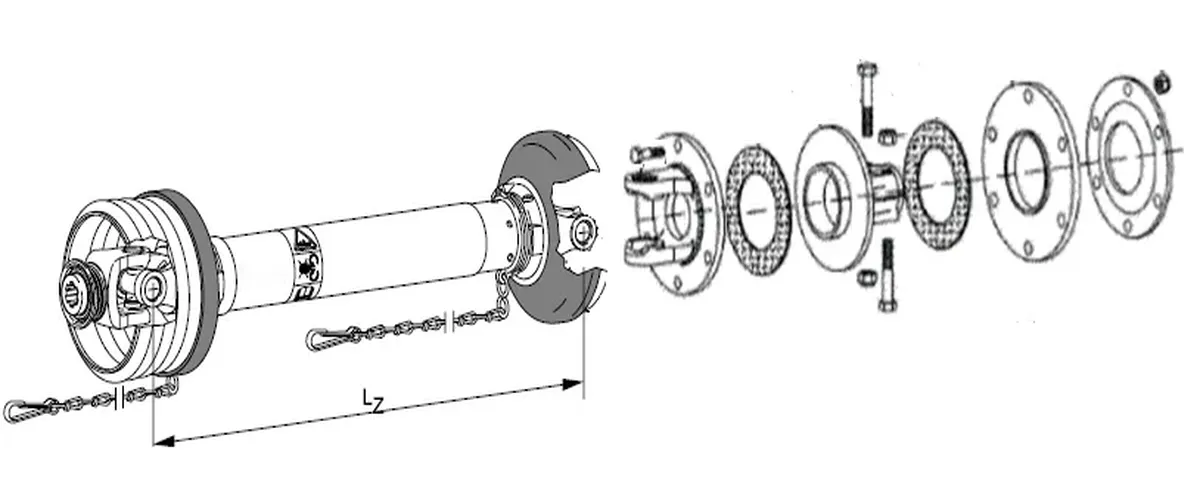

Typical 2400 PTO Shaft - Cat4

Key Features of the Rotary Cutter PTO Shaft

• Cat 4 Precision Tube Profile
  The PTO shaft tubing is drawn to Cat 4 dimensional tolerances, ensuring the telescoping action stays smooth across the full range of 3-point hitch travel without binding or premature wear on the inner profile.
• Pre-Set 2-Disc Slip Clutch
  The slip clutch PTO shaft assembly arrives factory-torqued to the 55 HP operating range, giving immediate overload protection without any bench setup. Field adjustment is possible with a standard spanner if soil conditions change.
• Hardened U-Joint Cross Kits
  Each PTO shaft universal joint uses case-hardened needle bearing cups pressed to tight fits, with grease nipples oriented for easy servicing. The cross dimensions mirror the Walterscheid 2400 cross kit, so field spares are straightforward to source.
• CE-Compliant Guard Assembly
  The full-length PTO shaft cover meets CE machinery directive requirements. Safety chains anchor the guard to the tractor and implement frames, preventing rotation of the guard body, a critical operator safety feature.
• Quick-Release Tractor Yoke
  The tractor-side PTO shaft yoke includes a spring-loaded quick-release collar, cutting hitch, and unhitch time to seconds. The yoke is bored for a 1.375-6 spline to match the majority of utility and compact utility tractors used with Woods MD cutters.
• 540 RPM Standard Speed
  Optimized for 540 PTO shaft operation, the standard output speed on tractors in the 40–80 HP range. This aligns with the Woods MD gearbox input rating and keeps blade tip speed within the intended cutting envelope.
• PTO Shaft Adapter and Size Compatibility
  For operators whose tractor output shaft differs slightly from the standard 1.375-6 spline, a PTO shaft adapter can be specified at the time of order. Common adapter configurations cover 1-3/8″ spline to 1-3/4″ spline conversions and round-to-splined transitions. Check your tractor's PTO output spec before ordering; if in doubt, our technical team can verify compatibility using your tractor model and year.

Advantages of Tractor PTO Shaft for Woods Rotary Cutter

The market for replacement PTO driveline shafts is crowded with products that look right in a photograph but fall short once hours accumulate. The differences that matter most are not visible at the point of sale; they show up as early U-joint failure, clutch slip that never quite stops, or a guard that cracks after the first hard season. CMN Transmission addresses each of those failure points through material selection, dimensional control, and quality verification before shipment.

1. Material Advantages in the PTO Shaft Tube
The outer and inner PTO shaft tubing is formed from seamless mechanical tubing rather than a welded section. Seamless tube has a uniform wall thickness and no weld seam to act as a stress concentration point during torque reversals, a relevant detail given that a slip clutch PTO shaft sees repeated engage-disengage cycles in rough mowing conditions. The tube is finished with a corrosion-resistant coating that holds up to seasonal storage in humid conditions.

2. Clutch Assembly Quality Control
Every slip clutch PTO shaft unit is torque-tested on the assembly bench before shipping. The clutch plate surfaces are finished to a controlled roughness that ensures consistent engagement force from the first use, rather than the run-in variation that affects cheaper assemblies. Replacement clutch disc kits are a stock item, not a special order, so a worn clutch pack can be renewed in about 30 minutes in the field.

3. Cost of Ownership vs. OEM Price Point
An OEM Walterscheid 2400 or Weasler 35N shaft carries a significant price premium. This CMN Transmission equivalent delivers the same operational result at a lower acquisition cost, with spare parts stocked for multi-season support. For equipment dealers servicing fleets of Woods cutters, that translates to lower parts inventory cost without compromising the repair quality they offer their customers.

4. Built for Real Field Conditions
Medium-duty rotary cutters like the MD160, MD172, and MD184 often encounter conditions that push the limits of a PTO shaft, uneven terrain that angles the driveline, unexpected rocks that trigger the slip clutch dozens of times in a single pass, and dust and crop residue that infiltrates the guard. The shaft's oversized grease reservoirs in the U-joint cross kits slow the interval between lubrication services. The guard chain attachment points are reinforced with metal inserts rather than relying solely on the plastic molding. These are not marketing talking points; they reflect the feedback from operators across multiple seasons.

How the PTO Drive Shaft Works

• Tractor PTO Engagement
  The operator engages the tractor's PTO lever, which mechanically connects the tractor's internal power take-off shaft to the splined yoke of the PTO shaft tractor connection point. The 1-3/8"-6 spline yoke slides onto the tractor's output stub shaft, and a locking collar clicks into place to secure the connection. At 540 RPM (standard 540 PTO shaft speed), torque is immediately transferred from the engine through the transmission.
• Universal Joint Articulation
  Torque travels through the outer yoke, into the first Cat4 PTO shaft u joint cross assembly. The universal joint (u-joint) allows the shaft to operate at angles of up to approximately 15–25 degrees from the true centerline, a critical feature as the 3-point hitch raises and lowers the cutter. The needle bearings in the u-joint cross kit handle both rotational torque and angular misalignment simultaneously without loss of power.
• Telescoping Shaft & Slip Clutch Output
  The inner and outer PTO shaft tube sections telescope together as the cutter moves up and down relative to the tractor during field contour changes. If blade-stopping obstructions are hit, the 2-disc PTO shaft with slip clutch automatically slips, limiting peak torque to a preset value and preventing drivetrain damage. Power then exits through the implement-end yoke into the rotary cutter gearbox input shaft, driving the cutting blade at high speed.

Applications

1. Pasture & Field Management
   The MD160, MD172, and MD184 cutters are widely used for pasture reclamation and routine grazing land maintenance. The robust PTO drive shafts handle the continuous high-load cutting of thick bromegrass, fescue, and mixed brush without overheating. Operating at 540 RPM, these shafts maintain consistent blade tip speed through varying vegetation density.
2. Roadside & Right-of-Way Mowing
   County highway departments and utility companies rely on medium-duty rotary cutters for roadside mowing where debris strikes are frequent. The slip clutch built into this tractor PTO drive shaft handles the unpredictable shock loads from curbs, culvert edges, and hidden rocks, keeping maintenance costs manageable and operator safety high.
3. Crop Residue Shredding
   Post-harvest operations benefit from this agricultural PTO shaft when shredding corn stalks, sorghum stubble, and soybean residue ahead of tillage. The telescoping PTO shaft tubing compensates for field undulation, maintaining constant power delivery even on rolling terrain while reducing soil compaction from repeated passes.
4. Brush & Scrub Clearing
   This PTO shaft for bush hog-type operations is ideal for reclaiming overgrown fence lines, clearing scrub brush up to 1.5" diameter saplings, and managing hedgerow encroachment. The 55 HP rating and rugged Cat4 PTO shaft parts ensure the driveline withstands the intermittent peak loads common in brush-clearing work without premature wear.
5. Property & Estate Maintenance
   Large estate owners and rural property managers use the MD-series cutters to maintain trails, pond banks, orchard floors, and perimeter fencing areas. Replacement of a worn or damaged PTO driveline shaft is straightforward, making it easy to keep equipment operational across multiple properties and minimize machine downtime during the peak growing season.

Rotary Cutter PTO Shaft Installation Guide

1. Safety First, Disengage & Shut Down
Before beginning any installation work, disengage the tractor's PTO, lower the cutter to the ground, shift to neutral, apply the parking brake, and shut off the engine. Wait for all rotating components to come to a complete stop. Never install or remove a PTO drive shaft while any part of the drivetrain is in motion. Personal protective equipment, including gloves and safety glasses, should be worn throughout.

2. Remove the Old Driveline
Slide the collar or release pin on the existing PTO driveline shaft's tractor yoke and slide it off the tractor stub shaft. Then disconnect the implement end. Inspect the tractor's PTO stub shaft and the cutter gearbox input shaft for wear, rust, or damage. Clean both connection surfaces with a wire brush and apply a light coat of anti-seize compound before fitting the new shaft.

3. Check & Adjust Shaft Length
Hold the new PTO shaft tube alongside the existing shaft (or measure the required operating length per the cutter's manual). The telescoping inner tube must have a minimum overlap of at least 1/3 of the total tube engagement length at the shortest working position, and must not bottom out (fully compress) at any raised hitch position. Trim the PTO shaft tubing only if required, and re-chamfer any cut edges to prevent binding.

4. Connect Tractor-End Yoke
Slide the 1-3/8"-6 spline PTO shaft yoke fully onto the tractor's PTO stub shaft. You should feel and hear the locking pin snap into the groove on the stub shaft. Give the yoke a firm pull to confirm it is locked. For tractors with a round input configuration, slide the appropriate PTO shaft adapter yoke end onto the 1.375" or 1.50" round stub and tighten the securing bolt to the specified torque per the operator's manual.

5. Connect Implement-End & Attach Safety Shield
Connect the implement-end PTO shaft yoke to the cutter gearbox input shaft, ensuring the locking pin engages. Attach the safety shield retaining chains to both the tractor and the cutter frame. These chains prevent the shield from rotating with the shaft. Confirm the shield fully covers all rotating components. Never operate this tractor PTO shaft without the safety shield in place.

6. Test Run & Slip Clutch Adjustment
Start the tractor, engage the PTO at low RPM, and raise/lower the hitch several times while observing the PTO shaft with slip clutch for any binding, unusual vibration, or noise. If the slip clutch is slipping under normal load (not an impact), the spring tension can be adjusted per the included instruction guide. Confirm the clutch engages and holds under normal operation before proceeding to full field use.

Common Troubleshooting

Excessive Vibration During Operation
Cause: Worn or seized PTO shaft u joint bearing cups; bent inner or outer PTO shaft tube; or yoke phasing misalignment.
Fix: Check the u-joint for play or roughness by twisting the shaft by hand. Replace the cross kit if any needle bearing cup is loose. Inspect tubes for straightness by rolling them on a flat surface. Ensure both yokes on each u-joint are phased at 0° (aligned in the same plane).

Slip Clutch Slipping Under Normal Load
Cause: Glazed friction discs; springs too loose; oil or grease contamination of clutch surfaces.
Fix: Disassemble the slip clutch PTO shaft clutch pack and clean all surfaces with brake cleaner. Lightly scuff glazed discs with 80-grit sandpaper. Evenly tighten all spring tension bolts 1/4 turn at a time until slipping stops under normal operating load. Do not over-tighten, as this prevents the clutch from slipping during genuine overloads.

Telescoping Tube Stiff or Binding
Cause: Dried grease or rust accumulation inside the profile PTO shaft tubing; debris ingestion through torn tube boot.
Fix: Fully separate the two tube halves. Clean all surfaces with a wire brush and solvent. Apply fresh NLGI #2 grease liberally and reassemble. If rust is severe and binding cannot be resolved, contact CMN Transmission for a replacement inner tube. This is a standard PTO shaft parts item stocked for immediate dispatch.

Yoke Slipping Off Tractor PTO Stub
Cause: Worn groove on tractor stub shaft; worn locking collar spring in the PTO shaft yoke; incorrect spline sizing.
Fix: Inspect the tractor stub shaft groove; if worn, the stub shaft itself needs replacement (a tractor dealer issue). Check the quick-release collar spring tension. If the spring no longer holds, the yoke assembly must be replaced. Confirm the spline count: this shaft uses 1-3/8"-6 spline, not the 1-3/8"-21 spline used on 1000 PTO shaft speed applications.

Clicking or Knocking Sound from U-Joints
Cause: Worn or failed needle bearing cups in the Cat4 PTO shaft u joint cross kit; insufficient lubrication allowing bearing seizure.
Fix: Stop operation immediately; a failing u-joint can fracture under load, causing the entire tractor PTO shaft to disengage violently. Replace the u-joint cross kit. When pressing in the new cross kit, ensure all four bearing cups are fully seated and retain the circlip/snap ring securely. Apply grease immediately after installation.

Power Not Reaching the Cutter
Cause: Completely failed u-joint; sheared slip clutch disc; sheared bolt; PTO shaft configuration with broken bolt.
Fix: With PTO disengaged, manually rotate the tractor-end yoke and check whether the implement-end yoke also rotates. If it does not, a complete u-joint or clutch failure has occurred. Inspect all components systematically. For the PTO shaft shear bolt secondary backup configuration, replace shear bolts with OEM-specified grade and diameter bolts only; never use grade 8 hardware bolts, which are too strong and defeat the purpose of shear protection.

Brand Comparison

Rotary Cutter PTO Shaft and Rotary Cutter Gearbox

The rotary cutter gearbox is the heart of any brush hog or rotary mowing system. It receives input power from the tractor PTO drive shaft and converts it into high-speed, high-torque rotational output to drive the cutting blade spindle. CMN Transmission manufactures a comprehensive range of rotary cutter gearboxes compatible with Woods, Bush Hog, Land Pride, Rhino, and other leading cutter brands.

Our gearboxes feature hardened spiral bevel gears, heavy-duty tapered roller bearings, cast-iron housings with precision-bored bearing seats, and oil-bath lubrication for long service intervals. Input shafts accept standard 1-3/8" and 1-3/4" spline configurations compatible with both 540 PTO shaft and 1000 PTO shaft speed inputs, depending on the model.

When replacing your PTO driveline shaft, it is good practice to simultaneously inspect the gearbox input seal and input shaft for wear; a damaged input shaft can rapidly destroy an otherwise perfect new driveline. CMN Transmission stocks both components, allowing a complete drivetrain refresh in a single order. Ask our team about bundle pricing.

Why Choose CMN Transmission's Agricultural PTO Shafts?

CMN Transmission (Korea) is one of the world's leading manufacturers and suppliers of industrial power transmission components, operating from our certified production base in Ansan-si, Gyeonggi-do, Korea. With over 200 dedicated staff, a network of more than 10 shareholding cooperative factories, and an active export footprint spanning 53+ countries, we bring factory-direct quality and competitive pricing to agricultural, construction, mining, and logistics industries worldwide.

Our product range is extensive: PTO drive shafts, agricultural gearboxes, hydraulic cylinders, planetary gearboxes, worm gearboxes, bevel gears, gear racks, chain sprockets, timing pulleys, couplings, and more, with a stock catalog exceeding 150,000 standard SKUs and a full custom manufacturing service for OEM clients. Every product is backed by our ISO and CE certified quality management system and advanced manufacturing processes, including CNC machining, CAD component design, and precision surface treatment technology.

In the agricultural sector, CMN Transmission has built a strong reputation for reliable tractor PTO shaft components and rotary cutter drivelines trusted by farm managers, custom mowing contractors, municipal highway departments, and equipment dealers across North America, Europe, South America, Africa, the Middle East, and Southeast Asia. Our business philosophy, "Transmit Force, Drive Future" reflects our commitment to delivering not just parts, but measurable productivity gains for our customers' operations. Whether you need a single replacement PTO shaft for bush hog applications or a long-term OEM supply partnership, CMN Transmission is your reliable one-stop source.

FAQ

Q1: Is this a direct replacement for the Walterscheid 2400 PTO shaft on my Woods MD172?
Yes. This PTO shaft is engineered as a direct drop-in replacement for the Walterscheid 2400, Weasler 35N, and Bondioli & Pavesi Size 6 drivelines used on Woods MD160, MD172, and MD184 rotary cutters. All key dimensions, yoke diameter, spline count, tube profile, and overall length, are matched to OEM specifications.

Q2: What tractor spline configuration does this PTO shaft use?
The tractor-end yoke uses a standard 1-3/8"-6 spline profile compatible with most mid-range tractors running a 540 PTO shaft speed output. This is distinct from the 1-3/8"-21 spline used on 1000 PTO shaft applications. If your tractor has a round-shaft output, the implement end accommodates 1.375" and 1.50" round input shafts with a 2-disc clutch pack.

Q3: How does the slip clutch work and how do I adjust it?
The PTO shaft with slip clutch uses a 2-disc friction clutch pack that is spring-loaded to a preset torque limit. When the rotary cutter blade strikes an immovable obstruction, the clutch discs slip momentarily, absorbing the shock load. Once the obstruction is cleared, the clutch re-engages automatically. Spring tension is adjustable by evenly tightening or loosening the clutch bolt ring, typically 6–8 bolts arranged symmetrically around the clutch assembly. Adjust in small increments and test at low RPM.

Q4: What is the difference between a slip clutch and a shear bolt PTO shaft?
A shear bolt PTO shaft uses a calibrated bolt that fractures at a specific torque overload, completely stopping power transfer, requiring the operator to stop, replace the bolt, and restart before continuing. A slip clutch PTO shaft slips and automatically re-engages, allowing uninterrupted operation after the obstruction clears. The slip clutch design is preferred for commercial and heavy-use applications because it significantly reduces downtime.

Q5: How often should I grease the PTO shaft u joints?
The PTO shaft u joint cross kits should be greased every 8 operating hours, or once daily during extended cutting seasons. Use NLGI #2 multi-purpose lithium grease. Apply through each grease nipple until grease purges from all four bearing cup seals. This confirms the bearing cavity is fully packed. Never operate the shaft longer than 10 hours without lubrication, as u-joint failure is the most common cause of driveline breakdown in the field.

Q6: Can I use this PTO shaft on tractors other than those listed?
Yes. Any tractor with a standard 1-3/8"-6 spline 540 PTO shaft output and a 3-point hitch configuration can use this driveline with the Woods MD160, MD172, or MD184 cutters. This includes popular brands such as John Deere, Kubota, Massey Ferguson, New Holland, Case IH, Mahindra, and LS Tractor. If your tractor uses a different spline or round shaft, a PTO shaft adapter yoke may be required. Contact us to confirm compatibility before ordering.

Q7: What is the maximum HP rating of this PTO shaft?
This tractor PTO shaft is rated to handle up to 55 HP at 540 RPM, matching the factory specification for all three Woods MD Series models (MD160, MD172, MD184). Operating the shaft with tractors significantly above this HP rating is not recommended, as it may cause premature wear or overload failure of the PTO shaft parts, including the u-joint cross kits and clutch discs. For higher HP applications, CMN Transmission offers Cat5 and Cat6-rated drivelines.

Q8: Are replacement PTO shaft parts available separately?
Yes. CMN Transmission stocks a comprehensive range of individual PTO shaft parts, including Cat4 u-joint cross kits, replacement yoke assemblies, inner and outer PTO shaft tube profile sections, safety shield replacement kits, and slip clutch disc packs. Ordering individual components is often more economical than replacing the entire shaft. Contact us with your part requirement, and we can quote individual items within 24 hours.

Q9: What certifications does this product hold?
This agricultural PTO shaft is manufactured in an ISO and CE-certified facility. The safety shield design complies with ASABE S361 rotating driveline guarding standards. Our quality management system covers incoming material inspection, in-process dimensional inspection, and final functional testing before shipping. Certificates of conformance are available upon request for B2B and OEM customers requiring documentation.

Q10: What is the lead time and shipping options for international orders?
CMN Transmission ships PTO drive shafts to over 53 countries worldwide. Standard lead time for in-stock items is 5–7 business days ex-factory, with DHL Express, FedEx, and sea freight options available. Express delivery to North America and Europe typically takes 7–12 business days door-to-door. For large wholesale or OEM orders, sea freight with 3–4 week transit times offers the most economical shipping option. Contact our sales team for a shipping quote specific to your location and quantity.
