PTO Shaft for Woods Medium Duty Rotary Cutters BB84X, BB600X, BB720X, BB840X, BB840X-P

Reliable PTO Shaft for Woods Medium Duty Rotary Cutter Models

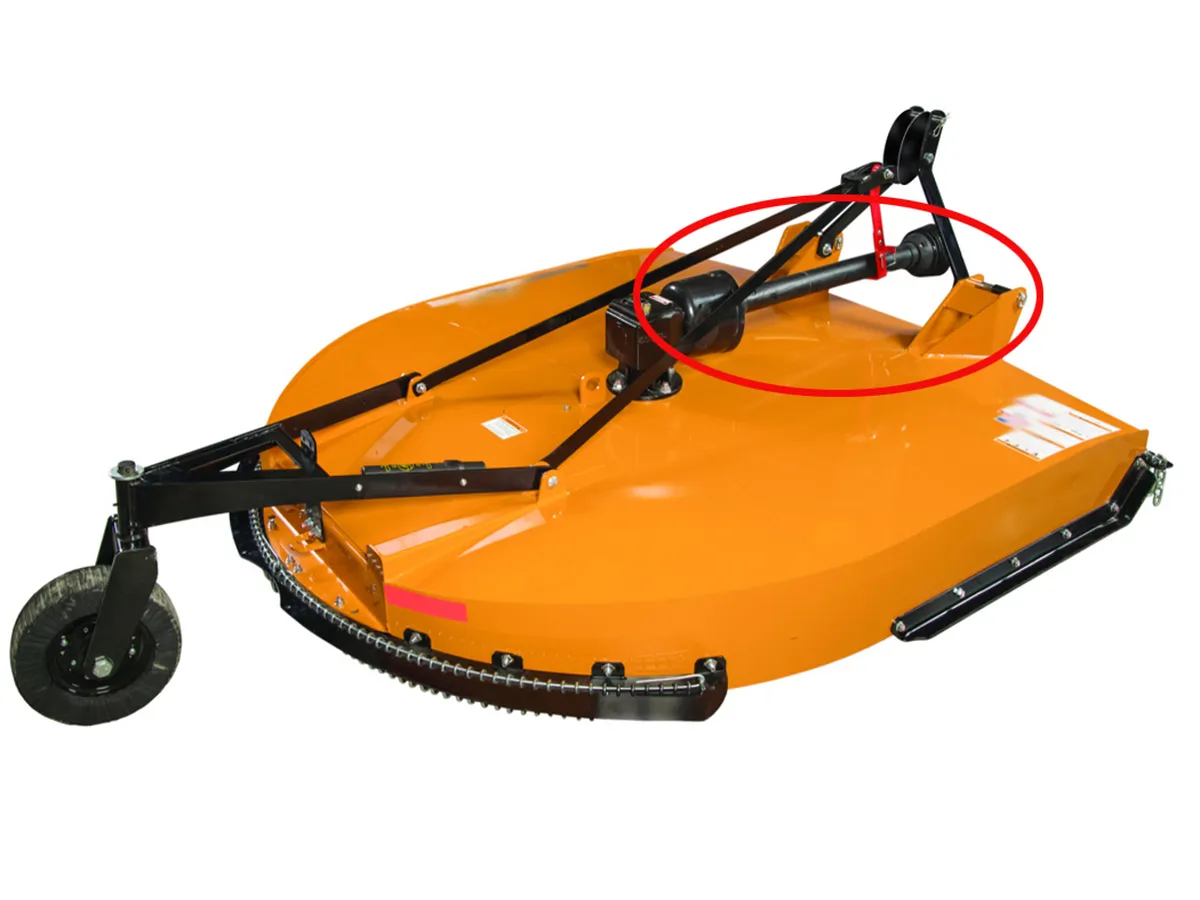

PTO Shaft for Woods Medium Duty Rotary Cutter Model: BB84X, BB600X, BB720X, BB840X, BB840X-P

When a Woods rotary cutter goes down in the middle of a cutting season, every hour of downtime matters. This tractor PTO driveline shaft is engineered as a direct-fit replacement for the original Walterscheid 2400 unit that comes factory-installed on the Woods BB84X, BB600X, BB720X, BB840X, and BB840X-P medium duty rotary cutter models. Built to the same dimensional envelope and torque rating as the OEM part, it slots in without modification to the implement frame or tractor drawbar arrangement, saving both labor time and the cost of custom adapters. Whether you are replacing a worn agricultural PTO shaft mid-season or building a spare parts inventory for a fleet of cutters, this unit gives you the confidence of known geometry and certified performance.

The manufacturing process draws on advanced CAD-guided tooling, controlled material chemistry, and multi-stage heat treatment to produce a PTO shaft tube and yoke assembly that meets and in several respects exceeds the original specification. Induction-hardened spline profiles reduce fretting wear on the 1.375-6 and 1.750-20 spline interfaces, while a reinforced outer guard tube shields the driveshaft from debris, branch strikes, and UV degradation during long fieldwork shifts. The result is a custom PTO shaft solution built for the punishing demands of medium-duty brush cutting, pasture maintenance, and light land clearing across farms, municipalities, and vegetation management operations worldwide.

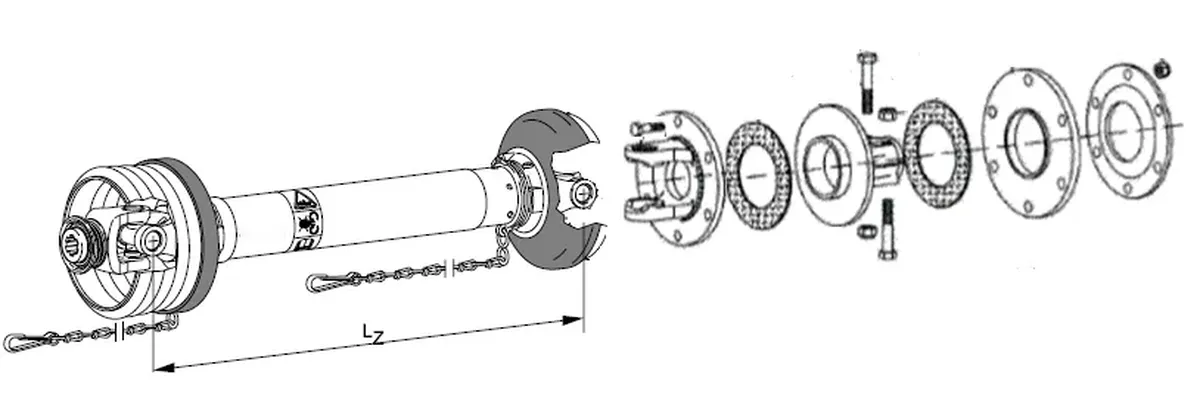

The original equipment is the Walterscheid 2400 PTO shaft. We can make high-quality PTO shaft replacements for Walterscheid 2400 PTO shafts.

PTO Shaft for Woods Rotary Cutter Models

Gearbox input shafts are available in 1.375-6 or 1.750-20 spline configurations. If you need a non-standard bore, custom PTO shaft length, or a different clutch torque rating, contact us. Our engineering team is happy to discuss custom PTO shaft requirements and special configurations.

K90 & K90/4T Friction Clutch

	Series	Bore	Discs	Torque
	CAT4 * 2400	1.375-6	2	1000nm
	CAT4 * 2400	1.375-6	4	1500nm
	CAT4 * 2400	1.375-21	4	1400nm
	CAT4 * 2400	1.750-20	4	1500nm
	CAT5/6 * 2500	1.750-20	4	1500nm

Features of the PTO Shaft for Woods Rotary Cutter

1. Direct OEM Replacement for Walterscheid 2400
This PTO drive shaft is purpose-built to substitute the factory Walterscheid 2400 unit across all five covered models. Yoke dimensions, compressed and extended tube lengths, and spline counts match the original drawings, so no drilling, grinding, or bracket welding is needed during installation. Farmers and dealers who stock this part can swap it in the field with basic hand tools.

2. Induction-Hardened Spline Profiles
Both the 1.375-6 and 1.750-20 spline configurations are machined to DIN tolerances and then subjected to induction hardening, raising surface hardness to 58–62 HRC at the working flanks. This treatment is what separates a long-service agricultural PTO shaft from a generic imitation: the hardened case resists the micro-pitting and fretting corrosion that account for the majority of spline failures on working cutters.

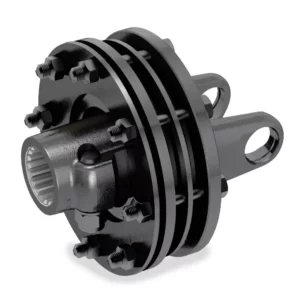

3. Multi-Disc Friction Clutch Overload Protection
The FV-series friction clutch fitted to each shaft is rated between 1,000 Nm and 1,500 Nm depending on configuration, covering the torque demands of both 2-disc and 4-disc setups. When the cutter blade strikes a concealed obstacle tree stumps, rocks, buried fence wire the slip clutch PTO shaft absorbs the shock load and protects both the tractor PTO output shaft and the cutter gearbox from sudden overload damage.

4. Reinforced Guard Tube & Safety Cover
A full-length plastic PTO shaft cover encloses the rotating assembly from the tractor yoke to the implement yoke. The guard is tested to EN 12965 contact-prevention standards and incorporates integral chain attachment points so it cannot rotate with the shaft. Heavy-duty UV-stabilized polymer construction resists cracking in freezing temperatures and in full summer sun a common failure point on cheaper PTO shaft covers after just one or two seasons of outdoor storage.

How a Tractor PTO Drive Shaft Transfers Power to a Rotary Cutter

• Power Takeoff at the Tractor
  The tractor PTO output stub rotating at either 540 RPM (for lighter-duty implements) or 1,000 RPM on higher-powered units connects to the implement-end driveshaft via a splined yoke. On the models covered by this shaft, the gearbox input side accepts either a 1.375-6 spline (for the BB84X) or a 1.750-20 spline (BB600X through BB840X-P). The splined interface transmits rotational torque while allowing the shaft to be installed and removed without tools during field coupling. Proper engagement full spline contact confirmed by locking the yoke pin is essential; partially engaged splines wear rapidly under the oscillating loads produced by a rotary cutter striking dense vegetation.
• Torque Transmission Through the Shaft Tube
  Inside the outer guard, two telescoping steel tubes the inner PTO shaft tube profile and the outer profile tube slide axially to accommodate changes in the working distance between the tractor and the implement as the three-point linkage rises and falls during field operation. The profiles interlock via a cross-section shape (typically a star or lemon profile) that transmits torque while permitting free axial movement. Insufficient lubrication of the sliding zone is the leading cause of premature PTO shaft tube wear, which is why periodic greasing at the grease nipple on the tube section is a non-negotiable maintenance step.
• Friction Clutch Overload Protection
  Positioned between the tractor yoke and the rotating tube, the FV friction clutch acts as a mechanical fuse for the entire drivetrain. When blade-to-obstacle impact torque exceeds the preset clutch engagement threshold 1,000 Nm or 1,500 Nm depending on configuration the friction disc pack slips, momentarily decoupling the tractor PTO shaft from the cutter gearbox. This slip event, which may last only a fraction of a second, dissipates the shock energy as heat in the clutch friction surfaces and then re-engages automatically once torque normalizes. The slip clutch PTO shaft design effectively prevents the PTO universal joint, the gearbox input bearing, and the tractor PTO shaft seal from absorbing forces that would otherwise fracture or deform them.
• Universal Joints and Final Drive
  At each end of the driveshaft assembly, a PTO shaft universal joint or U-joint accommodates the angular misalignment between the tractor PTO stub and the implement input shaft. Operating angles should be kept below 15° for continuous work and below 25° for intermittent work; exceeding these limits causes cyclic velocity variation within each shaft revolution, accelerating wear on the PTO shaft U-joint bearing cups and cross-kit. The implement-end yoke finally couples to the rotary cutter gearbox input shaft, where bevel gears redirect power 90° to drive the blade spindle at the correct operating speed.

Typical Applications of Rotary Cutter PTO Shafts

The Woods BB-series medium-duty rotary cutters and their associated PTO drive shafts cover a wide range of vegetation management tasks that fall between light finish mowing and heavy-duty brush cutting.

1. Pasture & Hay Field Maintenance
Regular pasture cutting with tractors in the 30–80 HP range is the core application for all five BB-series models. The 1-spindle design with a 2-disc friction clutch provides enough blade inertia for consistent grass cutting while limiting the shock loads transmitted back to the tractor when the cutter runs over mole hills, clumps of dry root mass, or small volunteer shrubs. The CAT4 × 2400 PTO driveline shaft handles the continuous duty cycles of multi-hour pasture cuts without thermal fatigue at the universal joint cross-kits.

2. Roadside Vegetation Management
County road crews and highway maintenance contractors use BB720X and BB840X-P units extensively for roadside and median cutting. The pull-type configuration of the BB840X-P allows greater reach from the tractor centerline, reducing the need for the tractor to travel on unimproved surfaces. The 4-disc friction clutch on the BB840X-P provides the higher 1,500 Nm torque rating needed when the cutter encounters the heavier stemmed brush typical of roadside conditions, woody growth that would overwhelm a 2-disc unit.

3. Orchard & Vineyard Floor Management
Smaller BB-series models, particularly the BB600X and BB720X in narrower configurations, are used for inter-row floor management in orchards and vineyards, where tractor widths are constrained and precision cutting height matters. The 540 RPM or 1,000 RPM PTO shaft compatibility gives operators the flexibility to run at the lower speed for fine cut quality on turf-type cover crops or at 1,000 RPM for faster throughput on heavier growth between dormant seasons.

4. Municipal Parks & Recreation Areas
Park maintenance fleets operating compact utility tractors in the 30–60 HP bracket depend on reliable, cost-effective PTO shaft parts to keep their rotary cutters running through peak summer mowing schedules. The ability to source a direct-fit replacement PTO driveline shaft without waiting weeks for an OEM parts order from a dealer network makes CMN Transmission an increasingly popular supplier for municipal equipment managers who maintain multiple cutter units.

Maintenance Tips for Tractor PTO Shaft

Routine maintenance is the single most cost-effective investment you can make in a PTO driveline shaft. A well-maintained agricultural PTO shaft that operates 300–400 hours per season can provide 8–10 years of reliable service. Neglected shafts, particularly those with dried sliding zones or worn clutch discs, rarely last more than two seasons before requiring complete replacement.

Pre-Season Inspection Checklist

• Inspect all PTO shaft U-joint cross-kits for play, discoloration, or seizing. Replace any joint with detectable axial or radial play before the season starts
• Check the PTO shaft yoke locking pins and retaining clips for deformation or fatigue cracks
• Examine the plastic PTO shaft cover for cracks, broken guard sections, and missing or damaged chain attachment points
• Grease all zerk fittings on the sliding profile and on each universal joint bearing cup until fresh grease purges
• Inspect the friction clutch discs through the clutch inspection port. Replace the disc pack if the friction material thickness is below 1.5 mm on any individual disc
• Check the PTO shaft tube for dents, bent sections, or weld cracks; a bent tube creates severe imbalance forces at operating RPM

In-Season Lubrication Intervals

For work in normal conditions (pasture cutting, farm lane maintenance), grease all fittings every 8–10 operating hours. In abrasive conditions, dusty roadsides, sandy soils, and cutting near gravel reduce this interval to every 4–6 hours. Use an NLGI #2 EP (extreme pressure) multi-purpose grease; lithium complex or calcium sulfonate base greases both perform well in the temperature range generated by PTO shaft operations. Do not mix grease types, as incompatible thickener systems can degrade into a liquid oil that provides no film between bearing surfaces.

Friction Clutch Adjustment & Replacement

The FV friction clutch requires periodic adjustment as the friction discs wear and the clutch spring preload decreases. Signs of a clutch needing adjustment include slipping at normal working loads, inconsistent re-engagement after an overload event, or chattering under steady-state torque. Follow the clutch manufacturer's adjustment procedure using a torque wrench to verify the set torque against the rated values in the specification table above. If slipping persists after adjustment, the disc pack has worn beyond its usable range, and a complete replacement disc set is needed attempting to work with a slipping clutch accelerates wear on the pressure plates and increases heat input to the shaft bearings.

Off-Season Storage

Before storing the rotary cutter for winter, disconnect the PTO shaft, clean it thoroughly, apply a light coat of corrosion-inhibiting grease to exposed metal surfaces (spline bore, universal joint cross-kits, tube exterior), and hang it in a dry, sheltered location. Do not store the shaft coiled or bent, as this can permanently set the guard tube out of round and damage the inner sliding profile. A shaft stored correctly will be ready for immediate service the following spring, with only a routine greasing cycle needed before installation.

Common Faults of Agricultural PTO Shafts

1. Vibration or Shudder at Operating RPM
   Vibration is most commonly caused by a worn or seized PTO shaft universal joint. Remove the shaft and flex each U-joint through its full range of motion. Any stiffness, clicking, or gritty resistance indicates a bearing cup or cross-kit that needs replacement. Secondary causes include a bent PTO shaft tube (often from a run-over during implement transport) or an out-of-balance guard tube assembly. Bent tubes cannot be reliably straightened and should be replaced; operating with an imbalanced shaft accelerates wear on the tractor PTO output bearing and the gearbox input seal.
2. Clutch Slipping Under Normal Load
   If the slip clutch PTO shaft disengages during routine cutting rather than only on impact events, the clutch requires adjustment, or the friction disc pack is worn. Check the preload spring setting against the specification values for your disc count and torque rating. If the adjustment does not restore normal clutch engagement, pull the clutch assembly apart and measure the friction disc thickness. Worn discs that show glazing, oil contamination, or material loss below minimum thickness must be replaced as a set; mixing new and worn discs creates uneven pressure distribution that causes chattering and accelerated re-wear.
3. Noisy Operation at the Yoke / Spline Interface
   A clicking, knocking, or grinding noise localized at either yoke is nearly always spline wear combined with inadequate lubrication. The PTO shaft yoke splines, both on the shaft end and on the tractor stub or gearbox input, should exhibit less than 0.15 mm of circumferential play when checked with a dial indicator. Excessive play allows micro-impacts at each reversal of torque direction during cutting, which progressively worsens into visible chipped spline teeth. At that stage, both the shaft yoke and the mating stub require replacement. Catching this early through quarterly play checks saves significant repair costs.
4. Guard Tube Spinning or Rubbing
   A guard tube that rotates with the shaft is a serious safety hazard requiring immediate attention. The most common cause is a failed or detached guard chain, which normally keeps the outer guard stationary relative to the implement frame. Inspect both attachment points and replace damaged chain or clip hardware. In some cases, a broken internal guard bearing allows the guard to bear directly on the rotating cross-kit housing. This requires guard replacement, as the worn bore will not retain the bearing correctly even after fitting new hardware.
5. Shaft Won't Telescope (Stiff Sliding)
   Resistance in the sliding profile during linkage raise or lower cycles is caused by dried grease, grit contamination, or a dented outer tube restricting the inner profile. If the stiffness is lubrication-related, inject a penetrating grease and work the shaft through its length range several times before proceeding with the season. If a dent is restricting travel, the tube section must be replaced a dented sliding zone creates bending stress concentrations that can crack the tube under high torque inputs. Do not attempt to expand a dented tube with a drift punch, as this damages the surface finish of the inner profile and accelerates future grit retention.
6. Oil Leak at Gearbox Input After Shaft Installation
   A new oil leak at the gearbox input seal following a PTO shaft replacement typically indicates the replacement shaft's implement-end yoke bore diameter is slightly oversize, overstressing the lip seal. Confirm the shaft's spline profile and bore match the gearbox manufacturer's specification exactly. If the shaft is dimensionally correct, inspect the input seal for age-related hardening or prior damage from running with a worn previous shaft. Replace the seal before fitting the new shaft to avoid contaminating the friction clutch with leaked gear oil.

Rotary Cutter PTO Shaft & Rotary Cutter Gearbox

The rotary cutter PTO shaft and the rotary cutter gearbox are the two core drivetrain components that together convert tractor engine power into the blade rotational force that cuts vegetation. Understanding the relationship between these two parts helps operators make better purchasing decisions, diagnose problems accurately, and plan maintenance intervals that protect both components simultaneously.

The tractor PTO driveline shaft delivers rotational torque from the tractor's power takeoff stub shaft at either 540 RPM or 1,000 RPM, depending on tractor specification. This rotary motion travels through the universal joints and telescoping tube assembly to the rotary cutter gearbox, where a set of bevel or spiral bevel gears redirects the drive axis from horizontal (along the tractor's forward direction) to vertical (downward, toward the blade spindle). The gearbox also steps the speed up or down as needed to achieve the correct blade tip speed for effective cutting on most Woods medium-duty models. The blade spindle turns at a speed higher than the incoming PTO shaft speed, with the gear ratio defined by the gearbox's internal bevel gear set.

Because these two components share a single, continuous torque path, wear or misalignment in one directly affects the other. A PTO shaft with worn U-joint cross-kits transmits cyclic velocity fluctuations into the gearbox input bearing at every shaft revolution, degrading bearing races and increasing noise and heat in the gearbox housing. Conversely, a rotary cutter gearbox with worn or loose input bearing surfaces allows the shaft yoke to oscillate axially, accelerating wear on the shaft's implement-end yoke splines. Replacing the PTO shaft without inspecting the gearbox and vice versa is a common false economy in rotary cutter repair. CMN Transmission supplies both replacement rotary cutter PTO shafts and rotary cutter gearbox assemblies for the Woods BB-series and many other cutter platforms, making it practical to source a matched replacement pair through a single supplier and a single shipping consignment, reducing downtime and logistics cost for both dealer workshops and end users.

Tip: If your rotary cutter gearbox shows signs of overheating (discolored housing paint, oil seeping from the breather), inspect the PTO shaft friction clutch first. A slipping clutch adds heat to the entire drivetrain and is often the root cause of premature gearbox failures. CMN Transmission's technical team can help you source the correct replacement rotary cutter gearbox if an inspection reveals internal gear or bearing damage.

Why Choose CMN Transmission's PTO Shafts?

Choosing the right replacement tractor PTO drive shaft goes beyond a simple dimensional match. The quality of materials, the precision of machining, and the consistency of heat treatment determine whether a shaft performs for one season or ten. Here is why operators across five continents specify CMN Transmission when replacing PTO shaft parts on their Woods rotary cutters.

• Factory-Direct Quality Control
  Every shaft leaves our facility after dimensional inspection on CMM equipment. No middleman, no outsourced production, factory direct means we control every stage from steel billet to finished assembly.
• Exports to 53+ Countries
  Established logistics routes to North America, Europe, Australia, South America, Southeast Asia, and the Middle East mean reliable lead times regardless of where your operation is based.
• Custom PTO Shaft Options
  Need a non-standard compressed length, an alternative spline bore, or a specific clutch torque rating? CMN Transmission offers genuine custom PTO shaft manufacturing with CAD documentation included.
• ISO & CE Certified
  Our production processes and finished products carry both ISO and CE certifications, meeting the import compliance requirements of major agricultural markets in Europe and North America.
• 150,000+ Products in Stock
  With over 150,000 standard stock items across our product range, we can fulfill both urgent single-unit orders and high-volume dealer stocking programs from existing inventory.
• One-Stop After-Sales Support
  Our technical team supports you from installation guidance to in-service troubleshooting. Replacement clutch discs, PTO shaft yokes, and guard tube sections are available individually so you never have to buy a full assembly just for worn wear parts.

FAQ

Q: Is the 1.375-6 spline shaft interchangeable with the 1.750-20 spline version?

A: No, these are different bore diameters and spline counts and are not interchangeable at the yoke level. The 1.375-6 spline is used exclusively on the BB84X model, which has a different gearbox input shaft profile. If you are unsure which spline configuration your implement uses, measure the gearbox input shaft diameter (1.375 inches or 1.750 inches) and count the spline teeth to confirm before ordering.

Q: What is the correct friction clutch torque setting for a Woods BB840X-P pull-type rotary cutter?

A: The BB840X-P uses a 4-disc friction clutch with a rated torque of 1,500 Nm on the 1.750-20 spline bore. This higher torque rating (compared to the 2-disc, 1,000 Nm unit on the BB84X) is required because the pull-type configuration and wider cutting width of the BB840X-P generate substantially higher peak blade loads during heavy brush work.

Q: How do I know when my Woods rotary cutter PTO shaft needs to be replaced rather than repaired?

A: Replace the complete shaft assembly when you observe: a bent or dented PTO shaft tube that cannot be corrected; U-joint cross-kits that show seizing or heavy wear across multiple joint positions; yoke splines worn beyond 0.15 mm circumferential play; or a guard tube that is cracked through its wall thickness. Individual components, clutch disc packs, U-joint kits, and guard tube sections are worth replacing as standalone items on an otherwise serviceable shaft. If two or more major components need attention at the same time, full shaft replacement is usually more economical.

Q: How often should I grease the PTO drive shaft on a Woods rotary cutter?

A: Under normal pasture cutting conditions, grease all U-joint fittings and the tube sliding zone every 8–10 operating hours. In dusty or abrasive conditions (roadside cutting, sandy soils), reduce this to every 4–6 hours. Use NLGI #2 EP grease and grease until fresh material purges from each fitting. Do not skip the tube sliding zone; this is the most chronically under-lubricated point on most agricultural PTO shafts and the leading cause of premature shaft wear.

Q: Can this replacement PTO shaft run at both 540 RPM and 1,000 RPM?

A: The shaft assembly is rated for use at both 540 RPM and 1,000 RPM PTO outputs within the 30–120 HP tractor range. However, the Woods BB-series gearbox and blade spindle speed are designed around a specific input RPM. Always consult your cutter's operator manual to confirm whether your model is calibrated for 540 RPM or 1,000 RPM input before selecting your tractor's PTO speed setting.

Q: What should I check on the tractor PTO stub shaft before installing a new driveline shaft?

A: Before fitting the new shaft, inspect the tractor PTO stub for: worn or chipped spline teeth (run a fingernail across the spline flanks sharp, smooth flanks are good; rounded or galled flanks indicate wear); corrosion or rust scale that prevents the yoke from fully seating; a damaged or missing groove for the yoke locking pin; and any sign of oil leakage from the tractor's PTO output seal. Fitting a new shaft onto a worn or leaking stub wastes the cost of the new part; address stub condition issues first.

Q: Does CMN Transmission supply individual replacement parts for the PTO shaft, such as U-joint kits or clutch discs?

A: Yes. We stock replacement PTO shaft U-joint cross-kits, friction clutch disc sets, guard tube sections, and yoke locking pin hardware as individual items. This means you can rebuild a serviceable shaft rather than replacing the entire assembly when only one component has failed, a significant cost saving for operators running multiple BB-series cutters. Contact us with the shaft model and the specific component needed for pricing and availability.

Q: What is the minimum tube overlap I need to maintain at all linkage positions?

A: The inner profile tube must overlap the outer profile tube by at least one-third of the inner tube's working length at the maximum extended position (three-point linkage fully raised). If this overlap cannot be maintained because the implement working distance is too long for the shaft, a longer shaft is required. Operating with insufficient tube overlap risks the shaft pulling apart during a linkage raise cycle, which can cause serious injury and immediate implement damage.

Q: How do I adjust the friction clutch slip torque after replacing the disc pack?

A: After fitting a fresh friction disc pack, re-compress the spring plate assembly to the specified spring height for your clutch model using a clutch adjustment tool or a calibrated torque wrench on the adjustment nut. Refer to the FV clutch specification sheet for the correct spring height and resulting torque value. Test the adjusted clutch on the tractor at idle PTO speed first; the cutter blade should spin up cleanly without slipping. If slipping occurs under no-load conditions, the spring preload is insufficient and requires further adjustment.

Q: Can I use this PTO shaft with a tractor that has a 1,000 RPM economy PTO setting?

A: Economy PTO settings (where 1,000 RPM shaft speed is achieved at a lower engine RPM than the standard setting) are fully compatible with this shaft from a mechanical standpoint; the shaft handles the RPM, not the engine speed at which it is achieved. Confirm with your tractor manufacturer that the economy PTO output torque rating is sufficient for the Woods cutter's demand before running at that setting.
