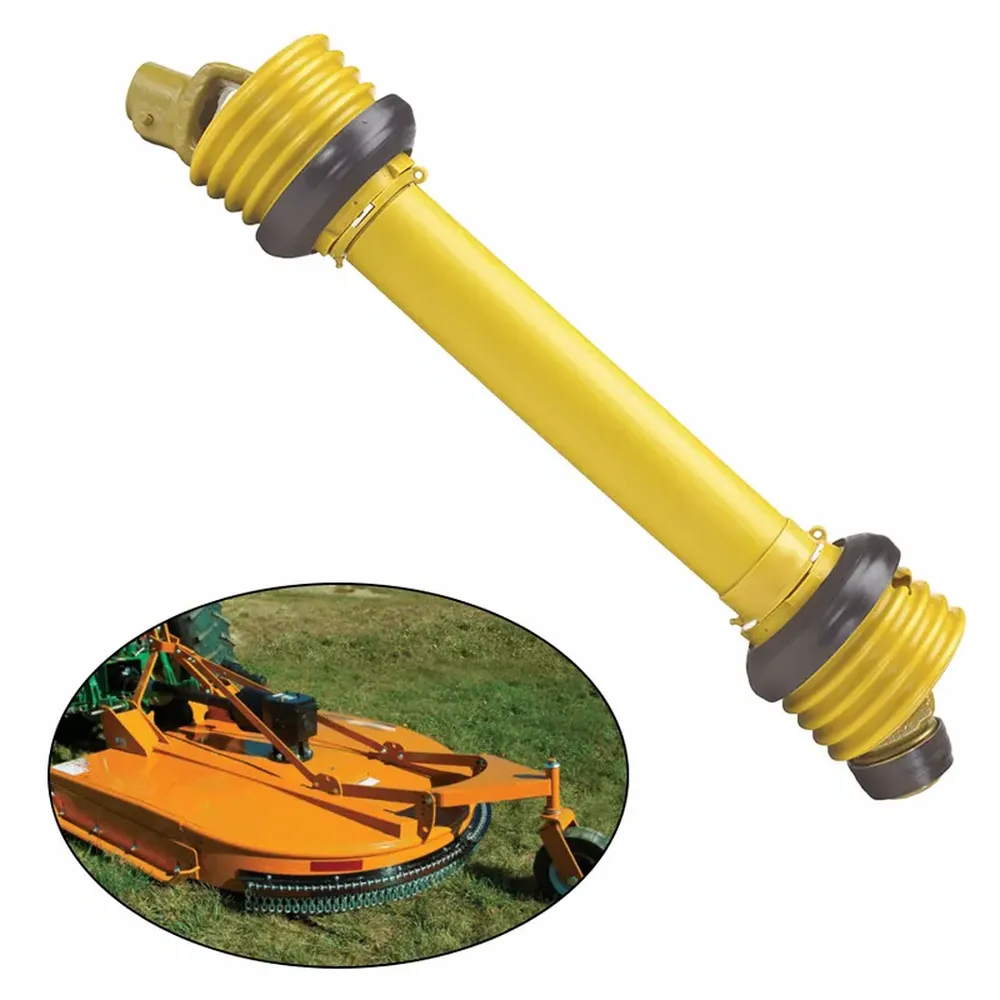

PTO Shaft for Woods Heavy Duty Rotary Cutters BB6000X, BB7200X, BB8400X, BB840X-P

Reliable PTO Shaft for Woods Heavy Duty Rotary Cutter Models

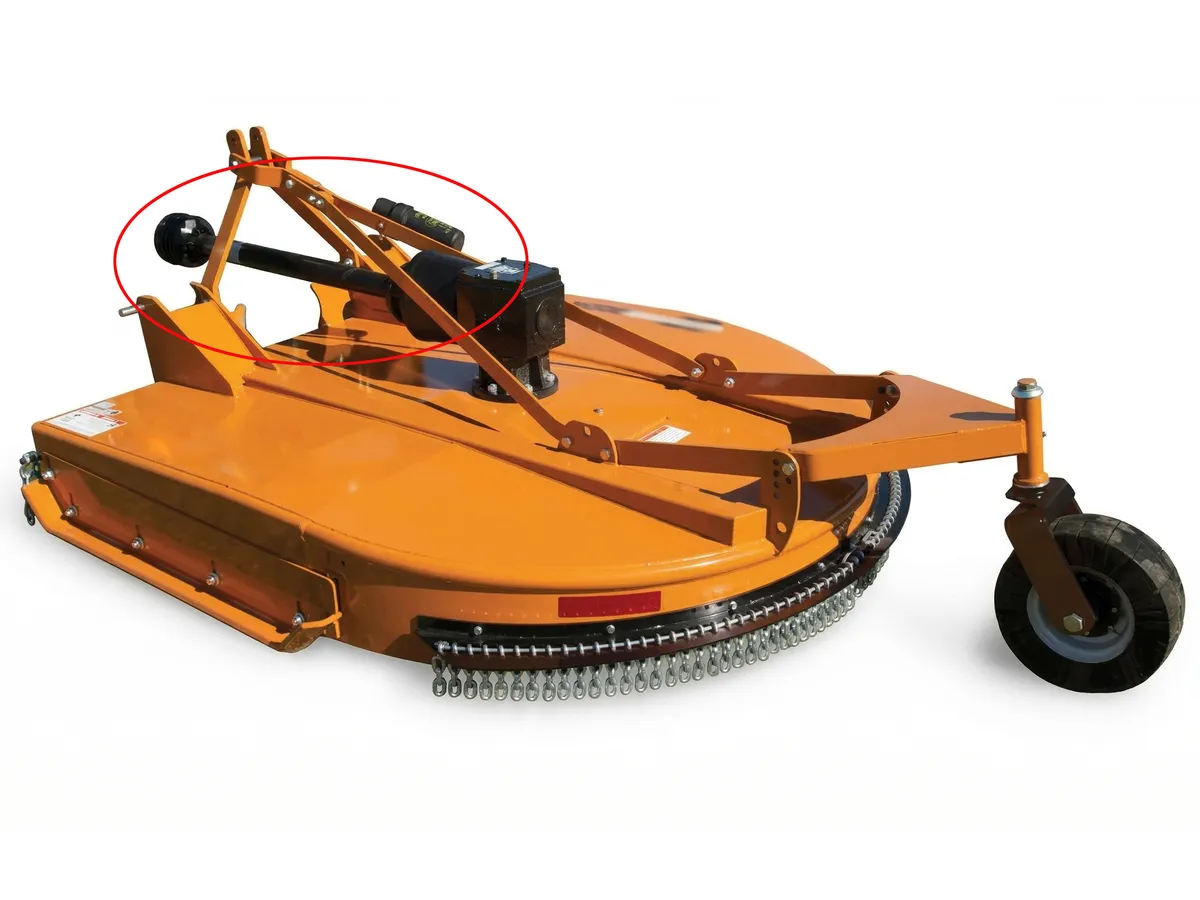

PTO Shaft for Woods Heavy Duty Rotary Cutter Model: BB6000X, BB7200X, BB8400X, BB840X-P

When Woods designed its BB6000X, BB7200X, BB8400X, and BB840X-P heavy duty rotary cutters, they specified the Walterscheid 2400 as the original equipment PTO driveline shaft. That shaft carries every bit of horsepower your tractor produces right down to the cutter's gearbox, so the quality of that link matters more than most operators realize until something fails mid-field. Our replacement PTO shaft for Woods heavy duty rotary cutters is engineered to the same CAT4 × 2400 standard, giving you a part that bolts on with confidence and performs season after season under real-world cutting loads.

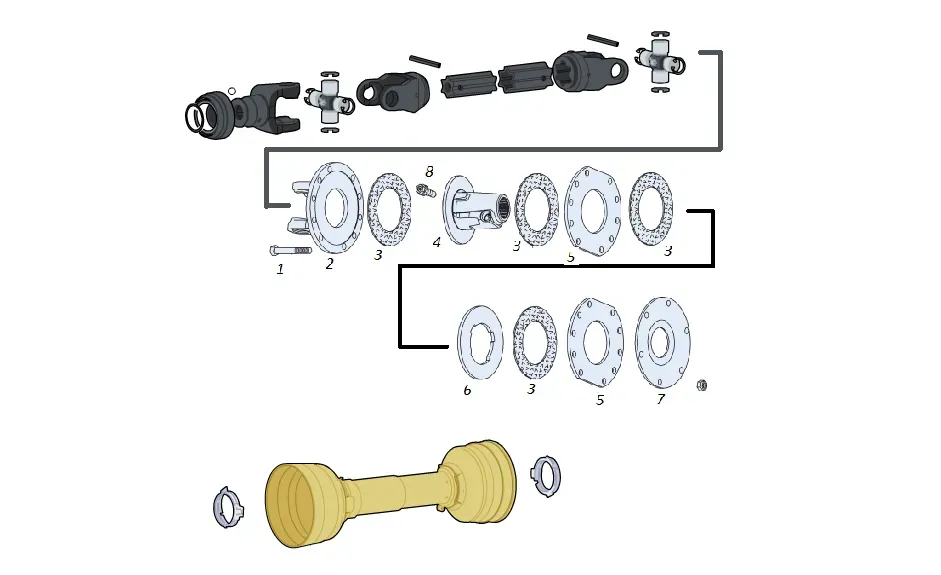

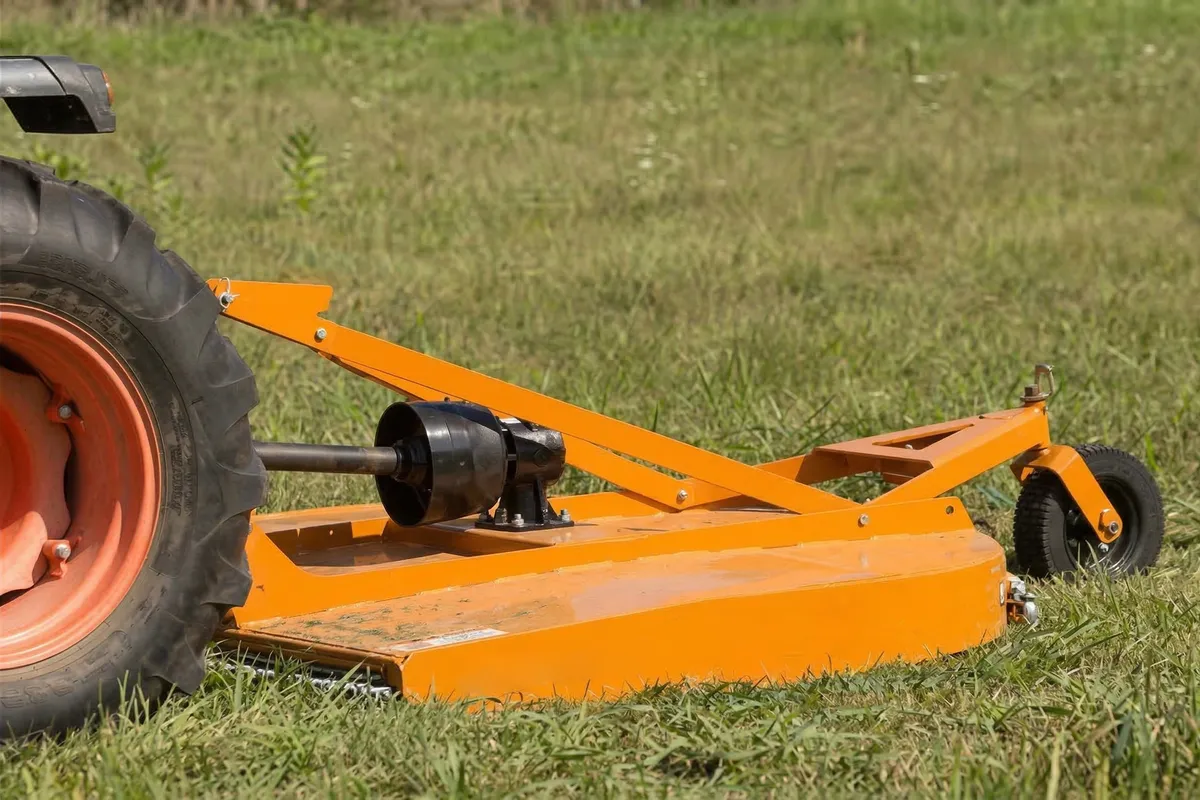

Each tractor PTO drive shaft in this series is built around a telescoping tube assembly paired with forged universal joints at both ends. The outer shield is a hardened plastic safety cover that wraps the spinning components, meets current European CE machinery standards and protects the operator from accidental contact. On the cutter side, a multi-disc FV friction clutch absorbs sudden shock loads when the blades clip a buried rock or fence post. That clutch is not a luxury; it is the part that keeps you from replacing a gearbox or bending an input shaft every time the terrain throws a surprise at you.

The BB840X-P pull-type model runs a 4-disc clutch rated at 1,500 Nm, while the 3-point-hitch variants BB6000X, BB7200X, and BB8400X are fitted with configurations that match their individual HP and spindle load requirements. All versions accept 1.375-6 or 1.750-20 spline gearbox input shafts, depending on the specific model, so it is worth confirming your cutter's input shaft size before ordering.

The original equipment is the Walterscheid 2500 PTO shaft. We can make high-quality replacements for Walterscheid 2500 PTO shafts.

PTO Shaft for Woods Rotary Cutter Model Compatibility

The following specification tables cover both the rotary cutter model matrix and the friction clutch data for the Walterscheid-compatible replacement PTO shafts we manufacture. All gearbox input shafts are either 1.375-6 spline or 1.750-20 spline. See the model column for the correct size for your machine. If you have a custom working width, unique HP requirement, or need a non-standard PTO shaft tube length, scroll past the tables to see how to reach our engineering team.

* Gearbox input shaft spline sizes: 1.375-6 or 1.750-20. Verify your cutter's input shaft before ordering.

K90 & K90/4T Friction Clutch

	Series	Bore	Discs	Torque
	CAT4 * 2400	1.375-6	2	1000nm
	CAT4 * 2400	1.375-6	4	1500nm
	CAT4 * 2400	1.375-21	4	1400nm
	CAT4 * 2400	1.750-20	4	1500nm
	CAT5/6 * 2500	1.750-20	4	1500nm

All torque values are nominal ratings at standard disc pressure. Operating environment, clutch adjustment, and disc wear affect real-world slip points.

Need a custom PTO shaft length, yoke configuration, or non-standard spline profile? Contact our engineering team, we support fully custom PTO driveline shaft orders with CAD drawings available on request.

Features of the Heavy Duty PTO Shaft for Woods Rotary Cutter

• CAT4 × 2400 Direct-Fit Design
  Dimensionally matched to the original Walterscheid 2400 specification used across all four Woods heavy-duty rotary cutter BB6000X, BB7200X, BB8400X, and BB840X-P models. No adapters, no shimming, the tractor PTO shaft installs the same way the OEM unit did.
• Multi-Disc FV Friction Clutch Protection
  Two-disc (1,000 Nm) or four-disc (up to 1,500 Nm) configurations absorb impact spikes before they reach the rotary cutter gearbox. Adjustable slip torque lets you tune protection to your operating conditions; light grass, heavy brush, or hardwood saplings all need different clutch settings.
• Forged Universal Joints (PTO U-Joints)
  Both cross-and-bearing assemblies are drop-forged from alloy steel and needle-bearing packed at the factory. Forged PTO shaft u-joints handle the angular misalignment common in 3-point hitch operation without fatiguing under repeated flex cycles.
• Telescoping PTO Shaft Tube Assembly
  The inner and outer PTO shaft tube profiles are precision-machined to maintain consistent engagement throughout the full travel range. Smooth sliding reduces vibration at the tractor PTO and prevents the binding that causes premature wear on the safety guard.
• CE-Compliant Safety Shield
  The outer plastic safety cover meets EN ISO 4254-1 guarding requirements. It stays in place under the vibration and debris exposure typical of heavy brush work, and the shield halves separate cleanly for inspection or replacement without special tooling.
• 1.375-6 and 1.750-20 Spline Yoke Options
  PTO shaft yoke ends are available in both standard spline profiles, covering every Woods heavy-duty rotary cutter BB6000X, BB7200X, BB8400X, and BB840X-P models. The yokes are investment-cast and heat-treated, giving the spline engagement zone extended wear life compared to broached alternatives.

How a Heavy Duty Rotary Cutter PTO Shaft Works?

1. Tractor PTO Output
   The tractor's PTO stub shaft rotates at either 540 RPM or 1,000 RPM depending on the tractor setting and cutter requirement. The Woods heavy-duty rotary cutter BB6000X, BB7200X, BB8400X, and BB840X-P models operate at 540 RPM standard. The 1.375-6 or 1.750-20 spline on the tractor PTO shaft engages the corresponding female yoke on the driveline, locking rotation but allowing axial float.
2. Universal Joint Angle Compensation
   As the tractor turns, pitches, or the hitch height changes, the angle between the tractor and the cutter shifts. The PTO shaft u-joints at each end of the driveline accommodate this angular misalignment, typically up to 15–20 degrees continuously, while maintaining smooth torque transfer. Running consistently at high angles accelerates u-joint wear, so matching driveline length to your hitch geometry matters.
3. Telescoping Tube Length Adjustment
   The inner shaft slides within the outer PTO shaft tube to accommodate the changing distance between tractor and cutter as the hitch raises and lowers. Adequate overlap of at least one-third of the inner tube's total length is required at all operating positions to maintain structural integrity and prevent the halves from separating.
4. Friction Clutch Overload Protection
   The FV disc clutch is factory-set to a torque level slightly above normal operating loads but below the point that would damage the gearbox. When the blade contacts an obstruction, the spikes torque above that threshold, the clutch discs slip, absorbing the impact in heat rather than transmitting it as a shock wave through the drivetrain. Once the overload clears, clutch grip resumes automatically. This is the primary reason gearboxes last: every overload event that the clutch absorbs is one that the gearbox input shaft does not have to handle.
5. Gearbox Power Distribution to Blades
   Torque from the driveline enters the rotary cutter gearbox through the input shaft and is redirected 90 degrees down to the vertical blade spindle. The gearbox gear ratio is set by Woods at the factory to match the blade tip speed to the tractor RPM. This is why the PTO shaft and gearbox are closely paired. The shaft delivers raw speed and torque, the gearbox shapes it into the correct spindle output the blades need.

Applications of Rotary Cutter PTO Drive Shaft

The BB6000X, BB7200X, BB8400X, and BB840X-P are some of the most widely deployed heavy duty rotary cutters in North America and beyond. They turn up on pastures, roadsides, utility corridors, and commercial hay operations, virtually anywhere a 30 to 120 HP tractor goes to cut. The common thread across all these applications is a demand for a heavy duty PTO drive shaft that can take sustained load without needing constant attention.

• Pasture & Grassland Management
  Rotary cutters are the go-to implement for keeping permanent pasture in productive condition. Running a 120 HP tractor at full PTO load through thick fescue or brome for 8-hour shifts puts serious sustained demand on the driveline. A well-maintained 1000 rpm PTO shaft or 540-rpm shaft running at rated load with correct clutch settings handles this without issue.
• Roadside & Right-of-Way Vegetation Control
  County highway departments, utility companies, and railway maintenance crews use BB-series cutters because they handle the unpredictable debris, such as old fence wire, buried concrete chunks, and metal debris that roadside work throws at the blades. The 4-disc clutch on the BB840X-P pull type is specifically suited to these high-impact environments.
• Orchard & Vineyard Floor Management
  In tree crops and vineyards, mowing between rows at speed with a cutter mounted on a 3-point hitch demands a driveline shaft that handles frequent direction changes and hitch articulation without developing noise or vibration. The angular capacity of properly serviced PTO shaft u-joints makes this possible at commercial speeds.
• Land Clearing & Brush Control
  The BB8400X's 84-inch cut width paired with a 120 HP tractor cuts through hardwood brush and small-diameter saplings that would stall a lighter cutter. This type of work puts maximum stress on the driveline, and the 4-disc friction clutch option provides the torque cushion that keeps the gearbox intact when a thicker stem than expected catches the blade.
• Commercial Hay & Forage Prep
  Before a field goes to a mower-conditioner or disc mower, operators often run a rotary cutter to knock down old growth and even the stand. High-cycle, back-to-back field operation is where PTO shaft tube wear and u-joint lubrication become most visible, and why selecting a quality replacement agricultural PTO shaft from the start pays dividends in reduced service time.
• Municipal Parks & Sports Turf
  Larger municipalities with extensive greenway networks operate fleets of tractors with rotary cutters for seasonal management. PTO shaft replacement cycles are predictable in fleet operations, and our volume pricing for fleet orders makes it practical to maintain a spare parts inventory that keeps cutting schedules on track.

How to Install PTO Shaft on the Woods Rotary Cutter?

Before You Start, Safety First

• Disengage the PTO, shut down the tractor engine, and wait for all rotating parts to stop before any installation work.
• Block the cutter if it is on a slope, the weight of a heavy duty deck can shift during install work.
• Inspect the new PTO shaft for shipping damage before installing. Verify the spline profile matches your tractor PTO stub shaft.
• Check that the safety shield is undamaged and that both shield halves are present before mounting.

Step-by-Step Installation

1. Measure driveline length: With the cutter in working position, measure the distance from the tractor PTO stub shaft face to the cutter gearbox input face. The collapsed length of your replacement PTO shaft should give at least 6 inches of tube overlap at the shortest operating position, and the extended length should not exceed 80% of the inner tube's total travel at the longest position.
2. Lubricate the splines: Apply a thin film of grease to both the male and female splines before assembly. This prevents fretting corrosion at the engagement zone, a common source of PTO shaft yoke failure that is entirely preventable.
3. Connect tractor end first: Slide the wide-angle yoke (or standard yoke) onto the tractor PTO stub shaft and push until the locking collar clicks into position. A gentle tug confirms engagement. Ensure the locking pin or collar is fully seated; a loose connection here is a thrown driveline waiting to happen.
4. Connect cutter gearbox end: Align the female spline yoke with the gearbox input shaft and push to full engagement. Confirm the locking mechanism is seated.
5. Attach the safety shield: Route the shield retaining chains or straps to the fixed points on both the tractor and cutter. The shield must be prevented from rotating with the shaft. Verify there is no contact between the spinning shaft components and the shield at any hitch position.
6. Test at slow speed: Start the tractor, engage PTO at low engine RPM, and listen for any vibration, knocking, or rubbing. If the shield contacts the shaft at extreme hitch angles, re-route the retaining attachment.
7. Check overlap at extremes: Raise and lower the hitch through its full range while the PTO is disengaged. Confirm the tube overlap remains adequate at both the top and bottom hitch positions.

Note on driveline angles: Exceeding 15 degrees of continuous operating angle on the PTO shaft u-joints significantly accelerates wear. If your setup requires steep angles regularly, consider a wide-angle constant velocity joint for the tractor end, our team can advise on the correct component upgrade.

Common Tractor PTO Shaft Issues & Troubleshooting

Agricultural PTO Shaft & Rotary Cutter Gearbox

The PTO driveline shaft and the rotary cutter gearbox are two separate components with one shared purpose: getting the right amount of power to the cutting blades efficiently and reliably. It is tempting to think about them independently, but in practice, every engineering decision in one affects the other. The gearbox input shaft spline profile determines the PTO shaft yoke bore. The gearbox's rated input torque determines which friction clutch disc count your driveline should carry. The gearbox's gear ratio determines the output spindle RPM from a given tractor PTO speed. None of these relationships is arbitrary.

On the Woods BB6000X, BB7200X, BB8400X, and BB840X-P, the gearbox input shaft is a 1.750-20 spline (20-spline, 1.75-inch bore), which matches the female spline yoke on the cutter end of our replacement PTO drive shaft. The gearbox is designed to receive the full rated torque of the CAT4 × 2400 driveline up to 1,500 Nm with the 4-disc clutch without the input shaft deflecting under load. That alignment of ratings is what makes direct-fit replacement straightforward.

CMN Transmission supplies both replacement PTO shafts and rotary cutter gearboxes as part of a coordinated driveline solution. If your gearbox input shaft shows wear damage from a previous driveline failure, a common scenario when a PTO shaft runs to total failure rather than being replaced proactively, we can supply both the new shaft and the replacement gearbox in a single order, fully cross-referenced to ensure dimensional compatibility. Ordering both components together also allows us to match the clutch torque setting precisely to the gearbox's rated input load, which is not always possible when parts are sourced from multiple suppliers.

The relationship also works in reverse when diagnosing failures. A gearbox that fails repeatedly despite normal operating loads is frequently asked to absorb impact energy that should have been caught by the slip clutch. If you are sourcing a replacement gearbox after repeated gearbox failures on the same cutter, the driveline clutch setting almost certainly needs review as well. Our team can walk through the complete drivetrain assessment with you to break that cycle. Replacing the gearbox alone without addressing the clutch will put you back in the same position within a season.

Why Choose CMN Transmission's PTO Shafts?

Replacing a Woods rotary cutter PTO shaft is not a purchase where you want to gamble on an unknown supplier. The shaft runs under load every time the cutter is engaged. Field conditions are unforgiving, and a substandard component does not just fail quietly. It can take out a gearbox, damage a tractor's PTO stub, or leave a crew stranded mid-job with hay still standing. CMN Transmission is a Korea-based manufacturer with direct production capacity across PTO driveline shafts, gearboxes, and hydraulic components. We ship to buyers in over 53 countries, not because we are a catalog reseller, but because we build and stock what we sell. Our facilities carry ISO certification, and products built to European specs are CE marked. Documentation is available on request for any regulatory or compliance needs.

For Woods replacement applications specifically, our 150,000+ standard stock means the shaft profile, yoke type, and tube size you need is most likely on the shelf and ready to ship, not sitting in a production queue. When a non-standard configuration comes up, our engineering team handles it in-house: custom lengths, atypical yoke profiles, and off-diameter tube combinations are quoted with CAD drawings for customer review before a single piece of metal is cut. Buying factory-direct removes the distributor layer entirely. That margin difference shows up in your unit price whether you are sourcing one shaft or a full season's worth of spares.

We also manufacture the gearboxes and hydraulic top links that work alongside the PTO shaft in your drivetrain. Sourcing those components through one supplier means the dimensions line up and you are not cross-referencing fit charts between three different vendors. If you need a Woods rotary cutter PTO shaft stock or custom, contact CMN Transmission with your specs, and we will confirm availability or quote a production timeline the same day.
