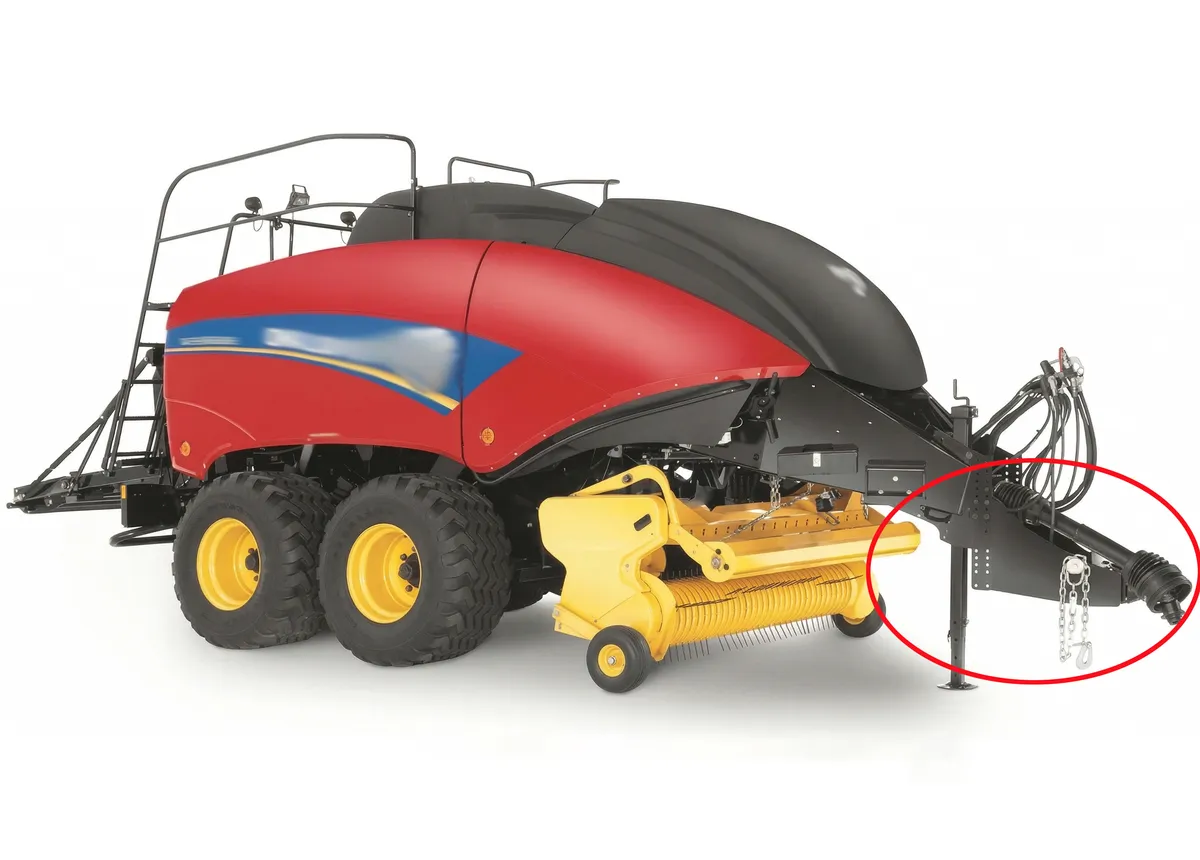

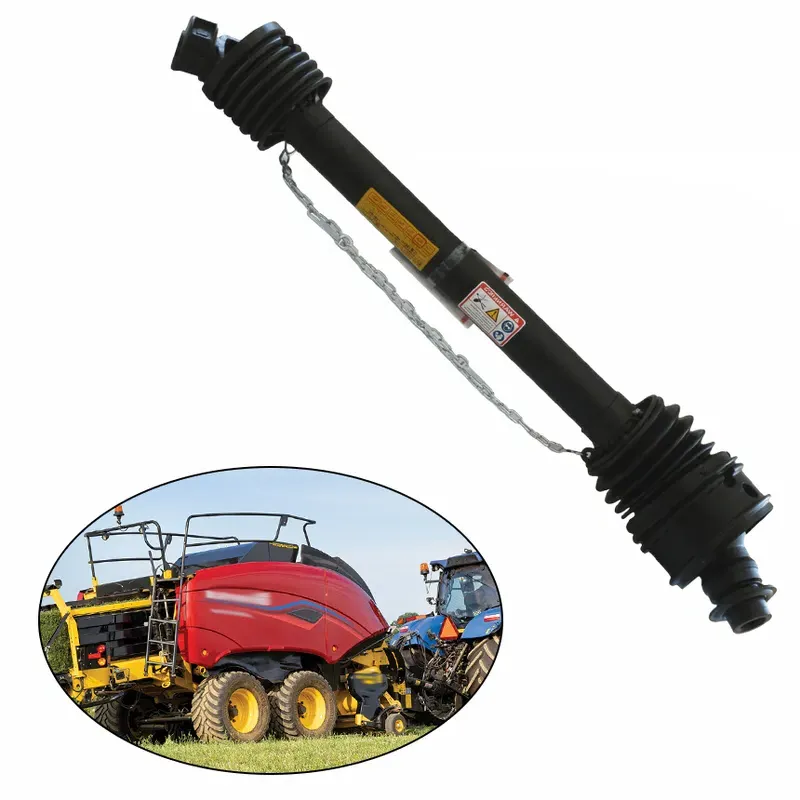

PTO Shaft for New Holland Square Baler Bigbaler 330, 340

Square Baler PTO Shaft and Square Baler Gearbox

The square baler PTO shaft and the square baler gearbox are two components of a single power transmission system that converts the tractor's engine output into the complex mechanical motions required to compress, form, and tie large rectangular bales. Understanding the relationship between these two components is essential for proper maintenance, troubleshooting, and component selection.

The square baler gearbox is a heavy duty gear reduction unit mounted at the input of the baler. It receives rotational power from the PTO driveline shaft and transforms it into the specific speeds and torques needed by the baler's internal systems. In the New Holland BigBaler 330 and 340, the main gearbox typically uses a combination of bevel gears and spur gears to redirect and reduce the incoming 1000 RPM PTO speed down to the flywheel speed (which then drives the plunger through a crank mechanism), while also providing secondary outputs for the packer forks, feeder, and knotting system. These gearboxes are engineered to handle extremely high torque loads, as the plunger compression force in a large square baler can exceed several hundred kilonewtons.

The PTO drive shaft is the only mechanical link between the tractor's power source and the baler gearbox. The implement side PTO shaft yoke connects directly to the gearbox input shaft via the 1.750-6 spline interface. Every newton meter of torque that the gearbox distributes to the flywheel, plunger, and knotters must first pass through this shaft. This means that the shaft's torque capacity, joint quality, and alignment directly affect gearbox longevity. A worn or vibrating PTO shaft transmits shock loads and uneven forces into the gearbox input bearings, accelerating wear and potentially causing gear tooth fatigue. Conversely, a malfunctioning gearbox (such as one with damaged bearings or chipped gears) can create reflected vibration and torque irregularities that damage the shaft's universal joints.

Why Choose CMN Transmission's Agricultural PTO Shafts?

CMN Transmission is a professional manufacturer based in Ansan, Gyeonggi-do, Korea, specializing in high quality power transmission components for global agricultural, industrial, and mobile equipment markets. Our product range includes agricultural PTO shaft assemblies, planetary gearboxes, worm gearboxes, hydraulic cylinders, bevel gears, gear racks, and belt conveyors. With ISO and CE certifications and advanced mechanical manufacturing technology, we serve OEM partners, equipment dealers, and end users across more than 60 countries.

When it comes to tractor PTO shafts for square baler applications, CMN Transmission offers several distinct advantages. First, our factory direct B2B sales model eliminates dealer markups, providing competitive pricing without compromising on material quality or manufacturing precision. Every PTO shaft we produce uses case hardened alloy steel for the universal joints, seamless drawn steel for the PTO shaft tubing, and CNC machined splines on every PTO shaft yoke, all manufactured under strict quality control protocols.

Second, we offer genuine configurability. Unlike many aftermarket suppliers who stock only the most common sizes, CMN Transmission manufactures custom PTO shaft assemblies tailored to your exact requirements. Whether you need a specific spline combination, an unusual tube length, a slip clutch PTO shaft, a shear bolt PTO shaft, or a specialized PTO shaft adapter, our engineering team can configure and deliver it. This flexibility is especially valuable for fleet operators and dealers who service multiple tractor and baler brands.

Third, our one stop after sales service means you have a single point of contact for technical support, warranty claims, and reorders. Our sales and engineering teams understand the agricultural machinery market and can provide spec level technical guidance to help you select the right PTO shaft sizes, overload protection type, and yoke configuration for your application. With worldwide shipping capabilities and responsive communication, CMN Transmission is your trusted partner for reliable, competitively priced PTO drive shafts and power transmission components.

FAQ

Q: What PTO shaft size do I need for a New Holland BigBaler 330 or 340?
A: The New Holland BigBaler 330 and 340 require a CAT 5 rated PTO drive shaft. The baler input uses a 1.750-6 spline, while the tractor side spline depends on your tractor model. Common tractor spline sizes include 1.375-6 for 540 RPM PTO and 1.375-21 or 1.375-20 for 1000 rpm PTO shaft configurations. Contact CMN Transmission with your tractor model to confirm the correct PTO shaft sizes for your setup.

Q: Is this PTO shaft a direct replacement for the OEM New Holland shaft?
A: Yes, this CMN Transmission PTO shaft for New Holland square baler is engineered as a direct fit replacement of New Holland PTO shaft assemblies for the BigBaler 330 and 340. The spline profiles, yoke dimensions, and tube lengths match OEM specifications, so no PTO shaft adapter or modification is required for standard tractor and baler pairings.

Q: What is the difference between a 540 PTO shaft and a 1000 PTO shaft?
A: A 540 PTO shaft operates at 540 revolutions per minute, typically using a 1.375-6 spline connection on the tractor. A 1000 PTO shaft operates at 1000 RPM and typically uses a 1.375-21 or 1.375-20 spline. The BigBaler 330/340 can operate with either speed depending on your tractor's PTO configuration. The higher RPM option is more common on the larger tractors typically paired with these balers.

Q: Should I choose a slip clutch PTO shaft or a shear bolt PTO shaft for my BigBaler?
A: A slip clutch PTO shaft provides automatic, reusable overload protection that absorbs torque spikes without requiring replacement parts. A shear bolt PTO shaft uses an inexpensive sacrificial bolt that breaks during overload, requiring manual replacement before resuming operation. Slip clutches are preferred for continuous high throughput operations, while shear bolts are a lower cost option suitable for operations where overload events are infrequent.

Q: How often should I grease the PTO shaft universal joints?
A: For optimal service life, grease the PTO shaft universal joint assemblies (PTO shaft u joint) every 8 to 10 operating hours during active use. Use EP2 grade lithium complex grease and pump until a small bead of fresh grease appears at each bearing seal. Regular greasing is the single most effective maintenance step to prevent premature PTO shaft u joint failure on any agricultural PTO shaft.

Q: Can CMN Transmission supply a custom PTO shaft with non-standard spline combinations?
A: Yes. CMN Transmission manufactures custom PTO shaft assemblies with a wide range of spline, tube length, and overload protection configurations. If your tractor uses a non-standard PTO output or you need a specific overall shaft length, contact our engineering team with your requirements and we will provide a tailored solution for your PTO shaft for square baler application.

Q: What causes a PTO drive shaft to vibrate during operation?
A: The most common causes of PTO drive shaft vibration are worn PTO shaft universal joint bearings, misalignment of yoke ears (out of phase), excessive operating angle between the tractor and baler, or a bent PTO shaft tube. Inspect each of these areas systematically. Replacing worn u-joints and correcting the shaft phasing typically resolves vibration on tractor PTO shafts.

Q: How long does a heavy duty PTO shaft typically last on a BigBaler?
A: Service life depends heavily on maintenance, operating conditions, and workload. A well maintained heavy duty PTO shaft can deliver 800 to 1,500+ hours of service. Regular greasing of the PTO shaft u joint assemblies, proper lubrication of the telescoping tubes, and operating within recommended angle limits all significantly extend shaft life. Harsh conditions (dusty, damp, high throughput) will shorten service intervals.

Q: Does the PTO shaft come with a safety guard and cover?
A: Yes, this PTO shaft for New Holland square baler includes a full length CE certified PTO shaft cover (safety guard) with bearing mounted end cones, restraint chains, and all necessary hardware. The guard is constructed from impact resistant polymer and is designed to remain stationary while the shaft rotates inside, complying with European and international agricultural safety standards.

Q: How do I know when my PTO shaft u-joints need replacing?
A: Signs that your PTO shaft u joint assemblies need replacement include noticeable vibration at operating speed, clicking or clunking sounds during engagement, visible rust or grease leakage from the bearing caps, and any detectable rotational play when gripping the shaft on either side of the joint. If you detect any of these symptoms, replace the PTO shaft universal joint promptly to prevent further driveline damage.
