PTO Shaft for New Holland Discbine 1431, 1432 Disc Mower

Reliable PTO Shaft for New Holland Discbine Models

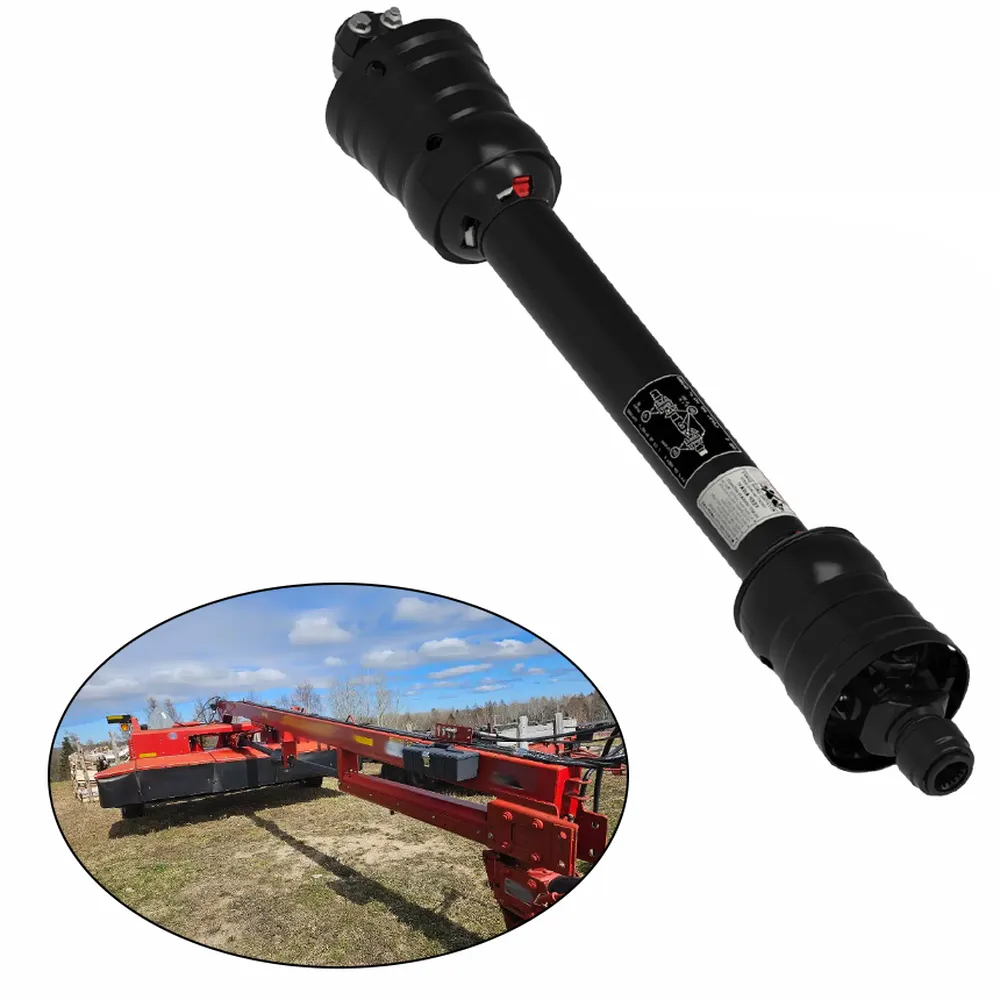

PTO Shaft for New Holland Discbine Model: 1431, 1432 Disc Mower

The CMN Transmission PTO shaft for New Holland Discbine 1431 and 1432 disc mower-conditioners is a purpose-built CAT 6 double constant velocity PTO driveline shaft engineered to deliver smooth, uninterrupted power from your tractor to the implement input shaft. The New Holland Discbine 1431 and 1432 are 10-disc, 13-foot wide-cut mower-conditioners demanding a high-quality PTO drive shaft capable of maintaining consistent torque delivery through the full angular travel of the center-pivot tongue design. The double CV configuration replicates the original 55N Weasler specification precisely: an 80-degree constant velocity joint on the tractor side to handle large steering angles and an integrated 50-degree CV joint on the discbine side for stable, vibration-free operation at 540 RPM. With a 1-1/2" x 23 spline implement end and tractor yoke options in 1-3/8" x 21 or 1-3/4" x 20 spline, this disc mower PTO shaft connects directly to the widest range of mid-to-high horsepower tractors used in hay and forage operations worldwide.

Whether you are replacing a worn-out original shaft mid-season during first-cut alfalfa, upgrading from a compromised aftermarket part, or stocking a spare PTO shaft for disc mower operations across multiple machines, this discbine PTO shaft delivers the reliability your operation demands. Built from cold-drawn seamless alloy steel tubing with precision-forged and heat-treated yokes, this PTO driveline shaft for disc mower applications is manufactured to CMN Transmission's rigorous in-house quality standards - the same standards that have earned the trust of farmers, contractors, and dealers across North America, Europe, South America, Southeast Asia, and beyond. Every shaft ships with a fully assembled CE-compliant PTO shaft guard, factory-greased cross-and-bearing kits, and all retention hardware.

Main Shaft: CAT 6 Double Constant Velocity

Original equipment is 55N Weasler 80 degrees on the tractor side and a 50-degree CV on the discbine. Input shafts are usually 1.50" x 23 splines.

Technical Specifications

Features of PTO Shaft for New Holland Discbine

1. CAT 6 Double Constant Velocity Engineering
The CAT 6 heavy duty shaft series is engineered for the power demands of wide-cut disc mower-conditioners like the New Holland Discbine 1431 and 1432. The double CV design, 80 degrees on the tractor side and 50 degrees on the implement side, eliminates the torsional vibration and pulsating torque that damages implement drivetrain components when operating at large steering angles. This is the precise engineering reason the original Weasler 55N double CV configuration was specified by New Holland for these models.

2. Precision-Forged Yokes and Greaseable Cross Kits
Every PTO shaft yoke is precision-forged from carbon steel and heat-treated for maximum strength under cyclic loading. The greaseable PTO shaft U-joints (cross-and-bearing kits) feature Zerk fittings for easy field maintenance, allowing operators to extend service life significantly compared to sealed non-serviceable units. Greaseable cross kits are essential on demanding mower applications where debris ingestion and high angular deflection accelerate bearing wear.

3. Full CE-Compliant PTO Shaft Guard and Cover
The included PTO shaft guard and PTO shaft cover assembly fully encloses the rotating shaft and CV joints to meet CE Machinery Directive safety requirements. The guard is manufactured from high-impact UV-stable plastic and includes a retention chain that anchors to the tractor or implement frame to prevent the guard from rotating with the shaft. This safety system protects operators from entanglement risk and is a mandatory requirement for operation in most agricultural markets worldwide.

4. Cold-Drawn Seamless Alloy Steel PTO Shaft Tubing
The PTO shaft tube and PTO shaft tubing sections are manufactured from cold-drawn seamless alloy steel, ensuring consistent wall thickness, excellent torsional strength, and resistance to shock loading under field conditions. The telescoping PTO shaft tube sections are precision-profiled for smooth engagement and disengagement throughout the working length range, preventing binding that causes premature wear on both the shaft and the implement gearbox input bearing.

5. Dual Tractor Spline Options for Universal Fitment
This disc mower PTO shaft is available with two standard PTO shaft sizes on the tractor-side yoke: 1-3/8" x 21 spline (standard on most utility tractors) and 1-3/4" x 20 spline (for higher horsepower tractors). Both configurations are matched to the implement-end 1-1/2" x 23 spline. This PTO shaft adapter-free design eliminates unnecessary coupling points, reducing maintenance complexity and maintaining the full torque rating of the shaft assembly. Specify your tractor spline when ordering.

6. ISO9001, CE and TS16949 Certified Manufacturing
Every agricultural PTO shaft produced by CMN Transmission is manufactured under ISO9001 quality management certification and meets CE machinery safety standards. Our TS16949 certification, the automotive-grade quality standard, reflects the precision machining standards applied to every PTO shaft parts we produce. All shafts undergo dimensional inspection, balancing verification, and surface treatment QC checks before shipment. This certified manufacturing process ensures that our custom PTO shaft and standard products perform consistently across the full service life.

How Does the Disc Mower PTO Shaft Work

The tractor PTO drive shaft is the critical mechanical link in the power delivery chain between the tractor engine and the New Holland Discbine disc mower-conditioner. When the tractor operator engages the PTO, the tractor transmission routes engine power to the rear PTO stub shaft, which rotates at 540 RPM (for standard 540 PTO shaft applications). The PTO drive shaft connects the tractor stub to the Discbine input shaft via two splined yoke engagements: one at the tractor end and one at the implement gearbox input end. From the implement input, the main cutterbar gearbox steps up the rotational speed and distributes power through the independent alloy drive shafts to each sealed disc module, spinning the cutting discs at approximately 3,000 RPM for high-throughput crop cutting.

A standard single-cardan PTO driveline shaft operates at constant velocity only when the input and output shafts are in perfect alignment. Under angular deflection, which is constant during side-cutting operations with the Discbine 1431/1432 center-pivot tongue design, a single-cardan joint introduces a cyclic speed variation (twice per revolution) that creates vibration, torque spikes, and accelerated wear throughout the drivetrain. The double CV design used in this discbine PTO shaft eliminates this problem. The two CV joints work together to cancel out the angular velocity variation: the first CV joint at the tractor end handles the large angular displacement introduced by tractor steering and tongue swing, while the second CV joint at the implement end maintains smooth, pulsation-free power delivery into the Discbine gearbox. This is why the New Holland 1431 and 1432, with their 38.5-degree center-pivot tongue swing, require a PTO drive shaft for discbine with a true double CV architecture rather than a simpler and cheaper wide-angle shaft.

During normal mowing operation, the PTO shaft tractor connection transmits continuous torque to drive the cutterbar discs, the conditioning system (rubber rolls or flail rotor), and the windrow shields. The telescoping PTO shaft tube sections allow the PTO shaft length to vary as the Discbine header rises and falls over uneven terrain and as the tongue angle changes during headland turns. This telescoping action is critical: a PTO shaft that is too short will disengage under extension, while one set too long will bottom out its inner tube and transmit axial force into the CV joints, causing rapid failure. The correct PTO shaft dimensions for the Discbine 1431/1432 application ensure the shaft operates in the middle of its extension range under normal field conditions, with adequate reserve at both extremes.

In configurations featuring a PTO shaft with slip clutch or shear bolt PTO shaft protection, the overload device is positioned at the implement input end to interrupt torque transmission before drivetrain damage can occur if the cutterbar encounters a rock, gopher mound, or severe crop blockage. A slip clutch PTO shaft uses a calibrated friction disc that slips at a preset torque, protecting both the shaft and the implement gearbox from shock loads while allowing the machine to resume cutting without stopping to replace a PTO shaft shear bolt. A shear pin PTO shaft design uses a sacrificial bolt or pin that fractures under overload a simple, low-cost protection system that requires the operator to install a replacement PTO shaft shear bolt after each event.

Applications of PTO Shaft for Disc Mower

1. Hay Harvesting
The primary use case for this PTO shaft for New Holland discbine. The disc mower cuts grasses and legumes into windrows or swaths, while the integrated conditioning rolls crimp and crack the stems to accelerate field drying before baling. The double CV tractor PTO shaft delivers smooth, continuous power through the full cutting width of the 13-foot Discbine 1431/1432, enabling high field speeds and uniform crop placement essential for quality first-crop hay.

2. Forage Harvesting
Mowing high-value crops such as alfalfa, clover, and ryegrass at the right stage of maturity to maximize nutritional content for livestock feed, whether stored as dry hay or green chop. The PTO driveline shaft for disc mower operations ensures power is delivered without interruption across multiple cuts per season, maintaining consistent disc speed for clean, low-loss cuts that preserve leaf material and maximize forage quality.

3. Silage Production
Cutting crops at higher moisture levels for fermented silage storage in bunkers, pits, or wrapped bales, where fast, even cutting ensures uniform fermentation. A reliable discbine PTO shaft is critical in silage operations where any downtime represents significant loss of fermentable crop quality. The CAT 6 double CV design handles the torque demands of cutting dense, heavy grass and legume crops at higher field speeds, maintaining throughput in challenging conditions.

4. Pasture Management
Topping and trimming pastures to control rank or stemmy growth, remove weeds, and encourage fresh, palatable re-growth for grazing animals. The agricultural PTO shaft on the Discbine 1431/1432 efficiently powers the wide cutterbar through varied pasture conditions, including areas with uneven terrain, fire ant mounds, and gopher hills. The center-pivot tongue design allows the mower to follow irregular field boundaries while the double CV PTO drive shaft maintains smooth power delivery at all tongue angles.

5. Cover Crop Termination
Cutting down winter cover crops such as cereal rye or vetch ahead of planting season, leaving the biomass as a protective mulch layer to suppress weeds and protect soil structure. This application demands a robust heavy duty PTO shaft capable of handling the variable density and maturity of cover crop biomass. CMN Transmission's CAT 6 shaft provides the torque reserve needed for consistent performance even when encountering lodged, wet, or dense cover crop stands typical of spring termination timing.

6. Roadside and Specialty Mowing
Maintaining roadsides, drainage ditches, airport buffer strips, and conservation headlands where a clean, controlled cut is needed in irregular or sensitive areas. The double CV PTO driveline shaft of the Discbine excels in these environments where frequent angular changes, stops, and starts are required. The 38.5-degree center-pivot tongue swing allows the Discbine 1431/1432 to navigate tight corners and obstacles while the tractor PTO drive shaft continues delivering smooth, vibration-free power to the cutterbar.

Installation Steps

1. Safety Preparation Before Installation
Before beginning any PTO shaft installation work, shut down the tractor engine completely, engage the parking brake, and wait for all rotating components to come to a full stop. Disconnect the PTO by pulling the engagement lever to the disengaged position. Ensure the tractor key is removed and placed in your pocket to prevent accidental restarting. Lower the Discbine header fully to the ground to relieve hydraulic pressure and prevent unintended movement. Wear appropriate personal protective equipment, including heavy gloves, as PTO shaft yoke edges are sharp and cross kits can have burrs from shipping.

2. Measure and Record the Original PTO Shaft Length
Before removing the old PTO drive shaft for discbine, measure and record the collapsed length and extended length of the existing shaft assembly in the operating position. This measurement is your reference for setting the new shaft to the correct working length. The correct PTO shaft length should leave at least 1/3 of the inner tube engaged inside the outer tube when the shaft is at maximum extension, and must not bottom out (compress fully) when the Discbine header is fully lowered. Incorrect PTO shaft dimensions are the most common cause of premature CV joint and telescoping failure.

3. Remove the Old PTO Shaft Assembly
Release the PTO shaft guard retention chain from the tractor and Discbine anchor points. Depress the tractor-side retention collar button and slide the yoke off the tractor PTO stub shaft. Then release the implement-side collar and slide the yoke off the Discbine input shaft. Remove the old shaft assembly and guard. Inspect the tractor PTO stub and Discbine input shaft for wear, corrosion, or damage to the splines. Clean both shafts with a wire brush and apply a thin film of grease to the splines before installing the new disc mower PTO shaft.

4. Identify and Prepare the New Shaft Ends
Lay the new PTO shaft for New Holland discbine assembly on a clean surface. Identify the tractor end (80-degree CV yoke, matching your tractor spline specification) and the implement end (50-degree CV yoke, 1-1/2" x 23 spline). Apply a generous film of multi-purpose grease to both the tractor stub and implement input shaft splines. Check that the new PTO shaft yoke locking collar mechanism moves freely. If a shear bolt PTO shaft overload device is included, confirm the shear bolt is correctly installed per the product documentation before proceeding.

5. Install and Secure Both Shaft Ends
Starting with the implement end, align the PTO shaft splines with the Discbine input shaft, slide the yoke on until the retention collar clicks positively into the locking groove. Confirm engagement by attempting to pull the yoke off — it should not disengage without depressing the collar button. Repeat the installation for the tractor-side yoke, aligning the splines and pushing firmly until the collar locks. Gently pull-test both connections. Anchor the PTO shaft guard retention chains to their respective attachment points on the tractor and Discbine, ensuring the guard does not rotate with the shaft.

6. Low-Speed Test Run and Final Verification
Start the tractor and engage the PTO at low engine speed (900-1000 RPM engine) while standing well clear of the PTO driveline shaft. Observe the shaft for smooth rotation, correct guard alignment, and any signs of vibration or binding. Raise and lower the Discbine header through its full range of motion with the PTO running at low speed to confirm the shaft telescopes freely and maintains engagement throughout. Once satisfied with the low-speed test, increase engine speed to the rated 540 RPM PTO speed and perform a short field test before returning to full production use. Grease all PTO shaft U-joint cross kits before the first field operation.

Maintenance Tip for Discbine PTO Drive Shaft

1. Regular Greasing of Cross-and-Bearing Kits
Grease all PTO shaft U-joint cross-and-bearing kit Zerk fittings every 8 hours of operation or at least once weekly during active harvesting seasons. Use a quality EP2 multi-purpose grease and pump until fresh grease begins to purge from the bearing seals. Under-greasing of the PTO shaft universal joint assemblies is the single most common cause of premature cross bearing failure on agricultural PTO shafts. Do not use high-pressure grease guns at excessive pressure, as this can blow out the bearing needle roller cups.

2. PTO Shaft Guard Inspection
Inspect the PTO shaft guard and PTO shaft cover assembly before every use. Look for cracks, missing sections, or damage to the plastic guard halves. Check that the retention chains are intact and firmly anchored. A damaged or missing PTO shaft guard creates a serious operator entanglement hazard and is a regulatory violation in most jurisdictions. Replace any cracked or broken guard sections immediately; CMN Transmission supplies replacement guard parts and components as part of our PTO shaft parts range.

3. PTO Shaft Tube and Spline Lubrication
The telescoping PTO shaft tubing sections should be separated and lubricated at the beginning of each working season and after any prolonged storage period. Separate the two tube sections, clean the inner tube profile and outer tube bore with a brush, and apply a light film of grease before re-engaging. Lubricated PTO shaft tube profiles telescope smoothly throughout the working range, preventing the binding and jerky extension that causes fatigue cracking in the shaft tube walls and damages the CV joints through axial shock loading.

4. U-Joint and CV Joint Play Inspection
With the PTO disengaged and the tractor shut down, manually grasp each yoke on the PTO drive shaft and check for angular play in the PTO shaft U-joint and CV joints by attempting to rock the yoke relative to the adjacent shaft section. Any detectable radial play in the cross bearings indicates wear that will quickly progress to total bearing failure and shaft vibration. Identify and replace worn PTO shaft universal joint cross kits before the season begins to prevent in-field breakdowns at critical harvesting time.

5. Seasonal Storage Preparation
At the end of the harvesting season, disconnect the disc mower PTO shaft from both tractor and implement, clean the shaft and guard assembly thoroughly, and apply a preservative grease to all exposed metal surfaces including the spline yokes and PTO shaft tube profiles. Store the shaft horizontally in a dry, covered location away from UV exposure, which degrades the plastic PTO shaft cover and guard components over time. Using the original packaging or a purpose-made shaft storage bracket prevents the shaft from being stepped on or accidentally run over during storage.

6. Shear Bolt Inspection and Replacement
On units equipped with a shear bolt PTO shaft or shear pin PTO shaft overload protection device, visually inspect the PTO shaft shear bolt at the beginning of each operating day. A shear bolt that has been partially sheared but has not fully fractured provides inadequate overload protection and should be replaced immediately with the correct grade and specification bolt. Never substitute a higher-grade bolt as this defeats the protection function. Always carry a supply of correct replacement shear bolts in the tractor toolbox when operating in rocky or debris-prone fields where overload events are more likely.

Common Troubleshooting

1. Excessive Vibration During Operation
Cause: Worn or failed PTO shaft U-joint cross bearings, imbalanced shaft assembly, or incorrect shaft phasing angle. Fix: Check all PTO shaft universal joint cross kits for radial play. Replace worn kits. Verify the two shaft tube sections are assembled with yoke ears in the same plane (correct phasing). If vibration persists with new cross kits, inspect the PTO shaft yoke for cracks or bends and replace if damaged. Verify shaft is not operating at extreme extension or compression throughout the field operation cycle.

2. CV Joint Binding or Stiff Articulation
Cause: Insufficient lubrication, contamination of the CV joint internals, or operating beyond the rated angular range. Fix: Grease the CV joint through its dedicated Zerk fitting. If binding persists after greasing, the CV joint internals may be contaminated or scored from previous dry operation. In this case, the CV joint assembly requires replacement. Ensure the Discbine center-pivot tongue does not swing beyond 38.5 degrees during field operation, as exceeding the CV joint angular limit causes internal binding and rapid wear in the PTO drive shaft for discbine.

3. Unusual Clicking or Knocking Noise
Cause: Failed or severely worn cross bearing needle rollers, loose yoke collar, or debris caught in the guard assembly. Fix: Stop operation immediately upon noticing unusual noises from the tractor PTO shaft assembly. Disengage PTO, shut down, and inspect all cross kits for needle roller failure (indicated by metallic particles in the grease or visible scoring of the cross pin journals). Replace any failed cross-and-bearing kits. Inspect the PTO shaft guard for contact with the rotating shaft that could indicate guard mounting chain failure. Do not continue operating with a noisy PTO driveline shaft.

4. Shaft Disengaging from Implement Under Load
Cause: Worn retention collar locking groove on the implement input shaft or worn collar retention button on the PTO shaft yoke. Fix: Inspect the implement input shaft locking groove for rounding or wear. If the groove is worn, the input shaft may require replacement. Inspect the PTO shaft yoke collar button and spring mechanism; if the spring tension is weak or the button is worn, replace the yoke collar assembly. Never operate with a shaft that is not positively retained on both ends, as disconnection under load creates serious safety and equipment damage risks.

5. Telescoping Sections Difficult to Extend
Cause: Corrosion, lack of lubrication, or impact damage to the PTO shaft tube profiles causing binding. Fix: Separate the inner and outer PTO shaft tubing sections, clean the telescoping profiles with a wire brush to remove corrosion and dried grease, then lubricate generously with EP grease before reassembly. If the profile sections have been bent from impact damage, they may need to be replaced. To prevent recurrence, lubricate the profiles at the start of each season and after washing the shaft with a pressure washer, which can strip lubrication from the tube profiles.

6. Premature Cross Bearing Failure
Cause: Inadequate greasing intervals, overspeeding (running at 1000 RPM on a 540-rated agricultural PTO shaft), or operating at excessive angular deflection. Fix: Review and increase greasing frequency to a maximum of every 8 operating hours. Confirm the tractor PTO is operating at 540 RPM, not 1000 RPM. Inspect the Discbine tongue angle during operation to confirm it is within the rated angular range of the CV joint. If cross bearing life is consistently short despite correct maintenance, the operating condition (field speed, crop density, terrain) may require upgrading to a higher-series heavy duty PTO shaft.

Disc Mower PTO Shaft and Disc Mower Gearbox

The disc mower PTO shaft is the external power transmission component connecting the tractor to the disc mower or disc mower-conditioner. In the context of the New Holland Discbine 1431 and 1432, the PTO shaft for New Holland discbine is a CAT 6 Double Constant Velocity assembly that transfers rotational power from the tractor PTO stub shaft at 540 RPM to the implement's main input gearbox. The double CV design is uniquely suited to wide-cut disc mower applications because it eliminates torsional vibration and speed fluctuation under large angular deflection, which is inherent to the center-pivot tongue design of these machines. This tractor PTO shaft is exposed to the elements, subject to angular changes during operation, and must be routinely maintained and periodically replaced as a service component. CMN Transmission supplies the complete range of PTO shaft parts including replacement CV joints, cross kits, yokes, guards, and full shaft assemblies to maintain operational continuity across the service life of the implement.

The disc mower gearbox is the enclosed power distribution system inside the disc mower cutterbar itself. In the New Holland Discbine modular design, this refers to both the main input gearbox (which receives power from the agricultural PTO shaft and distributes it to the cutterbar) and the individual sealed disc module gear cases that step up the speed from the module driveline to the disc speed of approximately 3,000 RPM. Each disc module gear case is individually sealed and lubricated, containing precision-forged bevel and spur gears that convert the relatively low-speed driveline rotation into the high-speed disc rotation required for efficient, clean crop cutting. The disc mower gearbox operates in a continuous enclosed oil bath, is largely maintenance-free between 200-hour oil change intervals, and is designed to be individually replaced if a single module is damaged, without requiring replacement of the entire cutterbar. CMN Transmission manufactures and supplies a complete range of disc mower gearboxes, including center input gearboxes, intermediate module gearboxes, and end module assemblies, compatible with New Holland Discbine and other leading disc mower brands.

The disc mower PTO shaft and the disc mower gearbox system are functionally inseparable: one delivers power to the machine, the other distributes it through the cutting mechanism. The interface between them is the implement input shaft, where the PTO shaft for disc mower yoke engages the input shaft of the main cutterbar gearbox via the 1-1/2" x 23 spline connection. If the PTO drive shaft delivers power with torsional vibration (as a worn or incorrect shaft would), the cyclic torque spikes are transmitted directly into the gearbox input bearing, accelerating wear and potentially fracturing gear teeth. Conversely, a damaged gearbox input bearing or gear can cause the PTO shaft to run out of alignment, accelerating CV joint and cross bearing wear. This is why CMN Transmission recommends inspecting both the PTO driveline shaft and the disc mower gearbox together during any service event, and why we stock both product families to enable one-stop procurement for our global agricultural customers.

Why Choose CMN Transmission's Agricultural PTO Shafts?

CMN Transmission (Korea) stands as one of the world's leading suppliers of industrial and agricultural power transmission solutions, with a comprehensive product range spanning PTO drive shafts, agricultural gearboxes, hydraulic cylinders, planetary gearboxes, worm gearboxes, bevel gears, chain sprockets, chains, gear racks, pulleys, taper bushes, couplings, and more. Headquartered in Ansan-si, Gyeonggi-do, Korea, with a dedicated production base and over 10 shareholding cooperative factories, we maintain an inventory of more than 150,000 standard stock products and serve customers in over 53 countries across North America, Europe, South America, the Middle East, Africa, Southeast Asia, and Oceania.

What sets CMN Transmission apart in the agricultural PTO shaft market is our commitment to factory-direct pricing without sacrificing quality. As an integrated manufacturing and trading company, we eliminate the multiple dealer markups that inflate the cost of OEM replacement parts. Every tractor PTO shaft we produce is manufactured using advanced CAD design, precision CNC machining, modern heat treatment processes, and rigorous quality testing. Our products carry ISO9001, CE, and TS16949 certifications, ensuring compliance with international safety and performance standards.

Beyond product quality, we offer a level of customer support that large OEM brands often cannot match. Our technical team provides pre-sale consultation to confirm spline configurations, PTO shaft dimensions, and clutch specifications for your exact tractor and implement combination. We offer custom PTO shaft parts for non-standard applications and provide detailed dimensional drawings upon request. After the sale, our one-stop after-sales service ensures that replacement PTO shaft parts, technical guidance, and warranty support are always accessible. When you choose CMN Transmission, you are choosing a partner committed to keeping your equipment running efficiently, reliably, and safely, season after season.

FAQ

Q: What PTO shaft fits the New Holland Discbine 1431 and 1432?
A: The correct PTO shaft for New Holland discbine 1431 and 1432 is a CAT 6 Double Constant Velocity (Double CV) shaft equivalent to the original 55N Weasler 80x50-degree configuration. The implement end requires a 1-1/2" x 23 spline yoke. The tractor end is available in 1-3/8" x 21 spline (for most utility tractors) or 1-3/4" x 20 spline (for higher-horsepower tractors). Both the 1431 (rubber roll conditioning) and 1432 (flail conditioning) models use the same PTO shaft for disc mower specification, as both share the same cutterbar, gearbox input, and center-pivot tongue assembly.

Q: What does CAT 6 mean for PTO shaft classification?
A: CAT 6 refers to the ISO 500 series classification system for agricultural PTO shafts, which categorizes shafts by their torque rating and physical dimensions. The category system runs from CAT 1 (light duty) through CAT 8 (very heavy duty). CAT 6 is a heavy-duty PTO driveline shaft category rated for high-torque implements such as 10-disc to 12-disc wide-cut disc mower-conditioners. The PTO shaft dimensions, tube diameter, wall thickness, yoke size, and cross kit specifications for CAT 6 shafts are standardized under ISO 500, ensuring interchangeability between brands in the same category when correctly specified.

Q: Can I use a 1000 PTO shaft on a New Holland Discbine 1431/1432?
A: No. The New Holland Discbine 1431 and 1432 are designed to operate exclusively at 540 RPM. Using a 1000 PTO shaft or 1000 rpm PTO shaft on these models would severely over-speed the cutterbar disc system (designed for 3,000 disc RPM from a 540 PTO input) and the conditioning system, causing immediate catastrophic damage to the implement drivetrain. Always verify your tractor's PTO speed selection (most modern tractors offer both 540 and 1000 RPM outputs) and confirm it is set to 540 RPM before engaging the Discbine. CMN Transmission also manufactures 1000 rpm PTO shaft assemblies for other implement applications; please specify the correct operating speed when ordering.

Q: Why does a disc mower need a double CV PTO shaft instead of a standard wide-angle shaft?
A: The New Holland Discbine 1431/1432 center-pivot tongue swings up to 38.5 degrees in either direction during field operation. At these large angles, a single wide-angle CV joint still introduces a velocity variation in the power delivery (second-order vibration), causing torque pulses that damage the implement gearbox input bearing and shorten the service life of the PTO shaft universal joint assemblies. A discbine PTO shaft with true double CV geometry uses two complementary CV joints to cancel this velocity variation completely, delivering smooth, constant rotational speed to the Discbine input shaft regardless of tongue angle. This is why the original equipment on the 1431 and 1432 is a double CV shaft, not a simpler single-CV or standard PTO drive shaft.

Q: Is this PTO shaft a direct replacement for the original Weasler unit?
A: Yes. This CMN Transmission shaft is engineered as a functional replacement of Weasler PTO shaft to the same 55N series CAT 6 Double CV specification. The yoke spline dimensions, CV joint angles (80 degrees tractor / 50 degrees implement), and overall shaft geometry are dimensionally equivalent to the original Weasler equipment. The PTO shaft sizes and interface specifications match the New Holland Discbine 1431 and 1432 input shaft requirements exactly. No adapter or modification is required for installation. CMN Transmission's factory-direct pricing typically represents a 40-60% cost saving versus OEM replacement pricing while maintaining equivalent engineering performance.

Q: Can I order a custom PTO shaft length from CMN Transmission?
A: Yes. CMN Transmission offers custom PTO shaft manufacturing for non-standard PTO shaft length requirements. If your tractor-to-implement spacing differs from the standard Discbine configuration due to a drawbar extension, front hitch adapter, or other modification, our engineering team can manufacture a shaft to your specified collapsed and extended length. When requesting a custom PTO shaft, please provide the compressed length (shaft at minimum length), extended length (shaft at maximum operating length), tractor spline, implement spline, CV joint angle requirements, and operating PTO speed. Dimensional drawings are available upon request for pre-order verification.

Q: How do I know when my PTO shaft U-joints need replacing?
A: Warning signs that your PTO shaft U-joint or PTO shaft universal joint cross kits need replacement include: noticeable vibration or shuddering during PTO engagement that was not previously present; clicking or knocking sounds from the shaft at operating speed; visible rust staining or metallic debris around the cross bearing caps; any detectable angular play when manually rocking the yoke against the cross pin with the PTO disengaged and the tractor shut down; or cross bearing caps that are visibly cracked, split, or have lost their needle rollers. Do not continue operating with failed cross kits, as secondary damage to the yoke bores makes the repair significantly more expensive. CMN Transmission supplies replacement cross-and-bearing kit assemblies as individual PTO shaft parts.

Q: Does this PTO shaft include a slip clutch overload protection?
A: The standard configuration of this disc mower PTO shaft does not include a slip clutch or shear bolt overload device, as the New Holland Discbine 1431 and 1432 incorporate overload protection within the implement's own drivetrain. However, if your operating environment or insurance requirements call for a PTO shaft with slip clutch or slip clutch PTO shaft assembly as an additional protection layer, CMN Transmission can supply this configuration. The slip clutch PTO shaft version uses a calibrated friction disc clutch that slips at a preset torque without requiring operator intervention to reset, making it ideal for high-volume contractors cutting in fields with hidden rocks or debris. Specify this requirement at time of ordering.

Q: How do I properly grease the PTO shaft cross kits and CV joints?
A: To grease the PTO shaft U-joint cross-and-bearing kits on your agricultural PTO shaft, locate the Zerk grease fittings on each cross kit (one fitting per cross, typically accessible through the guard). Use a standard grease gun loaded with EP2 multi-purpose grease. Apply steady pressure until fresh grease begins to emerge from the bearing seal lips on all four bearing cups of the cross, confirming that all needle rollers have received fresh lubrication. Do not apply excessive pressure, which can blow out bearing seals. The CV joint center ball assembly should also be greased through its dedicated fitting. Grease intervals: every 8 operating hours during active use, and before any period of storage exceeding two weeks.

Q: What tractor horsepower is required to run the Discbine 1431/1432 with this PTO shaft?
A: The New Holland Discbine 1431 and 1432 are 10-disc, 13-foot wide-cut mower-conditioners that New Holland specifies require approximately 80-100 PTO horsepower for optimal performance. This CMN Transmission CAT 6 heavy duty PTO shaft is rated for the torque loads associated with this horsepower range. The tractor PTO shaft and tractor PTO drive shaft assembly is engineered to transmit the full power of a 100 HP class tractor continuously without overheating or fatigue failure under normal operating conditions. Using a tractor with less than 80 PTO HP may result in under-performance in dense or wet crop conditions, but will not damage the shaft. Always select the correct tractor spline option (1-3/8" x 21 or 1-3/4" x 20) to match your tractor's PTO stub shaft.
