PTO Shaft for Hesston Square Balers 4690, 4690S

Reliable PTO Shaft for Hesston Square Baler Models

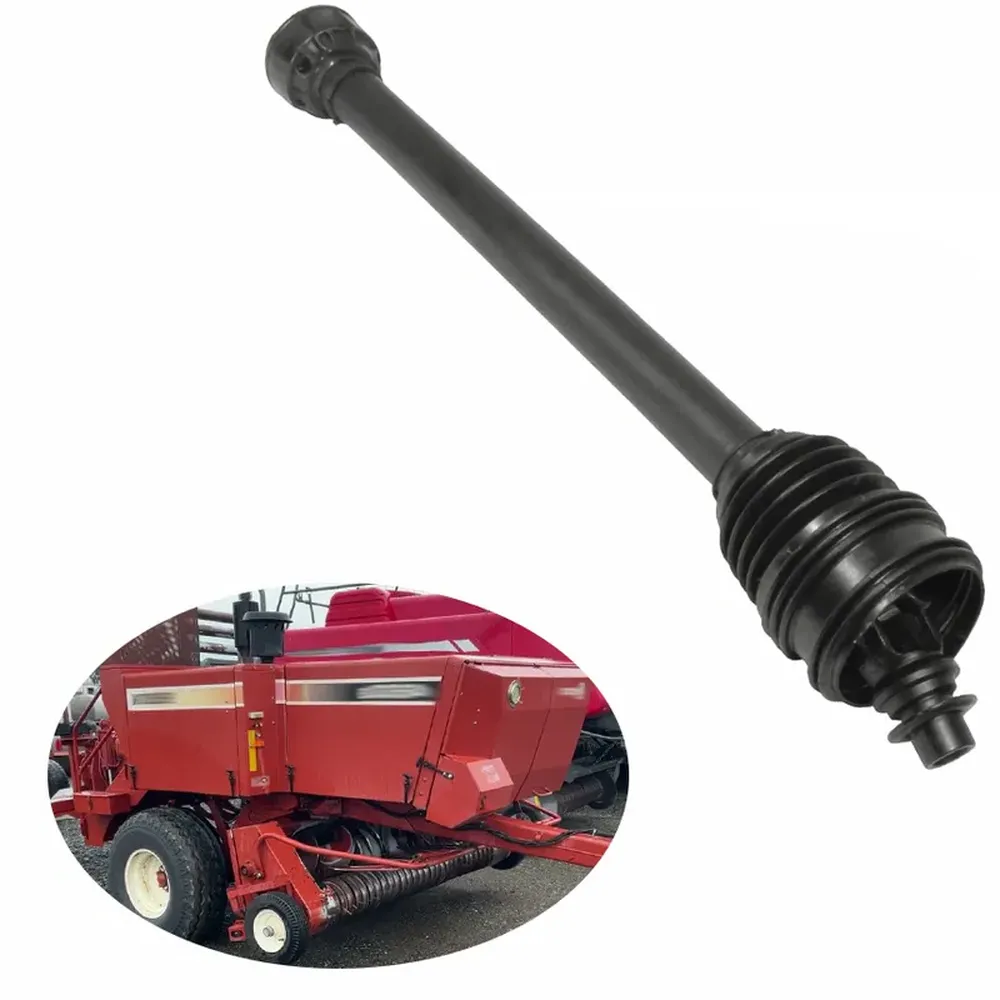

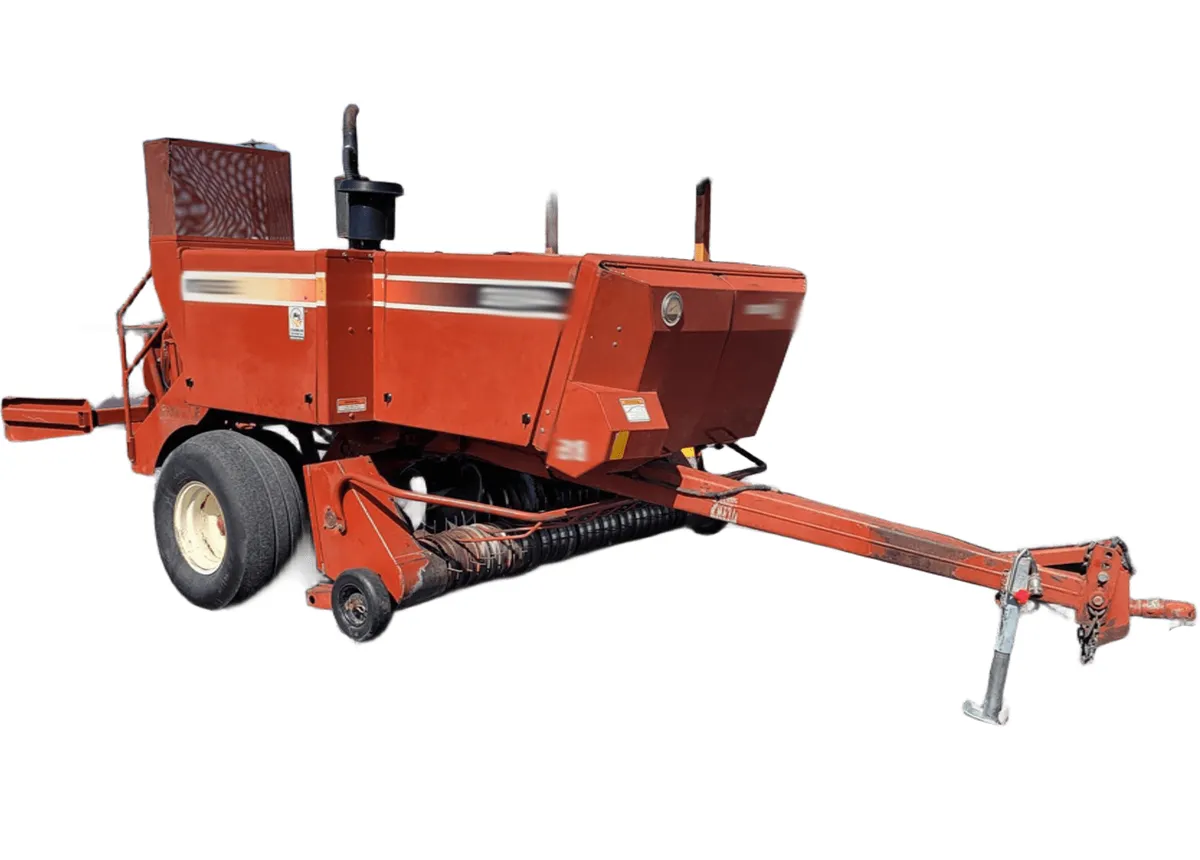

PTO Shaft for Hesston Square Baler Model: 4690, 4690S

The CMN Transmission PTO shaft for Hesston Square Baler models 4690 and 4690S is a precision-engineered tractor PTO drive shaft designed to deliver consistent, reliable power transfer from your tractor to your baler. Built with high-strength forged steel and featuring a constant velocity (CV) design, this agricultural PTO shaft ensures smooth torque delivery even under the most demanding field conditions. Whether you are baling wheat straw across flat farmland or handling dense alfalfa on rolling terrain, this heavy duty PTO shaft maintains optimal alignment and eliminates vibration for uninterrupted baling operations throughout the season.

Engineered as a direct replacement of Hesston PTO shaft assemblies, this PTO driveline shaft features telescopic tubing that adjusts to varying distances between your tractor and baler, accommodating sharp turns and uneven terrain without compromising power delivery. The PTO shaft universal joint system allows efficient power transfer at variable angles, making it ideal for large-scale hay production, commercial straw baling, and multi-crop harvesting operations. This square baler PTO shaft is CE certified and meets ISO quality standards, delivering OEM-level fit and function at a competitive price point.

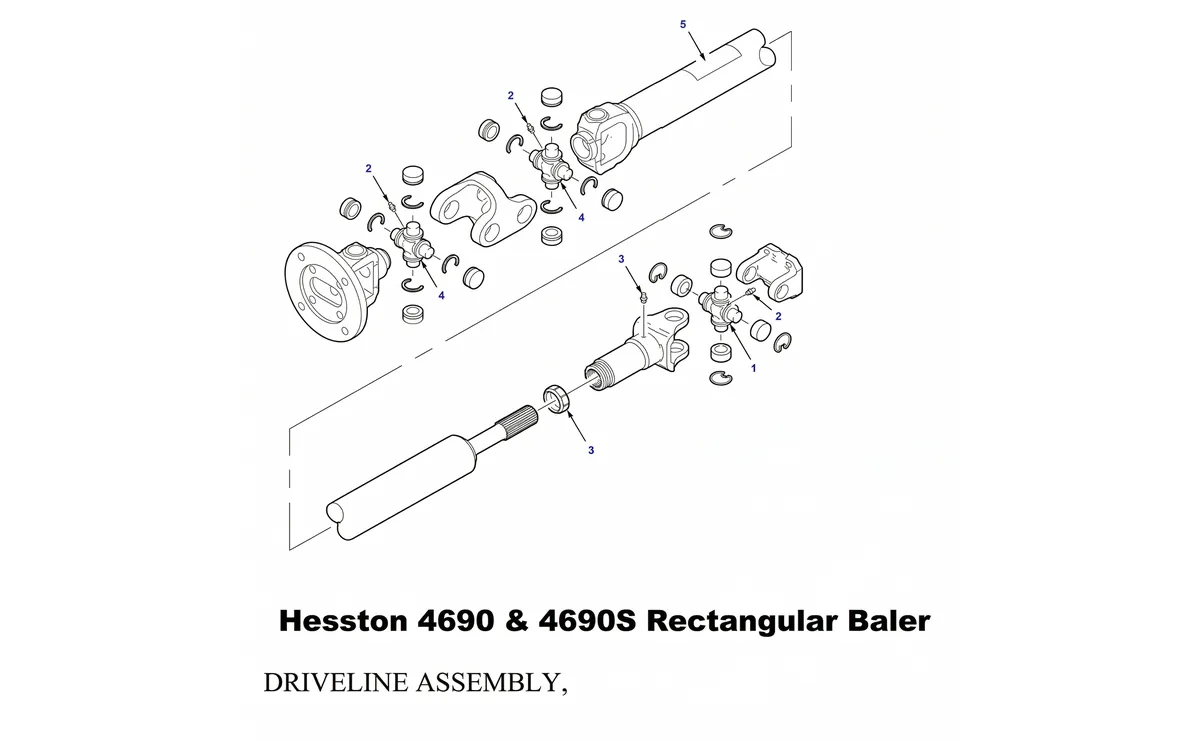

Main Shaft

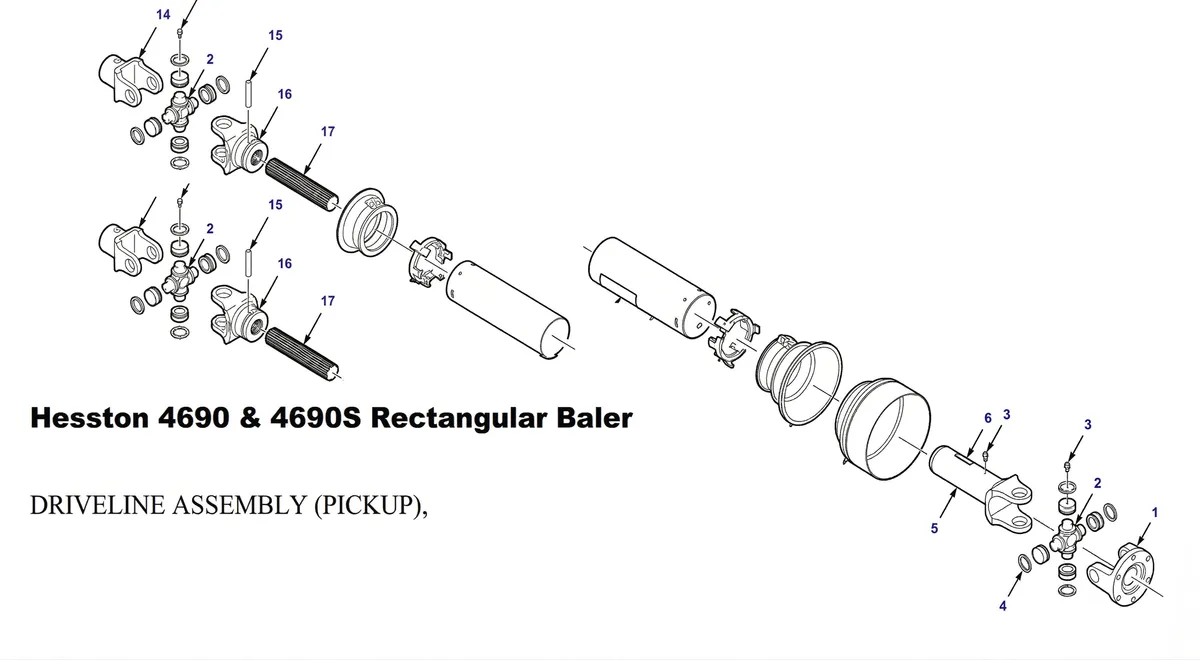

Pickup Shaft

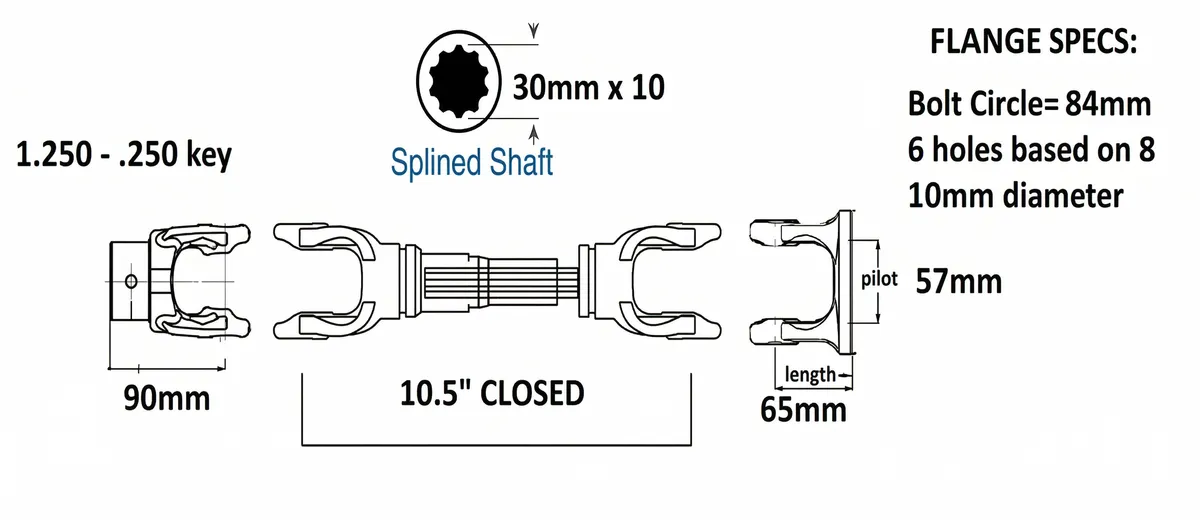

Technical Specifications

Features of PTO Drive Shaft for Hesston Square Baler

• Constant Velocity (CV) Design
  Unlike standard universal joint shafts, this PTO drive shaft employs a constant velocity joint system that delivers uniform rotational speed regardless of the operating angle. This eliminates the pulsation and vibration commonly associated with traditional PTO shaft u joint configurations, reducing mechanical stress on your Hesston baler's input gearbox and extending the service life of all connected drivetrain components.
• High-Torque Capacity
  Rated at 53 HP and 360 Nm at 1000 RPM PTO shaft speed, this driveline is purpose-built for the demanding torque requirements of large square balers. The Hesston 4690 and 4690S require consistent high-torque power to compress and knot dense bales weighing up to 2,000 lbs, and this heavy duty PTO shaft delivers that force reliably across extended operating sessions without overheating or fatigue failure.
• Telescopic PTO Shaft Tube
  The precision-machined PTO shaft tube features a telescopic design that accommodates varying distances between your tractor and the Hesston baler as the implement tracks through turns, over hills, and across uneven terrain. The PTO shaft tubing slides smoothly on hardened internal surfaces, maintaining secure overlap in all working positions without the risk of bottoming out or disengaging during operation.
• CE Certified Safety Guard
  Every CMN Transmission PTO shaft cover is CE certified and manufactured from impact-resistant polymer materials. The full-length safety shield tube rotates freely around the spinning driveline, providing critical operator protection while allowing easy visual inspection of the shaft. The PTO shaft cover is designed with quick-release retaining clips for fast removal during maintenance or PTO shaft parts replacement.
• Direct OEM Replacement Fit
  Engineered as a direct replacement of Hesston PTO shaft assemblies, this unit replaces Bondioli & Pavesi part number BPCV612100101 without requiring any shimming, adapters, or modifications. The 6-spline, 1-3/8" tractor end PTO shaft yoke slides directly onto the tractor's PTO output shaft, and the implement end connects securely to the baler's input coupling, ensuring a bolt-on installation that saves valuable field time.
• Carburized Steel Construction
  All critical components including the PTO shaft yoke, cross journals, and bearing caps are manufactured from carburized steel for exceptional surface hardness and core toughness. This heat treatment process creates a wear-resistant outer layer while maintaining internal ductility, allowing the PTO shaft universal joint assemblies to absorb shock loads from dense crop bales without cracking or premature bearing failure in the field.

How the PTO Shaft for Square Baler Works

The PTO shaft for square baler serves as the primary mechanical link between the tractor's power take-off output and the Hesston 4690/4690S baler's input driveline. When the tractor operator engages the PTO, the tractor's transmission diverts a portion of engine power to the PTO output stub shaft, which rotates at a standardized speed of 1000 RPM. This rotating output stub connects to the tractor end PTO shaft yoke via a 6-spline, 1-3/8" coupling that transfers rotational force to the driveline assembly.

The constant velocity joint at the tractor end of the PTO driveline shaft converts the straight-line rotation from the tractor's PTO output into angular rotation that can be transmitted at varying angles as the baler tracks behind the tractor. Unlike a standard PTO shaft u joint (Cardan joint) that creates cyclical speed variation at operating angles, the CV joint maintains uniform rotational velocity, which is essential for smooth plunger operation in the Hesston square baler. Consistent plunger speed directly impacts bale density uniformity and knotter timing accuracy.

From the CV joint, rotational power passes through the PTO shaft tube assembly, which consists of two precision-machined telescopic steel tubes that slide within each other. This telescopic section allows the PTO drive shaft to extend and retract as the distance between the tractor's drawbar and the baler changes during turns, when traversing uneven ground, or when the tractor pulls forward or reverses. The overlapping tube section must maintain a minimum engagement length at all times to ensure structural integrity under full torque load.

At the implement end, the driveline connects to the Hesston baler's input shaft through the implement-side yoke and coupling mechanism. The tractor PTO shaft delivers the 1000 RPM rotational energy into the baler's internal gearbox, which then distributes power to multiple mechanical systems within the baler: the pickup reel that gathers windrow material from the field, the auger and feeder system that moves crop into the compression chamber, the plunger mechanism that compresses material into dense rectangular bales, and the knotter system that ties each completed bale with twine. The entire baling cycle depends on the PTO drive shaft providing smooth, uninterrupted power delivery from the tractor to these interconnected systems.

The safety guard, or PTO shaft cover, surrounds the entire rotating assembly and is supported by bearing rings that allow the shield to remain stationary while the internal shaft spins at high speed. This shield prevents accidental contact with the rotating PTO shaft components, which is a critical safety requirement on all modern agricultural equipment.

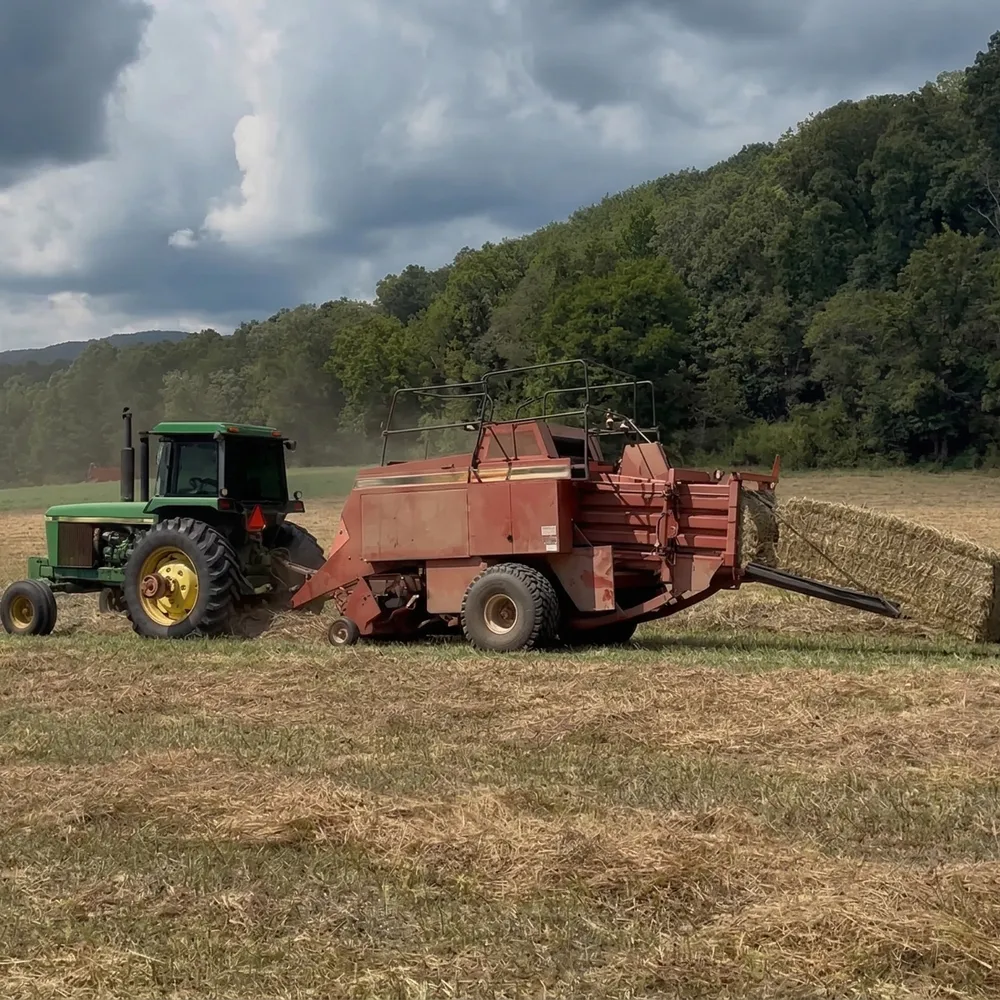

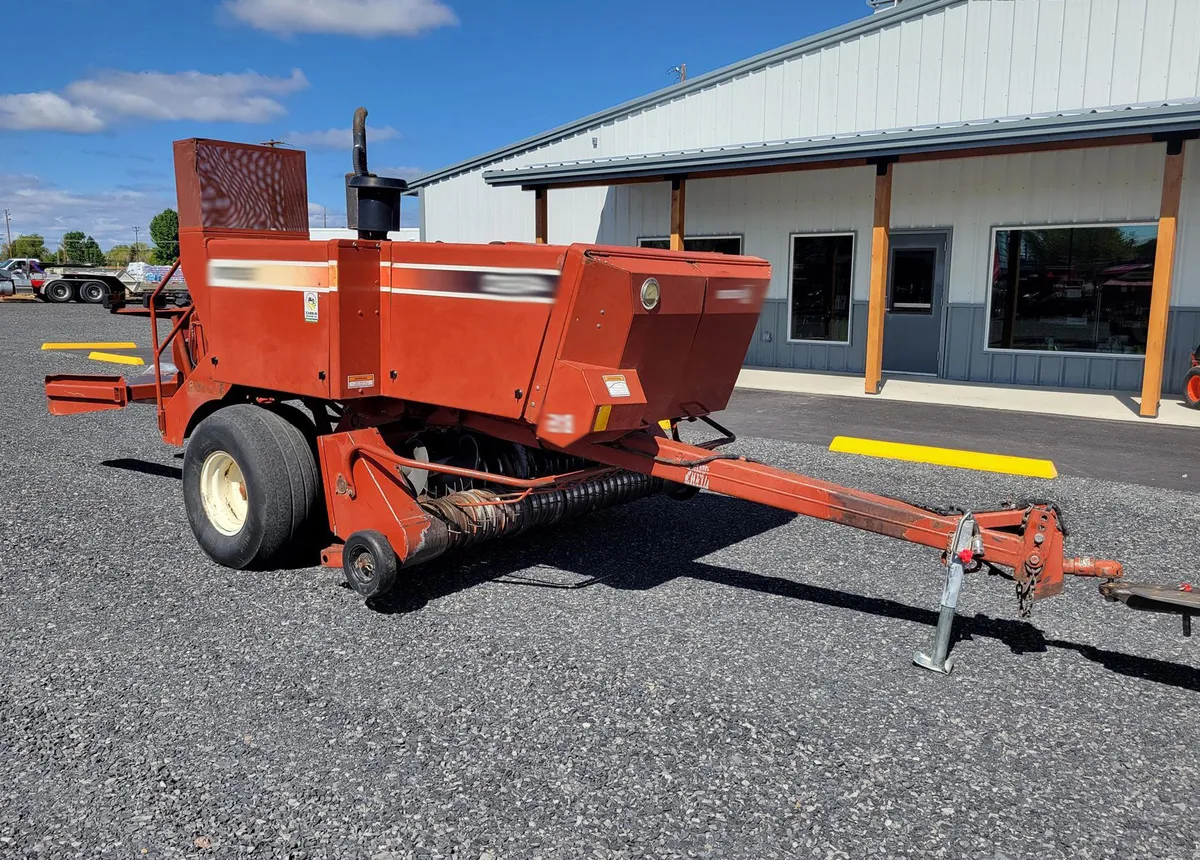

Square Baler PTO Shaft Applications

• Silage
  The PTO shaft for Hesston square baler delivers the sustained high-torque output required for compressing wet, heavy silage material into uniform rectangular bales. Silage baling demands consistent plunger force because the higher moisture content increases material density significantly, and this heavy duty PTO shaft maintains reliable power transfer throughout long silage harvesting sessions without overheating or mechanical slip.
• Wheat Straw
  Wheat straw baling is one of the most common applications for this square baler PTO shaft. The relatively light and dry nature of wheat straw allows for fast baling speeds, and the CV design of this tractor PTO drive shaft ensures smooth, vibration-free operation even at maximum throughput. The consistent rotational speed helps the knotter system produce reliable ties on every bale, reducing field stops for retying.
• Rice Straw
  Rice straw is often baled in humid conditions and on soft, wet paddy fields where terrain irregularity is significant. The telescopic PTO shaft tubing and constant velocity joints on this driveline absorb the constant changes in tractor-to-baler distance caused by field conditions, keeping power delivery stable as the baler navigates rice paddies. This agricultural PTO shaft ensures the pickup and compression systems operate without interruption.
• Corn Silage
  Corn silage baling places peak torque demands on the PTO driveline shaft due to the thick, fibrous stems and high moisture levels typical of chopped corn material. The carburized steel PTO shaft universal joint bearings in this driveline are specifically designed to withstand shock loads from dense corn silage packing, and the 53 HP rating at 1000 RPM provides ample power reserve for continuous high-density bale production.
• Pasture Grass
  For pasture grass baling operations on cattle ranches and dairy farms, this PTO shaft tractor connection delivers smooth and reliable performance across varying grass densities and field conditions. Pasture baling often involves long operating hours and frequent turning on smaller paddocks, and the PTO drive shafts telescopic design easily accommodates the tighter turning radius required in these environments without binding or excess stress.
• Alfalfa
  Alfalfa is a high-value forage crop that requires careful baling to preserve leaf retention and nutritional quality. The 540 PTO shaft and 1000 PTO shaft speed compatibility of this driveline ensures that the Hesston baler's plunger operates at the manufacturer-specified strokes per minute, producing consistently sized bales with uniform density. Smooth power delivery from this custom PTO shaft minimizes leaf shatter during the compression process.
• Reeds
  Reed baling for biomass or thatching applications involves processing tough, fibrous stems that place significant stress on the baler's compression mechanism and the PTO shaft driveline. This heavy duty unit's carburized steel construction and high-torque capacity ensure that the driveline withstands the repeated shock loading that occurs when dense reed bundles enter the baler's compression chamber. The robust PTO shaft yoke connections resist deformation under these peak loads.
• Cotton
  Cotton module baling and cotton stalk residue processing require a dependable tractor PTO shaft that can maintain consistent speed under fluctuating load conditions. Cotton residue can be abrasive and fibrous, placing wear demands on the driveline. The precision-ground bearing surfaces on this PTO shaft universal joint system resist premature wear from field debris, and the sealed bearing caps prevent contaminant ingress during dusty cotton harvesting operations.

Tractor PTO Shaft Installation Steps

Step 1: Preparation and Safety
Before installing the new PTO shaft for Hesston square baler, park the tractor on level ground and disengage the PTO. Turn off the engine and remove the ignition key to prevent accidental engagement. Ensure the tractor's parking brake is set and the baler is securely hitched. Inspect the new driveline assembly for any shipping damage, and verify that all PTO shaft parts including the safety guard, retaining clips, and grease fittings are present and undamaged.

Step 2: Remove the Old PTO Shaft
Disconnect the existing PTO drive shaft from both the tractor PTO output and the baler input shaft. Release the locking pin or quick-release collar on the tractor end PTO shaft yoke, then slide the shaft off the tractor's PTO stub. Repeat the disconnection at the baler end. Support the shaft during removal to prevent it from dropping and causing injury or damage. Set the old shaft aside and inspect the tractor's PTO output splines and the baler's input shaft for wear, corrosion, or damage.

Step 3: Verify Length and Fit
Before installing the new tractor PTO drive shaft, verify the center-to-center length by measuring the distance between the tractor's PTO output and the baler's input shaft with the implement in its normal working position. The 48" (1210 mm) length of this driveline should provide adequate overlap of the telescopic PTO shaft tube in all working positions. If the shaft needs to be trimmed, carefully cut both the inner and outer tubes by equal amounts to maintain proper overlap. Always verify that sufficient tube engagement remains to prevent disengagement under full extension.

Step 4: Install the New Shaft
Apply a thin layer of lithium-based grease to the tractor PTO output splines and the baler input shaft. Slide the tractor end PTO shaft yoke onto the tractor's PTO output, aligning the 6 spline, 1-3/8" coupling. Engage the locking pin or spring-loaded collar to secure the connection. Attach the implement end to the baler's input shaft using the appropriate coupling mechanism. Ensure both connections are fully seated and locked in place. Do not force the connections; if the shaft does not slide on smoothly, check for burrs, debris, or misalignment.

Step 5: Final Checks
Once the new PTO shaft is installed, manually rotate the shaft by hand to confirm smooth, free movement without binding. Verify that the PTO shaft cover safety guard is properly positioned and that all retaining clips are secure. Check that the driveline clears all tractor and baler components throughout the full range of articulation, including tight turns and maximum drawbar extension. Start the tractor engine, engage the PTO at low RPM, and observe the shaft operation for vibration, noise, or unusual movement before increasing to full 1000 RPM PTO shaft operating speed.

Common Troubleshooting for PTO Drive Shafts

1. Excessive Vibration During Operation
   If you experience unusual vibration while the PTO shaft is engaged, the most common causes are worn PTO shaft u joint bearings, misalignment between the tractor PTO and baler input, or an improperly balanced driveline. Begin by checking all universal joint assemblies for play. Even minor bearing wear creates significant vibration at 1000 RPM operating speed. Also verify that the tractor drawbar height positions the PTO driveline shaft as close to a straight-line connection as possible. Excessive operating angle amplifies vibration in any driveline assembly.
2. Shaft Will Not Engage or Disengage
   Difficulty sliding the PTO shaft yoke onto or off of the tractor PTO output stub is typically caused by corroded or damaged splines. Remove the shaft and inspect both the yoke's internal splines and the tractor's output splines for rust, debris, or wear. Clean both surfaces with a wire brush and apply anti-seize compound or fresh grease. If spline damage is severe, the PTO shaft yoke or the tractor's PTO output may need replacement. Also check that the locking collar or pin mechanism is functioning properly and not seized.
3. Telescopic Section Sticking or Binding
   If the telescopic PTO shaft tube is stiff or refuses to slide smoothly, the most likely causes are accumulated dirt, dried grease, or surface galling on the tube profiles. Disassemble the telescopic section, clean the inner and outer tube surfaces thoroughly, and inspect for scoring or metal deformation. Apply a generous coat of NLGI Grade 2 EP grease to all sliding surfaces before reassembly. If the tube profiles are severely scored or deformed, the PTO shaft tubing may need replacement to restore proper function.
4. Unusual Noise or Clunking
   Clunking or knocking sounds from the PTO drive shaft typically indicate worn universal joint bearing caps, a loose yoke connection, or insufficient telescopic tube overlap. Check all PTO shaft u joint assemblies for free play. Verify that both the tractor end and implement end yoke connections are fully seated and locked. Ensure the telescopic tubes maintain adequate overlap in all operating positions. If the driveline bottoms out (fully compresses) during tight turns, the shaft may be too long and needs to be shortened to prevent internal collision.
5. Overheating at Joints
   If the PTO shaft universal joint housings feel excessively hot after operation (too hot to touch comfortably), the bearings are likely starved of lubrication or have begun to seize. Stop operation immediately, as continued use will destroy the joint and may cause the driveline to separate. Grease the affected joint thoroughly and check for proper grease flow through all four bearing caps. If the joint remains hot after fresh lubrication, the bearing caps and cross journal are likely damaged and must be replaced. Regular greasing at 8-10 hour intervals is the best prevention for this common PTO shaft parts failure.

PTO Shaft Brand Comparison

How CMN Transmission compares with other leading PTO shaft manufacturers for square baler applications.
