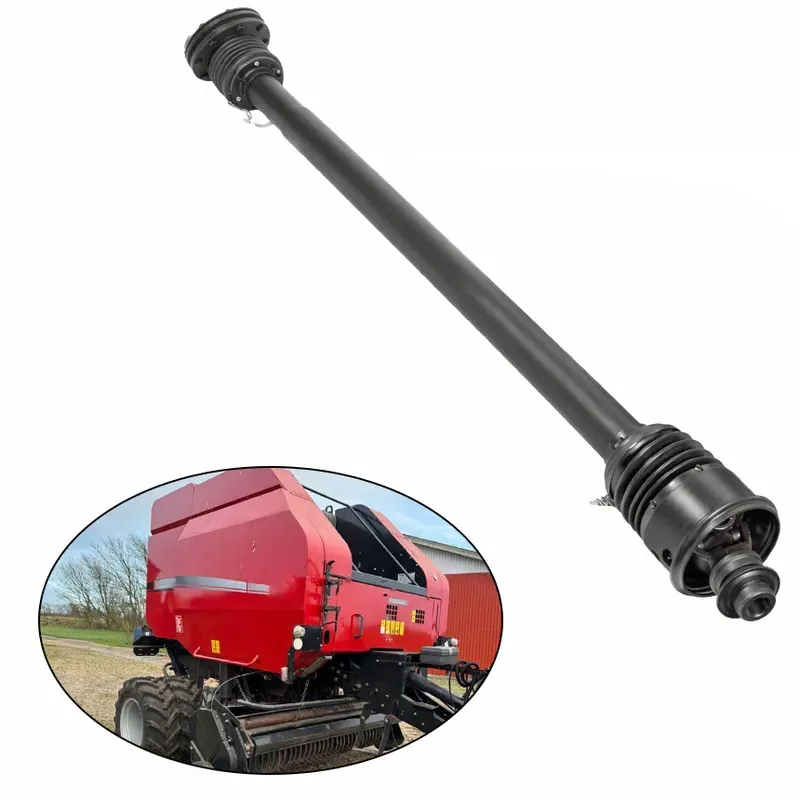

PTO Shaft for Case IH Round Balers RB444, RB454, RB455A, RB464, RB554, RB564

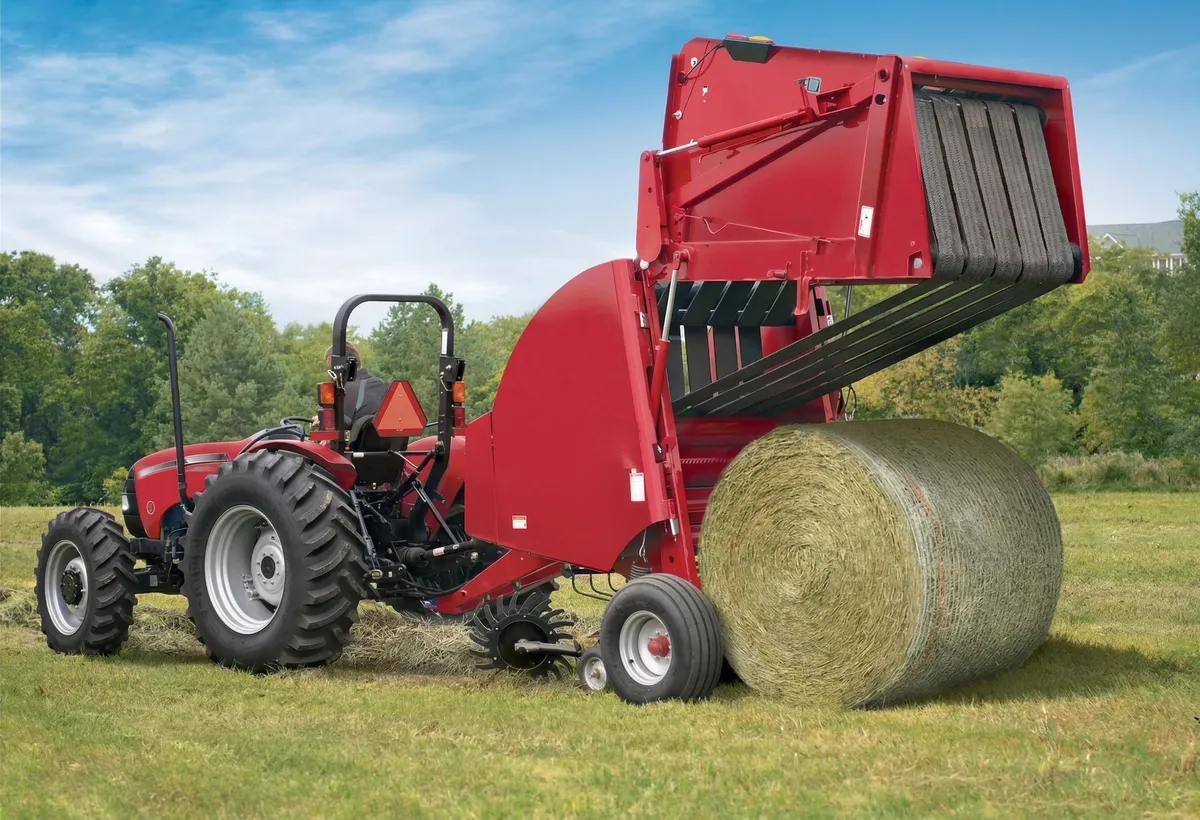

Round Baler PTO Shaft & Round Baler Gearbox

The round baler PTO shaft and the round baler gearbox are the two primary components in the power transmission chain that connects your tractor engine to the baler's working mechanisms. While the PTO driveline shaft handles the task of transferring rotational energy from the tractor PTO output across the open span to the baler, the gearbox receives that rotational input and redirects it at the correct speed and torque ratio to drive the baler's internal components: the pickup head, feed rollers, bale-forming belts or chains, the net wrap system, and the tailgate actuator.

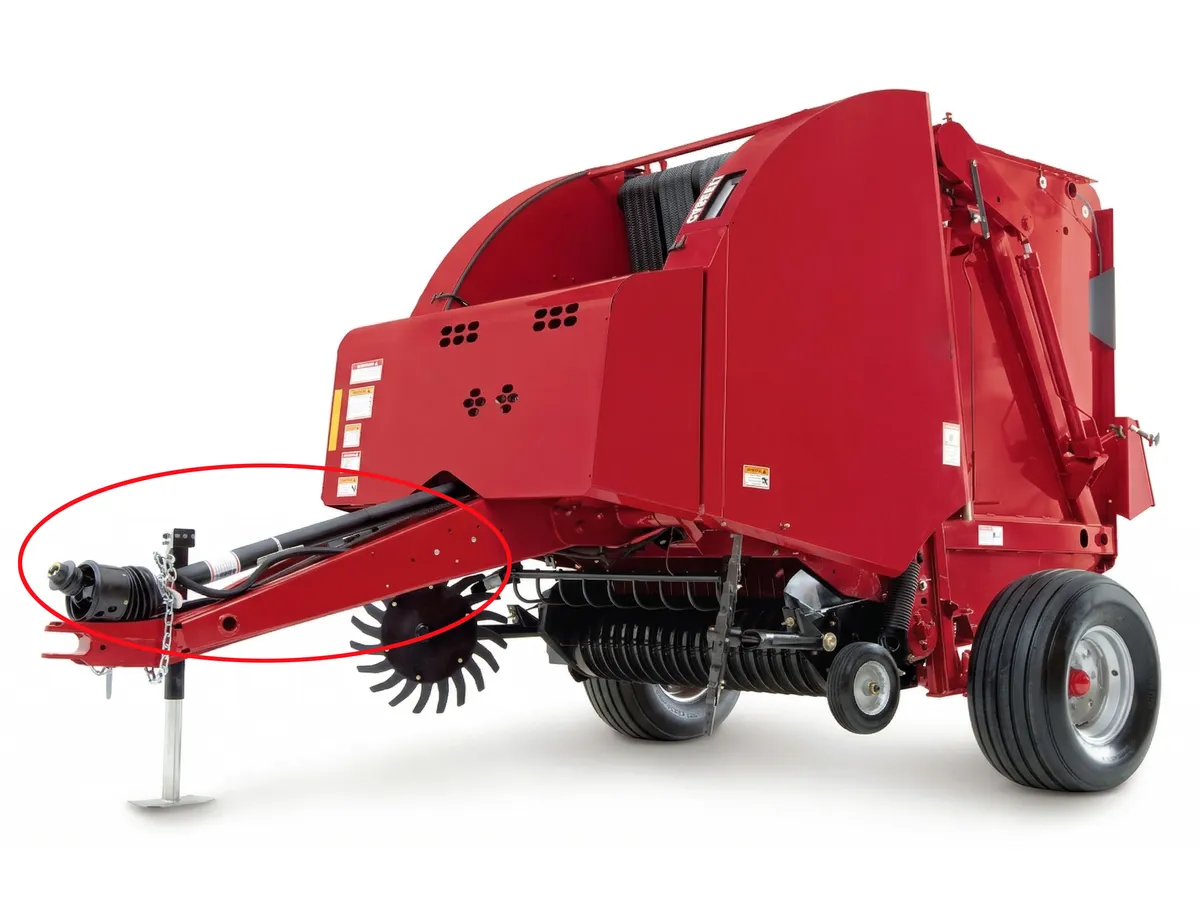

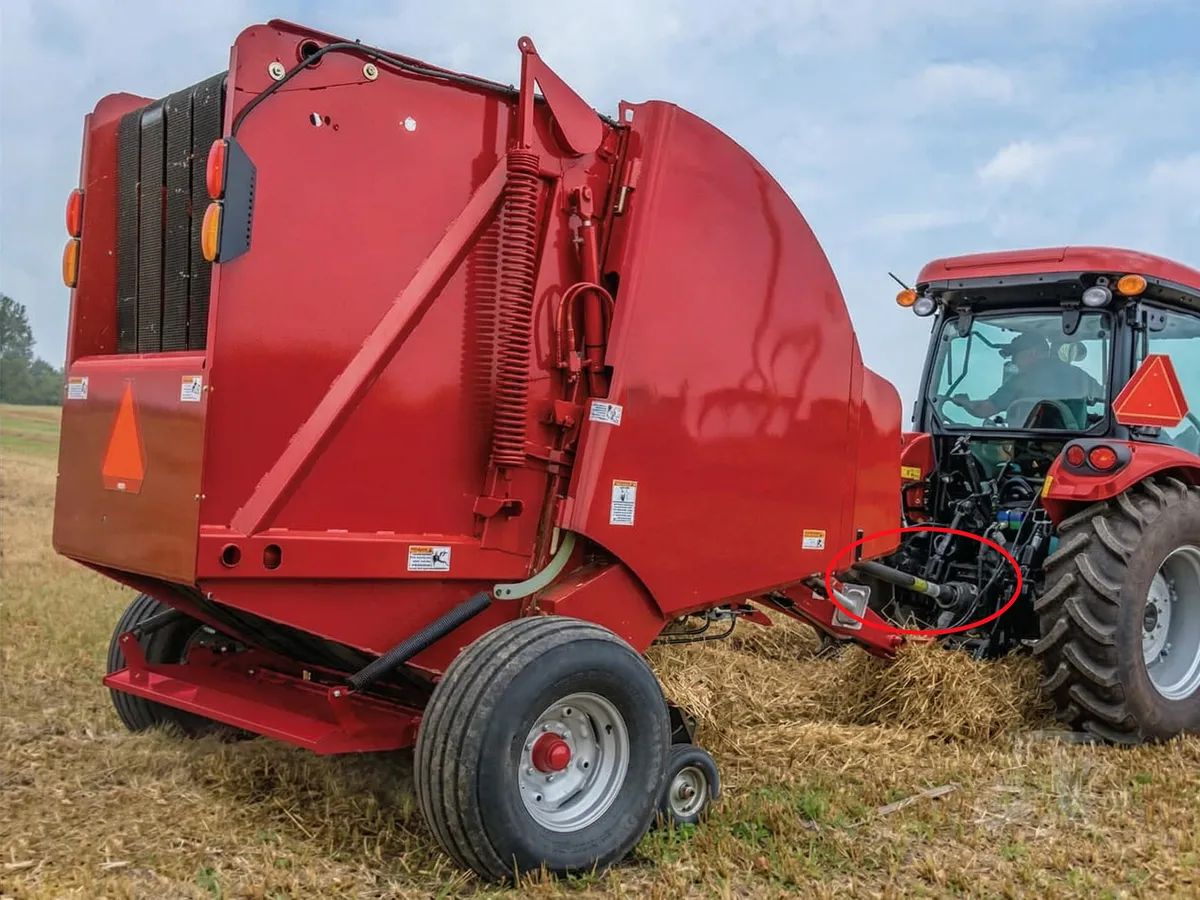

In a typical Case IH round baler, the PTO shaft connects to the baler's main input shaft, which feeds directly into a right-angle bevel gearbox. This gearbox changes the direction of rotation by 90 degrees, converting the horizontal PTO axis into the vertical or transverse axes needed by the baler's internal drives. The gearbox also provides a speed reduction (or increase, depending on the application) and multiplies torque to match the high-load requirements of compressing crop material into dense round bales.

Because the PTO shaft and gearbox operate in direct mechanical series, the condition of one directly affects the other. A worn or vibrating PTO shaft transmits destructive cyclic loads into the gearbox input bearings, accelerating their wear and potentially cracking the gearbox housing. Conversely, a gearbox with excessive backlash or damaged gears creates torque irregularities that travel back through the driveline, stressing the u-joints and CV joint in the shaft. For this reason, when replacing a failed PTO drive shaft, it is best practice to also inspect the gearbox input shaft, seals, and bearings. Similarly, a gearbox replacement should always be accompanied by a thorough inspection of the driveline shaft, PTO shaft u joint condition, and clutch performance.

CMN Transmission supplies both round baler PTO shafts and round baler gearboxes as a complete driveline solution. Purchasing both components from a single manufacturer ensures matched specifications, consistent quality, and simplified after-sales support. Whether you need a standalone replacement of the Case IH PTO shaft or a full driveline and gearbox overhaul, CMN Transmission offers the complete product range to keep your baling operation running at peak efficiency.

Why Choose CMN Transmission's Agricultural PTO Shafts?

CMN Transmission is a professional manufacturer of high-quality power transmission components based in Ansan-si, Gyeonggi-do, Korea. With decades of engineering expertise in the agricultural, industrial, and mobile equipment sectors, we design and produce agricultural PTO shaft assemblies, agricultural gearboxes, hydraulic cylinders, and a comprehensive range of mechanical drive components for the global market.

When you choose CMN Transmission for your PTO shaft for round baler needs, you gain access to several distinct advantages. First, our products are manufactured under strict ISO quality management systems and carry CE certification, ensuring that every PTO drive shaft meets internationally recognized safety and performance standards. Second, we offer factory-direct B2B sales, eliminating distributor markups and giving you a direct line to our engineering team for technical support, custom PTO shaft specifications, and bulk pricing.

Our engineering team uses advanced mechanical manufacturing technology, including CNC machining, induction heat treatment, and dynamic balancing, to ensure that every PTO shaft universal joint, yoke, tube, and clutch assembly meets exacting tolerances. We maintain rigorous in-process quality checks at every stage of production, from raw material inspection through final assembly and testing. This commitment to precision manufacturing is why CMN Transmission PTO drive shafts consistently deliver OEM-equivalent performance at a competitive price point.

Our product range covers PTO shaft sizes from CAT1 through CAT8, with both standard and constant velocity joint configurations, 540 PTO shaft and 1000 rpm PTO shaft speed ratings, and multiple overload protection options including friction clutches, shear pin PTO shaft devices, and free-wheel mechanisms. Whether you need a single replacement of Case IH PTO shaft for your own farm or a container load of tractor PTO shafts for your distribution network, CMN Transmission has the production capacity and logistical infrastructure to deliver reliably.

FAQ

Q: What PTO shaft size do I need for my Case IH RB454 round baler?
A: The standard Case IH RB454 requires a CAT4 PTO drive shaft rated for 60 hp (45 kW). If you have the RB454 Silage variant, you still need a CAT4 shaft rated at 65 hp (48 kW). However, the RB454 Rotor Cutter model requires a larger CAT5 shaft rated for 100 hp (75 kW) due to the additional power demand of the rotor cutting mechanism. Always verify your specific baler variant before ordering.

Q: Can I use a 540 RPM PTO shaft on a tractor with 1000 RPM PTO output?
A: No. A 540 PTO shaft and a 1000 rpm PTO shaft have different spline counts and dimensions. The 540 RPM version uses a 1.375-6 spline (six splines), while the 1000 RPM version uses a 1.375-21 spline (twenty-one splines). Installing the wrong shaft will not physically fit the PTO stub and could damage both the shaft and the tractor PTO output if forced. Always match the PTO shaft speed rating to your tractor's PTO output configuration.

Q: What is the difference between a friction clutch PTO shaft and a shear bolt PTO shaft?
A: A slip clutch PTO shaft uses friction plates that slip when overload torque is exceeded, then automatically re-engage once the overload clears. No parts need replacing after each overload event. A shear bolt PTO shaft uses a sacrificial bolt that breaks under overload, requiring the operator to stop work, exit the cab, and replace the broken PTO shaft shear bolt before resuming. The friction clutch design offers much less downtime and is standard on CMN Transmission round baler PTO shafts.

Q: How do I measure PTO shaft length for a replacement?
A: To determine the correct length for a custom PTO shaft or replacement, measure the distance between the tractor PTO stub face and the baler input shaft face when the tractor and baler are connected at normal working drawbar length. The shaft should overlap by at least one-third of the telescoping tube length when fully compressed, and should never be at full extension during normal operation. CMN Transmission can manufacture PTO shaft sizes to match your specific tractor-baler combination.

Q: How often should I grease PTO shaft universal joints?
A: Grease each PTO shaft universal joint every 8 operating hours or at the start of each baling day, whichever comes first. Use NLGI Grade 2 lithium-complex grease and pump until fresh grease emerges from each bearing cap seal. The telescoping tube should be greased every 20 hours. Under-greasing is the single most common cause of premature u-joint failure and is easily prevented with a consistent lubrication schedule.

Q: Will this PTO shaft fit my tractor if it has a 1.750-20 spline?
A: Yes. CMN Transmission offers this PTO shaft for Case IH round baler with a 1.750-20 spline option in addition to the standard 1.375-6 and 1.375-21 splines. The 1.750-20 spline is commonly found on higher-horsepower North American tractors. When placing your order, specify your tractor's PTO spline type and we will ship the correct PTO shaft yoke configuration. If you are unsure, a PTO shaft adapter can be provided for conversion between spline standards.

Q: What causes a PTO shaft to vibrate and how do I fix it?
A: Vibration in a tractor PTO shaft is most commonly caused by worn PTO shaft u joint bearings, an operating angle that exceeds the shaft's design limit, or a bent PTO shaft tube. To diagnose, check each universal joint for play, verify the drawbar height produces an acceptable operating angle (typically under 25 degrees), and visually inspect the tube for straightness while the shaft rotates at low speed. Replace worn joints or bent tubes promptly to prevent damage to the baler gearbox.

Q: Can I order just the u-joints or clutch as spare PTO shaft parts?
A: Yes. CMN Transmission sells individual PTO shaft parts including replacement PTO shaft u joint crosses and bearing kits, FT42 friction clutch plate sets, PTO shaft yoke assemblies, PTO shaft cover guards, and telescoping PTO shaft tubing sections. Ordering spare parts in advance allows you to perform field repairs quickly during the baling season instead of waiting for a complete shaft replacement to be shipped.

Q: Is a constant velocity PTO shaft better than a standard wide-angle joint for round baling?
A: For round baling applications, a constant velocity PTO driveline shaft is the preferred choice. Standard wide-angle joints still produce slight speed variations at high operating angles, which transmit vibration into the baler. A CV joint eliminates these speed fluctuations entirely, protecting both the baler gearbox and the baler's belt or chain drive system. The smoother power delivery also reduces operator fatigue on long baling days.

Q: What safety precautions should I take when operating a PTO drive shaft?
A: Always ensure the PTO shaft cover safety guard is intact and the restraint chains are connected before engaging the PTO. Never step over, reach around, or work near a rotating PTO shaft. Wear close-fitting clothing and avoid loose scarves, necklaces, or long hair that could catch. Disengage the PTO, shut off the engine, and remove the key before performing any maintenance, adjustment, or inspection on the shaft or baler. PTO entanglement accidents are among the most serious hazards in agriculture and are entirely preventable with proper guard maintenance and safe operating practices.

Q: Does CMN Transmission ship PTO shafts internationally for Case IH balers?
A: Yes. CMN Transmission ships tractor PTO shafts and PTO shaft parts worldwide. We regularly export to North America, Europe, South America, Australia, and Asia. All shipments are securely packaged for international freight and include full commercial documentation. Bulk orders for dealers and cooperatives receive volume pricing. Contact our sales team for a shipping quote to your destination and estimated transit time for your specific order.
