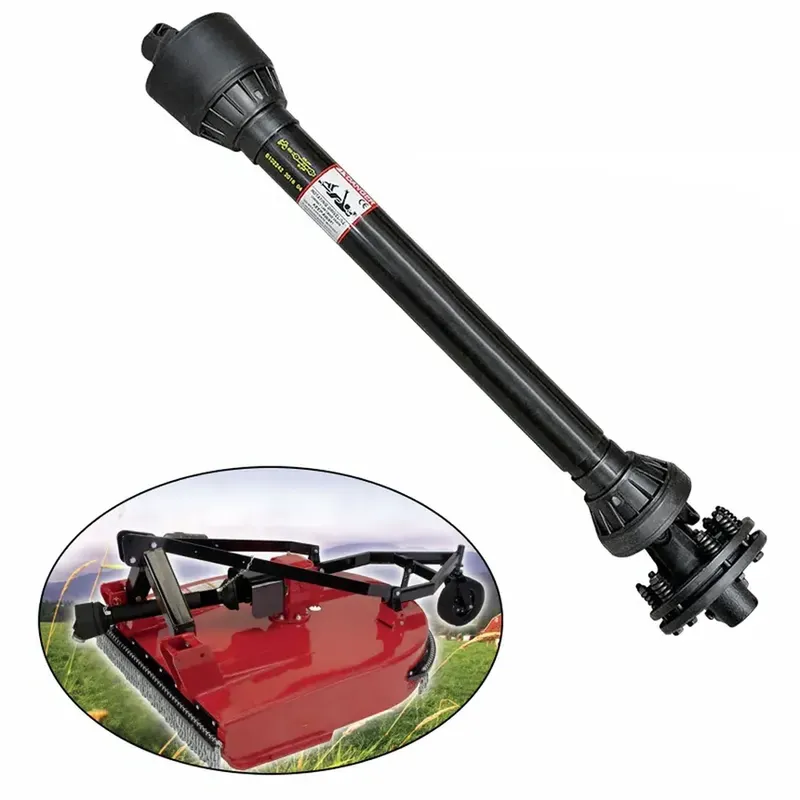

PTO Shaft for Bush Hog Rotary Cutters 405, 406, 325, 326, 327

Reliable PTO Shaft for Bush Hog Rotary Cutter Models

PTO Shaft for Bush Hog Rotary Cutter Models: 405, 406, 325, 326, 327

When a Bush Hog rotary cutter goes down in the middle of a mowing season, every hour of downtime carries a real cost. This CAT5 / Size 8 PTO shaft is built as a direct-fit replacement for Bush Hog models 405, 406, 325, 326, and 327, restoring full cutting capability without the need for modifications or adapters. The assembly ships as a complete tractor PTO drive shaft unit, inner and outer telescoping tubes, forged yokes, and your choice of friction clutch configuration, so installation is straightforward and time on the field is maximized.

The shaft is based on the widely trusted CAT5 (Category 5) / Series 8 standard, which positions it in the upper range of agricultural PTO driveline capacity. With an inner OD of 54 mm and a 540-groove stub shaft connection, it interfaces cleanly with standard tractor PTO outputs running at 540 RPM. Whether you are running a three-point attachment or a pull-type cutter, the unit is configurable for both setups, giving owners of multiple implement styles a consistent, interchangeable solution across their fleet.

Technical Specifications

Accurate part matching is critical when sourcing a replacement PTO shaft for Bush Hog rotary cutters. The tables below list the full dimensional and component references for this Size 8 assembly. These specifications apply directly to Bush Hog rotary cutter models 405, 406, 325, 326, and 327. Cross-reference the component part numbers with your existing hardware before ordering to confirm fitment, especially if you plan to reuse any original hardware such as yokes or shear bolt collars.

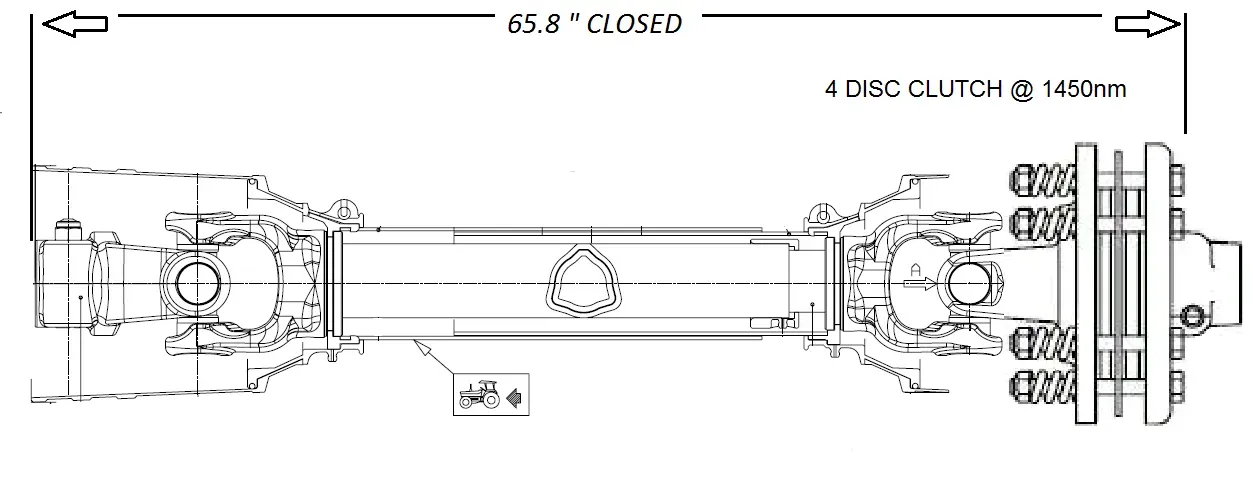

Main Shaft: Cat 5

(1) CAT5 PTO to Jack shaft - no clutch - pin hole yoke attachment.

(2) CAT5 PTO to gearbox with clutch - 540 groove attachment.

(3) Other combinations are available.

(4) Types: 3-point attachment or pull type.

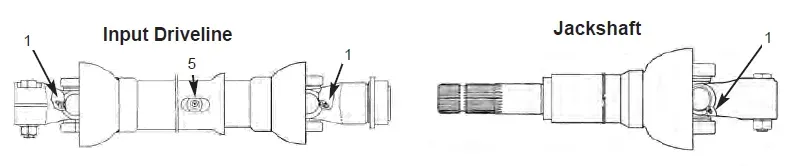

Main Shaft Option: Jack Shaft Assembly

Rotary Cutter Input Requirements

Clutches for 1.375-6 spline input.

FT42 Friction Clutch	FFV34 Friction Clutch

Replacement Bush Hog PTO Shaft Configurations

Not every Bush Hog rotary cutter uses the same power transfer arrangement, and that is precisely why this PTO shaft assembly is available in three distinct configurations. The first is a CAT5 PTO to jack shaft without clutch, featuring a pin-hole yoke attachment that is common on simpler, lower-horsepower setups. The second is a CAT5 PTO to gearbox with clutch, using a 540-groove attachment and incorporating a friction clutch for overload protection, the recommended choice for heavy brushcutting work or uneven terrain where sudden obstructions can spike drivetrain torque. A third option covers custom combinations, available on request.

The clutch-equipped configuration is available in two rated capacities: the FT42 friction clutch at 1,450 Nm and the higher-rated FFV34 friction clutch at 1,800 Nm. Both use a 1.375-inch, 6-spline input interface, matching the standard gearbox input shaft found on Bush Hog 325, 326, 327, 405, and 406 rotary cutters without any adapter hardware. For operations cutting thick brush, dense grass stands, or light woody material, the FFV34 1,800 Nm version provides extra torque reserve and reduces the risk of nuisance clutch slippage during demanding passes.

The outer PTO shaft yoke and inner PTO shaft yoke are forged, not cast, giving them substantially higher impact resistance. The inner shaft tube and outer shaft tube interlock with a profile that minimizes slop while retaining smooth telescoping action even after years of field use. The full-size 8 ASSY × 540 × OPEN specification means the shaft is also compatible with other CAT5-class implements in your implement lineup, offering added versatility beyond the Bush Hog application.

CMN Transmission exports this replacement PTO shaft for bush hog models to over 53 countries, serving farm operations ranging from small family holdings to large commercial mowing contractors. Each unit leaves the factory with protective sleeve coating on the slip profile and a pre-greased universal joint, ready for immediate installation.

Features of PTO Drive Shaft for Bush Hog Rotary Cutter

Selecting the right PTO drive shaft is never just about matching a bolt pattern; it involves cross-referencing tube diameter, yoke interface geometry, torque rating, clutch type, and shaft length range. This CAT5 / Size 8 assembly was built with the specific operating envelope of Bush Hog 405, 406, 325, 326, and 327 rotary cutters in mind.

1. Forged Yoke Construction
   Both the inner and outer PTO shaft yokes are drop-forged from alloy steel, offering a yield strength advantage over cast alternatives. Forged yokes resist the bending loads generated at sharp implement angles without cracking or deforming over time.
2. Friction Slip Clutch Integration
   The slip clutch PTO shaft configuration (FT42 or FFV34) disengages automatically when drivetrain torque exceeds the rated threshold of 1,450 Nm or 1,800 Nm respectively. This protects the tractor gearbox, cutter blades, and gearbox from shock loading when the cutter strikes rocks, fence posts, or embedded debris.
3. Telescoping Shaft Tube Profile
   The PTO shaft tubing system uses a precision-profile inner tube sliding within an outer tube. The overlap length is engineered to maintain engagement across the full range of tractor-to-implement distance variation, preventing accidental pull-apart during tight turns.
4. Heavy-Duty U-Joint Crosses
   The PTO shaft U-joint crosses are hardened, needle-roller bearing type units sized for Category 5 service loads. Pre-greased and sealed at the factory, they maintain smooth articulation across angles up to the design limit and tolerate the continuous vibration inherent in rotary cutter operation.
5. Full Safety Guard Coverage
   Each assembly includes a complete plastic safety guard and support chain set covering the rotating shaft profile. Designed to meet CE and regional safety standards, the guard attaches at both the tractor-end and implement-end yoke flanges, keeping operators protected during cutting passes.
6. Dual Attachment Type Support
   The assembly supports both 3-point hitch attachment and pull-type rotary cutter configurations, matching the range of Bush Hog 325, 326, 327, and 405, 406 series setups. You can specify your attachment style at the time of order, or request a combination quote for mixed-fleet operations.

Rotary Cutter PTO Shaft Performance Advantages

There is a meaningful quality gap between a precisely engineered tractor PTO driveline shaft and a generic imported alternative sold purely on price. For rotary cutter applications where the PTO shaft is subjected to continuous cyclic loading, sudden impact torque spikes, and sustained operation in abrasive environments, the differences in build quality translate directly into maintenance cost and equipment lifespan.

1. Torque Margin and Overload Safety
One of the most significant practical advantages of this assembly is the rated torque margin. The standard FT42 friction clutch option handles 1,450 Nm, while the FFV34 variant extends this to 1,800 Nm. For context, a typical 80–100 HP tractor running a medium-size rotary cutter generates peak drivetrain torques well within this range during normal cutting. The headroom provided by the FFV34 is particularly valuable for operators who push their cutters through thick summer grass growth or light brush without the cutter spinning down first, a real-world scenario where under-rated shafts fail early.

2. Reduced Total Cost of Ownership
Forged yokes and heat-treated shaft tubes extend service life significantly compared to entry-level alternatives. Fewer replacement cycles mean lower cumulative expenditure on PTO shaft parts over the working life of the cutter. The included friction clutch also prevents expensive secondary failures: a $150 clutch absorbing an obstruction impact can protect a $600 cutter gearbox from destruction, a cost-benefit ratio that makes the clutch-equipped version worth the modest additional outlay.

3. Dimensional Accuracy and Direct Fitment
Each shaft is manufactured to controlled tolerances on yoke bore diameter, spline tooth geometry, and tube profile. This matters because even small dimensional deviations can cause binding in the telescoping section, vibration from U-joint misalignment, or inadequate engagement depth on the stub shaft. The replacement PTO shaft for bush hog cutters covered here is built to mate with the OEM-equivalent cutter gearbox input and tractor PTO output without shimming, grinding, or modification.

4. Compatibility Advantages for Multi-Machine Shops
Because this shaft is built on the widely adopted CAT5 / Size 8 standard, it shares yoke and U-joint cross sizes with a broad range of other agricultural implements using the same driveline category. Workshops that maintain several machines benefit from consolidated spare parts inventory. A single set of U-joint crosses and spare yoke pins can cover multiple machines. This interoperability is a practical advantage that generic non-standard assemblies simply cannot offer.

Working Principle of Tractor PTO Shaft for Rotary Cutter

Understanding the PTO driveline shaft operating principle helps operators make better decisions about configuration selection, maintenance intervals, and clutch adjustment. The power transfer chain starts at the tractor's rear PTO stub shaft and ends at the cutter's input gearbox and every component in between plays a defined role in delivering smooth, reliable rotary cutting performance.

Step 1: Tractor PTO Stub Shaft Engagement
The inner yoke (ref 204086861) slides over the 1-3/8-inch, 6-spline tractor PTO stub shaft and is secured by the yoke's cross-pin or quick-release collar, depending on the selected configuration. The 540 RPM input speed drives the shaft assembly, which transmits torque through the first U-joint cross to the inner telescoping tube. The spline engagement depth is critical here; insufficient engagement at the stub shaft can cause yoke slippage under load, a common issue with undersized or worn PTO shaft yoke hardware.

Step 2: Telescoping Shaft Tube Articulation
As the tractor and implement move relative to each other due to ground undulation, tight turns, or three-point hitch position changes, the inner shaft tube slides axially within the outer shaft tube. This telescoping action accommodates length changes in the driveline while maintaining continuous torque transmission. The profile geometry of the inner and outer PTO shaft tubing (a six-lobe or star-profile design) prevents rotational slippage between the two tubes while still allowing free axial movement. Adequate lubrication at the tube contact surface is essential for preventing wear and binding over time.

Step 3: Outer Yoke and Friction Clutch Interface
At the implement end, the outer yoke connects through a second U-joint cross to the friction clutch assembly when the clutch-equipped configuration is selected. Under normal operating torque (below the rated 1,450 or 1,800 Nm), the friction clutch discs remain engaged through spring-loaded pressure, transmitting full drive torque to the cutter gearbox input. When the cutter encounters an obstruction that spikes the torque above the clutch setpoint, the discs momentarily slip, absorbing the shock energy in friction heat rather than transmitting it destructively to the gearbox or blade carrier. Once the obstruction clears and torque returns to normal, the clutch re-engages automatically.

Step 4: Power Delivery to the Cutter Gearbox
The 1.375-inch, 6-spline output flange from the clutch engages the cutter input gearbox, which then multiplies or reduces speed as designed for the specific Bush Hog model. The gearbox output drives the blade spindles at the cutting RPM specified in the cutter's design. The complete power path from the tractor PTO stub shaft through the 540 PTO shaft assembly to the cutter blades is designed to minimize angular velocity fluctuation (typically constrained by keeping U-joint operating angles below 15°) to reduce vibration transmitted to the tractor chassis and operator station.

Tractor PTO Drive Shaft Applications

The Bush Hog 405, 406, 325, 326, and 327 series rotary cutters serve a diverse range of land management tasks across North America and export markets, and the agricultural PTO shaft assembly must perform reliably across all of them. The operating environments vary considerably from manicured pasture trimming to heavy right-of-way brush clearing, and the CAT5 torque rating and friction clutch options on this assembly address the full spectrum.

1. Pasture and Hay Field Management
In grass-dominant pasture applications, the tractor PTO drive shaft runs at a consistent load close to the design center of the FT42 clutch, with smooth, relatively low peak torques and minimal obstacle contact. The key performance requirement here is vibration-free operation over long daily hours. The balanced U-joint cross geometry and tight-tolerance tube profile on this assembly contribute to low NVH (noise, vibration, harshness) during sustained mowing passes, reducing operator fatigue and minimizing wear on the tractor's rear axle bearings.

2. Roadside and Right-of-Way Brush Clearing
Right-of-way mowing presents the harshest operating conditions for a PTO drive shaft: fence posts, rocks, stumps, and embedded debris create frequent high-torque impact events. This is where the FFV34 1,800 Nm slip clutch PTO shaft configuration justifies its specification. The higher torque rating means the clutch does not slip unnecessarily during normal heavy-brush cutting, while still providing decisive protection when the cutter encounters a solid obstacle. Operators running Bush Hog 405 or 406 models on DOT or utility contractor work will benefit most from the FFV34 specification.

3. Orchard and Vineyard Floor Management
Orchards and vineyards require cutter operation in tight spaces with frequent directional changes. The telescoping PTO shaft's ability to accommodate tractor-to-implement distance variation across a wide range, including the short compression distances encountered in tight row reversals, makes it well-suited to these environments. The full safety guard coverage is particularly important here due to the proximity of workers during harvesting periods; the CE-compliant guard and chain hardware provided with each unit ensure regulatory compliance.

4. Utility and Municipal Mowing Operations
Municipal departments and utility companies operating Bush Hog 325, 326, or 327 series cutters on grounds maintenance work benefit from the factory-direct pricing model offered by CMN Transmission. Volume orders for fleet replacement of PTO shaft parts including complete assemblies, replacement U-joint kits, and clutch disc sets can be processed with consistent lead times. Our logistics network covers North America, Europe, Australia, and Southeast Asia, ensuring that service parts reach operators regardless of their operational geography.

Why Choose CMN Transmission's Agricultural PTO Shaft?

At CMN Transmission, we deliver agricultural PTO shaft solutions that combine direct manufacturing strength with practical field performance. Operating as a full-scale producer and exporter, we sell straight from our facilities, which removes distributor markups and keeps costs aligned with actual production expenses. This approach means every tractor PTO drive shaft reaches customers at a fair price supported by traceable quality controls rather than added retail layers. Our production follows strict ISO quality management protocols, and all units carry CE certification for markets that require it. Every agricultural PTO shaft undergoes documented material checks, dimensional verification, and functional testing before leaving the line. These steps ensure consistent torque handling, proper spline fit, and long-term durability under real farming loads.

With more than 150,000 standard items stocked across our network, we keep complete tractor PTO drive shaft assemblies, individual yokes, U-joint crosses, clutch discs, and shear bolt components ready for immediate dispatch. Most replacement PTO shaft parts ship within days, avoiding the extended waits common with suppliers who build only to order. When standard options fall short, our engineering staff uses in-house CAD systems to create custom configurations. Whether you need a modified shaft length, altered yoke bore, specific PTO shaft tubing dimensions, or a switch from friction clutch to shear bolt protection, we develop and prototype the exact assembly to your drawings. This flexibility has helped operators match PTO shaft tractor setups across different horsepower ratings and hitch styles without compromise.

Our logistics network supports shipments to more than 53 countries, including the United States, Australia, Canada, the United Kingdom, Germany, Brazil, South Africa, and key Southeast Asian markets. Established freight partnerships and complete export documentation simplify customs clearance and deliver predictable transit times. After the sale, our team provides direct technical assistance for installation questions, handles warranty claims for any manufacturing issues, and ships replacement PTO shaft parts quickly when wear occurs. Because our staff consists of engineers who work daily with PTO driveline shaft applications, you receive knowledgeable support rather than scripted responses.

FAQ

Q: Will this PTO shaft fit all five Bush Hog models 405, 406, 325, 326, and 327 without modification?
A: Yes. The CAT5 / Size 8 assembly with 1.375-inch 6-spline input interface matches the gearbox input specification common to all five of these Bush Hog rotary cutter models. The telescoping tube design accommodates the tractor-to-implement distance range of standard mid-frame rotary cutters. For confirmation specific to your tractor model and three-point hitch category, share your setup details with our team before ordering.

Q: What is the difference between the FT42 and FFV34 friction clutch options, and which one do I need?
A: The FT42 is a 2-disc friction clutch rated at 1,450 Nm, suitable for general pasture mowing and grass cutting with tractors in the 60–100 HP range. The FFV34 is a higher-capacity clutch rated at 1,800 Nm, designed for heavier brushcutting, right-of-way clearing, or operations where rocky or debris-heavy fields create frequent high-torque impact events. If you are cutting grass and light vegetation primarily, the FT42 is adequate. For heavy brush or commercial mowing work, the FFV34 provides better margin and less nuisance slippage.

Q: Is a no-clutch version available, and when is it appropriate to use it?
A: Yes, the no-clutch version (CAT5 PTO to jack shaft with pin-hole yoke) is available and is suitable for applications where the implement already has an integrated torque limiter in the cutter gearbox, or where the cutter is used exclusively in clean, obstacle-free conditions where torque spike risk is minimal. It is generally not recommended for rotary cutter work in fields with rocks, stumps, or buried debris because without a slip clutch, any obstruction impact transmits full shock torque to the gearbox and tractor drivetrain.

Q: How do I know what shaft length to order for my tractor?
A: Measure the distance from the tractor PTO stub shaft face to the cutter gearbox input face with the cutter in working position. The shaft should provide at least 1/3 tube overlap at this length, and must not bottom out at the shortest tractor-implement distance during tight turns. If you share your tractor model, hitch category, and cutter model with our team, we can confirm the correct shaft length range for your setup.

Q: How often should I grease the PTO shaft U-joint crosses and slip profile?
A: U-joint crosses should be greased every 8 hours of field operation or once per mowing session. Use NLGI #2 multi-purpose lithium complex grease and pump until grease purges from the seal lips. The telescoping tube slip profile should be re-greased at the start of each season and after operation in wet or muddy conditions. Avoid using dry graphite lubricants on the tube profile as they do not adequately protect against the high contact pressures between tube surfaces.

Q: My friction clutch started slipping at normal mowing loads. What is causing this and how do I fix it?
A: Clutch slippage below rated torque is usually caused by glazed (heat-hardened) friction disc faces. This occurs when the clutch was repeatedly activated under high-heat conditions without adequate cooling time between events. The fix is to replace the friction disc pack do not try to compensate by increasing spring preload beyond factory settings. Replacement disc kits for both FT42 and FFV34 clutches are available from CMN Transmission as individual service parts.

Q: Can I use this shaft as a 1000 RPM PTO shaft if my tractor has a 1000-RPM PTO output?
A: No. This assembly is configured for the 540 RPM stub shaft interface (1-3/8 inch, 6-spline). Bush Hog 405, 406, 325, 326, and 327 cutters are designed for 540 RPM PTO input, and the 1000 RPM stub shaft uses a different spline count (21-spline, 1-3/4 inch). Running a 540-configured shaft on a 1000 RPM PTO output is physically prevented by the different spline geometry. If you specifically need a 1000 PTO shaft configuration, contact us and we will advise on the correct assembly.

Q: How do I check and replace the PTO shaft U-joint crosses?
A: With the shaft stationary, grasp the yoke and attempt to move it fore-and-aft and side-to-side. Any perceptible rotational play indicates worn needle bearings. To replace: remove the snap rings from the cross bearing cups, press out the old cups using a shaft press or a socket and bench vise, press in the new cross bearing cups squarely until the snap ring grooves are exposed, and reinstall the snap rings. Ensure the grease nipple on the new cross is accessible for field lubrication before reassembling.

Q: Is the safety guard included with the shaft, and does it meet CE requirements?
A: Yes, a full safety guard outer plastic guard tube and support chain set is included with each assembly. The guard design meets CE Machinery Directive requirements for rotating driveline guarding. Both the tractor-end and implement-end guard sections are provided. The support chains attach to the tractor drawbar and implement frame to prevent the guard from rotating with the shaft.

Q: My old PTO shaft broke at the yoke weld is this a common failure point, and how does your shaft address it?
A: Yoke failures at the weld line are a known failure mode on lower-cost cast yokes. On this assembly, both the inner and outer yokes are drop-forged, not cast. Forged yokes have significantly higher fatigue resistance at the critical cross-bore and tube attachment zones because the forging process aligns the grain structure of the metal with the part geometry. Properly forged and heat-treated yokes under normal operating conditions and routine maintenance should outlast the service life of the cutter itself.

Q: Do you supply individual PTO shaft parts, or only complete assemblies?
A: We supply both complete assemblies and individual service components, including replacement yokes, U-joint cross kits, friction clutch disc sets, spring packs, guard sections, and fastener kits. This means that when a specific component reaches end-of-life, you can replace that component rather than purchasing a completely new shaft assembly, which is particularly valuable for commercial operations running multiple machines on tight maintenance budgets.
