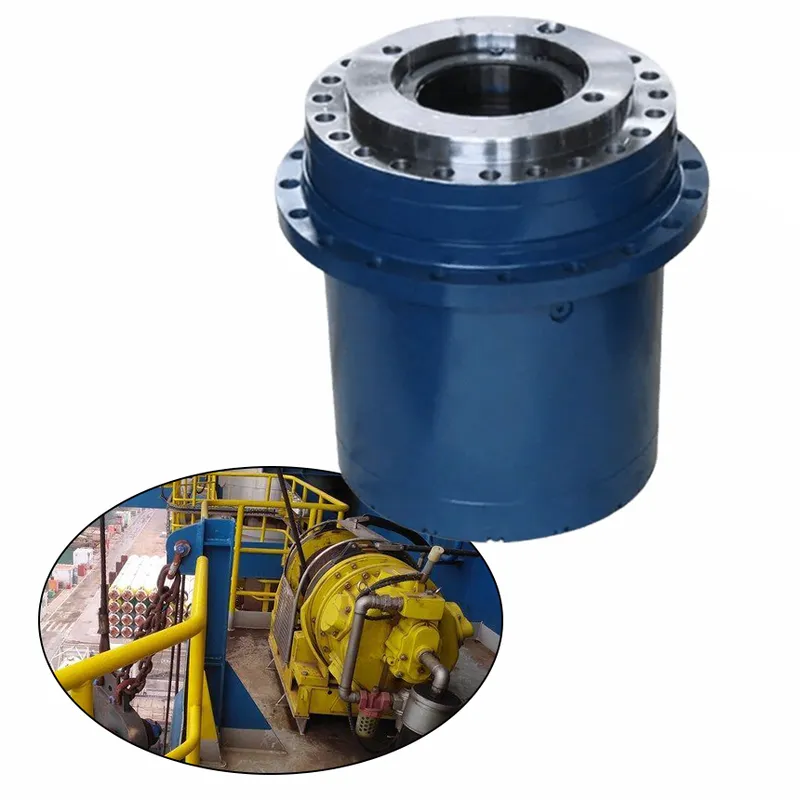

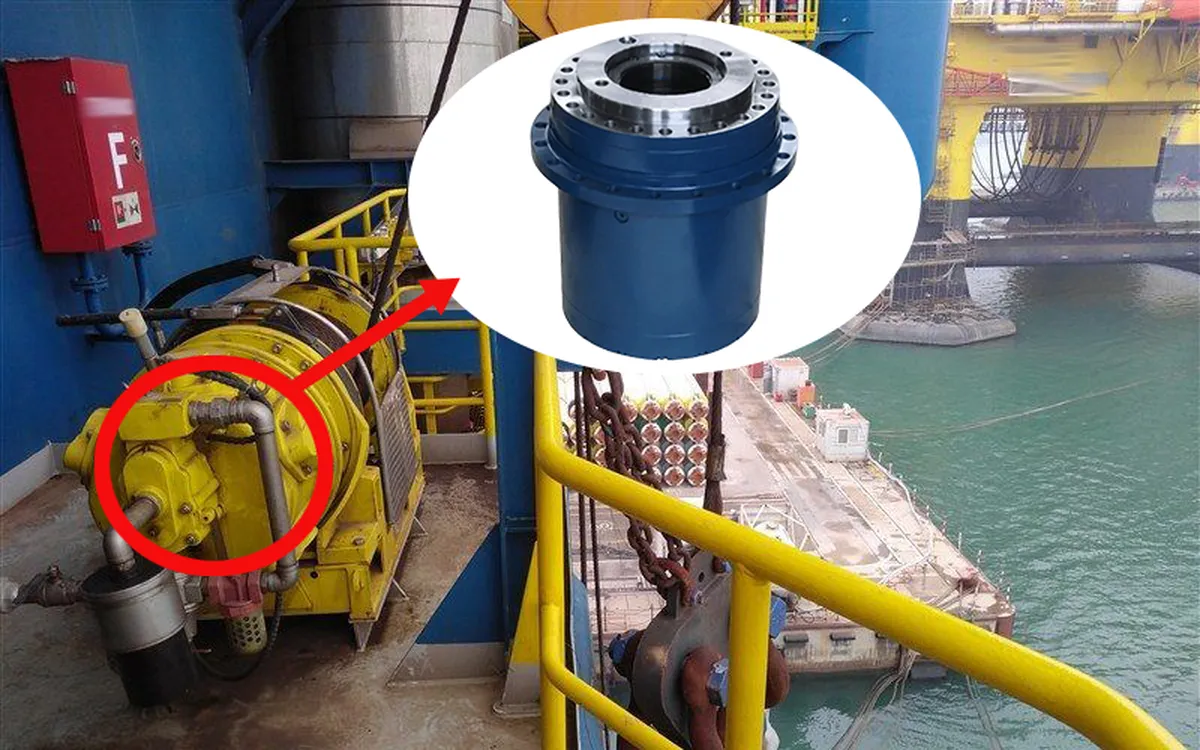

Planetary Winch Drive Gearbox for Offshore Platform

A planetary winch drive gearbox for offshore platforms is a specialized mechanical component designed to provide high torque and precise control in winch systems used for heavy lifting and mooring operations in marine environments. This gearbox employs a planetary gear system, consisting of a central sun gear, multiple planet gears, and an outer ring gear, which enables compact construction while delivering exceptional power density and efficiency. Engineered for harsh offshore conditions, such as those on oil rigs or drilling platforms. Available in hydraulic or electric variants, these planetary gearboxes feature multi-stage gearing for optimized speed reduction and torque amplification, making them ideal for applications like anchor handling, subsea equipment deployment, and crane operations.

Planetary Winch Drive Gearbox Dimensions

General Dimensions

* Motor adapter on demand

Input Dimensions

WDD General Dimensions

WDD Performances

WD Performances

Bearing Load Capacity

General Dimensions

Input Dimensions

Weight and Oil Quantity

Bearing Load

Offshore Platform Planetary Winch Drive Gearbox Features

• Compact and Space-Saving Design
  The planetary winch drive gearbox for offshore platforms features a compact structure that optimizes space utilization on rigs and vessels, incorporating a space-saving planetary gear system that allows seamless integration into winch drums without compromising performance in confined maritime environments.
• High Torque and Load Capacity
  Engineered to deliver exceptional torque amplification and handle rope pull forces ranging from 400 to 1,200 kN, this planetary gearbox ensures reliable operation under extreme loads, making it indispensable for heavy lifting tasks such as anchor handling and subsea equipment deployment in offshore settings.
• Robust Construction for Harsh Conditions
  Built with robust taper roller bearings and corrosion-resistant materials, the winch drive planetary gearbox withstands severe offshore conditions, including vibrations, saltwater exposure, and high pressures, thereby enhancing durability and reducing the risk of mechanical failures during critical operations.
• High Efficiency and Low Noise Operation
  Utilizing multiple planet gears to distribute loads evenly, the planetary winch drive achieves high transmission efficiency while maintaining stable, low-noise performance, which contributes to smoother winch operations and minimizes operational disruptions on offshore platforms.
• Modular and Easy Maintenance Features
  The modular design facilitates straightforward customization and maintenance, including easy oil changes and integrated disc-brake systems, allowing for quick servicing that improves uptime and safety in demanding offshore environments where downtime can be costly.
• Versatile Drive Options
  Available in hydraulic or electric variants with multi-stage gearing, this planetary gear reducer offers flexibility in power sources and speed reduction, enabling precise control for applications like mooring and crane operations, while ensuring compatibility with various offshore platform requirements.

Winch Drive Planetary Gearbox Applications

• Offshore and Marine Industry
  Winch drive planetary gearboxes are extensively utilized in offshore platforms and marine vessels for anchor handling, mooring operations, and subsea equipment deployment, offering high torque in compact designs to withstand harsh saltwater environments and extreme loads, ensuring reliable performance during critical lifting tasks.
• Construction Sector
  In construction applications, these planetary gearboxes power winches for hoisting heavy materials on cranes and elevators, providing precise speed reduction and enhanced torque multiplication that facilitates safe and efficient operations on building sites with demanding structural requirements and variable loads.
• Mining Operations
  Employed in mining equipment such as bucket wheel excavators and haulage systems, planetary winch drive gearboxes deliver robust torque for pulling and lifting ore or debris, engineered to endure abrasive conditions, vibrations, and high-duty cycles typical in underground and surface mining environments.
• Renewable Energy Field
  These planetary winch drives support winch systems in renewable energy installations, including wind turbine maintenance and solar tracker adjustments, where their high efficiency and compact form enable precise positioning and load handling under variable weather conditions to optimize energy capture and system longevity.
• Forestry and Logging
  Utilized in forestry machinery for winch-assisted harvesting and tree extraction, these planetary gear reducers provide the necessary torque for tethered operations in rugged terrains, enhancing safety and productivity by managing heavy logs with minimal slippage and high reliability in outdoor settings.
• Offshore Oil and Gas Industry
  In the offshore oil and gas sector, winch drive planetary gearboxes are essential for anchor handling, riser tensioning, and subsea equipment deployment. Their high torque capacity and corrosion-resistant design ensure reliable performance in harsh marine environments, such as drilling platforms and floating production units.

Marine and Offshore Industry	Oil and Gas Industry
Forestry and Logging Industry	Mining Industry

Planetary Winch Drive vs. Planetary Track Drive

Planetary Winch Drive	Planetary Track Drive
