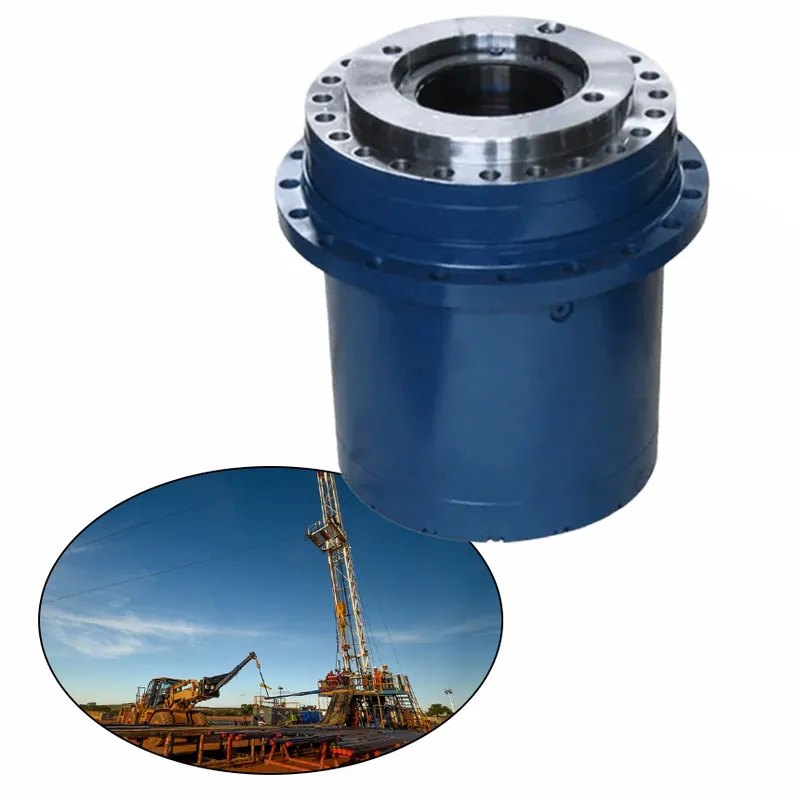

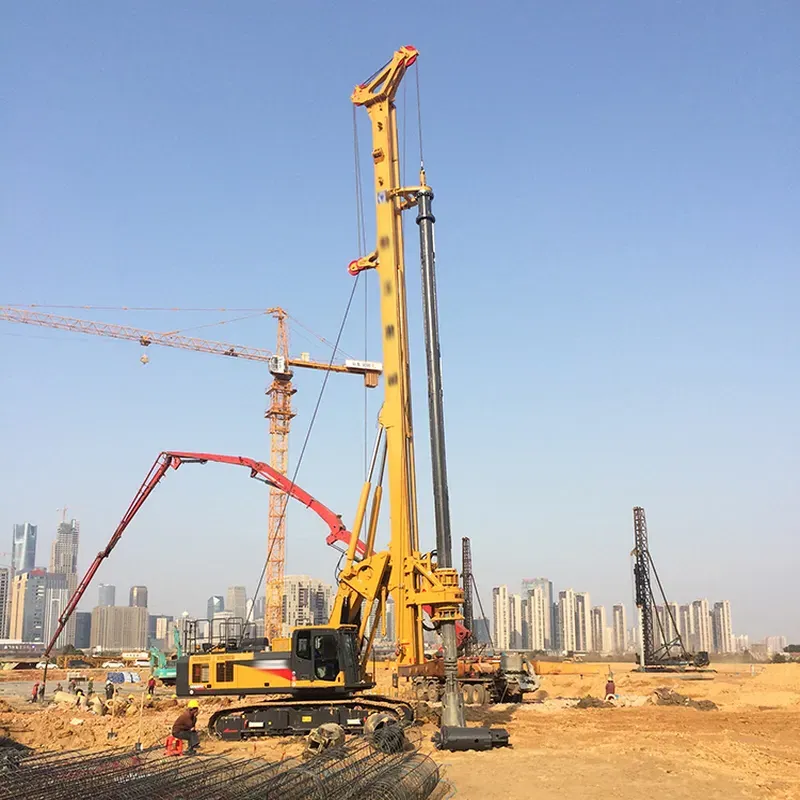

Planetary Winch Drive Gearbox for Drilling Rigs

A planetary winch drive gearbox for drilling rigs is a specialized mechanical component designed to provide high torque and efficient power transmission in heavy-duty winching operations. It employs a planetary gear system, consisting of a central sun gear, multiple planet gears, and an outer ring gear, which allows for compact size while achieving significant speed reduction and torque multiplication. In drilling rigs, this planetary gearbox is typically integrated into the winch drum or rope winch assembly, enabling precise control over hoisting, lowering, and pulling tasks essential for operations such as raising drill strings or handling equipment.

Planetary Winch Drive Gearbox Dimensions

General Dimensions

* Motor adapter on demand

Input Dimensions

WDD General Dimensions

WDD Performances

WD Performances

Bearing Load Capacity

General Dimensions

Input Dimensions

Weight and Oil Quantity

Bearing Load

Drilling Rig Winch Drive Planetary Gearbox Advantages

• High Torque Transmission
  The planetary gearbox is designed to deliver exceptionally high torque, making it suitable for heavy-duty winching operations in drilling rigs. Its unique gear arrangement distributes torque evenly across multiple planet gears, reducing stress on individual components and ensuring reliable performance under extreme loads, even in harsh environments.
• Compact and Space-Saving Design
  Planetary winch drive gearboxes are known for their compact structure, which allows for significant torque and power output without requiring much space. This space-saving advantage is critical for drilling rigs, where equipment must fit into tight areas while still providing optimal performance for hoisting and lowering operations.
• Enhanced Durability and Longevity
  Constructed from high-strength materials and designed for heavy-duty use, winch drive planetary gearboxes offer exceptional durability. Their robust design minimizes wear and tear, even under continuous operation, ensuring a long service life. This durability reduces downtime and maintenance costs, which are essential for cost-effective drilling operations.
• Efficient Power Transmission
  The planetary gear system provides superior power transmission efficiency, ensuring minimal energy loss during operation. This makes it ideal for winch drives in drilling rigs, where consistent and efficient power delivery is needed for tasks such as pulling, lifting, and lowering heavy loads with precision and control.
• Smooth and Precise Operation
  Planetary winch drives enable smooth and precise movement, which is crucial for drilling rig winch drives. Their design allows for accurate control of speed and torque, ensuring safe and efficient handling of drill strings, equipment, and other heavy loads during critical lifting and pulling activities.
• Versatility Across Applications
  The winch drive gearbox is highly versatile and can be customized to suit various winching requirements in drilling rigs. Whether for oil and gas, geothermal, or mining applications, this gearbox adapts to different operational demands, providing consistent performance and reliability in diverse working conditions.

Applications of Planetary Winch Drive Gearboxes

• Oil and Gas Drilling
  Planetary winch drive gearboxes are indispensable in the oil and gas industry, particularly in drilling rigs. They enable the precise hoisting and lowering of drill pipes, casings, and other heavy equipment. Their high torque output and compact design make them ideal for operating in challenging terrains and demanding conditions.
• Mining and Mineral Exploration
  In mining operations, planetary gearboxes are crucial for winching systems used to handle heavy loads such as ore containers, machinery, and excavation tools. Their durability and ability to withstand rugged environments ensure reliable performance in underground and surface mining, where efficient material handling is essential for productivity.
• Marine and Offshore Applications
  Planetary winch drive gearboxes play a vital role in marine and offshore industries. They are used in anchor handling, mooring, and towing systems, where high torque and precise control are vital for safety. Their corrosion-resistant materials and compact design make them ideal for harsh marine environments.
• Construction and Infrastructure Development
  Planetary gearboxes are extensively used in construction projects for winches that lift, position, and lower heavy materials such as steel beams, concrete blocks, and machinery. Their compact size and high torque capabilities help construction equipment operate efficiently in confined spaces while handling enormous loads with precision.
• Renewable Energy Sector
  In the renewable energy industry, planetary winch drive gearboxes are utilized in wind turbine installations and maintenance processes. They assist in lifting and positioning turbine components such as blades and nacelles. Their efficiency and reliability ensure smooth operations during the handling of these large and heavy parts.
• Forestry and Logging
  Planetary gearboxes are essential in forestry and logging operations, where winching systems are used to haul and transport heavy logs. Their robust construction, high torque output, and efficient power transmission enable them to perform reliably in remote, rugged terrains, contributing to safer and faster logging operations.

Marine and Offshore Industry	Mining Industry
Oil and Gas Industry	Forestry and Logging Industry

Winch Drive Planetary Gearbox Oil Lubrication

1. Check the Gearbox Oil Level Regularly
   Before starting any lubrication process, inspect the oil level in the winch drive planetary gearbox. Ensure it meets the manufacturer’s recommended level. Operating with insufficient oil can lead to increased friction, overheating, and premature wear of the gears, reducing overall gearbox efficiency and life span.
2. Select the Appropriate Lubricant
   Use the oil type specified by the gearbox manufacturer, considering factors like operating temperature, load conditions, and environmental exposure. High-quality lubricants with anti-wear and anti-corrosion properties ensure optimal performance, reduce gear wear, and enhance the gearbox’s ability to handle demanding winching operations.
3. Drain the Old Oil Completely
   If you're performing a full oil replacement, drain the old oil completely through the designated drain plug. Ensure the gearbox is warm, as this helps the oil flow more easily. Proper drainage removes contaminants, metal particles, and sludge that could damage gear surfaces over time.
4. Clean the Gearbox Interior and Replace Filters
   Inspect the internal components of the gearbox for any debris, sludge, or metal particles. Use a lint-free cloth or a cleaning solution if necessary. Replace the oil filter, if applicable, to prevent contaminants from circulating in the newly added oil, ensuring smooth operation.
5. Refill with Fresh Lubricant
   Refill the gearbox with the recommended lubricant to the specified level. Pour the oil slowly to avoid air bubbles, which can affect lubrication efficiency. Overfilling or underfilling can lead to operational issues, so ensure the oil level is accurate by referencing the dipstick or level indicator.
6. Inspect for Leaks and Test Operation
   After refilling, inspect the gearbox for any oil leaks around seals, gaskets, or connections. Tighten any loose components if necessary. Run the winch drive at low speed to circulate the oil and verify smooth operation. Regularly monitor the oil condition to ensure long-term gearbox performance.
