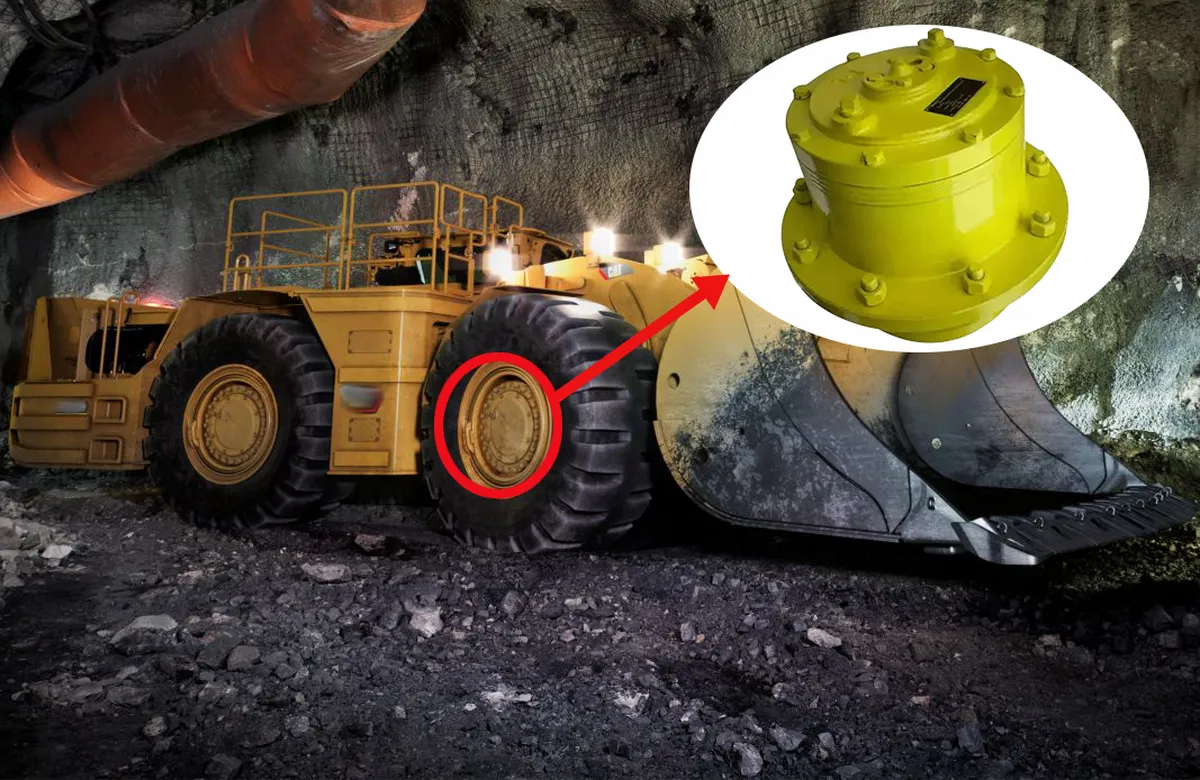

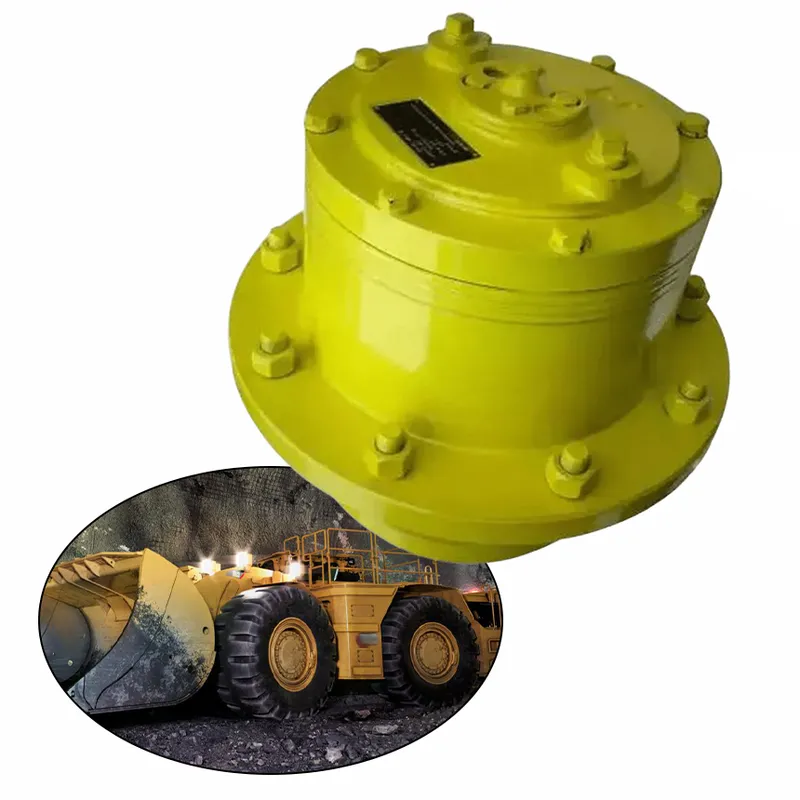

Planetary Wheel Drive Gearbox for Underground Mining Loaders

The planetary wheel drive gearbox is a compact, high-efficiency mechanical system integral to underground mining loaders, designed to transmit power from the engine or motor to the wheels with exceptional torque multiplication and speed reduction. Utilizing a planetary gear configuration comprising a central sun gear, orbiting planet gears, and an outer ring gear, this planetary gearbox excels in heavy-duty applications by providing robust load distribution and minimal backlash, ensuring reliable performance in confined, harsh underground environments. In underground mining loaders, such as load-haul-dump (LHD) vehicles, it supports critical functions like propulsion and maneuvering through rugged terrains, often featuring multi-stage planetary arrangements for enhanced durability and power density.

Planetary Wheel Drive Dimensions

Technical Definitions

GR 80

GR 200

EH 210

EH 240

EH 350

EH 610

EH 910

S Version

PD Version

Features of Wheel Drive Gearbox for Underground Mining Loaders

• High Torque Output and Efficient Power Transmission
  This planetary gearbox excels in delivering substantial torque multiplication through its epicyclic gear system, comprising a central sun gear, planet gears, and an outer ring gear, enabling underground mining loaders to handle heavy loads and rugged terrains with minimal energy loss and enhanced propulsion efficiency.
• Compact and Durable Design
  Designed with a space-efficient structure suitable for direct hub mounting, it evenly distributes mechanical loads across multiple gears, reducing component stress and extending lifespan in the confined, abrasive conditions typical of underground mining operations.
• Customizable Gear Ratios for Operational Versatility
  Offering flexible gear configurations and multiple reduction stages, the planetary wheel drive gearbox allows precise adjustment of speed and torque to accommodate varying mining tasks, such as navigating tight tunnels or managing variable payloads, thereby improving adaptability and control.
• Superior Load Distribution and Reduced Maintenance
  By sharing loads among planet gears, it minimizes wear on individual components, resulting in lower maintenance requirements and increased reliability, which is essential for minimizing downtime in continuous, high-intensity underground mining activities.
• Enhanced Efficiency and Fuel Savings
  The planetary arrangement promotes high mechanical efficiency with reduced backlash and improved lubrication systems, leading to better fuel economy and lower operational costs while maintaining consistent power delivery over a wide range of speeds in energy-demanding mining environments.
• Robust Environmental Protection and Low Noise Operation
  Equipped with advanced sealing against contaminants like dust and moisture, combined with multi-tooth engagement for quieter performance, it ensures operator safety and comfort in noisy, harsh underground settings while protecting internal mechanisms for prolonged service life.

Planetary Wheel Drive Gearbox Applications

• Mining Industry
  In the mining sector, wheel drive planetary gearboxes are essential for underground loaders and load-haul-dump (LHD) vehicles, providing robust torque transmission and speed reduction to navigate rugged terrains, handle heavy payloads, and withstand abrasive conditions, thereby enhancing productivity and equipment longevity in subterranean extraction processes.
• Construction Industry
  These planetary wheel drives power construction machinery such as excavators, bulldozers, and wheel loaders, delivering high efficiency and load distribution for tasks like earthmoving, demolition, and site preparation, ensuring reliable performance under extreme vibrations and loads while minimizing downtime on job sites.
• Agriculture Industry
  Applied in agricultural equipment, including tractors, harvesters, and feed mixers, wheel drive gearboxes facilitate precise control and high torque for plowing, harvesting, and material mixing, adapting to variable terrains and loads to improve fuel efficiency and operational reliability in farming operations.
• Forestry Industry
  In forestry applications, these planetary gearboxes drive logging vehicles, skidders, and forwarders, offering compact design and superior torque multiplication to manage uneven forest floors, heavy timber loads, and continuous operation, contributing to safer and more efficient wood harvesting and transportation processes.
• Material Handling Industry
  Utilized in material handling systems like forklifts, automated guided vehicles (AGVs), and conveyor drives, wheel drive planetary gear reducers ensure smooth torque delivery and speed control for lifting, transporting, and positioning heavy goods in warehouses and logistics centers, reducing maintenance needs and boosting throughput.
• Marine Industry
  These planetary gearbox reducers support marine equipment such as winch drives and propulsion systems for vessels and offshore platforms, providing high torque density and resistance to corrosive environments, enabling reliable operation in dredging, towing, and underwater applications while optimizing space and power efficiency.

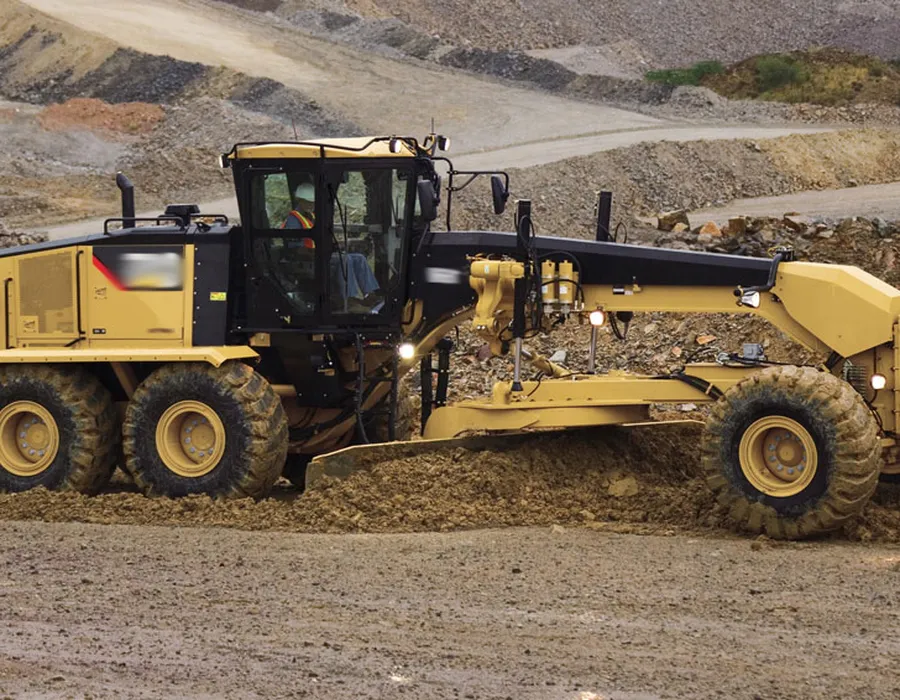

Planetary Wheel Drive for Underground Drilling Jumbos	Planetary Wheel Drive for Mining Motor Graders
Planetary Wheel Drive for Corn Planters	Planetary Wheel Drive for Road Rollers

Custom Planetary Wheel Drive Gearbox for Underground Mining Loaders

• Assess Operational Requirements and Environmental Factors
  Begin by evaluating the loader's torque needs, speed ranges, payload capacities, and exposure to dust, moisture, and vibrations in underground mining settings, consulting with us to define precise specifications that optimize performance and prevent premature failures in rugged terrains.
• Select Appropriate Gear Ratios and Configurations
  Determine the ideal planetary gear setup, including sun, planet, and ring gears, to achieve desired torque multiplication and speed reduction, incorporating multi-stage designs for enhanced power density while ensuring seamless integration with the loader's propulsion system for efficient load-haul-dump operations.
• Choose High-Durability Materials and Components
  Opt for robust materials like hardened steel or alloy composites for gears and shafts to withstand extreme loads and abrasive environments, incorporating custom seals and lubrication systems to extend lifespan and reduce maintenance in continuous mining cycles.
• Design for Compact Integration and Mounting
  Engineer a space-efficient layout suitable for wheel hub mounting on underground loaders, customizing dimensions and interfaces to fit existing chassis designs, thereby minimizing overall vehicle size while maximizing maneuverability in confined tunnels and galleries.
• Incorporate Advanced Features for Safety and Efficiency
  Integrate hydraulic controls, integrated brakes, and sensors for real-time monitoring, ensuring compliance with mining safety standards and enhancing fuel efficiency through reduced backlash and optimized power transmission in high-intensity extraction tasks.
• Conduct Rigorous Testing and Validation
  Prototype the customized planetary gearbox and subject it to simulated underground conditions, including load testing and failure analysis, to verify reliability, followed by iterative refinements based on performance data to guarantee long-term operational success and minimal downtime.
