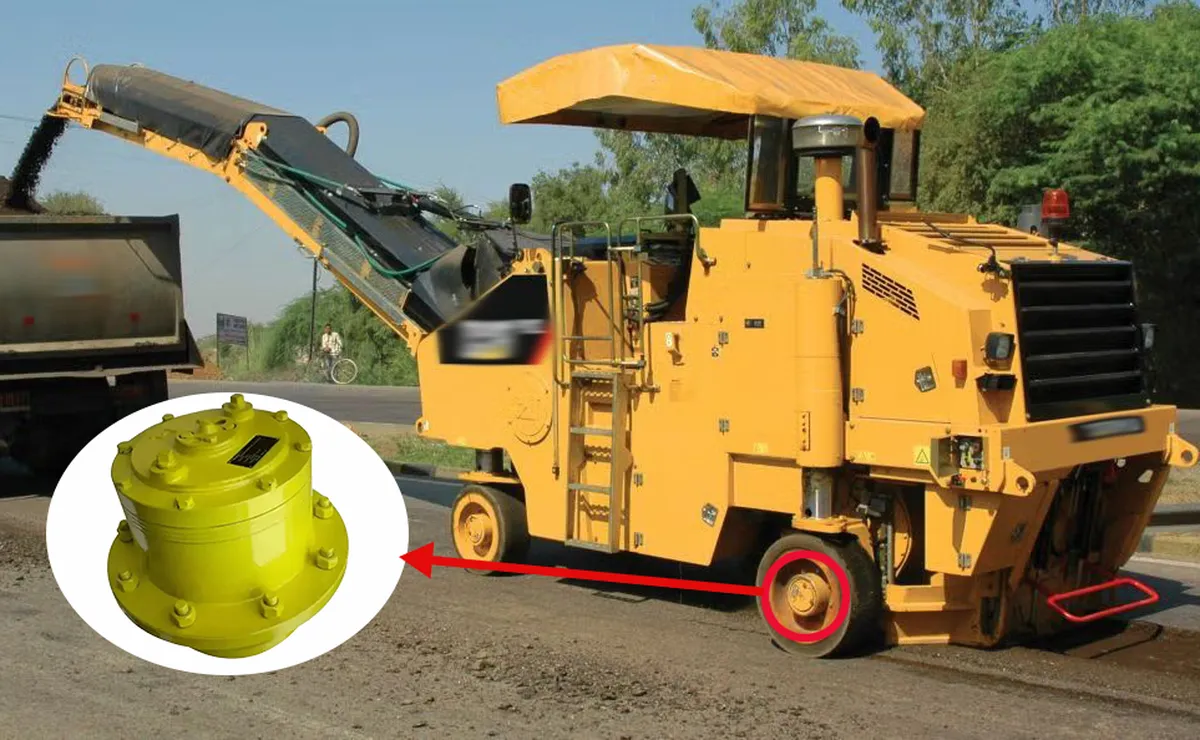

Planetary Wheel Drive Gearbox for Cold Planers

The planetary wheel drive gearbox for cold planers is an advanced transmission system designed specifically for heavy-duty construction machinery that mills asphalt or concrete surfaces. It employs an epicyclic gear configuration, featuring a central sun gear, orbiting planet gears, and an outer ring gear. This compact design enables efficient torque multiplication and speed reduction, making it suitable for direct integration with wheels or hubs. Its high torque output allows cold planers to handle substantial loads while maintaining controlled movement and stability, even on uneven or rugged terrains.

Built for durability, the wheel drive planetary gearbox offers robust construction to withstand harsh operating conditions, reducing maintenance needs and extending service life. Its precision-engineered mechanics ensure optimal power distribution and consistent performance, critical for milling applications where accuracy and efficiency are essential. Additionally, the gearbox contributes to reduced fuel consumption, enhancing overall operational efficiency. Supporting functions like earthmoving and material handling, this gearbox ensures reliable propulsion and versatility, minimizing downtime and improving productivity in demanding road reclamation and construction environments.

Planetary Wheel Drive Dimensions

Technical Definitions

GR 80

GR 200

EH 210

EH 240

EH 350

EH 610

EH 910

S Version

PD Version

Cold Planer Wheel Drive Planetary Gearbox Advantages

• High Torque Density
  This planetary wheel drive gearbox delivers exceptional torque output relative to its size, enabling cold planers to handle heavy-duty milling tasks on tough surfaces like asphalt and concrete without requiring oversized components, which improves machine maneuverability and reduces overall weight for better fuel efficiency in construction environments.
• Compact and Space-Efficient Design
  By utilizing an epicyclic gear arrangement, the planetary system fits into confined spaces on cold planers, allowing for streamlined machine architecture that maximizes cutting depth and productivity while minimizing the footprint, making it ideal for urban roadwork where space constraints are common.
• Enhanced Durability and Reliability
  Constructed with robust materials and a design that distributes loads evenly across multiple gears, this wheel drive planetary gearbox withstands the rigorous vibrations and impacts of cold planing operations, leading to longer service life, fewer breakdowns, and lower maintenance costs over extended use in harsh job sites.
• Superior Mechanical Efficiency
  The planetary configuration minimizes friction and energy losses through optimized gear meshing, resulting in higher power transmission rates that enhance the cold planer's overall performance, reduce operational heat buildup, and contribute to energy savings during prolonged milling sessions on highways or pavements.
• Low Backlash and Precise Control
  Featuring minimal play between gears, this system provides accurate speed and torque control, which is crucial for achieving uniform milling depths and smooth surfaces in cold planers, thereby improving the quality of road reclamation projects and operator safety during precise maneuvers.
• Improved Oil Retention and Gear Ratio Flexibility
  Planetary gearboxes excel at maintaining lubrication for sustained operation and offer greater gear ratios within a compact envelope, allowing cold planers to adapt to varying load conditions and terrains, which boosts versatility and efficiency in diverse construction scenarios without compromising power delivery.

Planetary Wheel Drive Gearbox Application Industry

• Road Construction and Maintenance
  Planetary wheel drive gearboxes are essential in road construction machinery like cold planers, enabling precise asphalt and concrete milling. Their high torque output ensures efficient material removal, while their durability supports continuous operation in demanding environments, boosting productivity and reducing downtime.
• Mining and Quarrying Operations
  In mining and quarrying, planetary gearboxes power heavy-duty vehicles and loaders to handle substantial loads. Their robust design ensures reliable performance under extreme conditions, such as rocky terrains and heavy vibrations, making them vital for material extraction, transport, and processing tasks.
• Agricultural Machinery
  Wheel drive gearboxes are widely used in agricultural equipment like tractors and harvesters. Their compact design and torque efficiency enable smooth operation on uneven fields, ensuring effective plowing, harvesting, and material handling, even in challenging agricultural environments with varying loads and terrain demands.
• Material Handling and Logistics
  In industries like warehousing and logistics, planetary drive gearboxes are integrated into forklifts and conveyor systems. Their precise power distribution supports smooth lifting and transport of heavy goods, ensuring operational stability and efficiency in high-demand environments like factories and distribution centers.
• Oil and Gas Industry
  Planetary gear reducers play a critical role in drilling rigs and pipeline equipment. Their ability to handle high torque requirements ensures efficient power transmission in heavy machinery, enabling seamless operations in oil extraction, pipeline maintenance, and other energy-sector applications under harsh conditions.
• Construction Equipment Manufacturing
  Planetary wheel drive gearboxes are fundamental in cranes, excavators, and loaders used in building infrastructure. Their ability to deliver high torque while maintaining stability helps these machines handle heavy loads effectively, ensuring reliable performance and safety in large-scale construction projects worldwide.

Planetary Wheel Drive for Motor Graders	Planetary Wheel Drive for Mining Wheel Loaders
Planetary Wheel Drive for Combine Harvesters	Planetary Wheel Drive for Wheel Dozers

Choose the Right Planetary Wheel Drive Gearbox for Cold Planers

• Assess Torque Requirements
  Evaluate the maximum output torque needed for your cold planer to handle tough materials and heavy loads during milling operations, as planetary gearboxes excel in delivering high torque density that supports consistent power transmission and prevents stalling under extreme conditions typical in road reclamation projects.
• Determine Gear Reduction Ratio
  Calculate the appropriate reduction ratio based on input and output speeds to optimize the gearbox for the cold planer's hydraulic motor, enabling precise speed control that improves milling efficiency and adapts to varying surface hardness without compromising overall machine productivity.
• Evaluate Load Bearing Capacity
  Consider the radial and axial load capacities of the planetary wheel drive gearbox to ensure it can withstand the vibrations and impacts from uneven terrains in cold planing tasks, promoting long-term reliability and minimizing wear on components during prolonged use in construction sites.
• Review Backlash and Precision Levels
  Opt for a planetary gearbox reducer with low backlash to achieve accurate positioning and smooth operation in cold planers, which is critical for maintaining uniform cutting depths and high-quality surface finishes while enhancing operator control and safety in precision-demanding applications.
• Consider Size and Mounting Compatibility
  Select a compact planetary gearbox that fits seamlessly within the cold planer's space constraints and mounting configurations, facilitating easy integration with hydraulic drives and allowing for versatile machine setups that maximize maneuverability in urban or confined job sites.
• Factor in Durability and Maintenance Needs
  Choose a robust planetary gear reducer constructed from high-quality materials with features like effective lubrication systems to endure the harsh abuse of cold planing environments, reducing downtime through minimal maintenance requirements and extending service life for cost-effective long-term performance.
