Planetary Slewing Drive Gearbox for Tower Cranes

A planetary slewing drive gearbox for tower cranes is a specialized mechanical assembly that integrates a planetary gear system with a slewing ring bearing and typically a worm gear mechanism to facilitate controlled rotational movement under substantial loads. This compact, modular unit features multiple stages of planetary gears, often two or three, to achieve high torque output, while maintaining efficiency and reduced dimensions for space-constrained applications. Designed for durability, it supports axial, radial, and tilting moment loads, ensuring precise slewing operations essential for positioning the crane's boom and jib during lifting tasks.

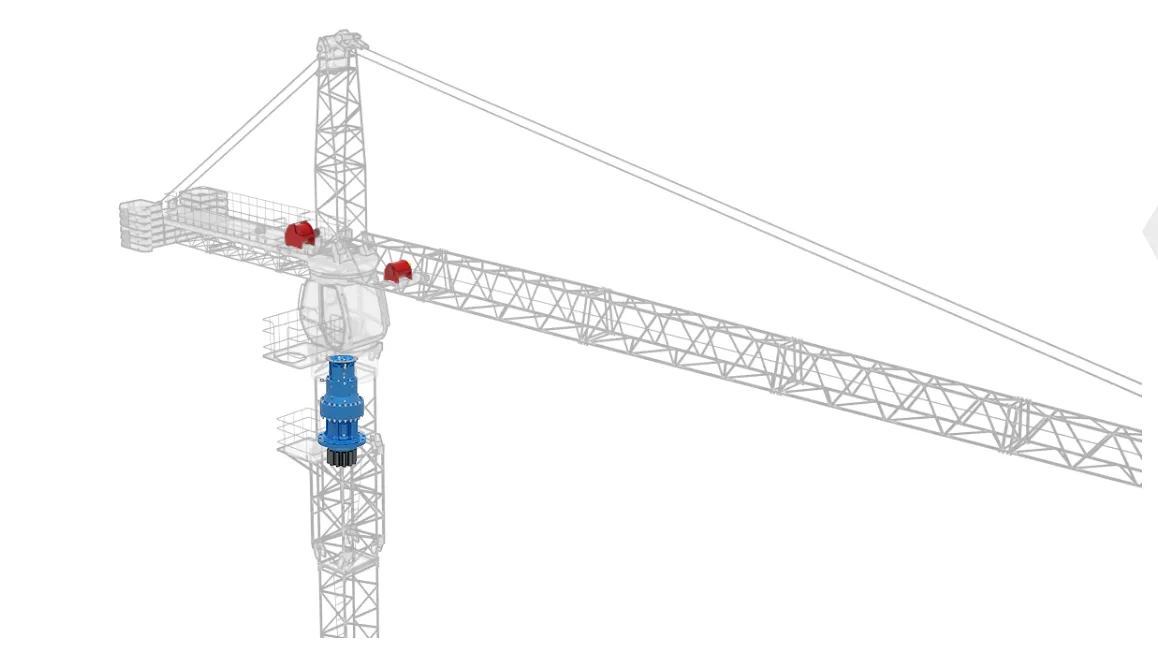

In tower cranes, this slewing gearbox drives the slewing ring via a pinion, enabling smooth 360-degree rotation while withstanding environmental stresses such as wind and heavy payloads. Its robust construction, often incorporating helical gears for enhanced torque transmission, minimizes wear and extends service life, making it indispensable for construction sites requiring reliable, high-performance machinery.

Planetary Slewing Drive Dimensions

RE 240

Support: DBS

Support: Tecc

Splined Shaft:

Pinions:

RE 310/510

Support: DBS

Support: Tecc

Support: T6

Support: T8

Support: T18

Support: NR

Support: NR3

Shaft:

Pinions:

RE 610

Support: DBS

Support: DBS2

Support: T18

Shaft:

Pinions:

RE 810

Support: Tecc

Support: TRecc

Shaft:

Pinions:

Features of Planetary Slewing Drive for Tower Cranes

• High Torque Output
  The planetary slewing drive delivers exceptional torque ranging from 9 kNm to over 400 kNm, enabling efficient handling of heavy loads in tower crane operations, ensuring smooth and powerful rotational movements essential for construction efficiency.
• Compact and Modular Design
  Featuring a planetary gear structure, this slewing planetary gearbox drive maintains reduced dimensions and weight while offering modular configurations for various mounting positions, facilitating easy integration into space-constrained tower crane systems without compromising performance.
• Superior Load Bearing Capacity
  It supports high axial, radial, and tilting moment loads, with optimized meshing between pinion and ring gear, providing stability and reliability during demanding slewing tasks in tower cranes under varying environmental conditions.
• High Efficiency and Precision
  Incorporating multiple planetary stages, the planetary slewing gearbox achieves gear ratios up to 500:1 and precise torque transmission, minimizing energy loss and enabling accurate positioning of the crane's boom and jib for enhanced operational control.
• Durability and Low Maintenance
  Built with robust materials and an enclosed design, it offers long service life, low noise operation, and minimal maintenance requirements, making it ideal for prolonged use in harsh construction sites with reduced downtime.
• Weather Resistance and Sealing
  Equipped with efficient sealing systems and weather-resistant housing, the planetary slewing drive gearbox drive protects internal components from environmental stresses like dust, moisture, and wind, ensuring consistent performance and extended reliability in outdoor tower crane applications.

Planetary Slewing Gearbox Applications

• Construction and Tower Cranes

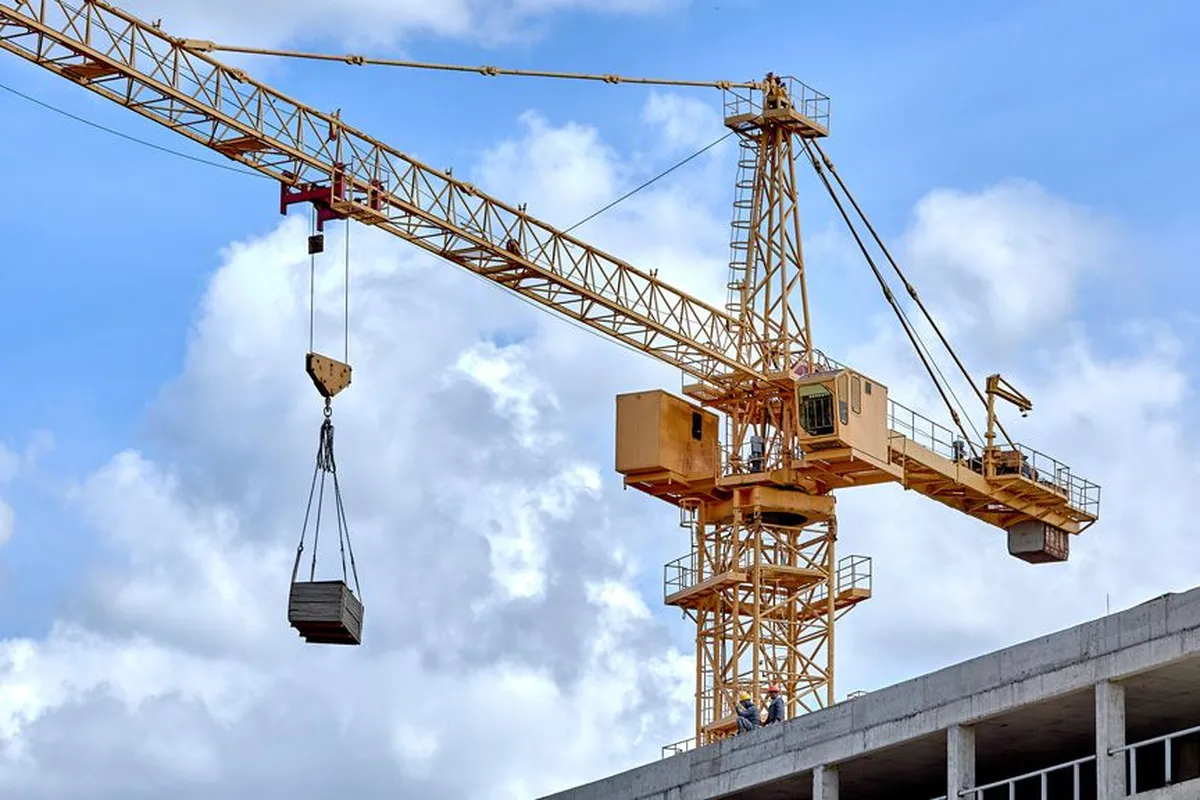

  Planetary slewing gearboxes are indispensable in the construction industry, especially for tower cranes. They enable precise 360-degree rotation of the crane's boom and jib under heavy loads, ensuring efficient material handling. Their durability and high torque capacity make them ideal for demanding construction environments, including high-rise building projects.
• Mining and Material Handling
  In the mining sector, slewing drive planetary gearboxes are used in heavy-duty equipment such as stackers, reclaimers, and excavators. These gearboxes provide reliable rotational movement for handling massive loads of minerals and raw materials. Their robust design withstands harsh conditions, including abrasive particles, extreme temperatures, and heavy vibrations in mining operations.
• Renewable Energy (Wind Turbines)
  Planetary slewing drives play a crucial role in wind turbines, facilitating the rotation of the nacelle and the adjustment of blades for optimal wind capture. Their compact design, high torque output, and resistance to environmental stresses ensure reliable performance in renewable energy applications, even in offshore wind farms.
• Marine and Offshore Equipment
  Marine cranes, winches, and other offshore equipment rely on slewing gearboxes for their rotational functionality. Designed to resist corrosion and operate efficiently in humid, saltwater environments, these gearboxes ensure smooth operations in shipbuilding, oil rigs, and other maritime industries, where reliability is critical.
• Aerospace and Defense
  Planetary slewing drive gearboxes are employed in aerospace and defense applications for radar systems, missile launchers, and satellite tracking equipment. Their ability to handle precise rotational movements under heavy axial and radial loads makes them essential for high-precision tasks in these industries, often under extreme environmental conditions.

Planetary Slewing Drive for Excavators	Planetary Slewing Drive for Crawler Cranes
Planetary Slewing Drive for Azimuth Thrusters	Planetary Slewing Drive for Wind Turbines

Slewing Drive Planetary Gearbox Maintenance Tips

• Regular Lubrication
  Proper lubrication is essential to ensure the smooth operation of the slewing drive planetary gearbox. Use manufacturer-recommended lubricants and check the oil level periodically. Replace the oil at recommended intervals to prevent excessive wear, overheating, and potential damage to the internal gears and bearings.
• Inspect for Wear and Damage
  Conduct routine inspections of the slewing gearbox to identify early signs of wear, cracks, or damage. Pay close attention to critical components like gears, bearings, and seals. Promptly addressing these issues can prevent costly failures and extend the lifespan of the equipment.
• Monitor Operating Temperature
  Overheating can significantly reduce the efficiency and durability of a slewing drive planetary gearbox. Use temperature sensors to monitor operating temperatures regularly. If abnormal heat levels are detected, investigate the cause immediately, as it could indicate lubrication issues or excessive load on the gearbox.
• Check for Proper Alignment
  Ensure that the planetary slewing gearbox and connected components, such as the slewing ring and pinion, are properly aligned. Misalignment can cause uneven wear, reduced efficiency, and increased strain on the gearbox. Regular alignment checks can help maintain optimal performance and prevent unnecessary stress on the system.
• Seal and Contamination Check
  Inspect the seals for wear or damage to prevent contaminants such as dirt, water, or debris from entering the gearbox. Contamination can degrade the lubricant and damage internal components. Replacing damaged seals promptly is crucial for maintaining the gearbox’s reliability and longevity.
