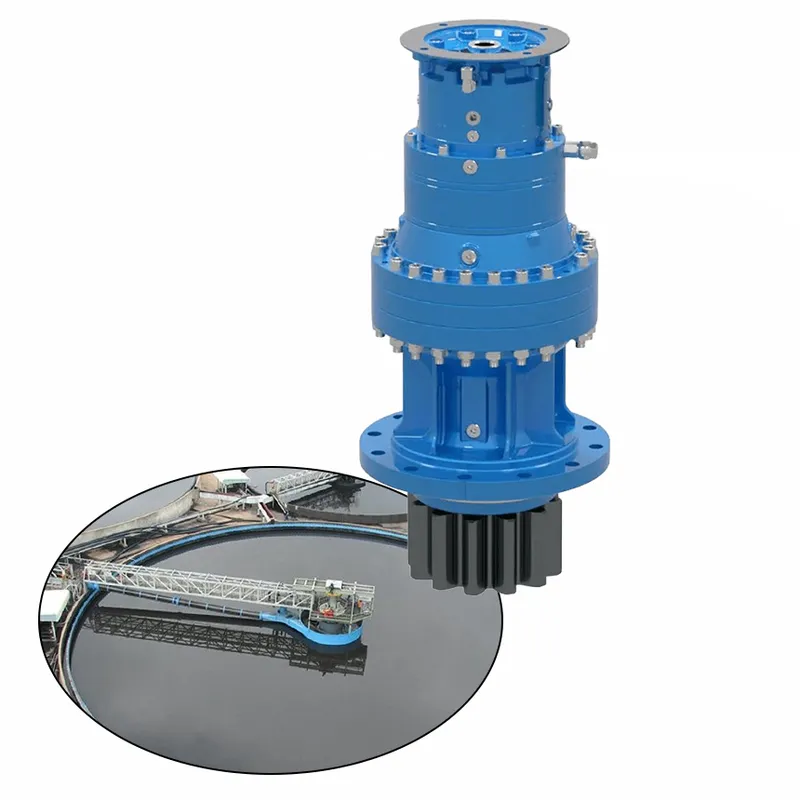

Planetary Slewing Drive Gearbox for Thickners

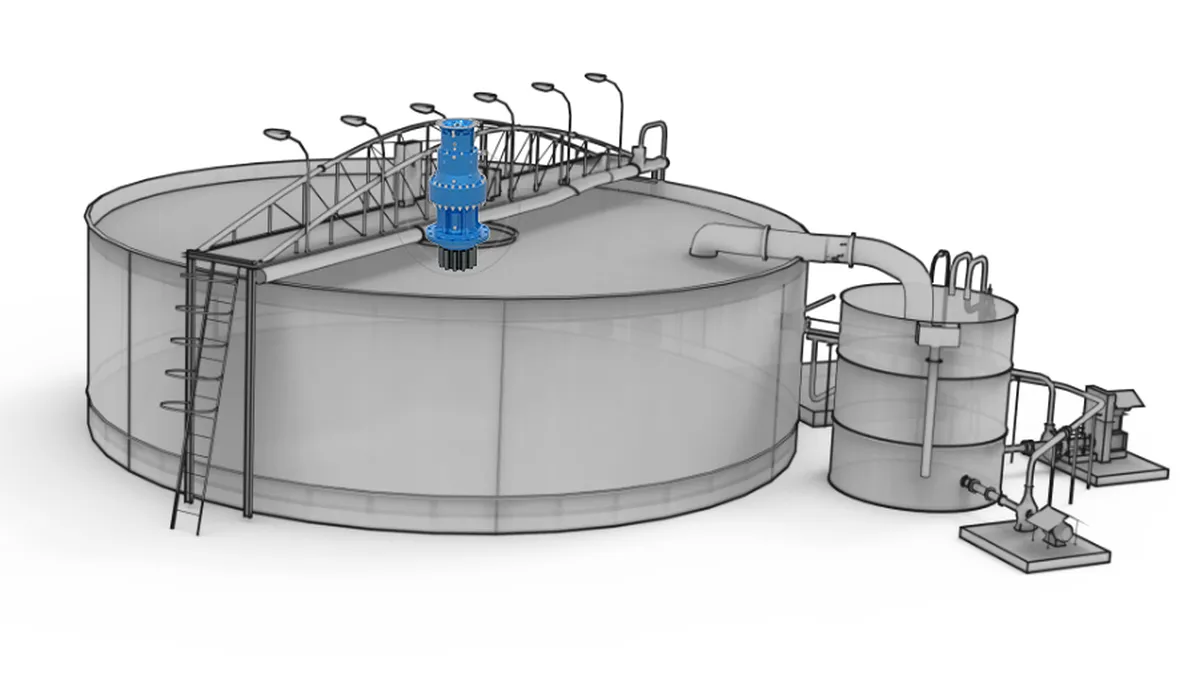

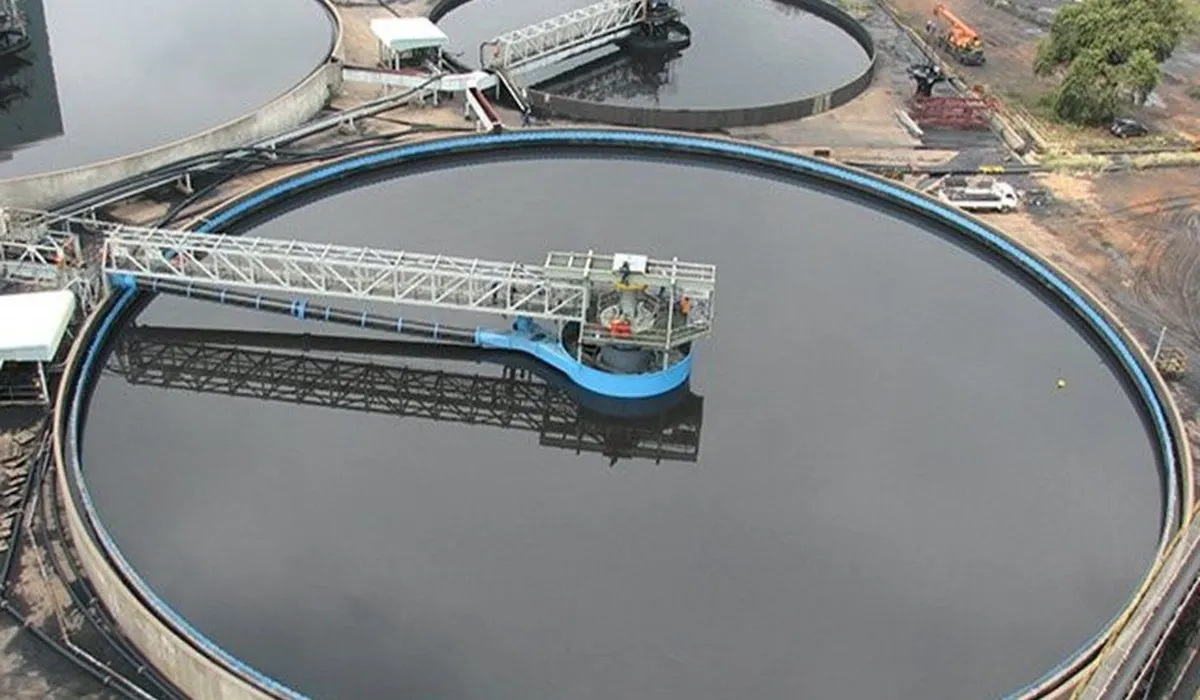

A planetary slewing drive gearbox for thickeners represents a sophisticated mechanical component engineered for demanding industrial applications, particularly in mineral processing and wastewater treatment facilities. This planetary slewing gearbox integrates a planetary gear system characterized by a central sun gear, orbiting planet gears, and an outer ring gear with a slewing drive mechanism, enabling precise, high-torque rotational motion for driving the raking arms within thickener tanks. Thickeners are large sedimentation basins used to concentrate slurries by settling solids, and the slewing gearbox ensures smooth, continuous operation under heavy loads, resisting corrosion and abrasion from abrasive materials like mining tailings or chemical slurries.

Planetary Slewing Drive Dimensions

RE 240

Support: DBS

Support: Tecc

Splined Shaft:

Pinions:

RE 310/510

Support: DBS

Support: Tecc

Support: T6

Support: T8

Support: T18

Support: NR

Support: NR3

Shaft:

Pinions:

RE 610

Support: DBS

Support: DBS2

Support: T18

Shaft:

Pinions:

RE 810

Support: Tecc

Support: TRecc

Shaft:

Pinions:

Key Features of Planetary Slewing Drive Gearbox for Thickners

• High Torque Capacity
  The planetary slewing drive for thickeners provides exceptional output torque ranging from 1,000 to 180,000 Nm, with gear ratios between 3.3 and 3,000, enabling it to efficiently drive heavy raking arms in large sedimentation tanks for optimal slurry settling and solids concentration in demanding industrial environments.
• Compact and Modular Design
  Engineered with a modular structure featuring two- or three-stage planetary gear systems, this slewing drive planetary gearbox ensures space-saving installation and seamless integration into various thickener setups, allowing for customized configurations that enhance flexibility and adaptability in mineral processing and wastewater treatment applications.
• Superior Corrosion and Wear Resistance
  Constructed with high-strength materials and sealed enclosures, the planetary slewing drive gearbox for thickeners offers robust protection against abrasive slurries and corrosive chemicals, promoting extended service life and reliable performance in harsh conditions typical of thickener operations in mining and environmental sectors.
• Enhanced Load-Bearing Capabilities
  Incorporating a precision slewing ring bearing at its core, this planetary slew drives handles significant radial and axial loads while delivering high rotational torque, ensuring stable and precise movement of thickener mechanisms under heavy operational stresses for consistent sedimentation efficiency.
• Low Maintenance and Longevity
  Designed with self-lubricating features and weather-resistant sealing, the planetary slewing gearbox minimizes maintenance requirements and downtime, supporting continuous 24/7 operation in thickeners while reducing overall costs and enhancing reliability for long-term industrial use.
• Efficient and Low-Noise Operation
  Utilizing advanced involute planetary gear transmission, this slewing planetary gearbox achieves stable, low-noise performance with high energy efficiency, facilitating smoother rotations in thickener applications and contributing to a more productive, quieter working environment in processing facilities.

Common Applications of Planetary Slewing Drives

• Solar Tracking Systems
  Planetary slewing drives are extensively utilized in solar photovoltaic installations to precisely orient panels toward the sun, enhancing energy capture efficiency through dual-axis rotation mechanisms that adapt to varying sunlight angles and environmental conditions in renewable energy projects worldwide.
• Cranes and Heavy Lifting Equipment
  In tower cranes, shipboard cranes, and harbor operations, planetary slew drives provide high-torque rotational capabilities essential for smooth, controlled swinging motions, ensuring safe handling of heavy loads in construction, maritime, and industrial settings with minimal backlash and superior durability.
• Wind Turbines and Generators
  These planetary slewing gearboxes facilitate yaw and pitch adjustments in wind energy systems, allowing turbines to align optimally with wind directions for maximum power generation, while withstanding extreme weather and high axial loads in onshore and offshore renewable energy applications.
• Mining and Construction Machinery
  Planetary slewing drive gearboxes power excavators, digger derricks, and drilling equipment in mining operations, delivering robust torque for rotational tasks under harsh, abrasive conditions, thereby improving productivity and reliability in heavy-duty earthmoving and resource extraction processes.
• Marine and Ship Propulsion Systems
  Employed as steering drives in azimuth thrusters and marine vessels, these slewing planetary gearboxes enable precise maneuverability and propulsion control in underwater and surface applications, resisting corrosion and high pressures for enhanced performance in naval and commercial shipping environments.
• Robotics and Industrial Automation
  In robotic arms, articulated buses, and automated guided vehicles (AGVs), slewing drive planetary gearboxes offer compact, high-precision rotation for assembly lines and material handling, supporting seamless integration in manufacturing facilities to boost operational efficiency and accuracy.

Planetary Slewing Drive for Azimuth Thrusters	Planetary Slewing Drive for Solar Tracking Systems
Planetary Slewing Drive for Excavators	Planetary Slewing Drive for Wind Turbines

Choose the Right Planetary Slewing Gearbox for Thickners

1. Load Capacity Requirements
   The load capacity is one of the most critical factors when selecting a planetary slewing gearbox for thickener applications. Consider the weight and volume of solids in the tank, as well as the operational pressure on the raking arms. A gearbox must handle high loads consistently without compromising performance or durability.
2. Rotation Speed and Control
   Evaluate the required rotation speed for the raking arms within the thickener tank. Precise and consistent rotational speed is essential to ensure proper settling of solids and avoid disruptions in the sedimentation process. A gearbox with adjustable speed control provides flexibility for optimizing performance based on operating conditions.
3. Torque Demand
   The torque demand depends on the size of the thickener and the density of the slurry being processed. A planetary gearbox must deliver sufficient torque to handle the heavy-duty operation of driving the raking arms, even in challenging conditions with abrasive or high-density materials.
4. Operating Environment
   Consider the working environment of the thickener. If the slewing gearbox will be exposed to abrasive materials, high humidity, or chemical corrosion, ensure it is built with materials and coatings designed to resist these conditions. A robust, corrosion-resistant gearbox ensures longer service life and reliable performance in harsh industrial settings.
5. Space and Installation Constraints
   Assess the physical dimensions of the thickener system and the available space for gearbox installation. Planetary slewing gearboxes are known for their compact design, but it’s essential to choose a model that fits seamlessly into the existing setup without requiring expensive modifications or additional components.
6. Customization and Compatibility
   Different thickener designs may require specific planetary slewing drive gearbox sizes, gear ratios, or configurations. Choose a gearbox that can be customized to match your thickener’s unique requirements. Ensuring compatibility with your system not only improves efficiency but also reduces downtime and maintenance costs in the long run.
