Planetary Slewing Drive Gearbox for Telehandlers

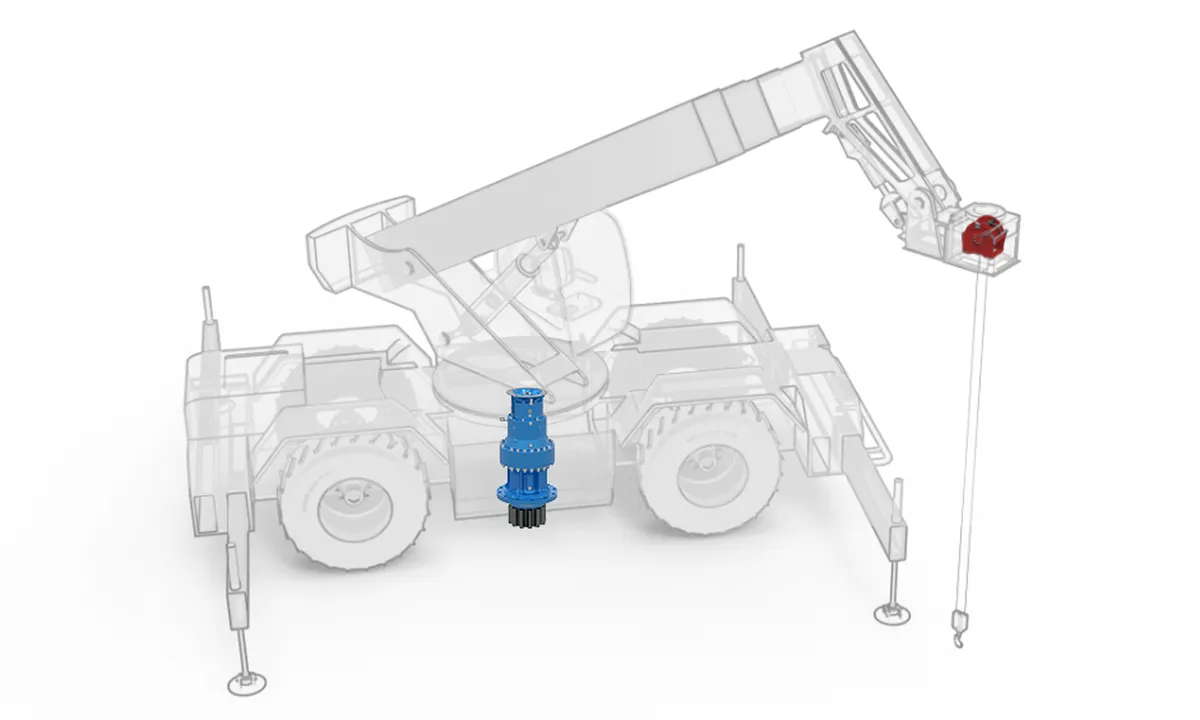

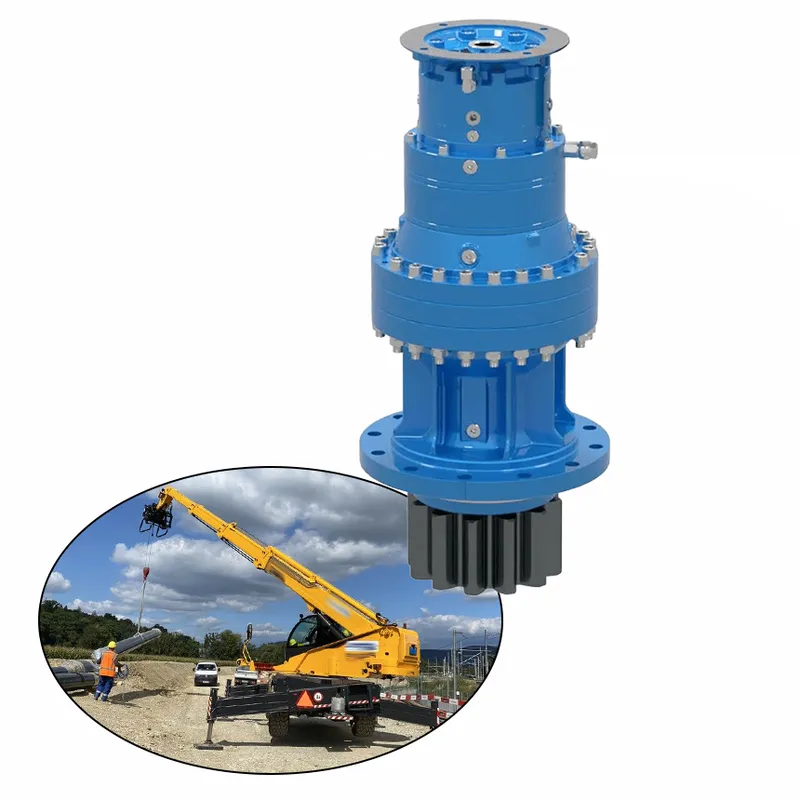

A planetary slewing drive gearbox for telehandlers is a sophisticated, compact transmission system engineered to deliver high torque and precise rotational control in heavy-duty mobile equipment. Specifically tailored for rotating telehandlers, this slewing gearbox employs a multi-stage planetary gear configuration typically involving a central sun gear, multiple planet gears, and an outer ring gear to achieve efficient power transmission and speed reduction while handling substantial radial and axial loads. Integrated with a slewing ring bearing, it enables seamless 360-degree rotation of the telehandler's upper superstructure relative to the chassis, enhancing operational flexibility in construction, agricultural, and industrial applications.

Planetary Slewing Drive Dimensions

RE 240

Support: DBS

Support: Tecc

Splined Shaft:

Pinions:

RE 310/510

Support: DBS

Support: Tecc

Support: T6

Support: T8

Support: T18

Support: NR

Support: NR3

Shaft:

Pinions:

RE 610

Support: DBS

Support: DBS2

Support: T18

Shaft:

Pinions:

RE 810

Support: Tecc

Support: TRecc

Shaft:

Pinions:

Advantages of Planetary Slewing Drive Gearbox for Telehandlers

• High Torque Output
  Planetary slewing drive gearboxes are designed to deliver exceptional torque, making them ideal for handling heavy loads in telehandlers. With their multi-stage planetary gear system, they evenly distribute load across multiple gears, ensuring reliable power transmission while reducing wear and tear on individual components, thus prolonging lifespan.
• Compact and Lightweight Design
  Despite their high-performance capabilities, these slewing gearboxes feature a compact and lightweight design, allowing for easy integration into telehandlers. Their space-saving architecture optimizes the overall equipment size without compromising functionality, making telehandlers more efficient and easier to maneuver in confined construction, agricultural, or industrial environments.
• 360-Degree Rotation Capability
  Integrated with a slewing ring bearing, these planetary slewing drives enable seamless 360-degree rotation of the telehandler’s upper structure relative to its chassis. This feature enhances operational flexibility, allowing telehandlers to perform tasks requiring precise positioning, such as lifting and rotating heavy loads, with greater efficiency and ease.
• Durable and Reliable Performance
  Built to withstand extreme working conditions, slewing drive planetary gearboxes are highly durable. Their robust construction, combined with high-quality materials, ensures resistance to heavy radial and axial loads, vibrations, and harsh environments. This durability guarantees consistent performance in demanding applications, reducing downtime and maintenance costs.
• Efficient Power Transmission
  The multi-stage planetary gear design ensures efficient power transfer by optimizing torque and reducing energy loss. This efficiency translates to smoother operation, reduced fuel or energy consumption, and improved overall performance of telehandlers, making them more cost-effective and environmentally friendly over their operational life.
• Versatility Across Applications
  Slewing planetary gearboxes are versatile and suitable for a wide range of telehandler applications. Whether in construction, agriculture, or industrial settings, these gearboxes provide the precision, control, and strength needed to handle diverse tasks, such as lifting, rotating, or stabilizing loads, ensuring maximum productivity and adaptability.

Common Applications of Planetary Slewing Drives

• Telehandlers and Cranes
  Planetary slewing drives are widely used in telehandlers and cranes to enable 360-degree rotation of their upper structures. This functionality allows precise positioning and movement of heavy loads, ensuring efficient operation in construction, logistics, and industrial sectors where lifting and rotating materials are critical for productivity.
• Aerial Work Platforms (AWPs)
  Aerial work platforms, such as cherry pickers and boom lifts, rely on planetary slewing drives for smooth and controlled rotation. This ensures workers can safely and accurately position the platform at various angles and heights, making these drives indispensable for maintenance, inspections, and construction tasks at elevated work sites.
• Excavators and Earthmoving Equipment
  In excavators and other earthmoving machines, slewing gearboxes provide rotational motion for digging arms or buckets. Their ability to handle significant torque and loads ensures efficient excavation, trenching, and material handling, even in harsh environments like mining operations or heavy-duty construction projects.
• Wind Turbines
  Planetary slewing drive gearboxes are used in wind turbines to adjust the orientation of the blades (yaw systems) and optimize energy capture. These drives handle high loads while delivering precise rotational control, ensuring the turbine operates efficiently under varying wind conditions, contributing to renewable energy production.
• Marine and Offshore Equipment
  Slewing drives are essential for marine cranes, offshore drilling rigs, and other maritime equipment. Their robust design ensures reliable performance in harsh marine environments, providing the rotational power needed for lifting, anchoring, and other operations while resisting corrosion and heavy-load stresses.
• Solar Tracking Systems
  In solar photovoltaic and concentrated solar power systems, planetary slewing gearboxes are used to adjust the angle of solar panels or mirrors. By enabling precise rotation and tracking the sun’s movement, these drives maximize energy efficiency and output, making them vital for modern renewable energy solutions.

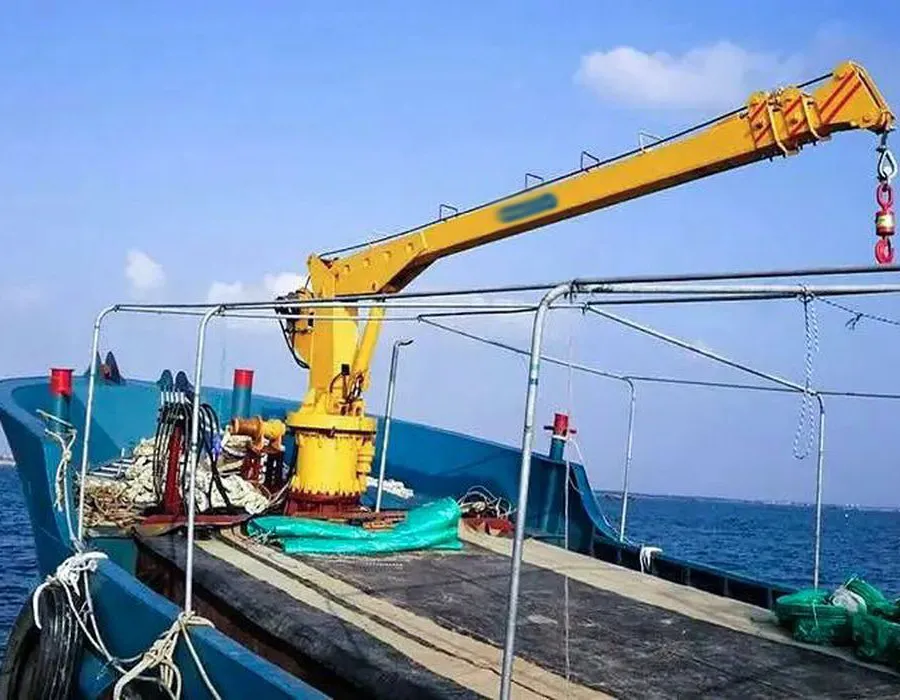

Planetary Slewing Drive for Tower Cranes	Planetary Slewing Drive for Fishing Cranes
Planetary Slewing Drive for Crawler Drilling Rigs	Planetary Slewing Drive for Solar Tracking Systems

Choose the Right Planetary Slewing Gearbox for Telehandlers

• Assess Load Capacity
  When selecting a planetary slewing gearbox for telehandlers, prioritize evaluating the axial, radial, and moment loads it must withstand, as these determine the unit's ability to support heavy payloads during lifting and extension operations without failure. Consider the telehandler's maximum lift capacity and boom extension to ensure the gearbox can handle dynamic stresses in construction or material handling scenarios.
• Evaluate Torque Requirements
  Determine the torque demand based on the telehandler's operational needs, including peak and continuous torque levels required for smooth rotation under varying loads. This factor ensures reliable performance in tasks such as positioning heavy materials, preventing overload and extending the slew drive's service life in demanding applications.
• Consider Rotation Speed
  Analyze the required rotational speed for the slewing mechanism, ensuring the planetary slewing drive provides appropriate gear ratios for controlled, efficient movement without excessive wear. In telehandlers, optimal speed facilitates precise maneuvering in confined spaces, balancing productivity with safety during aerial work or site navigation.
• Analyze Operating Environment
  Account for environmental conditions such as temperature extremes, dust, moisture, and corrosive elements that the planetary gearbox will encounter in outdoor or industrial settings. Selecting sealed, robust designs enhances durability and minimizes maintenance for telehandlers used in harsh construction or agricultural environments.
• Review Gear Ratio and Efficiency
  Examine the gear ratio to match the telehandler's power input and output needs, prioritizing high-efficiency models to reduce energy consumption and heat generation during prolonged use. This ensures seamless integration with hydraulic or electric drives, optimizing overall machine performance and operational costs.
• Ensure Compatibility and Mounting
  Verify the gearbox's dimensions, mounting interfaces, and integration with the telehandler's chassis and drive system to guarantee a secure fit and minimal modifications. Proper compatibility prevents alignment issues, enhances stability, and supports easy installation in diverse telehandler models.
