Planetary Slewing Drive Gearbox for Rough Terrain Cranes

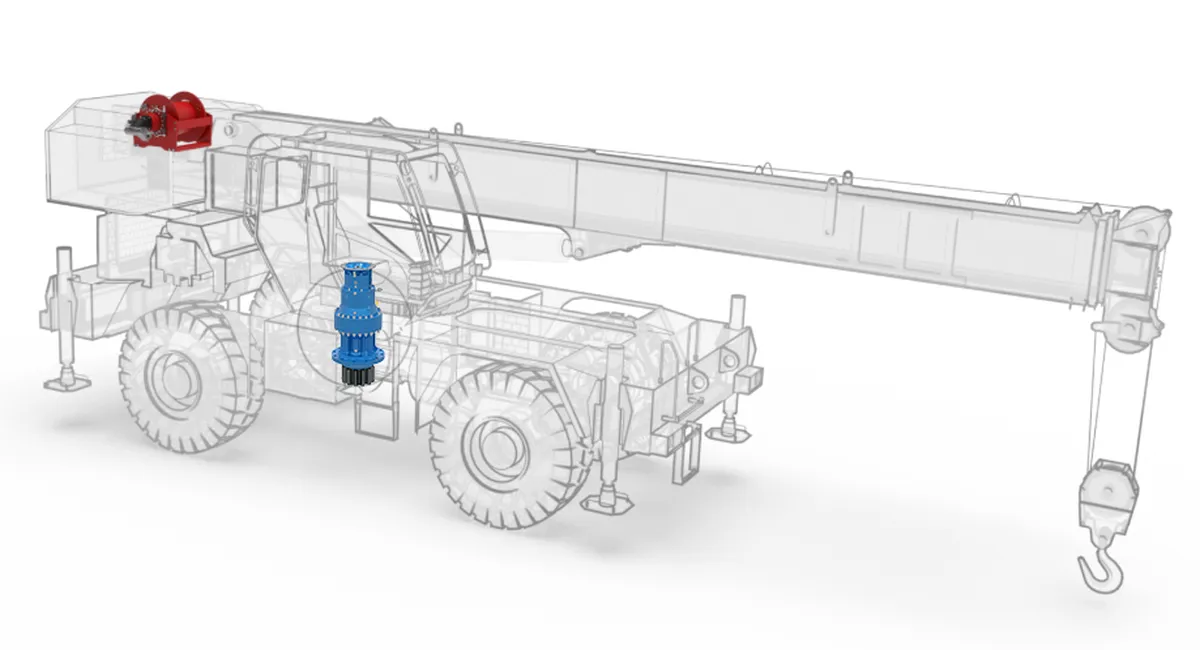

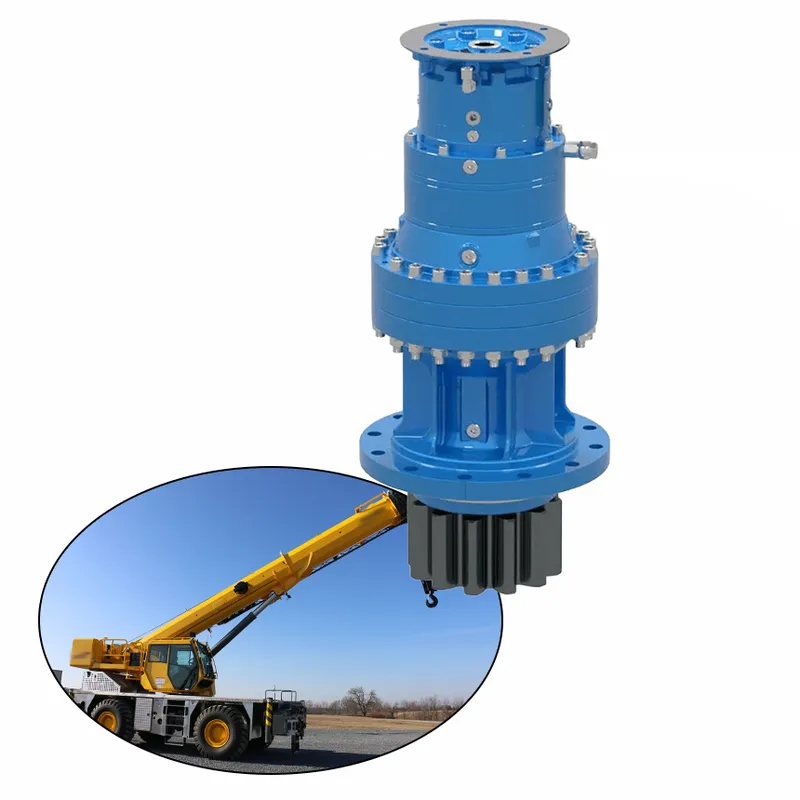

A planetary slewing drive gearbox is a compact, high-torque transmission system specifically engineered for applications requiring precise rotational control under demanding conditions, such as in rough terrain cranes. It integrates a planetary gear mechanism with a slewing ring bearing and typically a worm or helical drive, enabling the crane's upper structure to rotate smoothly while supporting heavy loads and withstanding axial, radial, and tilting forces. In rough terrain cranes, this gearbox facilitates 360-degree slewing of the boom, ensuring stability and operational efficiency on uneven surfaces, with features like modular construction for enhanced durability and reduced maintenance.

Planetary Slewing Drive Dimensions

RE 240

Support: DBS

Support: Tecc

Splined Shaft:

Pinions:

RE 310/510

Support: DBS

Support: Tecc

Support: T6

Support: T8

Support: T18

Support: NR

Support: NR3

Shaft:

Pinions:

RE 610

Support: DBS

Support: DBS2

Support: T18

Shaft:

Pinions:

RE 810

Support: Tecc

Support: TRecc

Shaft:

Pinions:

Benefits of Planetary Slewing Drive for Rough Terrain Cranes

1. High Torque Output and Load Capacity
Planetary slewing drives deliver exceptional torque ranging from 9 kNm to 400 kNm, enabling rough terrain cranes to manage heavy loads with superior efficiency and stability, even on uneven and challenging surfaces during construction or mining operations. This capability ensures reliable performance under high-demand conditions, enhancing overall crane productivity.

2. Durability in Harsh Environments
Engineered to operate in extreme settings such as salt spray, explosive atmospheres, and rough terrains, these planetary slewing drive gearboxes provide robust resistance to environmental stresses, thereby extending the operational lifespan of rough terrain cranes and minimizing breakdowns in industrial applications.

3. Compact and Modular Design
The space-saving modular structure of planetary slewing gearboxes allows seamless integration into rough terrain cranes, optimizing spatial efficiency while facilitating straightforward installation, upgrades, and adaptability to various crane configurations without compromising structural integrity.

4. Precise Rotational Control and Reduced Backlash
Offering accurate 360-degree slewing with minimal backlash, these slewing drive planetary gearboxes enable precise boom positioning in rough terrain cranes, which is essential for maintaining operational accuracy, safety, and efficiency during lifting tasks on unstable ground.

5. Low Maintenance Requirements
Featuring sealed housings and lifetime grease lubrication for bearings, planetary slewing drives significantly reduce the frequency of maintenance interventions, thereby lowering long-term costs and downtime for rough terrain cranes in continuous heavy-duty use.

6. Enhanced Reliability and Safety
With high peak bearing capacity and weatherproof features, these slewing planetary gearboxes ensure consistent torque transmission and stability, contributing to safer material handling and reduced risk of failures in rough terrain cranes during critical operations in diverse sectors.

Planetary Slewing Gearbox Application Industry

1. Rough Terrain Cranes
Planetary slewing gearboxes are essential for rough terrain cranes, allowing smooth and precise 360-degree boom rotation. They handle heavy loads and withstand axial, radial, and tilting forces, ensuring stability and efficiency during crane operations on uneven surfaces and in demanding environments like construction sites.

2. Aerial Work Platforms (AWPs)
Used in aerial work platforms, slewing planetary gearboxes provide reliable rotational control and compact design for operations in tight spaces. Their high torque and load capacity ensure safe and stable platform rotation, making them ideal for maintenance, inspections, and installations at elevated heights.

3. Excavators and Drilling Rigs
In excavators and drilling rigs, planetary slewing drives enable precise and powerful rotation of the upper structure. They manage extreme forces and provide durability in harsh environments, ensuring smooth operation during digging, drilling, and other heavy-duty tasks in mining, construction, and oil and gas industries.

4. Port and Marine Cranes
Planetary slewing drive gearboxes are critical components in port and marine cranes, enabling efficient cargo handling and ship loading/unloading. Their ability to manage high torque and heavy loads ensures reliable performance, even in corrosive environments with constant exposure to saltwater and extreme weather conditions.

5. Wind Turbines
In wind turbines, slewing gearboxes are used to adjust the nacelle's position for optimal wind direction alignment. Their precision rotational control and robust construction ensure efficient energy generation while withstanding high wind loads, extreme weather, and continuous operation over long periods.

6. Heavy-Duty Construction Machinery
Slewing planetary gearboxes are widely utilized in heavy construction machinery such as tower cranes, concrete pumps, and piling rigs. Their high-performance gear mechanisms provide smooth rotation and load management, ensuring safe and efficient operation in large-scale construction projects under challenging conditions.

Planetary Slewing Drive for Tower Cranes	Planetary Slewing Drive for Telehandlers
Planetary Slewing Drive for Fishing Cranes	Planetary Slewing Drive for Crawler Drilling Rigs

Planetary Slewing Drive Gearbox Maintenance Tips

• Conduct Regular Visual Inspections
  Perform thorough visual checks on the planetary slewing drive gearbox at scheduled intervals to identify signs of wear, oil leaks, or damage around seals, housings, and joints, ensuring early detection of issues that could lead to operational failures and extending the overall lifespan of the equipment in demanding applications.
• Maintain Proper Lubrication Levels
  Regularly monitor and replenish the lubricant in the planetary slewing drive according to manual specifications, using high-quality oils or greases to reduce friction, prevent overheating, and protect internal components from corrosion, thereby enhancing efficiency and reliability during continuous use.
• Monitor for Abnormal Noises and Vibrations
  Listen for unusual sounds and measure vibrations in the slewing drive gearbox during operation, addressing any anomalies promptly to avoid escalation into major breakdowns, as these indicators often signal misalignment, bearing wear, or insufficient lubrication in heavy-duty machinery.
• Check for Leaks and Seal Integrity
  Inspect the planetary slewing drive planetary gearbox for oil or grease leaks around seals and connections on a routine basis, replacing damaged seals immediately to prevent contamination and lubricant loss, which could compromise performance and lead to costly repairs in industrial environments.
• Ensure Proper Alignment and Mounting
  Verify the alignment of the planetary slewing gearbox with connected components during installation and periodic checks, adjusting as necessary to minimize stress on gears and bearings, thus promoting smooth operation and preventing premature wear in applications like cranes and excavators.
• Schedule Professional Servicing and Cleaning
  Arrange for expert maintenance services for the slewing drive planetary gearbox at recommended intervals, including thorough cleaning to remove debris and contaminants, which helps maintain optimal performance, reduces downtime, and ensures compliance with safety standards in harsh operational conditions.
