Planetary Slewing Drive Gearbox for Crawler Drilling Rigs

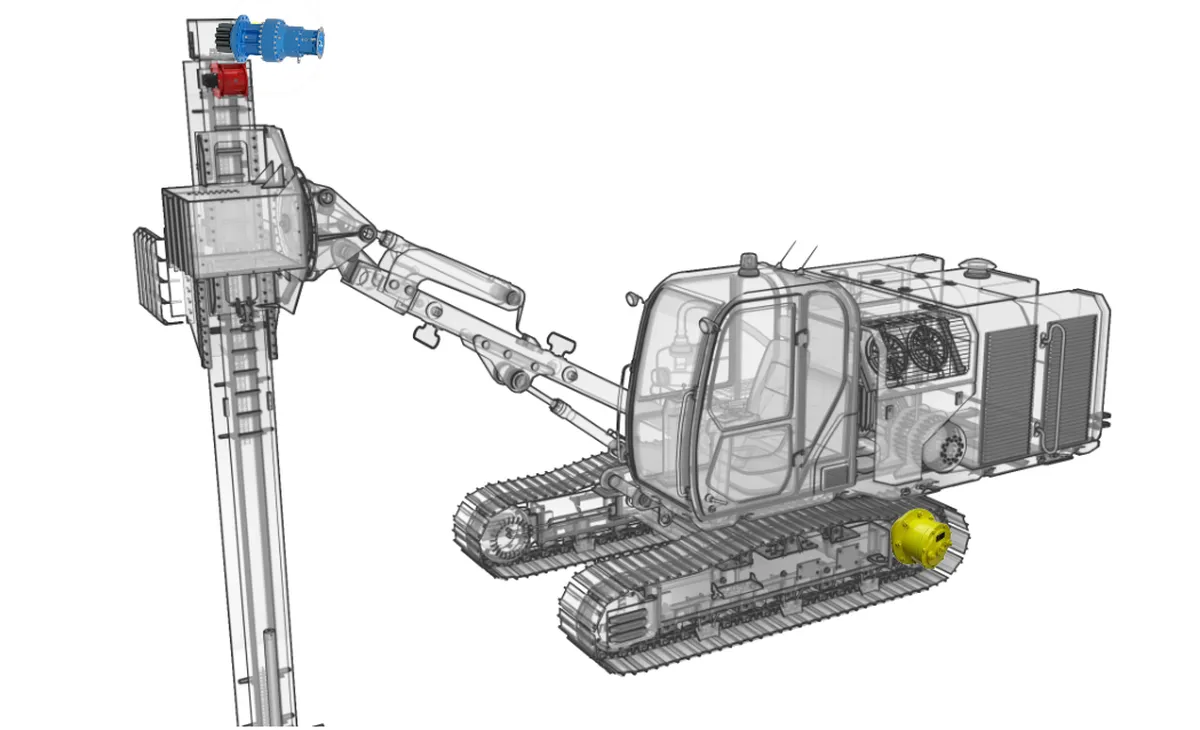

A planetary slewing drive gearbox for crawler drilling rigs is a specialized rotary drive mechanism engineered to deliver precise, high-torque rotational motion in demanding construction and mining environments. Comprising a compact planetary gear system integrated with a slewing ring bearing, it enables controlled slewing, typically 360-degree rotation of critical components such as the drilling mast, boom, or undercarriage on tracked (crawler) rigs. This design excels in transmitting substantial torque at low speeds while minimizing space and weight, essential for mobile rigs navigating rough terrains. Slewing gearboxes are widely used in foundation piling, geotechnical drilling, and oil exploration.

Planetary Slewing Drive Dimensions

RE 240

Support: DBS

Support: Tecc

Splined Shaft:

Pinions:

RE 310/510

Support: DBS

Support: Tecc

Support: T6

Support: T8

Support: T18

Support: NR

Support: NR3

Shaft:

Pinions:

RE 610

Support: DBS

Support: DBS2

Support: T18

Shaft:

Pinions:

RE 810

Support: Tecc

Support: TRecc

Shaft:

Pinions:

Benefits of Planetary Slewing Drive for Crawler Drilling Rigs

1. High Torque Performance
Planetary slewing drives are designed to deliver exceptional torque output, making them ideal for handling heavy loads in demanding applications. Their ability to transmit significant torque at low speeds ensures stable and precise rotations, even under high-pressure conditions in geotechnical drilling and foundation piling projects.

2. Compact and Lightweight Design
The combination of a planetary gear system and slewing ring bearing provides a space-saving solution. This compact design minimizes the weight added to crawler drilling rigs, which is crucial for maintaining mobility and stability while navigating rough terrain and confined construction sites.

3. 360-Degree Controlled Rotation
These slewing gearboxes enable smooth, precise, and consistent 360-degree rotation of critical rig components like the drilling mast or boom. This ensures greater flexibility and accuracy in positioning, which is essential for operations such as piling, oil exploration, and geotechnical drilling, especially in challenging environments.

4. Durability and Reliability
Planetary slewing drive gearboxes are built with robust materials to endure harsh environmental conditions, including extreme temperatures, heavy vibrations, and abrasive dust. Their ability to maintain performance in these scenarios ensures longevity and reduces downtime, making them a cost-effective choice for long-term operations.

5. Energy Efficiency
The efficient transmission of power through the planetary gear system minimizes energy loss, reducing fuel consumption in crawler rigs. This not only lowers operational costs but also contributes to environmentally sustainable practices, which are increasingly important in modern construction and mining industries.

6. Versatility Across Applications
Slewing planetary gearboxes are adaptable to a wide range of crawler drilling rig applications, including foundation piling, geotechnical exploration, and oil drilling. Their versatile design ensures compatibility with various rig configurations, offering a reliable solution for different projects and terrains without compromising performance.

Slewing Drive Planetary Gearbox Applications

1. Foundation Piling
Slewing drive planetary gearboxes are extensively used in foundation piling rigs to provide precise rotational control of the drilling mast and boom. Their high torque output ensures efficient penetration into tough soil and rock layers, enabling stable and accurate piling for bridges, skyscrapers, and other large structures.

2. Geotechnical Drilling
These slewing gearboxes play a key role in geotechnical drilling rigs, where accurate positioning and controlled rotation are critical for soil sampling and analysis. Their compact design and ability to handle heavy loads make them ideal for rigs operating in confined spaces or challenging terrains during geological exploration.

3. Oil and Gas Exploration
In oil and gas drilling rigs, planetary slewing drive gearboxes facilitate smooth 360-degree rotation of the rig components, such as the mast or undercarriage. This capability ensures precise alignment and positioning of drilling equipment, even in remote and harsh environments, for efficient resource extraction.

4. Crawler Cranes
Slewing gearboxes are essential for crawler cranes, enabling the controlled rotation of the crane's superstructure. This allows precise lifting and placement of heavy loads during construction, infrastructure development, and industrial projects, ensuring safety and efficiency even in tight or uneven workspaces.

5. Mining and Tunneling Equipment
Mining rigs and tunnel boring machines rely on planetary slewing drives to rotate cutting heads or drilling booms with high precision. Their robust construction and ability to handle extreme loads and vibrations make them indispensable for excavation tasks in mining and subterranean projects.

6. Renewable Energy Systems
Planetary slewing gearboxes are also widely used in renewable energy applications, such as wind turbines and solar tracking systems. They enable smooth rotational adjustments for wind turbine blades or solar panels, ensuring optimal positioning to maximize energy generation, even under varying wind or sunlight conditions.

Planetary Slewing Drive for Excavators	Planetary Slewing Drive for Deck Cranes

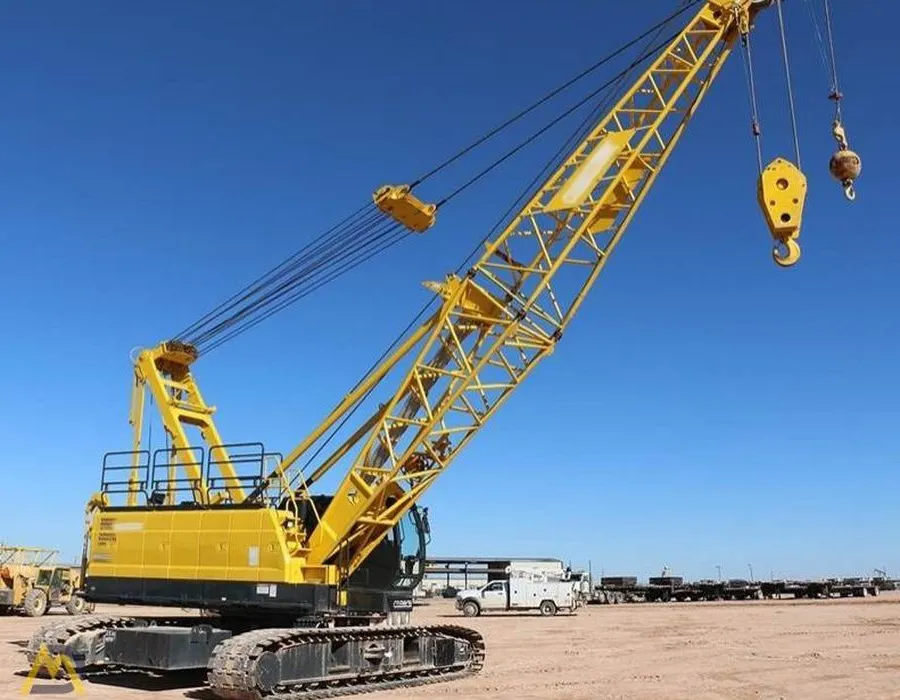

Planetary Slewing Drive for Crawler Cranes	Planetary Slewing Drive for Tower Cranes

Planetary Slewing Drive Gearbox Troubleshooting

1. Excessive Heat Generation
Overheating in a planetary slewing drive gearbox can result from insufficient lubrication, overloading, or misalignment of components. To resolve this, ensure proper lubrication with the recommended oil or grease, verify load limits, and inspect for misaligned gears that may require realignment or replacement.

2. Unusual Noise or Vibration
Loud noises or excessive vibrations are often caused by worn gears, bearings, or improper assembly. Check for damaged or worn-out components and replace them as needed. Tighten loose bolts and ensure the gearbox is securely mounted to prevent further operational disruptions or potential damage.

3. Oil Leaks
Oil leakage can occur due to worn seals, cracks in the housing, or overfilled oil levels. Inspect the seals for wear or damage and replace them if necessary. Repair any cracks in the planetary gearbox housing and ensure the oil is filled to the correct level per the manufacturer's recommendations.

4. Reduced Torque Output
A noticeable drop in torque output may result from gear wear, contamination in the lubricant, or improper gear alignment. Inspect the condition of the gears and clean or replace them if necessary. Ensure the planetary slewing gearbox is properly lubricated with clean, uncontaminated oil to maintain optimal performance.

5. Irregular or Stiff Rotation
Difficulty in achieving smooth rotation may indicate internal contamination, damaged bearings, or debris impeding movement. Disassemble the planetary slew drive to clean out any dirt or debris, inspect the bearings for damage, and replace any faulty parts to restore normal rotational functionality.

6. Gearbox Not Engaging Properly
If the slewing drive planetary gearbox fails to engage or disengage as expected, it could be due to worn clutch components, misaligned drive shafts, or a malfunctioning control mechanism. Inspect and replace damaged clutch parts, realign the drive shafts, and troubleshoot the control system to resolve the issue.
