Planetary Slewing Drive Gearbox for Concrete Pumps

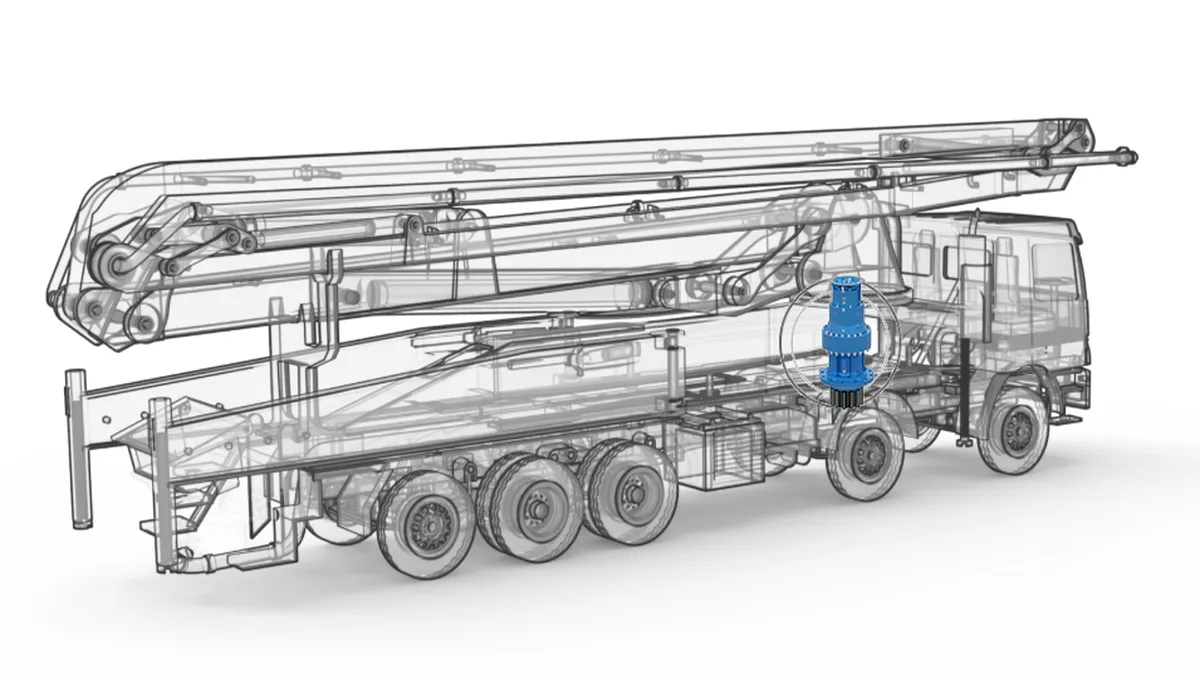

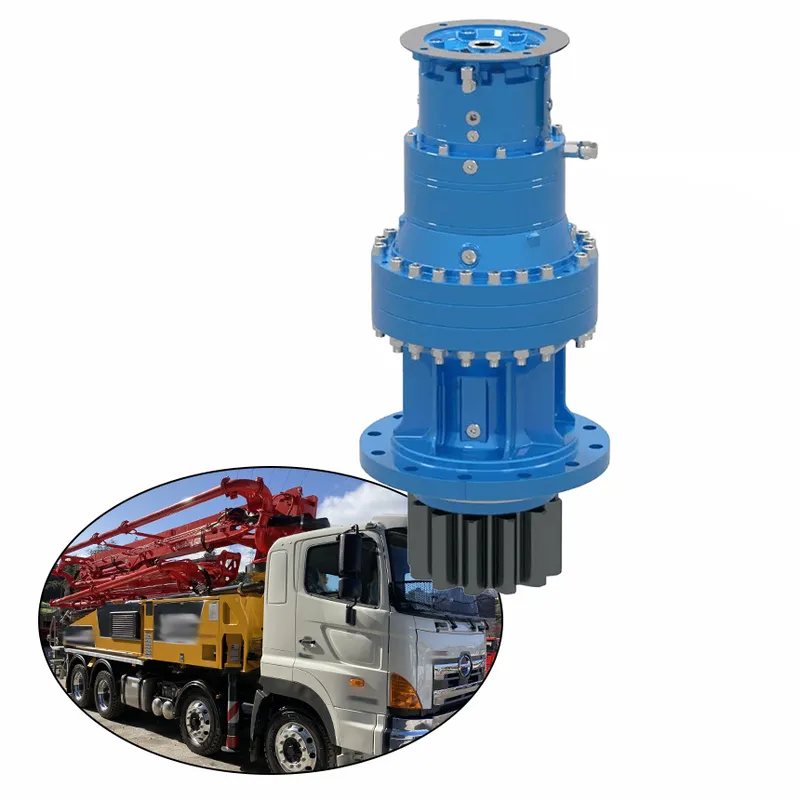

A planetary slewing drive gearbox for concrete pumps is a specialized, high-torque transmission system engineered to enable precise rotational movement of the pump's boom or distribution arm in truck-mounted or stationary concrete pumping equipment. This gearbox employs a compact planetary gear configuration, typically featuring two or three stages, where multiple planet gears orbit a central sun gear within a ring gear, ensuring even load distribution, enhanced efficiency, and superior durability under heavy operational demands. Such slewing gearboxes are crucial for applications requiring reliable slewing in construction environments, minimizing downtime and optimizing performance in high-pressure concrete delivery systems.

Planetary Slewing Drive Dimensions

RE 240

Support: DBS

Support: Tecc

Splined Shaft:

Pinions:

RE 310/510

Support: DBS

Support: Tecc

Support: T6

Support: T8

Support: T18

Support: NR

Support: NR3

Shaft:

Pinions:

RE 610

Support: DBS

Support: DBS2

Support: T18

Shaft:

Pinions:

RE 810

Support: Tecc

Support: TRecc

Shaft:

Pinions:

Features of Planetary Slewing Drive for Concrete Pumps

• High Torque Capacity
  Planetary slewing drives for concrete pumps deliver exceptional output torque, often ranging from 9 kNm to over 400 kNm, enabling robust performance in demanding construction environments where heavy loads and continuous operation are required for efficient boom rotation.
• Compact and Modular Structure
  These slewing gearboxes feature a space-saving design with two or three-stage planetary gear configurations, allowing seamless integration into truck-mounted or stationary concrete pumps while maintaining high efficiency and minimizing overall equipment footprint for enhanced mobility.
• Superior Load Handling
  Engineered to withstand substantial axial, radial, and tilting moment loads, planetary slewing gearboxes ensure even load distribution across multiple planet gears, providing stability and safety during concrete pumping operations in challenging job sites.
• Enhanced Durability and Reliability
  Constructed with rugged materials and sealed housings for weather resistance, these slewing planetary gearboxes offer long operational life and minimal downtime, making them ideal for harsh construction conditions encountered in concrete pump applications.
• Precise Rotational Control
  Incorporating worm gear mechanisms for self-locking and smooth rotation, planetary slewing drive gearboxes enable accurate positioning of the pump's boom or distribution arm, ensuring precise concrete delivery and improved operational efficiency on-site.
• Easy Integration and Maintenance
  Designed with flange-mounted options and modular components, these planetary slewing drive gearboxes facilitate straightforward installation and servicing in concrete pumps, reducing maintenance costs and supporting quick repairs to optimize productivity in professional settings.

Applications of Planetary Slewing Drive Gearbox

• Concrete Pumping Equipment

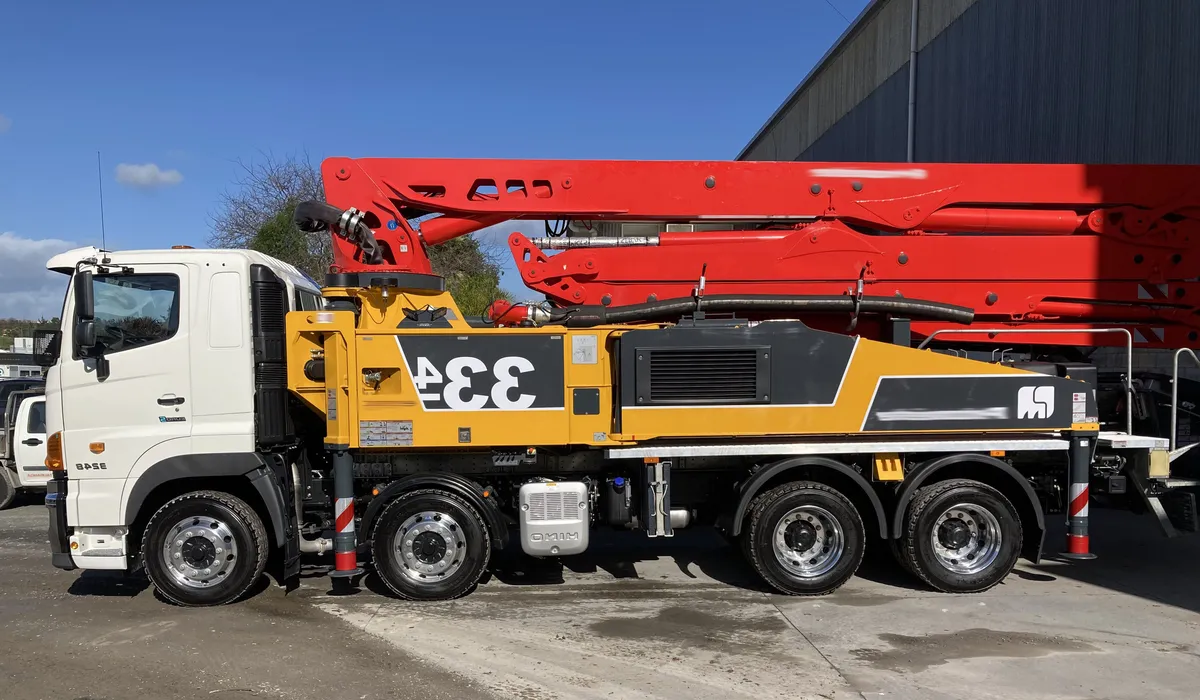

  Planetary slewing drive gearboxes are integral to truck-mounted and stationary concrete pumps, enabling precise rotation of booms or distribution arms. Their high torque output and smooth operation allow for accurate concrete placement, ensuring efficiency and reliability in high-pressure concrete delivery systems for construction projects of all sizes.
• Mobile Cranes and Lifting Equipment
  These slewing gearboxes are widely used in mobile cranes to control the rotation of crane booms. Their compact design and ability to handle heavy loads make them indispensable for lifting operations in construction, mining, and heavy industrial environments, where precise positioning is crucial for safety and efficiency.
• Aerial Work Platforms (AWP)
  Planetary slewing gearboxes enhance the functionality of aerial work platforms by enabling precise rotational movement of the platform. This allows workers to position equipment accurately at various heights and angles, improving productivity and safety in tasks like building maintenance, electrical work, and tree trimming.
• Excavators and Earthmoving Machinery
  These planetary slewing drives provide reliable slewing capabilities for excavators, enabling the rotation of the upper structure. Their durability and ability to manage high torque loads ensure efficient digging, loading, and material handling operations in construction, mining, and other earthmoving applications, even under challenging conditions.
• Wind Turbines
  Slewing planetary gearboxes are essential for yaw and pitch systems in wind turbines. They allow the turbine blades or nacelle to rotate and adjust their position relative to wind direction, optimizing energy generation. Their ability to handle high loads and operate efficiently ensures long-term reliability in renewable energy systems.
• Marine and Offshore Equipment
  In marine applications, such as ship cranes or offshore drilling rigs, slewing drive planetary gearboxes facilitate precise rotational movement under harsh environmental conditions. Their corrosion-resistant construction and high-load capacity ensure stable and reliable performance, making them ideal for heavy-duty tasks in challenging marine and offshore environments.

Planetary Slewing Drive for Excavators	Planetary Slewing Drive for Azimuth Thrusters
Planetary Slewing Drive for Tower Cranes	Planetary Slewing Drive for Tunnel Boring Machines

Concrete Pump Planetary Slewing Gearbox Installation Steps

• Preparation and Compatibility Check
  Prior to installation, verify that the planetary slewing drive gearbox matches the specifications of the concrete pump's motor and boom system, including torque ratings and mounting dimensions, to ensure seamless integration and prevent operational failures in high-demand construction environments.
• Surface Cleaning and Protection Removal
  Thoroughly clean the mating surfaces of the planetary gearbox, motor shaft, and connecting components to remove any debris, rust, or protective grease, while also extracting plugs from clamp holes to facilitate proper alignment and avoid contamination during assembly.
• Alignment with Motor and Structure
  Carefully align the planetary slewing gearbox vertically over the motor pinion and concrete pump's structural mount, ensuring precise positioning to accommodate axial and radial loads typical in boom rotation applications for optimal performance.
• Initial Mounting and Bolt Insertion
  Insert mounting bolts into the designated holes of the gearbox flange and concrete pump frame, securing them loosely at first to allow for adjustments, thereby maintaining stability during the subsequent tightening phase in heavy-duty pumping operations.
• Sequential Tightening of Fasteners
  Tighten the bolts and clamping screws in a diagonal sequence to achieve uniform pressure distribution, preventing misalignment or stress concentrations that could compromise the gearbox's durability under the rigorous conditions of concrete delivery systems.
• Final Testing and Verification
  After assembly, rotate the drive shaft manually to confirm smooth operation and absence of binding, followed by a functional test under load to validate the installation's reliability for safe and efficient slewing in concrete pump applications.
