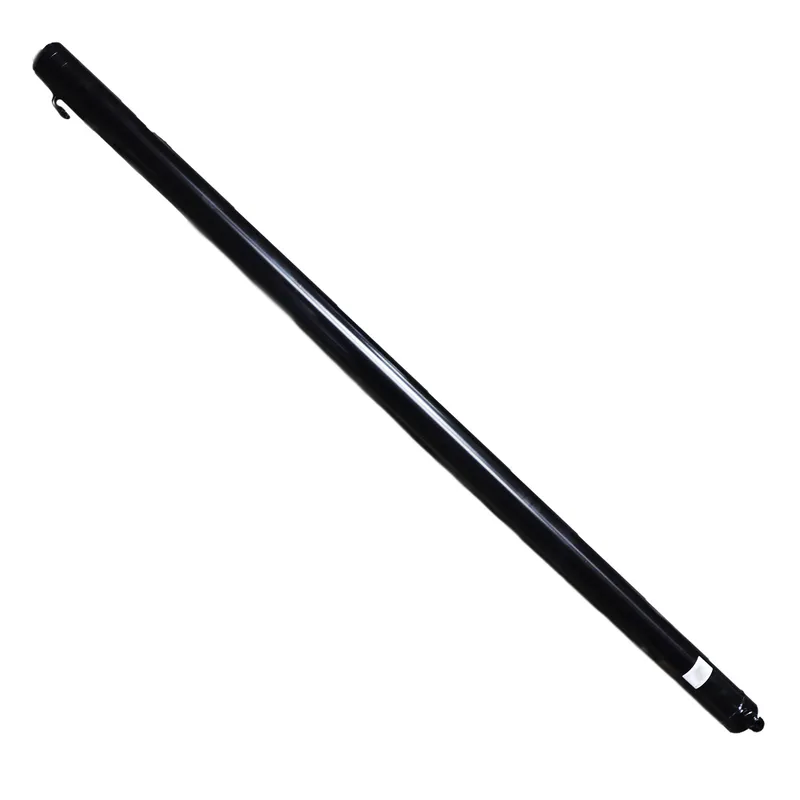

Lifting Hydraulic Cylinder for Pallet Stacker Truck

A lifting hydraulic cylinder for a pallet stacker truck is a critical component of the truck’s hydraulic system, responsible for raising and lowering pallets or loads. Typically constructed from durable steel, it consists of a cylindrical barrel, a piston, and a rod, with seals to maintain pressure. The cylinder operates by using pressurized hydraulic fluid, pumped from a reservoir, to move the piston, which extends or retracts the rod to lift or lower the forks. A hydraulic lifting cylinder provides the force necessary to raise pallets, crates, or other materials in warehouses, factories, or distribution centers.

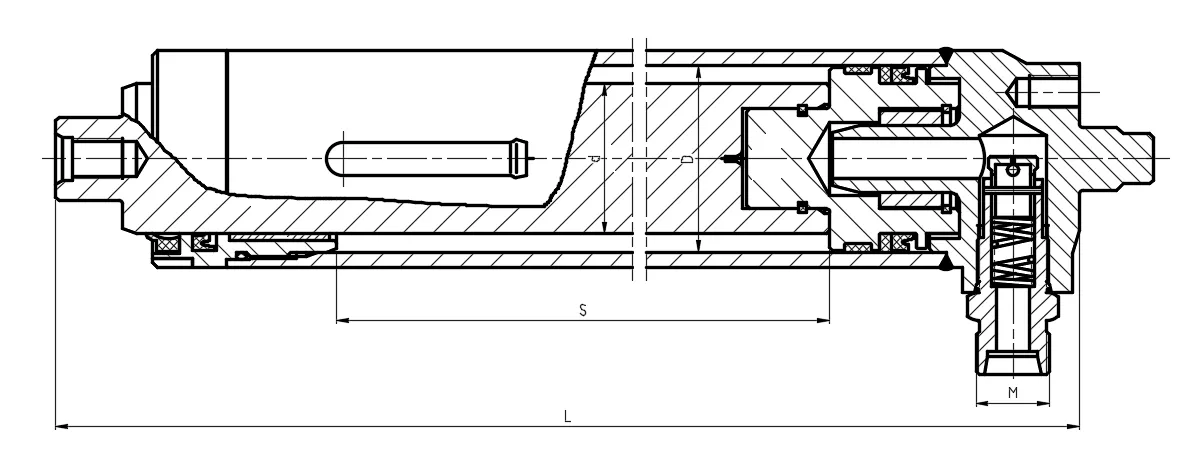

Pallet Stacker Truck Lifting Hydraulic Cylinder Dimensions

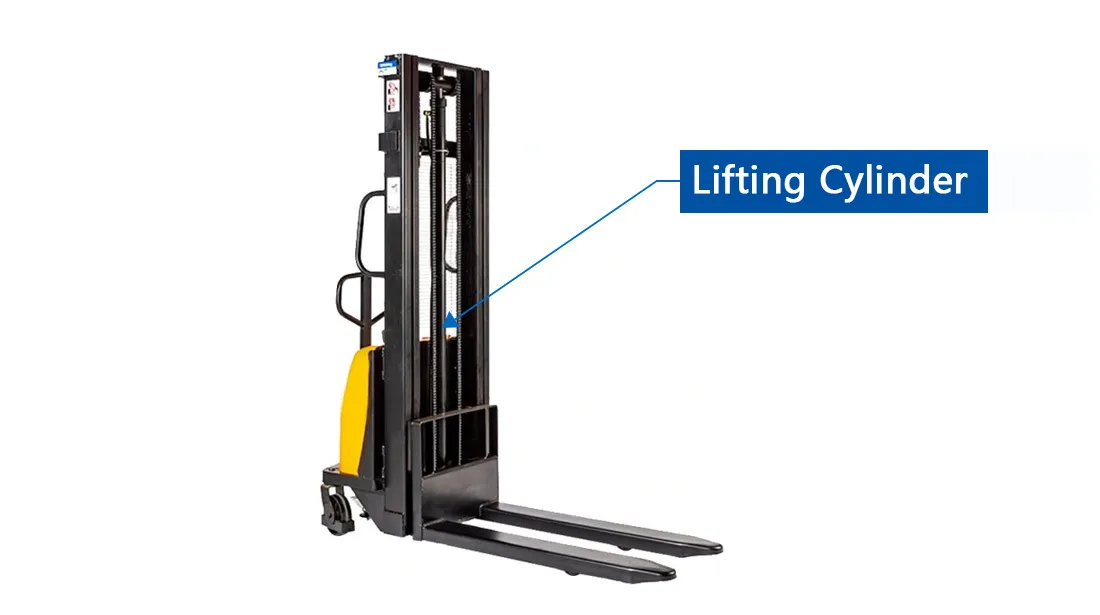

Hydraulic Lifting Cylinder for Pallet Stacker Truck

The hydraulic lifting cylinder in a pallet stacker truck is a critical component that enables the vertical movement of the forks, allowing the truck to lift, hold, and lower heavy loads efficiently and safely. It operates using the principles of fluid dynamics, where pressurized hydraulic fluid creates the force necessary to move the cylinder’s piston and rod.

The system begins with a hydraulic pump, which generates pressure by forcing hydraulic oil through a network of hoses and valves into the cylinder. Within the lifting hydraulic cylinder, a piston is located inside a sealed chamber. When the pressurized hydraulic fluid enters the lower chamber of the cylinder, it creates an upward force on the piston. This force pushes the piston rod outward, extending it and causing the forks of the pallet stacker truck to rise, lifting the attached load.

The lifting process is smooth and precise due to the system’s design, which allows for consistent pressure distribution. To lower the load, a release valve is activated, enabling the hydraulic fluid to flow back into the reservoir. This controlled release of pressure allows the piston to retract slowly, lowering the forks and the load safely. The movement is regulated to prevent sudden drops and ensure operator and load safety.

The lifting hydraulic cylinder’s seals are critical for maintaining hydraulic pressure and preventing fluid leakage. Built from high-strength materials like steel, the cylinder is designed to handle heavy-duty applications, ensuring durability and reliability in demanding industrial environments. This efficient mechanism makes it indispensable for material handling tasks in warehouses, factories, and logistics centers.

Pallet Stacker Truck Hydraulic Lifting Cylinder Benefits

• Efficient Lifting of Heavy Loads
  The hydraulic lifting cylinder allows pallet stacker trucks to lift heavy loads effortlessly by converting hydraulic pressure into mechanical force. This ensures smoother and more efficient material handling operations, reducing strain on workers.
• Precise Load Control
  The hydraulic system enables precise control over lifting and lowering, allowing operators to handle fragile or heavy materials with accuracy. This reduces the chances of damage to goods and enhances workplace safety.
• Durability and Reliability
  Constructed with high-quality materials such as steel, lifting hydraulic cylinders are built to withstand intense use. Their robust design ensures long-term performance, minimizing the need for frequent repairs or replacements.
• Smooth Operation
  The forklift hydraulic cylinder ensures a smooth and steady lifting motion, even under heavy loads. This prevents sudden jerks or drops, providing stability to the load and ensuring operator confidence during use.
• Increased Productivity
  By reducing the time and effort required to lift and move materials, hydraulic cylinders significantly improve workflow efficiency. This helps businesses handle more tasks in less time, boosting overall productivity.
• Versatility Across Applications
  Hydraulic lifting cylinders are compatible with various pallet stacker truck models. This versatility makes them suitable for multiple industries, including warehousing, logistics, and manufacturing, providing a universal solution for material handling needs.

Select the Right Lifting Hydraulic Cylinder for Pallet Stacker Truck

• Bore Diameter
  The bore diameter determines the force the cylinder can generate. A larger bore provides higher lifting power, which is essential for handling heavy loads. However, it should match the stacker’s design to avoid excessive power or inefficiency.
• Rod Diameter
  The rod diameter affects the cylinder’s strength and resistance to bending under load. A thicker rod ensures better durability and stability, especially for heavy-duty applications, while preventing deformation or failure during repeated use in demanding environments.
• Stroke
  The stroke length defines the cylinder’s lifting range, determining how high the pallet stacker can raise loads. It must meet the specific height requirements of your operation while ensuring compatibility with the stacker’s overall structure.
• Installation Distance
  This refers to the distance between the mounting points when the cylinder is fully retracted. Selecting the correct installation distance ensures the cylinder fits properly within the pallet stacker and operates smoothly without straining the system.
• Working Pressure
  The cylinder’s working pressure determines its ability to handle heavy loads safely. Ensure the hydraulic cylinder matches the stacker’s hydraulic system pressure to maintain optimal performance and prevent leaks or damage to the components.
• Weight
  The weight of the cylinder impacts the stacker’s overall balance and maneuverability. A lightweight yet durable cylinder is ideal, as it minimizes strain on the stacker while still providing reliable lifting power for efficient operation.
