DJ/ DJII High Angle Wavy Edge Belt Conveyor for Mining/ Coal/ Power/ Cement/ Building Materials Industry

DJ/ DJII high angle wavy edge belt conveyor is a new type of belt conveyor with corrugated edge conveyor belt instead of an ordinary conveyor belt. The structural characteristics make it have many advantages such as simple structure, convenient maintenance, stable operation, reliable work, low energy consumption, low noise, etc., especially it can realize large inclination conveying (0 °-90 °), thus shortening the length of the whole machine, reducing the floor space. Suitable for working in temperatures ranging from -25°C to 40°C. It is widely used in the transportation of bulk materials such as ports, docks, metallurgy, chemical industry, electric power, coal, building materials, etc.

DJ/ DJII High Angle Wavy Edge Belt Conveyor Features

• The belt conveyor has a large conveying capacity, low energy consumption
• simple structure, convenient maintenance, and long belt operation life
• can be divided into: 500, 650, 800, 1000, 1200, 1400, 1600
• can be divided into: 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15

DJ/ DJII High Angle Wavy Edge Belt Conveyor Parts

DJ, DJII High Angle Wavy Edge Belt Conveyor Specification Sheet

Application working conditions
It is suitable for continuous conveying of materials with a large inclination Angle (up to 90°). The bulk density of the conveying material is 0.5 ~ 2.5t/m³, and the working ambient temperature is within the range of -25℃ ~ +40℃. For conveying high temperature, acid and alkali, oil or organic solvents and other components of the material, need to use a special flange conveyor belt.

Note: The conveying capacity in the table is calculated based on a tilt angle of 30°. This specification allows for the maximum belt speed and the minimum spacing between partitions, with an inclination angle of 30°.

DJ, DJII High Angle Belt Conveyor Applications

• Thermal Power Plants
  This belt conveyor system is ideal for transporting coal and other fuels from mines or stockyards to boiler rooms, ensuring a stable fuel supply for power generation. Its steep incline capability reduces the footprint and equipment required for vertical conveying. It can also be used to handle byproducts such as ash, moving them efficiently to designated storage or treatment facilities.
• Building Materials Industry
  In cement plants, the conveyor is used to transport raw materials like limestone, clay, iron ore, and coal to production areas, as well as finished cement products to silos or loading stations. In brick and tile factories, it conveys raw materials such as clay and shale, as well as finished products, increasing automation and production efficiency.
• Chemical Industry
  The belt conveyor handles various chemical materials and products, including ores, fertilizers, and soda ash. It supports the transport of powdered, granular, or lumpy materials, adapting well to the diverse requirements of chemical production lines.
• Mining Industry
  In both metallic and non-metallic mining operations, steep incline conveyors are used for transporting ore, waste rock, and other materials. Whether from underground shafts or open-pit mines, the system can be customized to navigate complex terrain while minimizing transport costs and labor intensity.
• Coal Mining
  Primarily used to carry coal from underground mining sites to surface processing plants or storage areas, this system operates stably at large inclination angles. It is also suitable for transporting waste rock (gangue) from underground to above-ground disposal locations.
• Concrete Batching Plants
  It efficiently conveys sand and gravel aggregates from stockpiles to batching systems. It also handles powdered materials such as cement and fly ash in sealed conveying modes to prevent dust emissions, improving environmental safety and protecting worker health.
• Metallurgical Industry
  In steel plants, the system is used to move raw materials such as iron ore, coke, and limestone, as well as hot iron and steel billets. In non-ferrous metal refineries, it supports the handling of metal ores and products, ensuring smooth material flow through production processes.

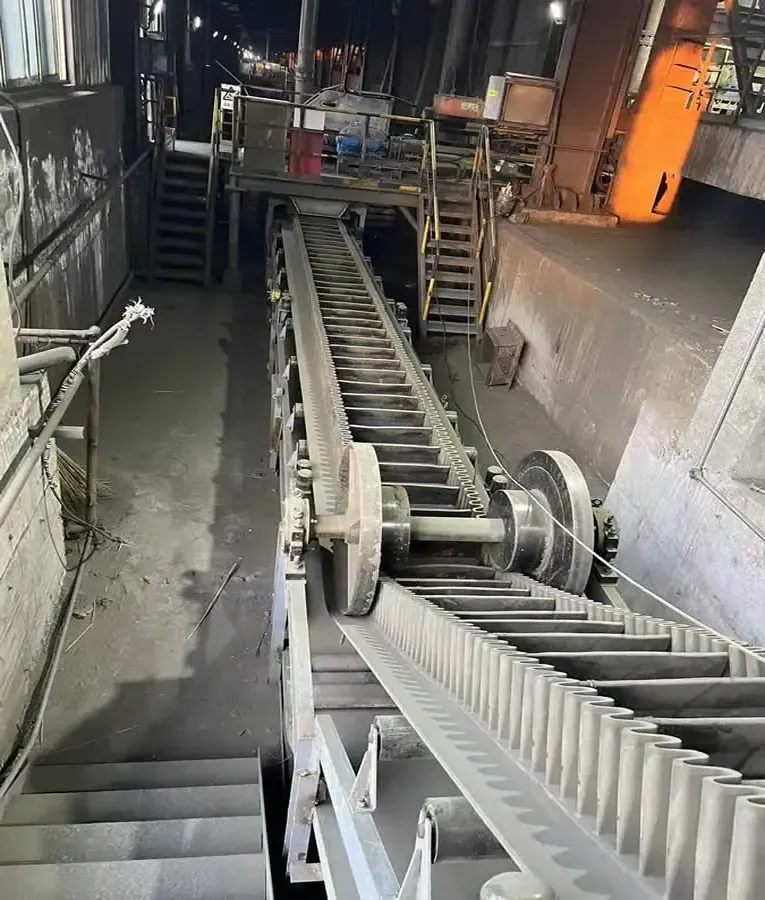

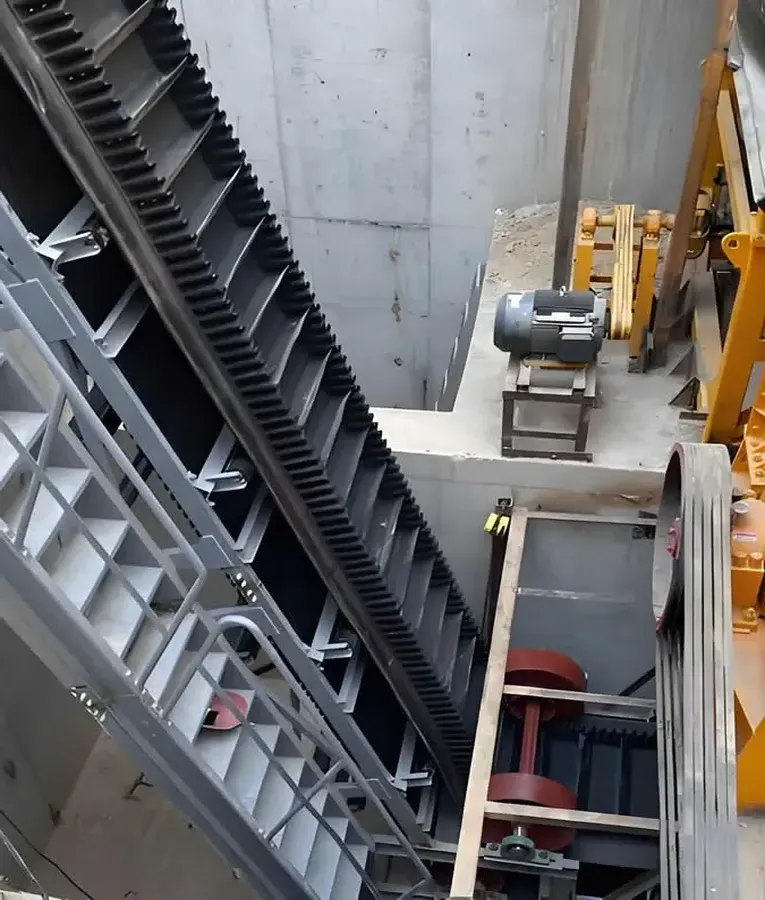

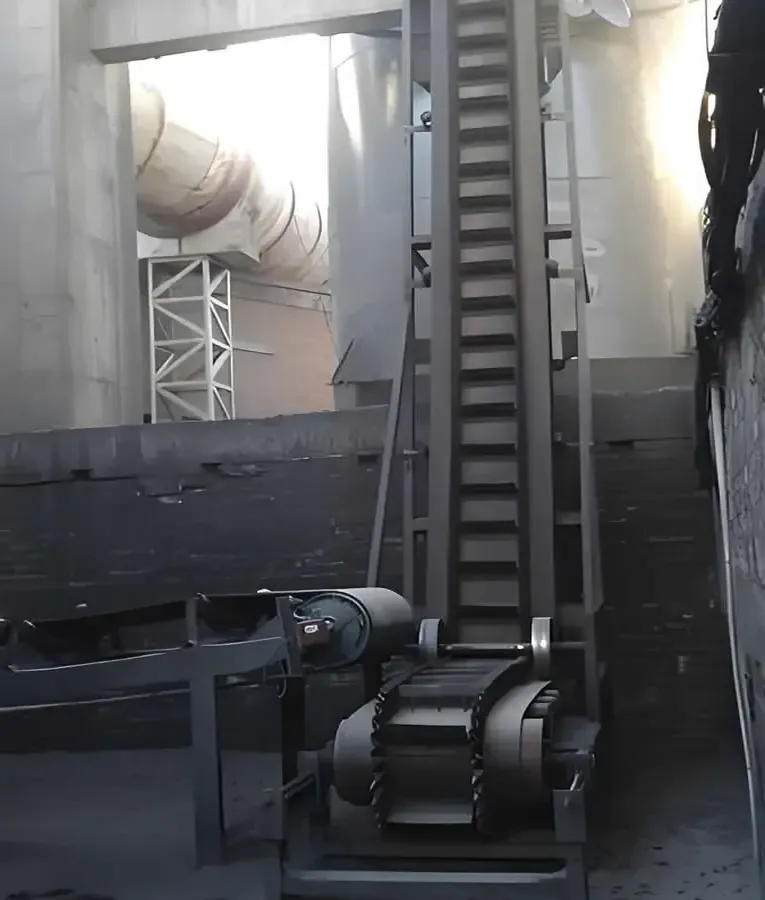

Belt Conveyor for Mining Industry	Belt Conveyor for Coal Industry
Belt Conveyor for Cement Industry	Belt Conveyor for Building Materials Industry

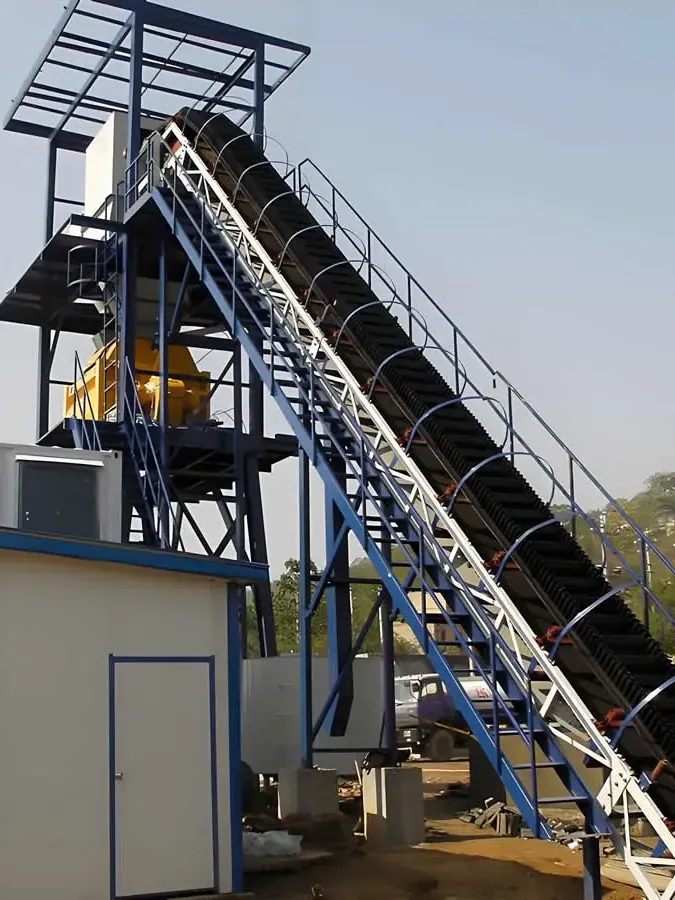

DJ/ DJII High Angle Wavy Edge Belt Conveyor Advantages

• Wide Conveying Angle (30°–90°)
  Unlike conventional belt conveyors limited to inclines under 18°, the Steep Incline Belt Conveyor handles slopes from 30° to 90°, allowing significant height changes in confined spaces. This results in reduced equipment footprint and lower construction costs.
• High Conveying Capacity
  By adopting wider belts and higher belt speeds, the system can be tailored for conveying capacities from 50 to 500 tons per hour or more, meeting the demands of large-scale production environments.
• Compact Structural Design
  This conveyor features a space-saving design with options like cleated belts, patterned belts, or corrugated sidewall belts. It requires fewer intermediate supports and simpler routing, making installation and maintenance easier.
• Versatile Material Handling
  Adaptable to a variety of materials—powdered, granular, or lumpy—the conveyor can be customized for specific operational needs. It handles sticky or moist substances with ease and can be designed with different belt materials, drive types, and protective systems.
• Stable Operation
  Advanced drive systems and tensioning mechanisms ensure uniform belt tension and minimize slippage or misalignment. The system is equipped with safety features such as anti-deviation, anti-slip, and overload protection devices to ensure smooth and safe operation.
• Environmentally Friendly
  Energy-efficient drive systems and enclosed transport configurations reduce energy consumption and prevent dust and spillage. This helps meet modern industrial environmental standards and creates a cleaner, safer workplace.
