CMN-NMRV-F Worm Gear Reducers/Worm Gearbox

The CMN-NMRV-F worm gear reducer with input and output flanges is a compact and highly efficient mechanical power transmission device used in a wide range of industrial applications. It is part of the CMN-NMRV series worm gearbox, known for its lightweight, modular design, and superior performance. This type of worm gear reducer integrates an input flange, which allows it to connect seamlessly to motors such as servo or AC motors, and an output flange, enabling direct connection to machinery or other components.

Categories: Worm Gearbox, RV Series Worm Gearbox Tags: Aluminum Worm Gearbox, Worm Drive Gearbox, Worm Gear Gearbox, Worm Gear Motor, Worm Gear Reducers, Worm Gear Speed Reducer, Worm Gearbox for Sale, Worm Gearbox Manufacturers, Worm Gearbox Suppliers, Worm Reducer Gearbox, Worm Reduction Gearbox, Worm Wheel Gearbox

Request A Quote

Description
Additional information

The CMN-NMRV-F worm gear reducer with input and output flanges is a compact and highly efficient mechanical power transmission device used in a wide range of industrial applications. It is part of the CMN-NMRV series worm gearbox, known for its lightweight, modular design, and superior performance. This type of worm gear reducer integrates an input flange, which allows it to connect seamlessly to motors such as servo or AC motors, and an output flange, enabling direct connection to machinery or other components.

The CMN-NMRV-F worm gearbox is constructed with high-strength aluminum alloy for corrosion resistance and durability, making it ideal for harsh environments. With its worm and wheel mechanism, it provides smooth torque transmission, high reduction ratios, and self-locking capabilities, ensuring reliable operation. Additionally, it operates with minimal noise and vibration, making it suitable for precision tasks in conveyors, packaging machinery, and automation systems.

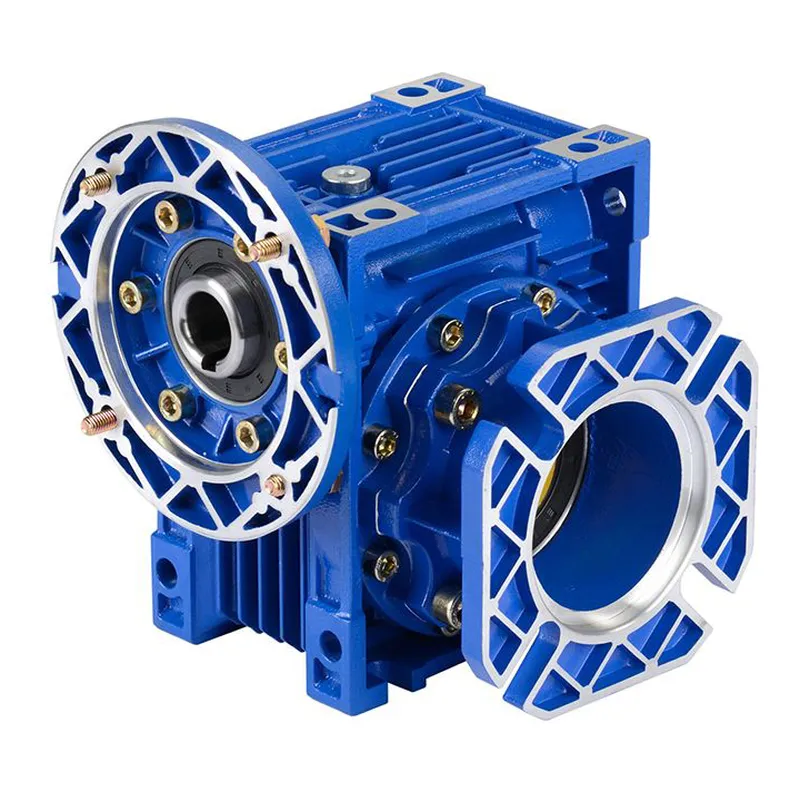

CMN-NMRV-F Worm Gearbox

CMN-NMRV-F Worm Gearbox Specifications

Item	Worm Gearbox
Type	CMN-NMRV-F
Model	CMN-NMRV-F 25/30/40/50/63/75/90/110/130/150/185
Reduction Ratio	5,7.5,10,15,20,25,30,40,50,60,80,100
Flange	FA / FL or as per your demands
Matching Motor	0.06KW~15KW
Material	Die-casting Aluminum Alloy
Color	Blue /Silver Grey /Customized
Flange Standard	PAM / IEC
Accessories	Shaft, Flange, Torque arm, etc
Lubricant	Synthetic Oil or Worm Gear Oil
Usage	Machinery of food stuff, ceramics, chemicals, packing, dyeing, wood working, glass industries, etc
Note: 1) Please choose from the above specifications. 2) If the above options can not meet your demands, please send us your requirements(ratio, flange, mounting, application, or a picture of your old one), and we will recommond a suitable type.

CMN-NMRV-F Worm Gearbox Model & Marker

CMN-NMRV-063-30-VS-F1(FA)-AS-80B5-0.75kW-B3
CMN-NMRV	Worm geared motor
CMN-NRV	Worm reduction unit
063	Center distance
30	Reduction ratio
VS	Double input shaft	F1(FA)	Output flange
AS	Single output shaft	AB	Double output shaft
PAM	Fitted for motor coupling	80B5	Motor size & mounting position
0.75kW	Power of electric motor	B3	Mounting position

Mounting Position

Flange F-FL

Position of Terminal Box

Position of Output Shaft

Double Extension Worm Shaft

Position of Torque Arm

CMN-NMRV-F Worm Gear Reducer Dimensions

CMN-NMRV-F Inch Series

CMN-NMRV Worm Gear Reducer Dimensions

Hollow Output Bore		030	040	050	063	075	090	110	130
	RH	0.71	0.84	1.12	1.24	1.37	1.52	1.8	1.93
	SH	0.188	0.188	0.25	0.25	0.25	0.313	0.375	0.375
	UH	0.625+0.001 0	0.75+0.001 0	1+0.001 0	1.125+0.001 0	1.25+0.001 0	1.375+0.001 0	1.625+0.001 0	1.750
	VB	0.83	1.14	1.28	1.42	1.56	1.77	1.97	2.24

Output Shaft		030	040	050	063	075	090	110	130
	R	0.7	0.83	1.11	1.23	1.36	1.51	1.79	1.92
	S	0.188	0.188	0.25	0.25	0.25	0.313	0.375	0.375
	U	0.6250 -0.0005	0.750 -0.0005	10 -0.0005	0 -0.0005	1.250 -0.0005	1.3750 -0.0005	1.6250 -0.0005	1.750 -0.0005
	U KEY	0.1875x1.125	0.1875x1.5	0.25x1.5	0.25x1.875	0.25x2.25	0.3125x2.5	0.375x2.75	0.375x2.75
	UT	1/4-20	1/4-20	3/8-16	3/8-16	1/2-13	1/2-13	5/8-11	5/8-11
	V	1.57	1.97	1.97	2.36	2.76	3.15	3.54	3.54
	VA	1.67	2.09	2.11	2.5	2.89	3.33	3.72	3.74
	Y	5.82	7.25	7.84	9.41	10.5	12.17	13.54	14.17

CMN-NMRV-F	030	040	050	063	075	090	110	130
A	2.48	3.07	3.62	4.41	4.72	5.51	6.1	6.69
B	2.24	2.81	3.31	4.02	4.69	5.31	6.59	7.38
BA	2.56	2.95	3.35	3.74	4.53	5.12	6.5	8.46
BC	2.95	3.43	3.94	4.33	5.51	6.3	7.87	9.84
BH	90 °	45 °	45 °	45 °	45 °	45 °	45°	45 °
BK	2.165 0 -0.0018	2.362 0 -0.0018	2.756 0 -0.0018	3.15 0 -0.0021	3.74 0 -0.0021	4.331 0 -0.0021	5.118 0 -0.0025	7.087 0 -0.0025
BL	M6x11	M6x10	M8x10	M8x14	M8x14	M10x18	M10x18	M12x21
C	1.18	1.57	1.97	2.48	2.95	3.54	4.33	5.12
D	1.57	1.97	2.36	2.83	3.39	4.06	5.02	5.81
E	2.13	2.76	3.15	3.94	4.72	5.51	6.69	7.87
F	1.73	2.36	2.76	3.35	3.54	3.94	4.53	4.72
G	0.22	0.26	0.28	0.31	0.39	0.43	0.57	0.61
H	0.26	0.26	0.33	0.33	0.45	0.51	0.55	0.63
J	3.15	3.98	4.76	5.75	6.85	8.19	9.94	11.52
K	1.26	1.69	1.93	2.64	2.83	2.91	-	-
L	2.2	2.8	3.35	4.06	4.41	5.12	5.67	6.1
M	2.28	2.87	3.43	4.17	4.49	5.28	5.83	6.38
N	1.06	1.38	1.57	1.97	2.36	2.76	3.35	3.94
O	3.82	4.78	5.67	6.85	8.07	9.37	11.61	13.19
P	2.64	3.15	3.54	4.13	4.96	5.63	6.81	7.6
Q	0.83	2.36	2.91	3.54	4.13	4.92	5.59	6.38
T	1.73	2.17	2.52	3.15	3.66	4.02	4.92	5.51
Z	2.91	3.63	3.92	4.71	5.25	6.09	6.77	7.09

Output Flange		AA	AB	AC	AD	AF	AG	AH	AK		AL
030	FA	2.68	2.15	3.15	2.76	0.24	0.16	45°	1.969	+0.0015 0	0.26
040	FA	2.95	2.64	4.33	3.74	0.28	0.16	45°	2.362	+0.0018	0.35
										0
	FB	2.95	3.82	4.33	3.74	0.28	0.16	45°	2.362	+0.0018 0	0.35
	FC	4.53	3.15	5.51	-	0.35	0.2	45°	3.74	+0.0021 0	0.37
	FD	3.94	2.28	4.72	-	0.47	0.2	45°	3.15	+0.0018	0.35
										0
050	FA	3.35	3.54	4.92	4.33	0.35	0.2	45°	2.756	+0.0018	0.43
										0
	FB	3.35	4.72	4.92	4.33	0.35	0.2	45°	2.756	+0.0018 0	0.43
	FC	5.12	3.5	6.3	-	0.39	0.2	45°	4.331	+0.0021 0	0.37
	FD	4.53	2.83	5.51	-	0.57	0.2	45°	3.543	+0.0021	0.43
										0
063	FA	4.13	3.23	7.09	5.59	0.39	0.24	45°	4.528	+0.0021	0.43
										0
	FB	5.91	4.41	7.09	5.59	0.39	0.24	45°	4.528	+0.0021	0.43
										0
	FC	6.5	3.86	7.87	-	0.39	0.2	45°	5.118	+0.0025 0	0.43
	FD	6.5	4.21	7.87	-	0.39	0.2	45°	5.118	+0.0025	0.43
										0
	FE	5.12	3.17	6.3	-	0.65	0.2	45°	4.331	+0.0021	0.43
										0
075	FA	6.5	4.37	7.87	6.69	0.51	0.24	45°	5.118	+0.0025	0.55
										0
	FB	5.12	3.54	6.3	-	0.51	0.24	45°	4.331	+0.0021	0.55
										0
090	FA	6.89	4.37	8.27	8.27	0.51	0.24	45°	5.984	+0.0025	0.55
										0
	FB	8.46	4.8	9.84	-	0.71	0.24	45°	7.087	+0.0025 0	0.55
	FC	6.5	4.33	7.87	-	0.67	0.24	45°	5.118	+0.0025 0	0.43
	FD	6.89	5.94	8.27	-	0.51	0.24	45°	5.984	+0.0025	0.55
										0
110	FA	9.06	5.16	11.02	10.24	0.59	0.24	45°	6.693	+0.0025	0.55
										0
	FB	9.06	7.09	11.02	10.24	0.59	0.24	45°	6.693	+0.0025	0.55
										0
130	FA	10.04	5.51	12.6	11.42	0.59	0.24	22.5°	7.087	+0.0025 0	0.63

Input Shaft		030	040	050	063	075	090	110	130
	SB	0.094	0.125	0.188	0.188	0.188	0.188	0.25	0.25
	RB	0.42	0.55	0.7	0.83	0.96	0.96	1.24	1.36
	UB	0.3750 -0.0005	0.50 -0.0005	0.6250 -0.0005	0.750 -0.0005	0.8750 -0.0005	0.8750 -0.0005	1.1250 -0.0005	1.250 -0.0005
	UB KEY	0.094x0.875	0.125x0.875	0.1875x1.125	0.1875x1.5	0.1875x1.875	0.1875x1.875	0.25x2.25	0.25x2.5
	UR	-	1/4-20	1/4-20	1/4-20	1/4-20	1/4-20	3/8-16	1/2-13
	VN	1.18	1.18	1.58	1.97	2.36	2.36	2.76	3.15

High Speed Extension Shaft Dimensions

CMN-NMRV-F	EA	U	VN	UR	S2	R2	KEY
CMN-NMRV-F	EA	U	VN	UR	S2	R2	Length	Square
030	1.772	0.3750 -0.0005	1.18	-	0.093	0.42	0.875	0.094
040	2.087	0.50 -0.0005	1.18	1/4-20	0.13	0.55	0.875	0.125
050	2.52	0.6250 -0.0005	1.58	1/4-20	0.19	0.7	1.125	0.188
063	2.953	0.750 -0.0005	1.97	1/4-20	0.19	0.83	1.5	0.188
075	3.543	0.8750 -0.0005	2.36	1/4-20	0.19	0.96	1.875	0.188
090	4.252	0.8750 -0.0005	2.36	1/4-20	0.19	0.96	1.875	0.188
110	5.315	1.1250 -0.0005	2.76	3/8-16	0.25	1.24	2.25	0.25
130	6.102	1.250 -0.0005	3.15	1/2-13	0.25	1.36	2.5	0.25

Torque Arm Dimensions

CMN-NMRV-F	I	IA	IL	IR	IW
025	2.76	0.69	0.31	0.59	0.55
030	3.35	0.94	0.31	0.59	0.55
040	3.94	1.24	0.39	0.71	0.55
050	3.94	1.52	0.39	0.71	0.55
063	5.91	1.93	0.39	0.71	0.55
075	7.87	1.87	0.79	1.18	0.98
090	7.87	2.26	0.79	1.18	0.98
110	9.84	2.44	0.98	1.38	1.18
130	9.84	2.72	0.98	1.38	1.18

Protective Cover Dimensions

CMN-NMRV-F	Q
030	1.65
040	1.97
050	2.28
063	2.72
075	2.91
090	3.39
110	3.7
130	4.02

NEMA Flange Availability

CMN-NMRV-F

NEMA
Flange

Input Bore
Diameter

Available Ratios

7.5

100

030

48C

0.5

●

040

56C

0.625

●

050

56C

0.625

●

063

56C

0.625

●

140TC

0.875

●

075

56C

0.625

●

140TC

0.875

●

180TC

1.125

●

090

56C

0.625

●

140TC

0.875

●

180TC

1.125

●

110

140TC

0.875

●

180TC

1.125

●

210TC

1.375

●

130

140TC

0.875

●

180TC

1.125

●

210TC

1.375

●

CMN-NMRV-F Worm Gear Reducer Features

Compact and Lightweight Design
The CMN-NMRV-F worm gear reducer features a compact structure and lightweight aluminum alloy housing, ensuring easy installation and handling. Its space-saving design makes it ideal for applications with limited installation room without compromising its durability or mechanical strength.
High Efficiency and Smooth Operation
This worm drive gearbox offers superior transmission efficiency, reducing energy loss during operation. Its worm and gear mechanism ensures smooth rotational motion with minimal noise and vibration, making it suitable for applications requiring precision and quiet operation, even in demanding environments.
Input and Output Flange Compatibility
The worm gearbox with input and output flanges enable seamless connection to motors and external machinery. This ensures compatibility with servo motors, AC motors, and other equipment, offering greater flexibility for diverse applications across various industrial sectors.
Corrosion-Resistant Construction
The housing is made from high-quality aluminum or cast iron with a protective coating, providing excellent resistance to corrosion, rust, and environmental damage. This makes it ideal for use in harsh industrial environments, including outdoor or chemical-exposed applications.
Wide Range of Ratios and Configurations
The CMN-NMRV-F worm reducer gearbox is available in various reduction ratios, offering versatility to meet diverse application needs. Its modular design allows compatibility with multiple mounting positions, motor types, and input/output configurations, providing unmatched flexibility for customization.
Self-Locking Functionality
The worm gear mechanism ensures a reliable self-locking feature, preventing back-driving in applications requiring holding torque. This makes it particularly suitable for safety-critical systems, such as lifts, conveyors, or positioning machinery, where stability and security are paramount.

CMN-NMRV-F Worm Gear Reducers

CMN-NMRV-F Worm Drive Gearbox Applications

Conveyor Systems
The CMN-NMRV-F worm gearbox is widely used in conveyor systems due to its compact design and ability to handle varying load requirements. It ensures smooth motion and precise speed control, making it ideal for transporting goods in industries like logistics, packaging, and manufacturing.
Food Processing Machinery
Its corrosion-resistant aluminum alloy construction makes it suitable for food processing machinery, where hygiene and durability are critical. The worm gear reducer provides reliable and efficient performance in mixers, blenders, and automated food-handling systems, even in moist and washdown environments.
Robotics and Automation
In robotics and automated systems, the CMN-NMRV-F worm drive gearbox ensures precise motion control and torque transfer. Its high reduction ratios and low noise operation make it perfect for robotic arms, pick-and-place machines, and other automation solutions requiring accuracy and quiet functionality.
Packaging Equipment
The worm reducer gearbox is a key component in packaging equipment such as labelers, carton sealers, and wrapping machines. Its ability to provide stable torque and smooth operation ensures consistent performance, minimizing downtime and inefficiencies in high-speed production lines.
Textile Machinery
Textile machines rely on accurate speed control and low vibration to maintain fabric quality. The CMN-NMRV-F right angle worm gearbox delivers these features, making it suitable for use in spinning machines, looms, and other textile equipment that demand precise and silent operation.
Material Handling Equipment
The CMN-NMRV-F worm gear gearbox is ideal for cranes, hoists, and other material handling devices due to its robust design and self-locking capability. It ensures safety and reliability when lifting or moving heavy loads, especially in warehouses, construction sites, and industrial facilities.
