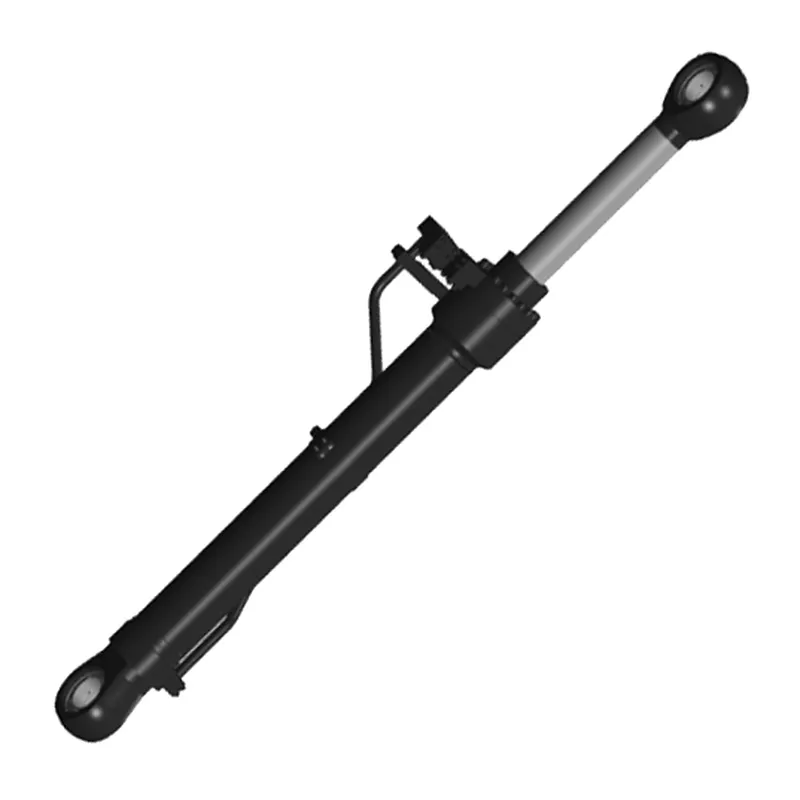

Bucket Hydraulic Cylinder for Large Excavator
A bucket hydraulic cylinder for a large excavator is a critical component that powers the movement and precise control of the bucket, which is attached to the end of the excavator’s dipper arm. This robust, double-acting hydraulic cylinder uses pressurized hydraulic fluid, typically oil, to extend and retract a piston rod, enabling the bucket to tilt, curl, or dump materials during excavation tasks.
A bucket hydraulic cylinder for a large excavator is a critical component that powers the movement and precise control of the bucket, which is attached to the end of the excavator’s dipper arm. This robust, double-acting hydraulic cylinder uses pressurized hydraulic fluid, typically oil, to extend and retract a piston rod, enabling the bucket to tilt, curl, or dump materials during excavation tasks.
Designed to withstand high pressures and heavy loads, it is typically smaller than boom or arm cylinders but engineered for precision, allowing operators to adjust the bucket’s angle for efficient digging and material handling. Constructed from high-strength steel with honed tubes and wear-resistant seals, these hydraulic bucket cylinders ensure durability in harsh conditions. They are essential for tasks like earthmoving, mining, and construction, providing the force and control needed for effective excavation.
Large Excavator Bucket Hydraulic Cylinder Specifications
Product Name: | Large Excavator Bucket Hydraulic Cylinder |
Function: | Control the action of the bucket. |
Bore Diameter: | 200mm-360mm |
Rod diameter: | 140mm-260mm |
Stroke: | ≤2500 mm |
Maximum pressure MPa: | 35MPa |
Thrust Force: | 3560.8KN |
Large Excavator Hydraulic Cylinder Types
- Bucket Hydraulic Cylinder
The bucket hydraulic cylinder drives the bucket’s tilting and curling actions for precise material handling. Powered by pressurized hydraulic fluid, it extends and retracts a piston rod. Made from high-strength steel with wear-resistant seals, it endures heavy loads and abrasive environments, ensuring reliable digging performance in construction and mining operations. - Boom Hydraulic Cylinder
Boom hydraulic cylinders lift and lower the excavator’s main arm, handling substantial weight and pressure. These robust components provide the force required for deep excavation tasks. Constructed with durable materials, they ensure stability and control during heavy-duty operations like quarrying or large-scale earthmoving projects. - Stick Hydraulic Cylinder
The stick hydraulic cylinder, or arm hydraulic cylinder, manages the dipper arm’s extension and retraction for accurate digging depth and reach. Designed to withstand high stress, it delivers smooth operation. Its robust construction supports demanding tasks like trenching, landscaping, or foundation work with precision. - Tightening Hydraulic Cylinder
Tightening hydraulic cylinders secures attachments or components, maintaining operational stability. They apply controlled clamping force to lock mechanisms, preventing loosening under intense vibration. Built for reliability, these cylinders ensure safe and efficient excavator performance in rugged environments like demolition or heavy construction.
Large Excavator Bucket Hydraulic Cylinder Benefits
- Enhanced Digging Power
The bucket hydraulic cylinder delivers exceptional force to penetrate hard, compact surfaces like rock, clay, and dense soil. Its robust design ensures efficient excavation with precision, enabling the excavator to tackle tough materials in challenging construction and mining environments. - Precise Material Handling
With finely controlled hydraulic pressure, the hydraulic bucket cylinder enables accurate bucket movements for tasks like trenching, grading, or debris removal. This precision minimizes damage to surrounding structures or landscapes, ensuring safe and effective operation in complex projects. - High Durability and Strength
Constructed from high-strength steel and wear-resistant seals, the large excavator hydraulic cylinder withstands heavy loads and harsh conditions. This durability enhances the excavator’s longevity and reliability, maintaining performance during demanding operations in rugged environments like quarries or construction sites. - Smooth Operational Efficiency
The hydraulic system ensures smooth, consistent bucket motion, reducing machine stress and boosting productivity. This seamless operation allows operators to complete complex excavation tasks quickly and effectively, improving overall efficiency on construction, mining, or landscaping projects. - Increased Load Capacity
Designed to handle significant weight, the bucket hydraulic cylinder enables the excavator to lift and transport heavy materials effortlessly. This capability makes it ideal for demanding industries like construction, mining, and quarrying, where large volumes of material are moved regularly. - Versatility in Applications
The large excavator hydraulic cylinder supports diverse tasks, including digging, scooping, leveling, and dumping, across various job sites. Its adaptability allows a single excavator to perform multiple functions, enhancing operational flexibility in construction, landscaping, and mining applications.
Large Excavator Hydraulic Bucket Cylinder Troubleshooting
- Leakage of Hydraulic Fluid
Hydraulic fluid leaks from seals or fittings due to worn-out components, loose connections, or cylinder damage. This reduces efficiency and risks environmental contamination. Regular inspections, timely seal replacements, and tightening fittings can prevent leaks and maintain optimal excavator performance. - Slow or Uneven Cylinder Movement
Slow or uneven bucket cylinder motion may stem from air trapped in the hydraulic system, low fluid levels, or contamination. Bleeding the system to remove air, topping up fluid, and replacing contaminated fluid can restore smooth, consistent operation for efficient excavation. - Excessive Cylinder Heat
Overheating in the bucket cylinder can result from prolonged operation, excessive pressure, or inadequate lubrication. This risks damaging internal components and reducing lifespan. Regular monitoring of fluid quality, ensuring proper cooling, and avoiding overpressure help maintain cylinder longevity and performance. - Cylinder Sticking or Jerking
Sticking or jerky cylinder movements are often caused by internal wear, bent piston rods, or fluid contamination. These issues disrupt precise control. Cleaning the hydraulic system, repairing or replacing damaged components, and ensuring proper maintenance restores smooth, controlled bucket motion. - Reduced Cylinder Power
A loss of cylinder force can occur due to internal seal failure, fluid bypass, or insufficient hydraulic pressure. This weakens the digging capability. Diagnosing and repairing internal leaks, replacing worn seals, and verifying proper pressure levels can restore full bucket power and efficiency. - Physical Damage to Cylinder Components
Dents, scratches, or bent rods from harsh operating conditions can impair cylinder functionality. This compromises excavation performance and safety. Regular maintenance, careful operation, and prompt repairs of damaged components help prevent further issues and ensure reliable excavator operation.
