Brass Bevel Gears Ratio 4:1 Straight-Tooth System

The brass bevel gears ratio 4:1 straight-tooth system refers to a mechanical gear configuration consisting of bevel gears made from brass, designed to transmit power between two shafts positioned at an angle to each other, typically 90 degrees. Bevel gears are conical in shape, and their teeth are cut straight, aligning radially along the gear's surface. The 4:1 ratio indicates that for every four rotations of the driving gear (smaller gear or pinion), the driven gear (larger gear) completes one full rotation. This setup is often used to reduce speed while increasing torque in mechanical systems.

The use of brass as a material provides excellent durability, corrosion resistance, and machinability, making it suitable for applications where smooth, quiet operation is required. Straight-tooth bevel gears are simpler to manufacture and ideal for lightweight, low-speed applications like robotics, instrumentation, and small machinery. However, they may not handle heavy loads as effectively as spiral bevel gears.

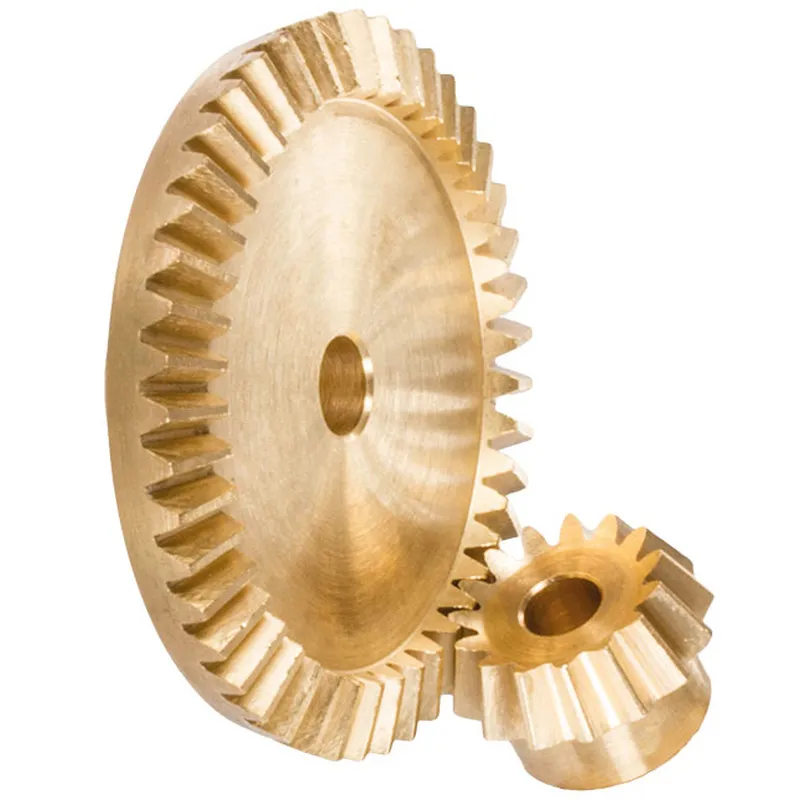

Brass Bevel Gear Ratio 4:1

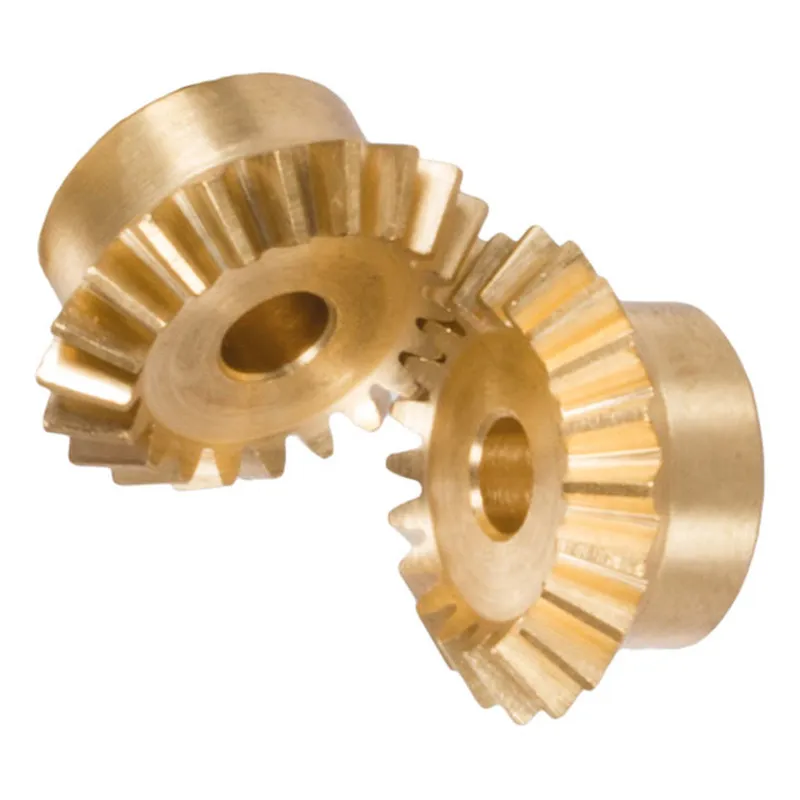

Brass Bevel Gear Advantages and Disadvantages

Brass bevel gears are widely used in mechanical systems due to their unique material properties and design features. However, like any component, they come with a distinct set of advantages and disadvantages.

Advantages:

1. Corrosion Resistance
   Brass is highly resistant to corrosion, making these gears ideal for environments exposed to moisture, chemicals, or other corrosive agents. This property ensures long-term durability and reliability.
2. Machinability
   Brass is easy to machine, allowing for precise gear manufacturing with smooth finishes. This ensures efficient and quiet operation, which is especially crucial in applications requiring minimal noise.
3. Low Friction
   Brass has naturally low friction, reducing wear between gear teeth and extending the system's lifespan. This also contributes to smoother power transmission with minimal energy loss.
4. Aesthetic Appeal
   Due to its golden appearance, brass bevel gears are often preferred for decorative or visible mechanical parts, such as in clocks, robotics, or vintage machinery.
5. Non-Sparking
   Brass is non-sparking, making it safe for use in environments where flammable gases or materials are present, such as in mining or petrochemical industries.
6. Lightweight
   Compared to other metals like steel, brass is relatively lightweight, which is advantageous for systems where weight reduction is critical.

Disadvantages

1. Lower Strength
   Brass is softer compared to materials like steel. This limits its ability to handle high loads or heavy-duty applications, making it unsuitable for high-torque systems.
2. Cost
   Brass is generally more expensive than common materials like steel or cast iron. This can increase the overall cost of production, particularly in large-scale applications.
3. Limited Wear Resistance
   While brass has good corrosion resistance, its wear resistance is lower than harder materials. Over time, gears may wear out faster under high-stress or high-speed conditions.
4. Thermal Conductivity
   Brass conducts heat more efficiently than some other metals, which can lead to overheating in certain gear systems if not properly managed.

Typical Applications of Brass Straight Bevel Gears

• Clocks and Timepieces
  Brass straight bevel gears are frequently used in clocks and timepieces due to their precise machining capabilities and low friction. Their corrosion resistance ensures longevity, while their lightweight properties reduce stress on delicate internal mechanisms, allowing for accurate timekeeping over extended periods.
• Robotics and Automation
  In robotics, brass bevel gears are ideal for lightweight, compact designs requiring smooth operation and precise motion control. Their low noise levels contribute to quieter robotic systems, while their machinability allows for custom designs tailored to specific robotic movements and torque requirements.
• Small Machinery and Instruments
  Brass bevel gears are common in small machinery like sewing machines or medical instruments, where precision and reliability are critical. Their resistance to corrosion ensures consistent performance in environments exposed to moisture, while their smooth operation prevents unnecessary wear on other components.
• Aerospace Components
  In aerospace systems, brass bevel gears are used in lightweight mechanical assemblies where high corrosion resistance and minimal weight are essential. Their ability to operate efficiently in controlled environments ensures reliable performance in applications like actuation systems and small-scale power transmission.
• Marine Applications
  Marine environments demand materials that resist corrosion from saltwater and humidity. Brass bevel gears are widely used in boat instrumentation, steering systems, and other marine equipment, where their durability and resistance to degradation ensure long-term functionality in harsh conditions.

Bevel Gear for Power Tools	Bevel Gear for Automotive Differentials
Bevel Gear for Robotics	Bevel Gear for Marine Industry

Bevel Gear Vs Miter Gear

What Is a Bevel Gear

Bevel gears are a type of mechanical gear that features conically-shaped teeth, allowing them to transmit power between intersecting shafts at various angles. Unlike miter gears, which are limited to 90-degree angles, bevel gears offer greater flexibility in shaft orientation. These gears find extensive use in a wide range of machinery and applications where power transmission between non-parallel shafts is required.

Bevel gears come in different configurations, including straight bevel gears, spiral bevel gears, and hypoid bevel gears.

• Straight bevel gears have teeth that are cut straight across the cone surface, while spiral bevel gears feature curved teeth for smoother and quieter operation.
• Hypoid bevel gears, a variation of spiral bevel gears, have an offset pinion axis for increased torque capacity and reduced noise.

What is a Miter Gear

Miter gears are a type of bevel gear with teeth that intersect at a 90-degree angle. They are designed to transmit motion and power between two shafts that are perpendicular to each other. Miter gears are commonly used in a wide range of mechanical applications, including industrial machinery, automotive systems, and precision instruments.

The teeth of miter gears are cut at a 45-degree angle to the axis of rotation, allowing them to mesh together smoothly and efficiently. This unique tooth geometry enables miter gears to change the direction of rotation while maintaining a constant velocity ratio between the input and output shafts.

Bevel Gear	Miter Gear
