Boom Hydraulic Cylinder for Large Excavator

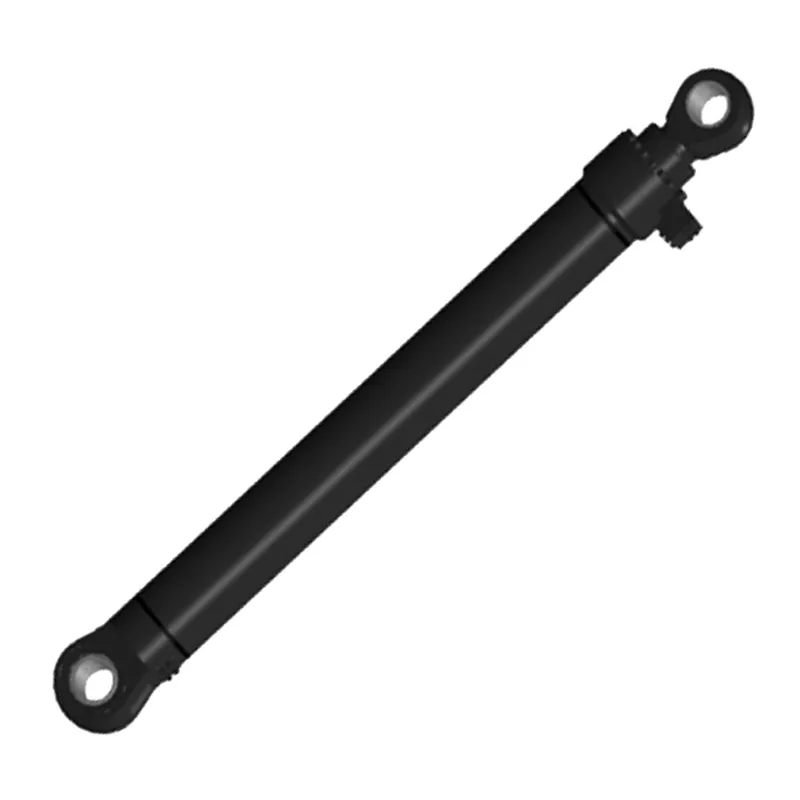

A boom hydraulic cylinder for a large excavator is a robust, heavy-duty component critical for powering the vertical movement of the excavator’s boom, the primary arm that supports the dipper and bucket. Typically double-acting, it uses pressurized hydraulic fluid to extend and retract a piston and rod within a honed steel cylinder barrel, enabling precise lifting and lowering of heavy loads.

Designed to withstand extreme pressures and harsh conditions, these hydraulic boom cylinders feature durable seals, high-strength rods, and mounting brackets tailored for specific excavator models. On large excavators, dual boom cylinders are common for enhanced stability and force, capable of generating significant torque to handle massive weights. Regular maintenance, including leak checks and seal replacements, ensures longevity and optimal performance.

Large Excavator Boom Hydraulic Cylinder Specifications

Large Excavator Hydraulic Cylinder Types

• Hydraulic Bucket Cylinders
  Hydraulic bucket cylinders control the curling and dumping motion of the excavator’s bucket. These double-acting cylinders use hydraulic fluid to extend and retract, providing precise control for digging and material release. Constructed with high-strength steel and robust seals, they endure high pressures and abrasive environments, ensuring reliable performance during heavy-duty tasks.
• Hydraulic Boom Cylinders
  Hydraulic boom cylinders power the vertical movement of the excavator’s boom, the main arm supporting the stick and bucket. Typically paired for stability, these robust cylinders deliver immense force to lift heavy loads. Built with durable rods and seals, they withstand extreme conditions and require regular maintenance for optimal functionality.
• Hydraulic Stick Cylinders
  Hydraulic stick cylinders, also called arm or dipper hydraulic cylinders, manage the extension and retraction of the excavator’s stick, which connects the boom to the bucket. These cylinders provide precise control for digging depth and reach. Made with reinforced materials, they handle intense forces and ensure consistent performance in demanding applications.
• Hydraulic Tightening Cylinders
  Hydraulic tightening cylinders secure attachments or components on large excavators, maintaining stability during operation. These specialized cylinders apply controlled force to lock mechanisms, preventing slippage under heavy loads. Constructed with high-pressure seals and sturdy designs, they ensure safe, reliable attachment performance in rugged construction environments.

Large Excavator Boom Hydraulic Cylinder Parts

• Cylinder Barrel
  The hydraulic cylinder barrel is a robust, seamless steel tube housing the piston and hydraulic fluid. Precision-honed for smoothness, it withstands high pressures and heavy loads during boom movement. Its durable construction resists wear and corrosion, ensuring long-term reliability in harsh excavator operating conditions.
• Piston
  The hydraulic cylinder piston is a critical component that moves within the cylinder barrel, driven by hydraulic fluid pressure. Made from high-strength steel, it separates the cylinder into two chambers, enabling double-acting functionality. Its tight tolerances and robust design ensure efficient force transmission for boom lifting and lowering.
• Piston Rod
  The hydraulic cylinder piston rod extends from the piston, transferring force to move the excavator’s boom. Constructed from hardened, chrome-plated steel, it resists bending, wear, and corrosion. Its polished surface minimizes seal friction, ensuring smooth operation and durability under the extreme forces encountered in large excavators.
• Seals
  Hydraulic cylinder seals prevent hydraulic fluid leaks and contamination within the cylinder. Made from durable materials like polyurethane or rubber, they include rod seals, piston seals, and wiper seals. These components maintain pressure integrity and protect internal parts, requiring regular inspection to ensure optimal cylinder performance.
• End Caps
  Hydraulic cylinder end caps, or cylinder heads and bases, seal the barrel’s ends, containing hydraulic fluid and guiding the piston rod. Crafted from heavy-duty steel, they house ports for fluid entry and exit. Their robust design ensures structural integrity under high pressure, supporting reliable boom operation.
• Hydraulic Ports
  Hydraulic ports are openings in the cylinder barrel that allow hydraulic fluid to enter and exit. These ports control the flow of fluid to the chambers, enabling precise movement of the piston and ensuring efficient boom operation.

Large Excavator Hydraulic Boom Cylinder Applications

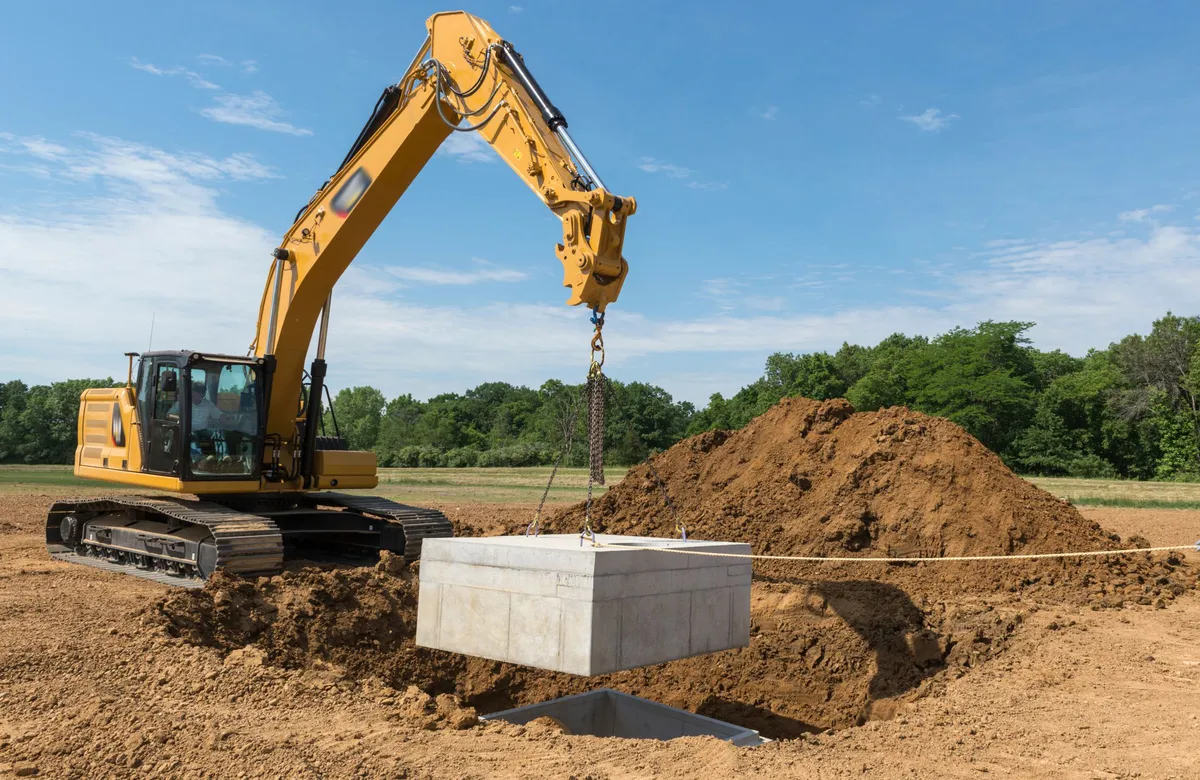

• Construction Sites
  Hydraulic boom cylinders are essential in construction projects, enabling excavators to perform tasks like digging foundations, trenching, and lifting heavy materials. Their ability to handle massive loads ensures safe and efficient operation in demanding environments.

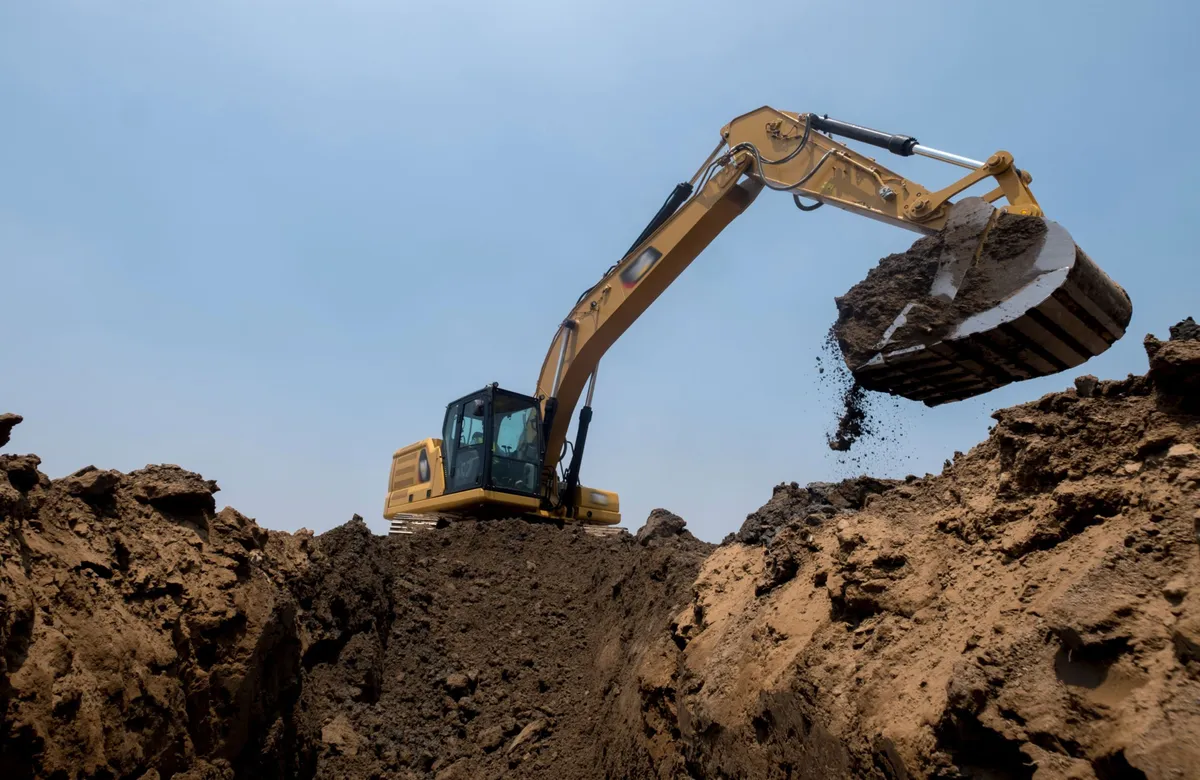

• Mining Operations
  In mining, these boom lift hydraulic cylinders power excavators used for digging and removing large volumes of soil, rocks, or ore. Their durability and precision allow machines to operate effectively in harsh conditions and extreme workloads.
• Demolition Projects
  Hydraulic boom cylinders provide the strength needed for demolition tasks, such as tearing down buildings or breaking reinforced structures. They enable precise control of the boom arm, ensuring safety and efficiency during destructive operations.
• Forestry and Logging
  In forestry, boom hydraulic cylinders assist in operating excavators for tasks like tree removal, stump extraction, and loading logs. Their robust construction and smooth movement make them ideal for handling heavy and uneven loads in rugged terrains.
• Road and Bridge Construction
  Boom hydraulic cylinders are crucial for road and bridge construction, helping excavators dig trenches, move dirt, and lift materials like concrete or steel. Their reliability ensures smooth progress in infrastructure projects requiring heavy-duty equipment.
• Waterway Dredging
  Large excavator hydraulic cylinders are used in dredging applications to remove sediments from rivers, lakes, and harbors. Their ability to handle wet, heavy materials ensures efficient excavation under waterlogged conditions while maintaining machine stability.
