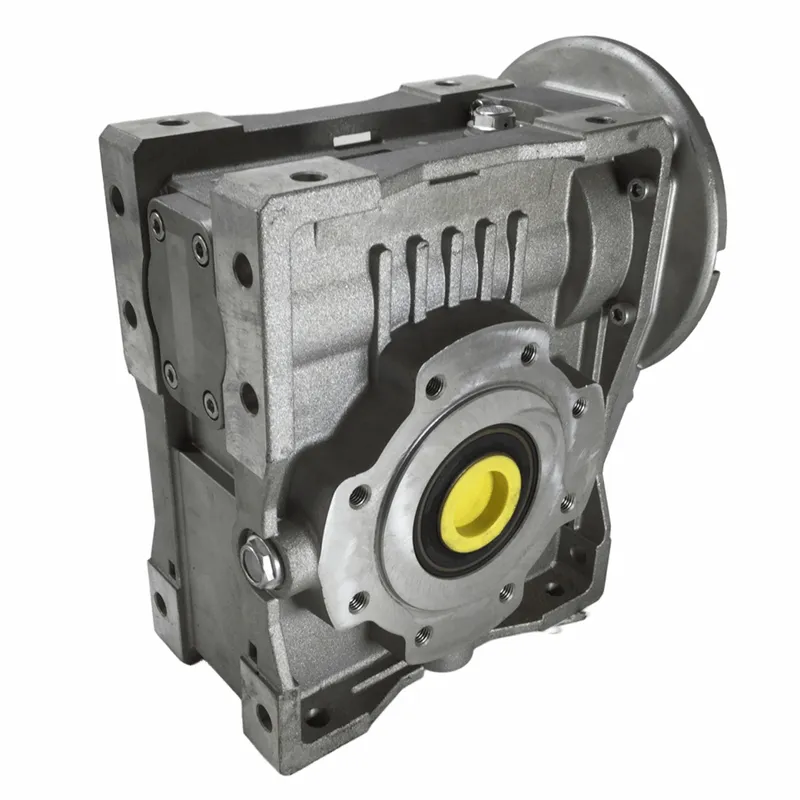

W110 Worm Gear Reducer Replacement of Bonfiglioli W110 Worm Gearbox

The W110 worm gear reducer replacement of the Bonfiglioli W110 worm gearbox is a robust and versatile right-angle gearbox designed for industrial applications requiring reliable power transmission. Known for combining quality, advanced technology, and cost-effectiveness, it features a compact design with a worm (hardened steel) and helix (bronze alloy) configuration, offering gear ratios from 7:1 to 100:1, extendable to 10,000:1 with additional stages. Its self-locking capability prevents back-driving, making it ideal for applications like conveyors, screw feeders, and bottle washers.

The W110 worm gear speed reducer provides flexible mounting options, various shaft configurations, and compatibility with asynchronous, servo, or reluctance motors. It ensures safety in harsh environments, delivering high torque, durability, and low maintenance for industries such as food and beverage, chemical, and mining.

W110 Worm Gear Reducer Dimensions

W110 Worm Gear Speed Reducer Advantages

1. Kompaktowa i oszczędzająca miejsce konstrukcja
The W110 worm gear speed reducer features a compact and lightweight design, making it suitable for installations in tight spaces. Its right-angle configuration allows for efficient power transmission while minimizing the footprint, making it an excellent choice for machinery with space constraints or complex layouts.

2. High Gear Ratio Flexibility
These worm gearboxes offer an extensive range of gear ratios from 7:1 to 100:1, which can be extended up to 10,000:1 using additional stages. This flexibility makes it highly adaptable to varied applications requiring precise speed control and torque, accommodating diverse industrial needs efficiently.

3. Self-Locking Capability for Safety
The self-locking feature of the W110 worm drive gearbox prevents back-driving, ensuring operational safety in critical applications. This is particularly beneficial for systems like conveyors or screw feeders that require stable positioning, reducing the risk of reverse motion and enhancing overall equipment reliability.

4. Durable and Robust Build
Constructed with a worm gear made of hardened steel and a helix gear crafted from a bronze alloy, the worm reducer gearbox is built to withstand wear and tear in demanding environments. Its durable materials ensure long-lasting performance, even in applications exposed to high loads and continuous operation.

5. Versatile Motor Compatibility
The W110 worm gear reducer is compatible with various motor types, including asynchronous, servo, and reluctance motors. This adaptability allows users to integrate the gearbox seamlessly into different systems, offering flexibility in choosing power sources based on specific operational requirements and efficiency goals.

6. Low Maintenance and High Efficiency
Designed for minimal upkeep, the worm gear reduction gearbox ensures reliable operation with reduced maintenance costs. Its high efficiency in power transmission helps optimize energy usage, lowering operational expenses. This makes it an economical choice for industries such as food processing, mining, and chemical manufacturing.

W110 Worm Gear Reducer Application Scenarios

1. Food and Beverage Industry
The W110 worm gear reducer is widely used in food and beverage manufacturing processes, including conveyor systems, bottle washers, and mixers. Its compact design, self-locking capability, and resistance to harsh environments ensure reliable operation and compliance with the industry's strict hygiene and safety standards.

2. Chemical Processing Industry
In chemical plants, the right angle worm gearbox is ideal for applications such as agitators, pumps, and screw feeders. Its durable construction, including corrosion-resistant materials, allows it to withstand exposure to aggressive chemicals, high temperatures, and continuous operation while maintaining precision and efficiency in demanding environments.

3. Mining and Quarrying Industry
The W110 worm reducer gearboxes are a reliable solution for heavy-duty applications in mining, including conveyors, crushers, and material handling systems. Its robust design, high torque capacity, and ability to handle high loads make it an essential component for ensuring consistent performance in harsh and abrasive conditions.

4. Packaging Industry
In packaging systems, the right angle worm gear reducer supports operations such as carton sealing, labeling, and filling. Its precise speed control, compatibility with servo motors, and compact structure make it suitable for high-speed automation processes, helping maintain accuracy and reliability in critical packaging tasks.

5. Textile Industry
The W110 worm gear reduction gearbox is used in textile machinery like spinning frames, knitting machines, and fabric processing systems. Its ability to deliver consistent torque and speed control ensures smooth and reliable operation, making it ideal for maintaining the quality and precision required in textile production.

6. Wastewater Treatment Industry
In wastewater treatment plants, the worm reduction gearbox is employed in sludge conveyors, aerators, and mixers. Its robust construction and resistance to corrosive environments enable it to handle the demanding conditions of water treatment processes, ensuring reliable performance and reducing downtime in critical applications.

Przemysł spożywczy	Chemical Industry
Mining and Quarrying Industry	Przemysł tekstylny

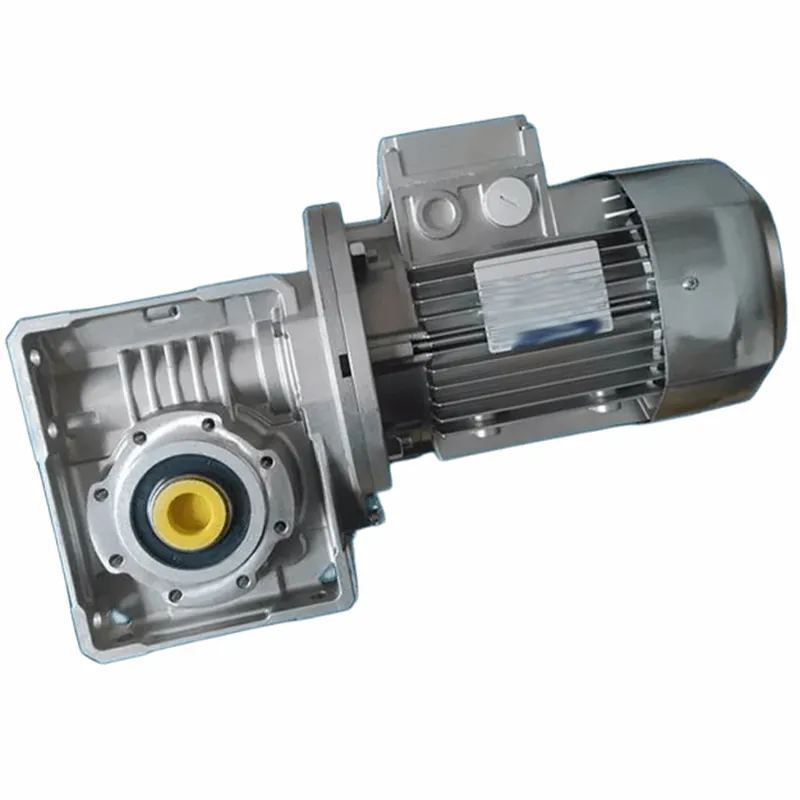

How Does a W110 Worm Drive Gearbox with Motor Work?

A W110 worm drive gearbox with a motor works by combining a worm gear and a motor to achieve controlled speed reduction, torque multiplication, and efficient power transmission in a compact design. The system is based on the interaction between a worm (a threaded screw-like shaft) and a worm wheel (a helical gear). This unique configuration enables right-angle motion transfer, making the W110 ideal for applications requiring compact and precise power delivery.

When the motor is activated, it drives the worm, which is made of hardened steel for durability. As the worm rotates, its threads engage with the teeth of the worm wheel, typically crafted from a bronze alloy to minimize friction and wear. The continuous meshing of these components reduces the input speed from the motor to the desired output speed. The gearbox can achieve a wide range of gear ratios, from 7:1 to 100:1, or even up to 10,000:1 with additional stages, allowing precise control over speed and torque.

The worm gear mechanism also exhibits a self-locking property, which prevents the worm wheel from driving the worm in reverse. This feature is particularly valuable for safety-critical applications, such as conveyors or lifts, where back-driving could cause system failure or accidents.

The W110 is designed for versatility, offering compatibility with various motor types, including asynchronous, servo, or reluctance motors. Its flexible mounting options and shaft configurations make integration into different systems seamless. The W110 worm drive gearbox with motor is a reliable and efficient solution for demanding industrial applications, ensuring long-lasting performance with minimal maintenance while delivering high torque and precision.
