Planetary Slewing Drive Gearbox for Truck-Mounted Cranes

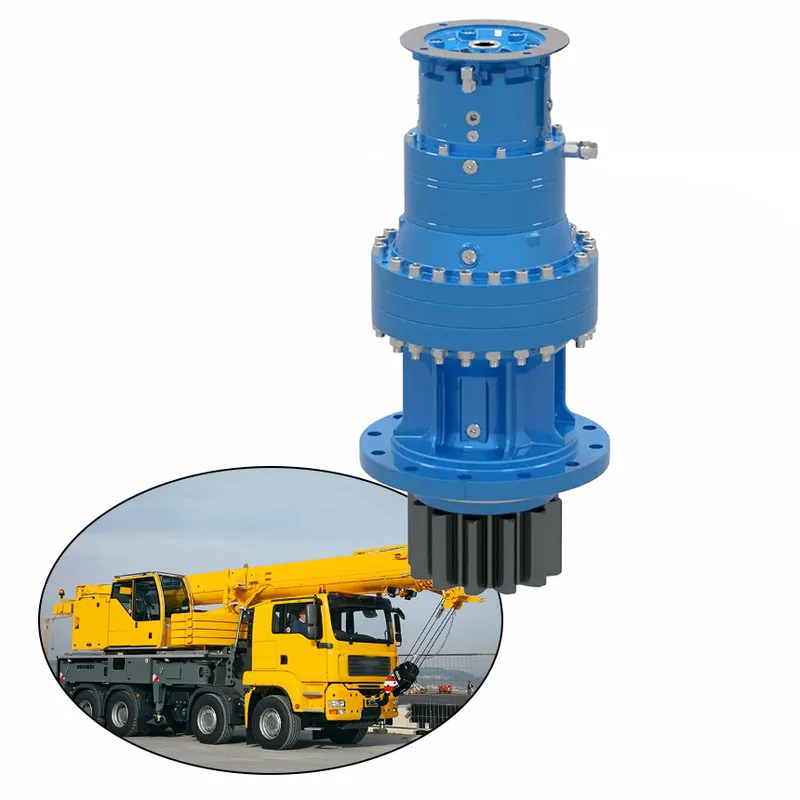

A planetary slewing drive gearbox for truck-mounted cranes is a compact, high-torque mechanical assembly designed to facilitate precise rotational movement of the crane's superstructure. It integrates a planetary gear system, where a central sun gear meshes with multiple planet gears orbiting within an outer ring gear, enabling efficient power transmission and speed reduction in a space-efficient configuration. This slewing gearbox is typically coupled with a hydraulic or electric motor and incorporates a slewing ring bearing to support heavy loads while allowing 360-degree rotation of the boom or jib. Engineered for durability in demanding construction and lifting applications, it features sealed enclosures to protect against dust, moisture, and debris, ensuring reliable performance on mobile platforms like truck-mounted cranes.

Wymiary napędu planetarnego obrotowego

RE 240

Wsparcie: DBS

Wsparcie: Tecc

Wał wielowypustowy:

Zębatki:

RE 310/510

Wsparcie: DBS

Wsparcie: Tecc

Wsparcie: T6

Wsparcie: T8

Wsparcie: T18

Wsparcie: NR

Wsparcie: NR3

Wał:

Zębatki:

RE 610

Wsparcie: DBS

Wsparcie: DBS2

Wsparcie: T18

Wał:

Zębatki:

RE 810

Wsparcie: Tecc

Wsparcie: TRecc

Wał:

Zębatki:

Features of Planetary Slewing Gearbox for Truck-Mounted Cranes

• Kompaktowa konstrukcja zapewniająca efektywne wykorzystanie przestrzeni
  The planetary slewing drive gearbox incorporates a multi-stage planetary gear system within a compact housing, optimizing space utilization on truck-mounted cranes where footprint constraints are paramount, allowing for seamless integration without compromising the vehicle's mobility or load-carrying capacity, thus enhancing overall operational versatility in confined job sites.
• High Torque Output with Gear Reduction
  Through its planetary configuration involving sun, planet, and ring gears, this planetary slewing drive delivers exceptional torque multiplication and speed reduction, enabling truck-mounted cranes to perform heavy-duty slewing operations with minimal input power, ensuring efficient handling of substantial loads while maintaining energy efficiency and system longevity.
• Precision Control and Low Backlash
  Engineered with precision-ground gears, the slewing drive planetary gearbox minimizes backlash to achieve accurate rotational positioning, which is essential for precise boom maneuvers in truck-mounted cranes, reducing operational errors and improving safety during lifting tasks in dynamic construction environments.
• Robust Durability Against Harsh Conditions
  Constructed from high-strength alloys and featuring sealed enclosures, the planetary slewing gearbox withstands extreme weather, dust, and vibrations common in truck-mounted crane applications, providing reliable performance over extended periods and minimizing the risk of mechanical failures in demanding industrial settings.
• Versatile Motor Compatibility
  This slewing planetary gearbox supports integration with hydraulic, electric, or pneumatic motors, offering flexibility for customization in truck-mounted cranes, allowing operators to adapt to specific power requirements and enhance system efficiency while facilitating upgrades or replacements without extensive modifications.

Planetary Slewing Drive Applications

• Construction Cranes and Excavators
  Planetary slewing drives are integral in construction equipment such as tower cranes and excavators, providing smooth 360-degree rotation for precise material placement, enhancing operational efficiency on building sites by handling heavy loads with minimal backlash and ensuring stability in varied terrains.
• Wind Turbine Yaw Systems
  In renewable energy applications, these drives facilitate the yaw mechanism of wind turbines, allowing the nacelle to rotate and align with wind directions for optimal energy capture, contributing to durable performance under high winds and extending the turbine's service life through robust gear designs.
• Systemy śledzenia słońca
  Planetary slewing gearboxes enable dual-axis solar trackers to follow the sun's path throughout the day, maximizing photovoltaic panel efficiency and energy output in solar farms, with their compact structure and high torque ensuring reliable operation in remote, harsh environmental conditions.
• Aerial Work Platforms and Lifts
  Utilized in boom lifts and scissor lifts for elevated work, these slewing planetary gearboxes offer controlled slewing motions essential for safe positioning of workers and equipment, incorporating sealed enclosures to protect against dust and moisture in industrial and maintenance scenarios.
• Marine and Offshore Equipment
  In ship cranes and offshore platforms, planetary slewing gearboxes support rotational functions under corrosive marine environments, delivering high load-bearing capacity and corrosion-resistant materials to ensure dependable performance during loading, unloading, and drilling operations at sea.
• Mining and Heavy Machinery
  Employed in mining drills and loaders, these planetary slewing drive gearboxes provide powerful torque for slewing heavy machinery components, improving productivity in rugged mining sites by withstanding extreme vibrations and abrasive conditions while facilitating precise control over equipment orientation.

Napęd planetarny obrotowy do koparek	Napęd planetarny obrotowy do dźwigów pokładowych
Napęd planetarny obrotowy do pomp do betonu	Napęd planetarny obrotowy do systemów śledzenia słońca

Slewing Drive Planetary Gearbox Troubleshooting

• Overheating in Planetary Slewing Drive Gearbox
  Overheating often results from inadequate lubrication, excessive load, or contaminated oil in truck-mounted cranes, leading to accelerated wear on planetary gears and bearings; troubleshoot by checking oil levels and quality, ensuring proper ventilation, replacing filters, and verifying hydraulic system pressure to prevent thermal degradation and maintain optimal performance during prolonged operations.
• Excessive Noise or Vibration During Operation
  Unusual noise or vibration in the slewing drive gearbox may stem from worn gears, loose bolts, or misalignment in the planetary system of truck-mounted cranes, compromising safety and efficiency; inspect for damaged components, tighten fasteners to specified torque, lubricate adequately, and realign the assembly to eliminate backlash and restore smooth rotational functionality.
• Oil Leakage from Seals or Housings
  Leakage in planetary slewing drives typically occurs due to deteriorated seals, overpressurization, or cracks in the housing under harsh crane environments, risking lubrication loss and contamination; examine seals for wear, replace faulty O-rings or gaskets, clean the area, and monitor fluid levels to avoid further damage and ensure sealed integrity.
• Gear Wear or Broken Teeth Issues
  Gear wear or fractures in the planetary slewing gearbox arise from overload, improper meshing, or insufficient maintenance in truck-mounted crane applications, halting operations; conduct visual inspections for pitting or scoring, replace affected planetary gears, adjust gear ratios if needed, and implement regular preventive checks to extend component lifespan and reliability.
• Failure to Rotate or Slewing Weakness
